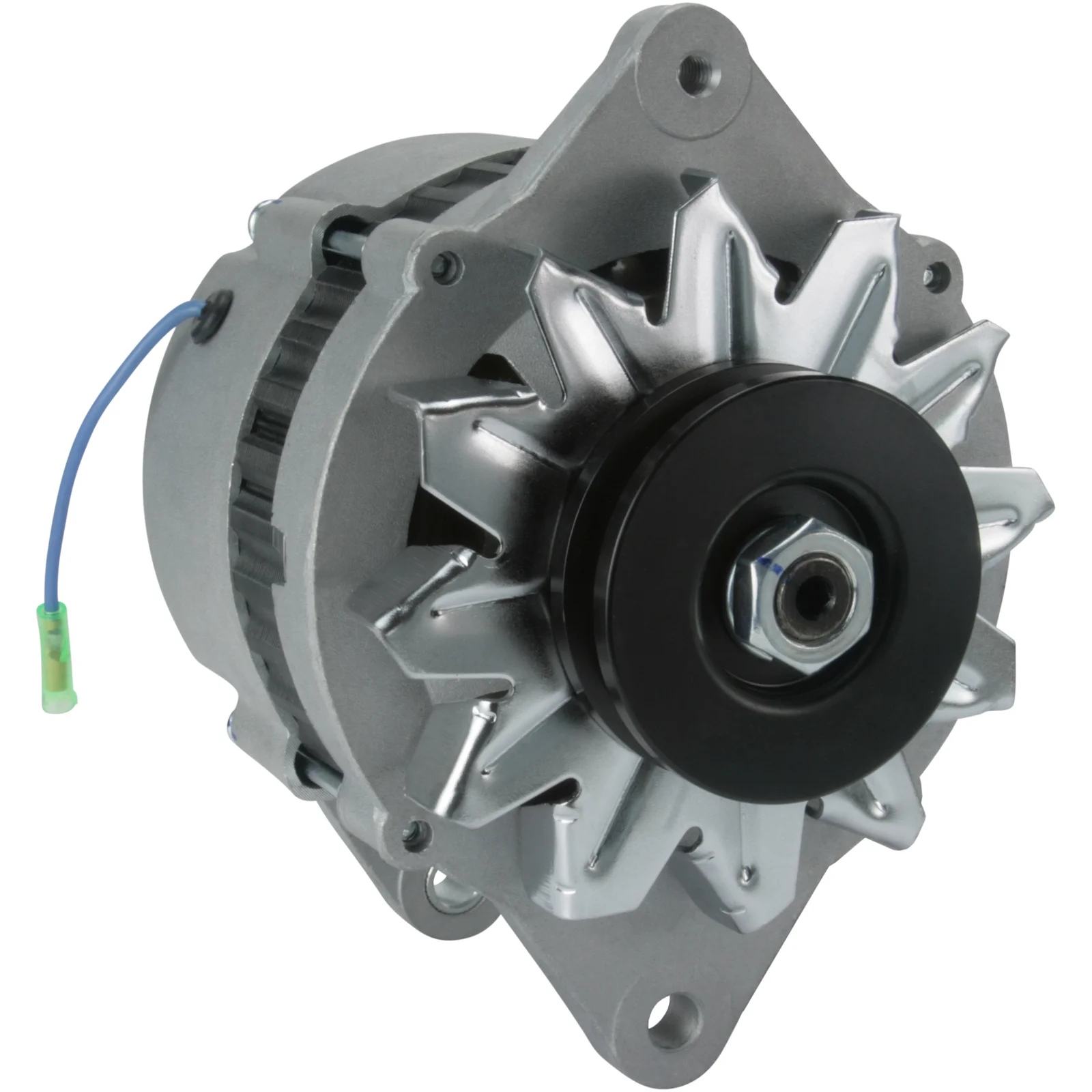

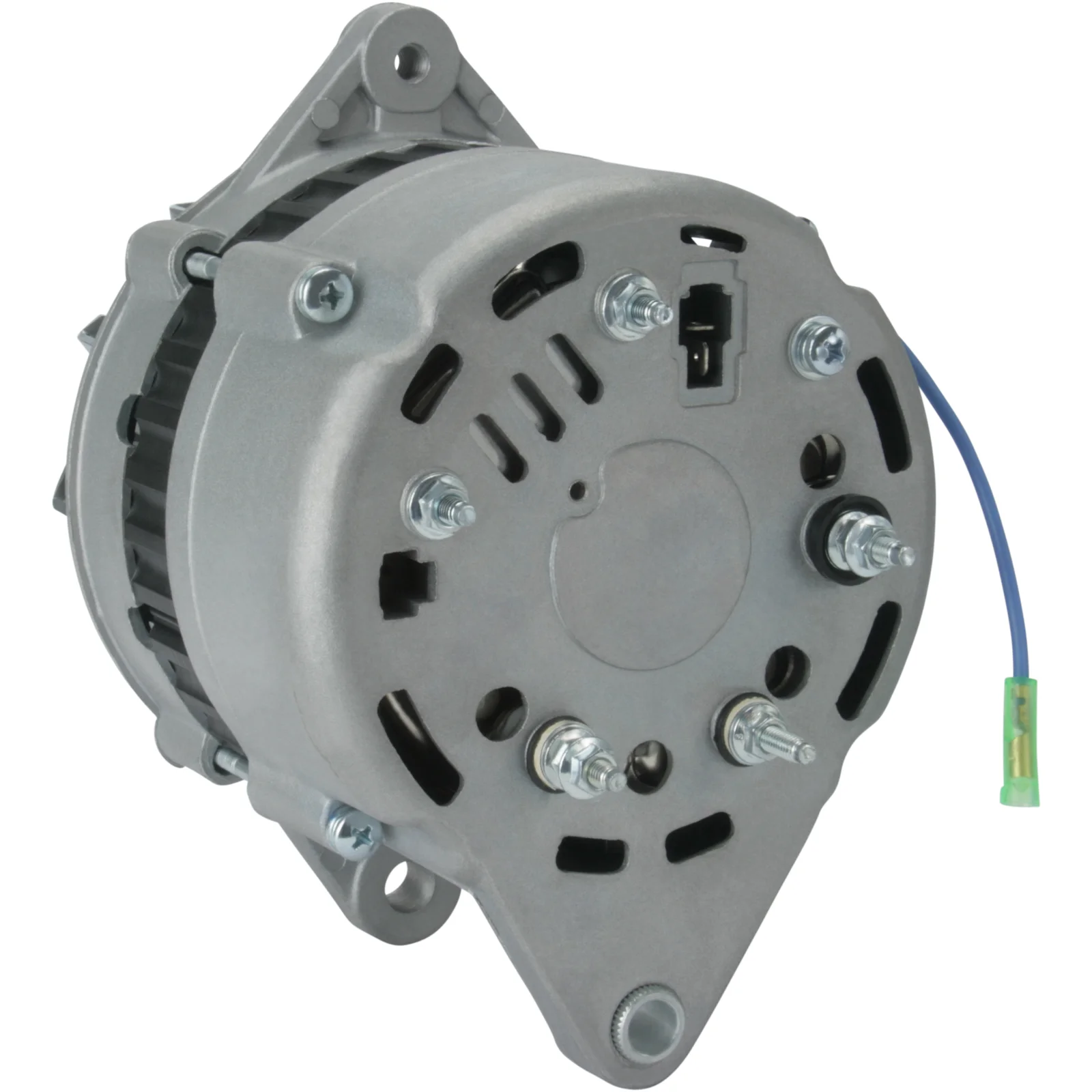

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112375

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 82.00

Description

Yanmar Marine Alternator 12V-80A 12V - 80A, insulated return, (R/L) For Yourex product order 90-678-8003

Voltage: 14
Amp: 80
Insulated return: Yes
Terminal: W
Pulley dist.: 42.50
Width/holder arm: 13.20
Mounting bracket dist.: 82.00
Bracket hole: 10.40
Belt adjustment bracket hole pos.: 60
Belt adjustment bracket hole 1: M8
Pulley dia.: 73.60
Grooves/pulley: 1
Radius: 89.00
Radius 2: 85.00
B+: M5
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL09
W plug type: Plug
Total length mm: 167.00
Pulley: P
Regulator type: IR
Product info: BN
Servicing: Yanmar

Files

  • OEM
    F032112375, LR 180-03A, LR 180-03B, LR 180-03C, LR180-03, lr180-03, LR180-03A, LR180-03B, lr180-03c, 119573-77200, 119573-77201, 129470-77200

  • Normalised article numbler
    a2120s, alt32087, cal20163, f032112375, lr18003, lr18003a, lr18003b, lr18003c, lra01632, 12272, 12272n, 13866n, 282811, 553242ri, 12060990, 582112802, 11957377200, 11957377201, 12947077200
  • Description
    Yanmar Marine Alternator 12V-80A 12V - 80A, insulated return, (R/L) For Yourex product order 90-678-8003

    Voltage: 14
    Amp: 80
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 42.50
    Width/holder arm: 13.20
    Mounting bracket dist.: 82.00
    Bracket hole: 10.40
    Belt adjustment bracket hole pos.: 60
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 73.60
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 85.00
    B+: M5
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    W plug type: Plug
    Total length mm: 167.00
    Pulley: P
    Regulator type: IR
    Product info: BN
    Servicing: Yanmar

    Files

  • Suitable for these vehicles

    • OEM
      F032112375, LR 180-03A, LR 180-03B, LR 180-03C, LR180-03, lr180-03, LR180-03A, LR180-03B, lr180-03c, 119573-77200, 119573-77201, 129470-77200

    • Normalised article numbler
      a2120s, alt32087, cal20163, f032112375, lr18003, lr18003a, lr18003b, lr18003c, lra01632, 12272, 12272n, 13866n, 282811, 553242ri, 12060990, 582112802, 11957377200, 11957377201, 12947077200
