HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112394

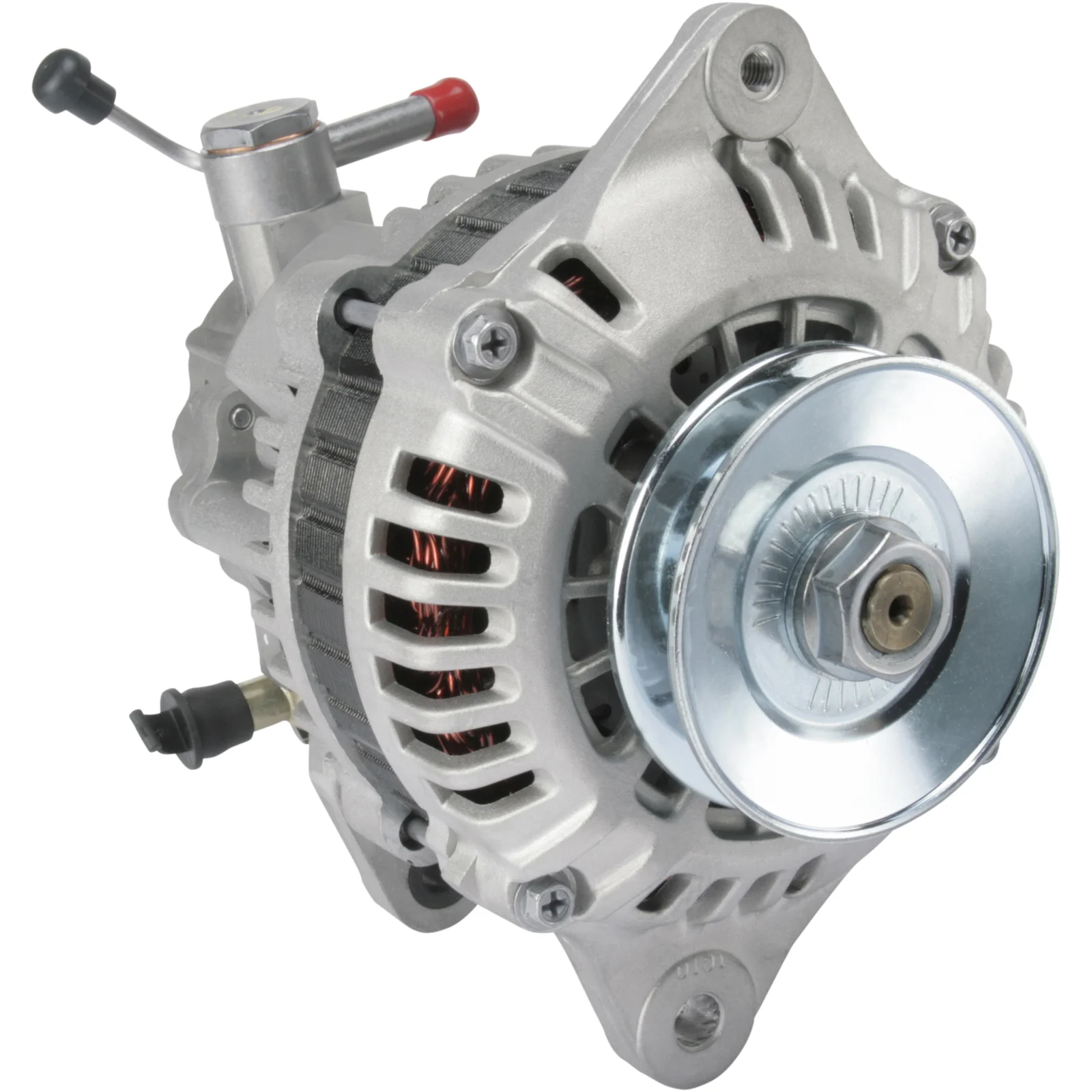

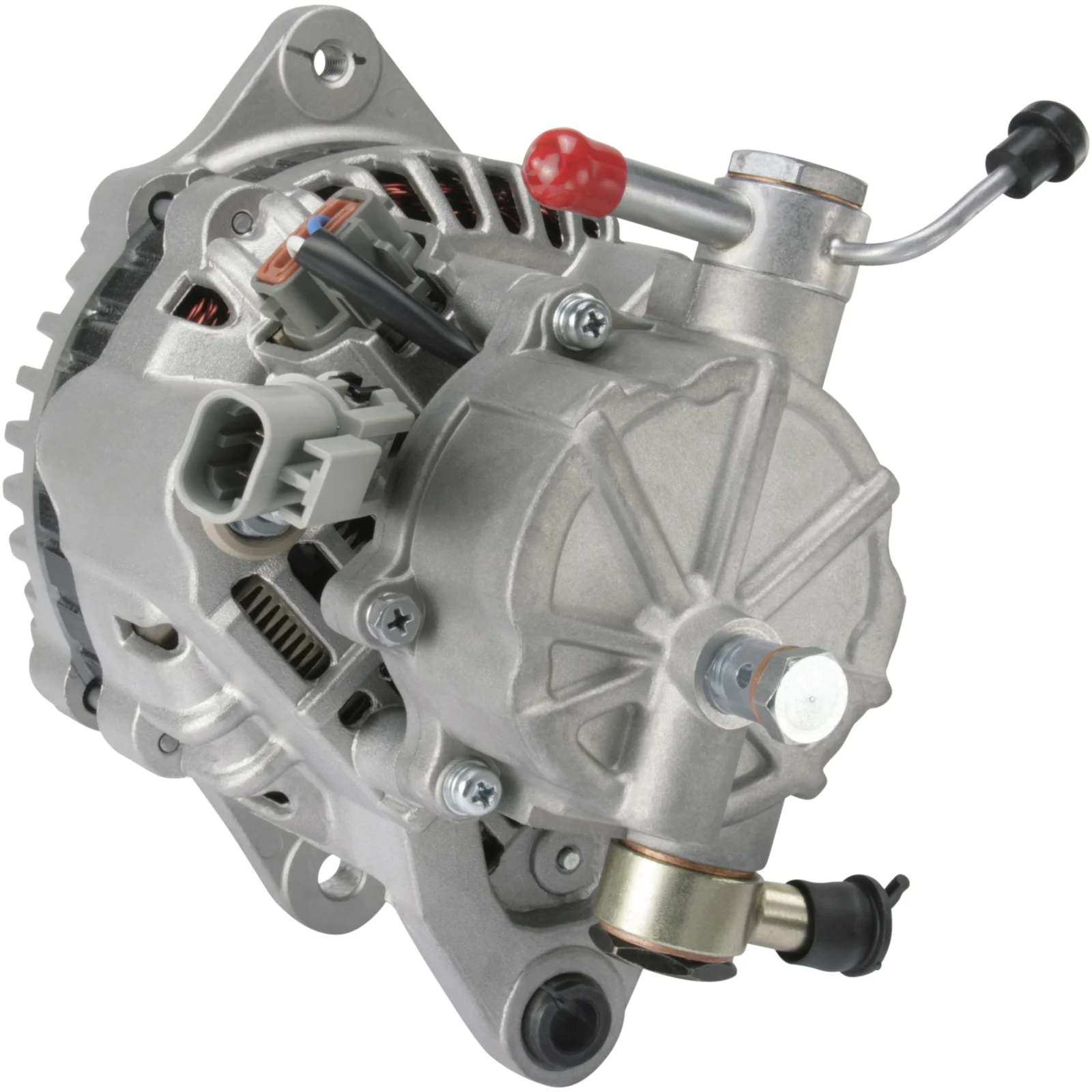

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distance: 80.00

Description

Voltage: 14
Amp: 70
Pulley diameter: 42.00
Width/holder arm: 13.50
Mounting bracket distance: 80.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 80.60
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL121
W plug type: M5
Total length mm: 234.00
Terminal type: L-W
Pulley: P
Fan: IF
Regulator type: IR
Vacuum pump: Yes
Product info: BN
Servicing: Nissan

Files

  • OEM
    F032112394, ja1603ir, 6033gb4018, 23100-69t10, 23100-69t20, 1516879R, 9120334642

  • Normalised article numbler
    a3612s, cal45116, dra0343, f032112394, ja1603ir, lra01880, 8el011711741, 6033gb4018, 22880r, 119966, 210456, 210456a, 283745, 401603ri, 1516879r, 2310069t10, 2310069t20, 9990441, 12060875, 527117702, 0986049730, 9120334642
  • Description
    Voltage: 14
    Amp: 70
    Pulley diameter: 42.00
    Width/holder arm: 13.50
    Mounting bracket distance: 80.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 80.60
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 48
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL121
    W plug type: M5
    Total length mm: 234.00
    Terminal type: L-W
    Pulley: P
    Fan: IF
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032112394, ja1603ir, 6033gb4018, 23100-69t10, 23100-69t20, 1516879R, 9120334642

    • Normalised article numbler
      a3612s, cal45116, dra0343, f032112394, ja1603ir, lra01880, 8el011711741, 6033gb4018, 22880r, 119966, 210456, 210456a, 283745, 401603ri, 1516879r, 2310069t10, 2310069t20, 9990441, 12060875, 527117702, 0986049730, 9120334642
