Article no.: F032112447

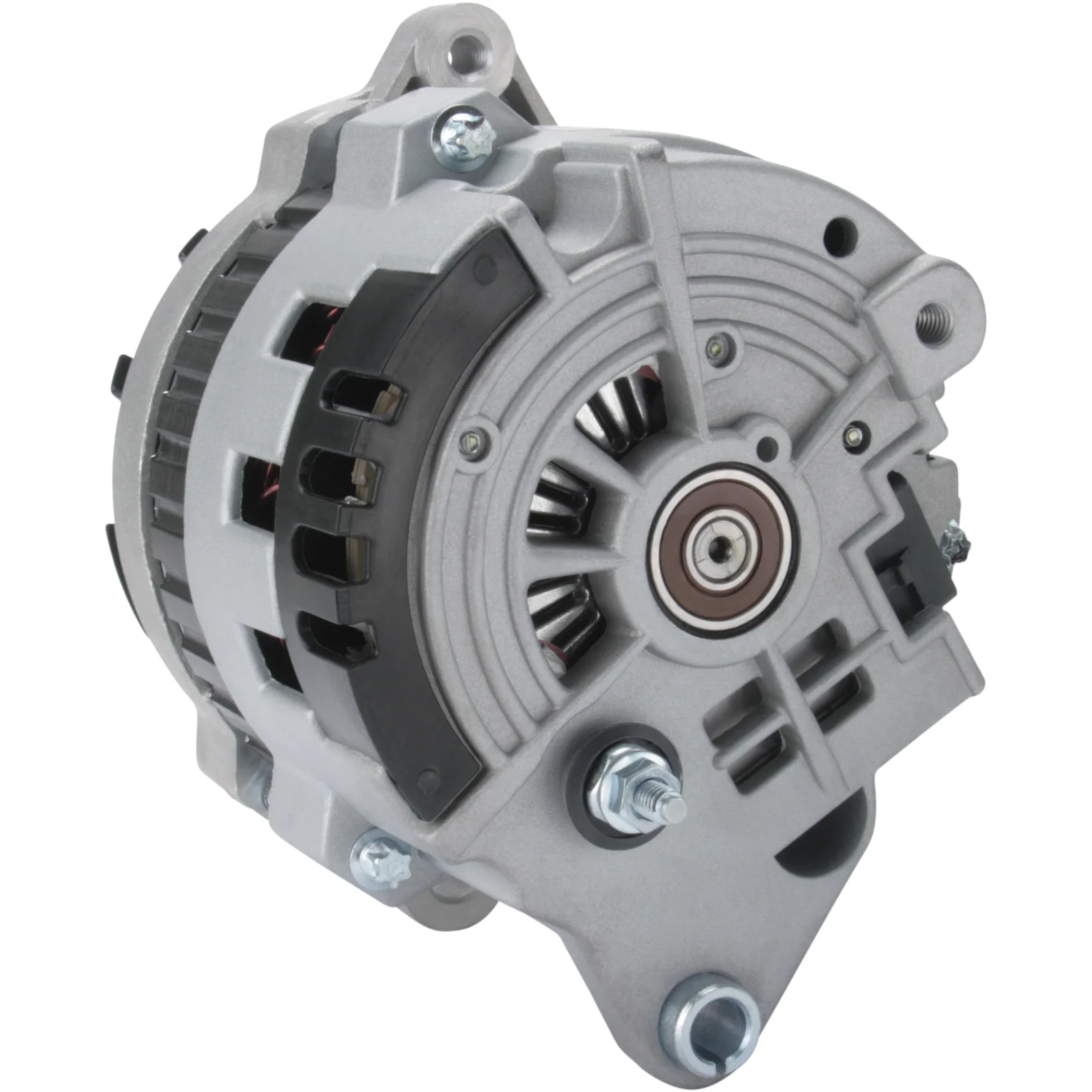

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Mount. bracket dist.: 81.80

Description

Voltage: 14
Amp: 105
Pulley dist.: 33.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.80
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.70
Grooves/pulley: 6
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in min.: 35
D+ Size: Plug
Rotation: CW
Plug no.: PL24
Total length mm: 172.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Dodge
Remarks: Replacing: CS130.

Files

  • OEM
    F032112447, 1101266, 1101267, 1102644, 4609003, 33002941

  • Normalised article numbler
    al656x, alt1317a, drz0172, f032112447, f042300107, f042a00107, 7972, 7973, 7973n, 7973r, 56484, 553072ri, 1101266, 1101267, 1102644, 1165001dr, 1165101dr, 2018210, 2018211, 4609003, 20182111, 33002941
  • Description
    Voltage: 14
    Amp: 105
    Pulley dist.: 33.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.80
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.70
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in min.: 35
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL24
    Total length mm: 172.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Dodge
    Remarks: Replacing: CS130.

    Files

  • Suitable for these vehicles

    • OEM
      F032112447, 1101266, 1101267, 1102644, 4609003, 33002941

    • Normalised article numbler
      al656x, alt1317a, drz0172, f032112447, f042300107, f042a00107, 7972, 7973, 7973n, 7973r, 56484, 553072ri, 1101266, 1101267, 1102644, 1165001dr, 1165101dr, 2018210, 2018211, 4609003, 20182111, 33002941
