HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112357

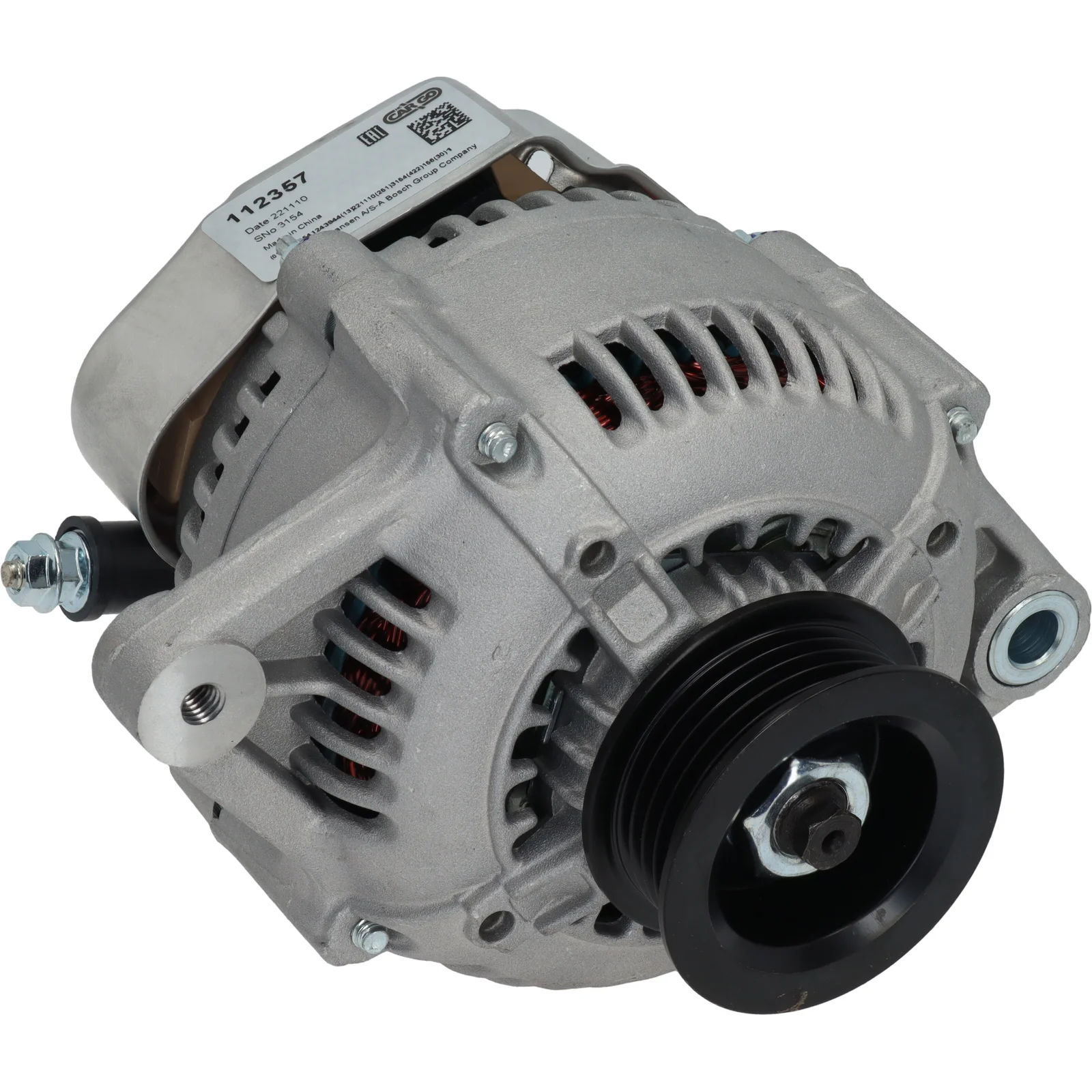

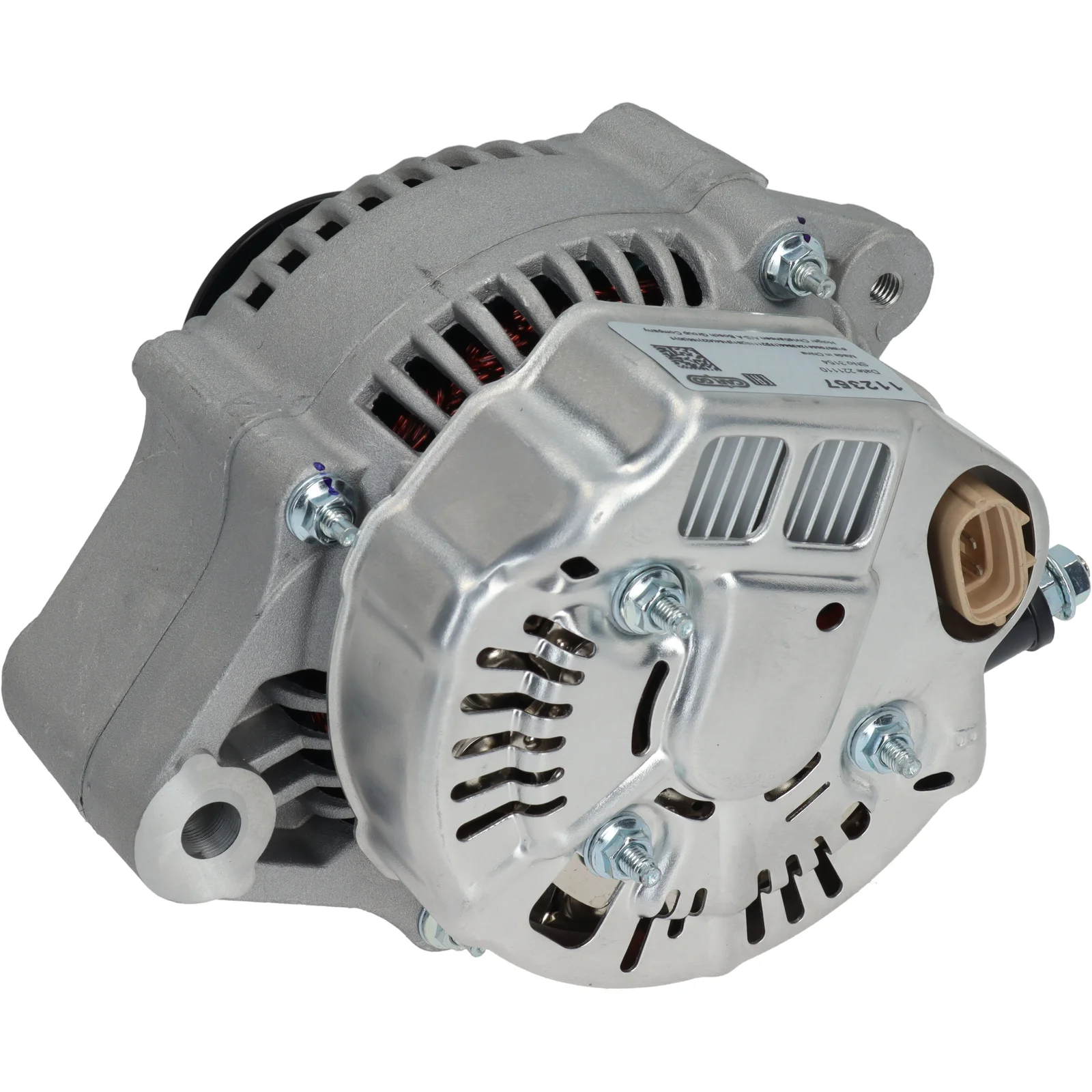

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 55.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. bracket hole pos.: 59
Belt. adj. bracket hole 1: M8
Alternator dia.: 55.00
Grooves/pulley: 5
Radius: 78.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL42
Total length mm: 167.00
Alternator: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032112357, ja1535ir, 1986A01820, 27060-75100, 27060-75150, 101211-0520, 101211-0521, 101211-0522, 102211-5050, 102211-5051, 102211-5052

  • Normalised article numbler
    a6350, alt30066, alth097, dra0278, f032112357, f042a0h097, j5112098, ja1535ir, lra01816, 8el737838001, 1986a01820, 13673n, 119949, 209141, 209141a, 283635, 401535ri, 9051298, 9213251, 12060422, 235157702, 0986080010, 1012110520, 1012110521, 1012110522, 1022115050, 1022115051, 1022115052, 2706075100, 2706075150, 944390512980
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 90.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. bracket hole pos.: 59
    Belt. adj. bracket hole 1: M8
    Alternator dia.: 55.00
    Grooves/pulley: 5
    Radius: 78.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL42
    Total length mm: 167.00
    Alternator: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032112357, ja1535ir, 1986A01820, 27060-75100, 27060-75150, 101211-0520, 101211-0521, 101211-0522, 102211-5050, 102211-5051, 102211-5052

    • Normalised article numbler
      a6350, alt30066, alth097, dra0278, f032112357, f042a0h097, j5112098, ja1535ir, lra01816, 8el737838001, 1986a01820, 13673n, 119949, 209141, 209141a, 283635, 401535ri, 9051298, 9213251, 12060422, 235157702, 0986080010, 1012110520, 1012110521, 1012110522, 1022115050, 1022115051, 1022115052, 2706075100, 2706075150, 944390512980
