HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116216

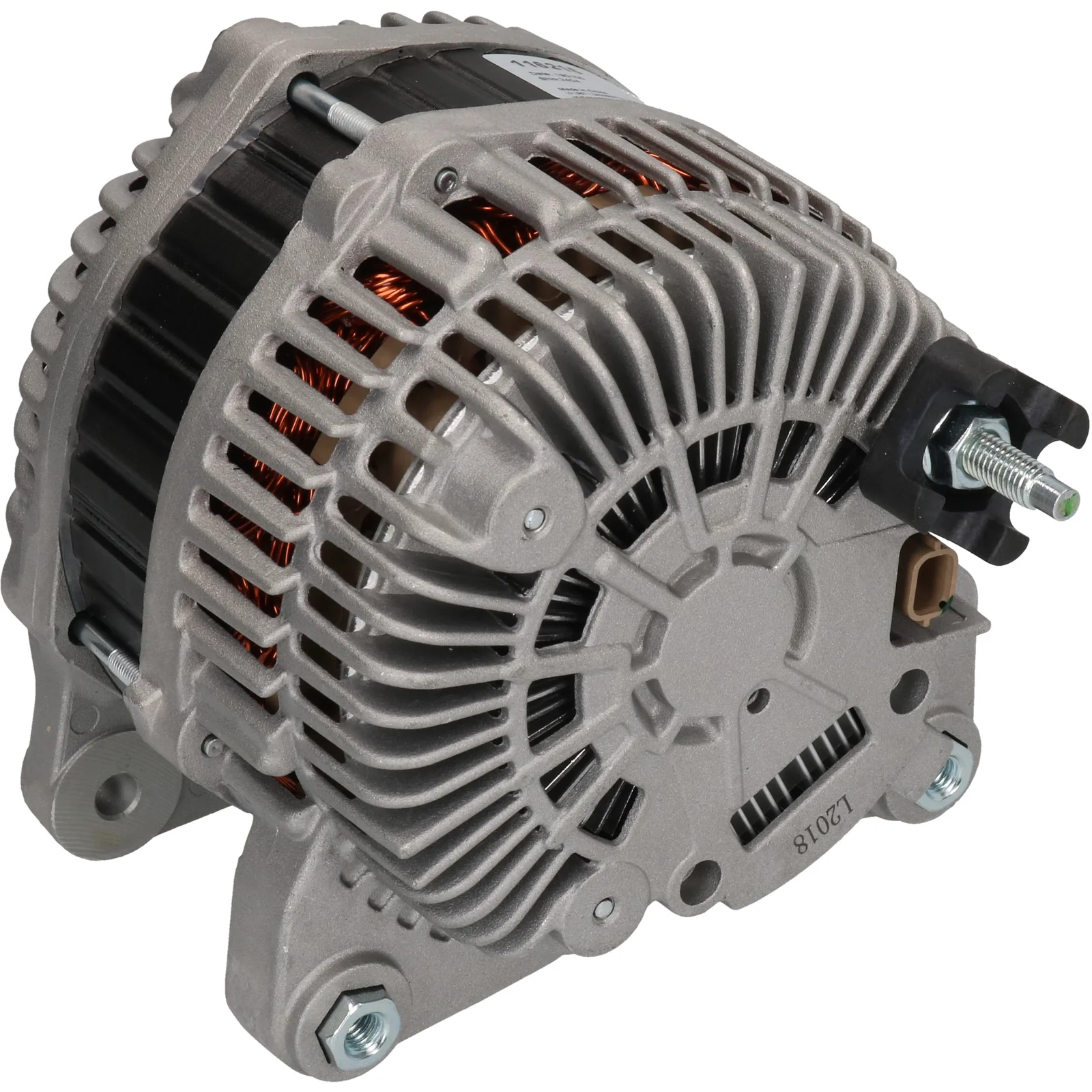

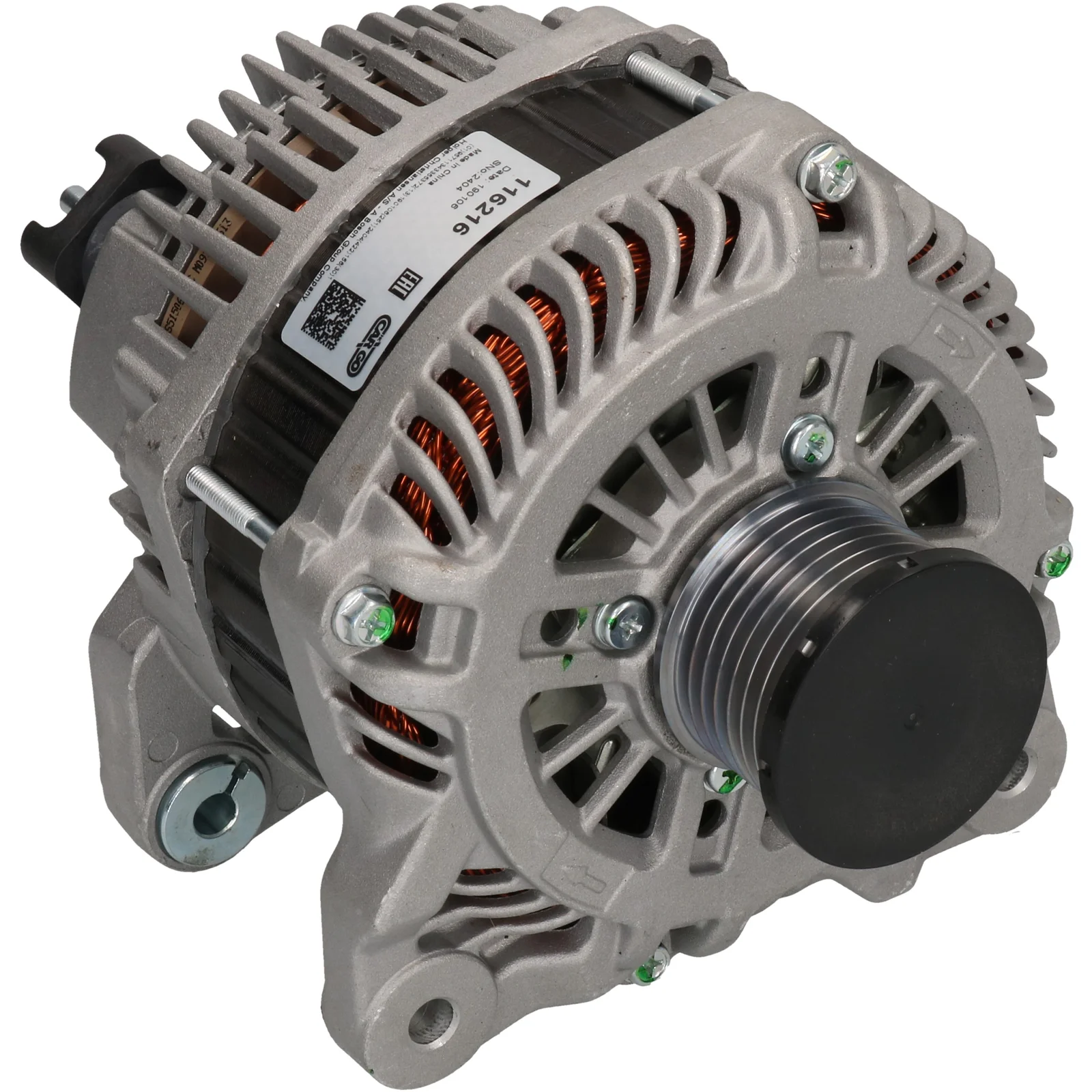

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 210, Rotation: CW, Mount. bracket dist.: 60.00

Description

Voltage: 14
Amp: 210
Pulley diameter: 32.50
Width/holder arm: 14.50
Mounting bracket distance: 60.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 1
Rotation: CW
Plug no.: PL124
Total length mm: 200.00
Terminal type: COM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A004TJ0281, A004TJ0281ZE, A004TJ0282, A004TJ0282AM, A004TJ0282ZE, A4TJ0281, a4tj0282, A4TJ0282AM, A4TJ0282ZE, F032116216, 1986A01333, 23100-4470R, 7711368888, 8200404465, 8200571531, 8200654785, 8200654785B, 8200960536

  • Normalised article numbler
    a004tj0281, a004tj0281ze, a004tj0282, a004tj0282am, a004tj0282ze, a4tj0281, a4tj0282, a4tj0282am, a4tj0282ze, a5228, dra0381, f032116216, f042205114, 1986a01333, 20778n, 20778nos, 20778r, 210951, 210951a, 285738, 440908, 443372, 12090287, 32005005, 231004470r, 0986081980, 7711368888, 8200404465, 8200571531, 8200654785, 8200654785b, 8200960536
  • Description
    Voltage: 14
    Amp: 210
    Pulley diameter: 32.50
    Width/holder arm: 14.50
    Mounting bracket distance: 60.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 1
    Rotation: CW
    Plug no.: PL124
    Total length mm: 200.00
    Terminal type: COM
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A004TJ0281, A004TJ0281ZE, A004TJ0282, A004TJ0282AM, A004TJ0282ZE, A4TJ0281, a4tj0282, A4TJ0282AM, A4TJ0282ZE, F032116216, 1986A01333, 23100-4470R, 7711368888, 8200404465, 8200571531, 8200654785, 8200654785B, 8200960536

    • Normalised article numbler
      a004tj0281, a004tj0281ze, a004tj0282, a004tj0282am, a004tj0282ze, a4tj0281, a4tj0282, a4tj0282am, a4tj0282ze, a5228, dra0381, f032116216, f042205114, 1986a01333, 20778n, 20778nos, 20778r, 210951, 210951a, 285738, 440908, 443372, 12090287, 32005005, 231004470r, 0986081980, 7711368888, 8200404465, 8200571531, 8200654785, 8200654785b, 8200960536
