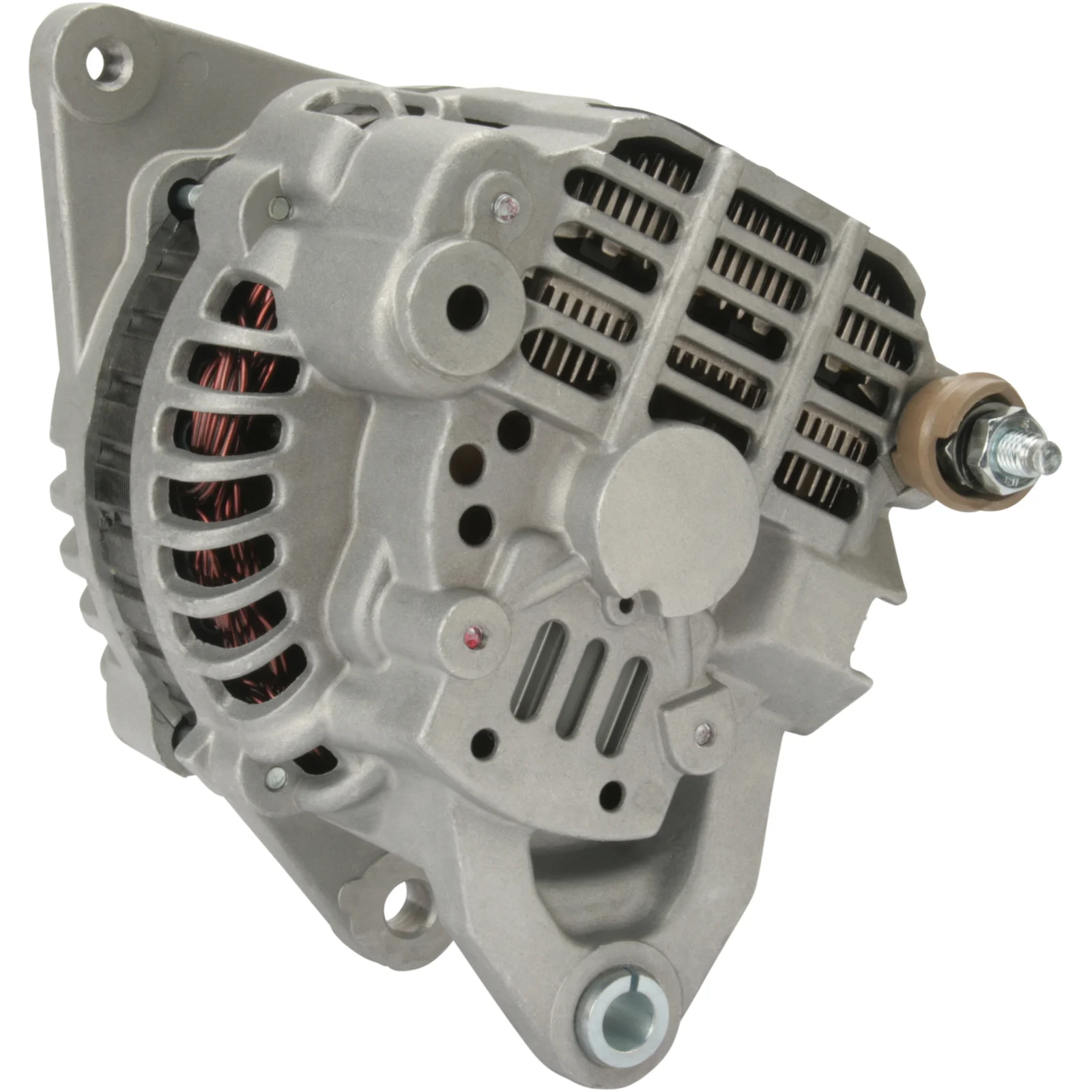

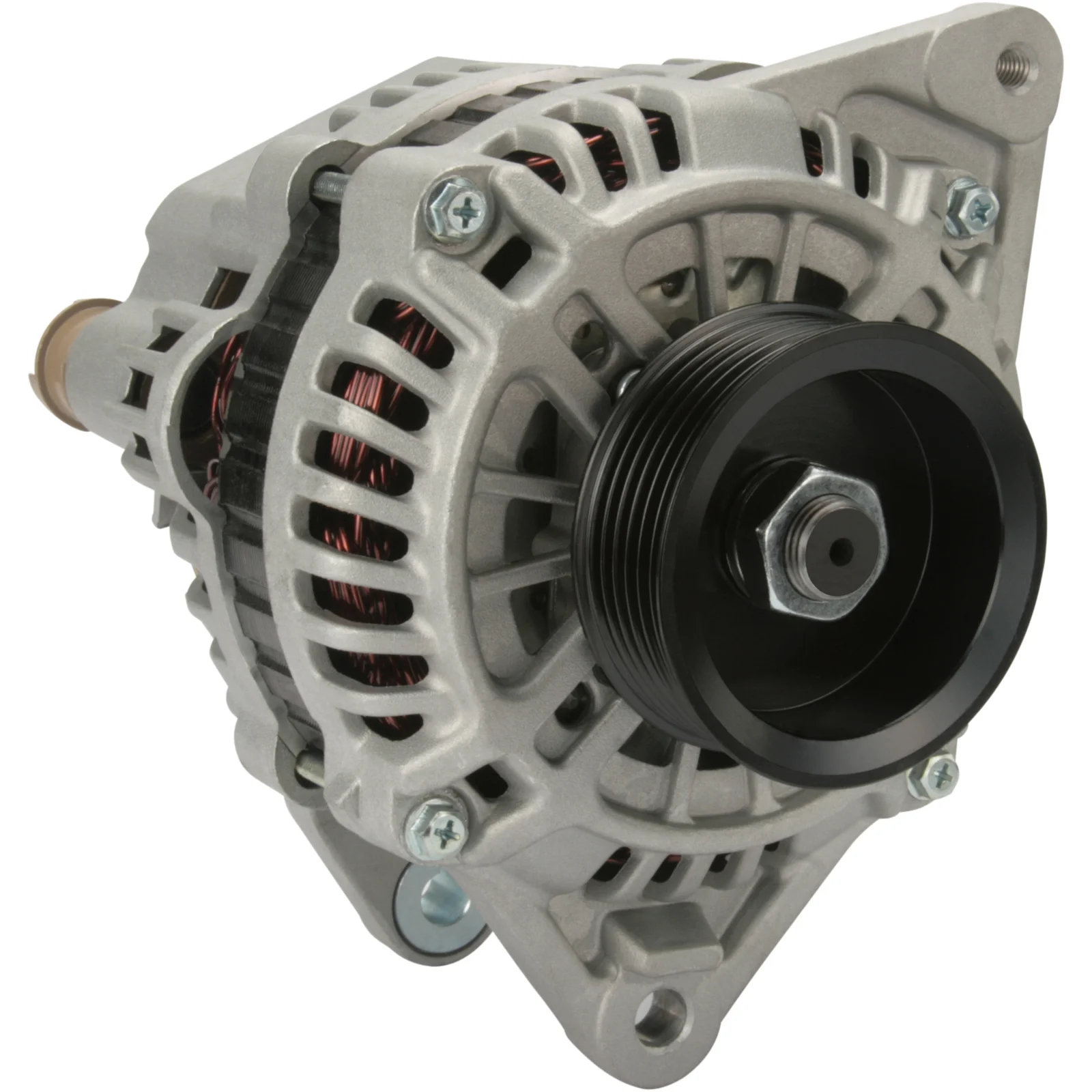

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114229

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 66.00

Description

Mitsubishi L200 Alternator 12V-120A 12V - 120A, 6 grooves, (G, S, L, F) A - 65mm For Yourex product order 90-380-3133 Voltage: 14 Amp: 120 Pulley distance: 39.00 Width/holder arm: 13.00 Mounting bracket distance: 66.00 Bracket hole: 10.30 Belt adjustment bracket hole position: 6 Belt adjustment bracket hole 1: M8 Pulley diameter: 65.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 96.00 B+: M8 Position/B+ in min.: 15 D+ Size: Plug Rotation: CW Plug no.: PL68 Pulley: SP Regulator type: IR Product info: BN

Files

  • OEM
    A003TG3391ZT, A3T-G3391, A3T-G3391ZT, A3TG3391, A3TG3391ZT, F032114229, 1800A008, 2112ir, 114229

  • Normalised article numbler
    a003tg3391zt, a3tg3391, a3tg3391zt, a5207, cal35298, dra0909, dra0909n, f032114229, lra03338, 1800a008, 2112ir, 20160n, 114229, 285950, 553921ri, 12061071, 0986082720, 2261871202
  • Description
    Mitsubishi L200 Alternator 12V-120A 12V - 120A, 6 grooves, (G, S, L, F) A - 65mm For Yourex product order 90-380-3133 Voltage: 14 Amp: 120 Pulley distance: 39.00 Width/holder arm: 13.00 Mounting bracket distance: 66.00 Bracket hole: 10.30 Belt adjustment bracket hole position: 6 Belt adjustment bracket hole 1: M8 Pulley diameter: 65.00 Grooves/pulley: 6 Radius: 90.00 Radius 2: 96.00 B+: M8 Position/B+ in min.: 15 D+ Size: Plug Rotation: CW Plug no.: PL68 Pulley: SP Regulator type: IR Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TG3391ZT, A3T-G3391, A3T-G3391ZT, A3TG3391, A3TG3391ZT, F032114229, 1800A008, 2112ir, 114229

    • Normalised article numbler
      a003tg3391zt, a3tg3391, a3tg3391zt, a5207, cal35298, dra0909, dra0909n, f032114229, lra03338, 1800a008, 2112ir, 20160n, 114229, 285950, 553921ri, 12061071, 0986082720, 2261871202
