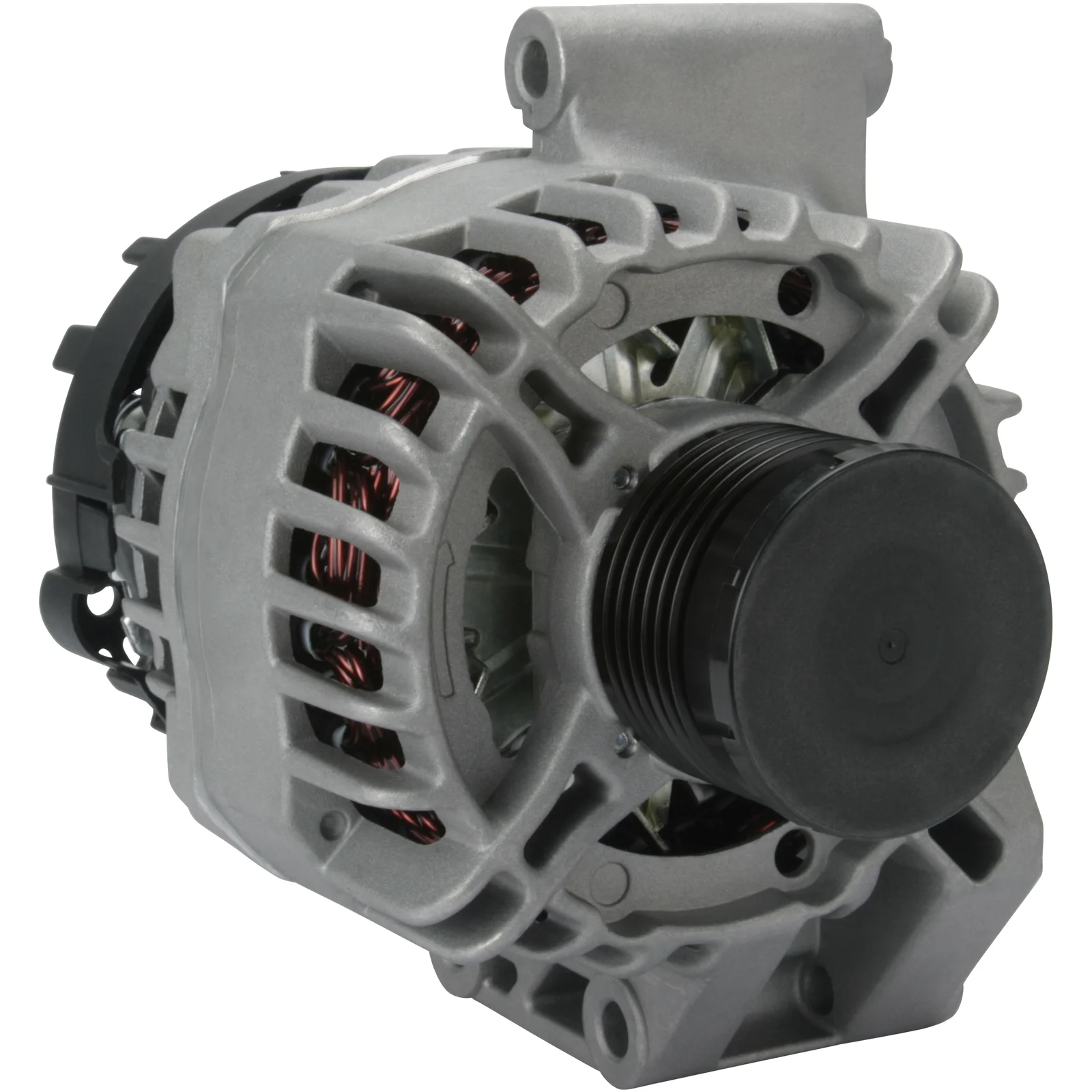

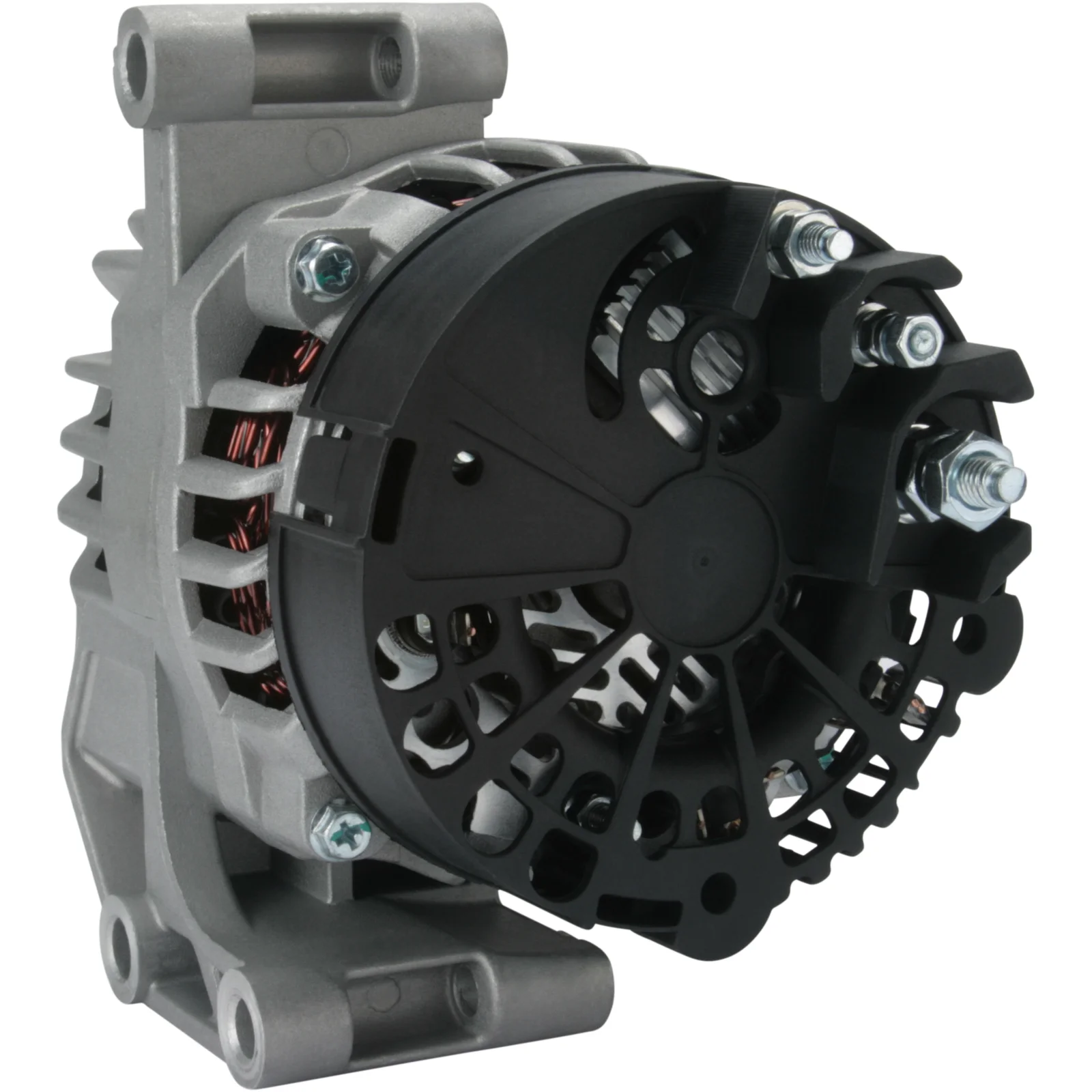

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115308

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 54.50

Description

Opel Astra Alternator 12V-120A 12V - 120A, 6-blade, (B+, D+, DFM) For Yourex product order 90-430-7495

Voltage: 14
Amp: 120
Pulley distance: 41.00
Width/holder arm: 64.50
Mounting bracket distance: 54.50
Bracket hole: 8.00
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 53.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 15
D+ Size: M5
Rotation: CW
Plug no.: PL130
Pulley: SP/FW
Regulator type: IR
Product info: BN

Files

  • OEM
    F032115308, TG12C239, 1935ir, 102211-8630, 102211-8631, 102211-8632, 115308, 6204201, 6204273, 6204280, 13153237, 13256928, 63377495, 93183381, 93190915

  • Normalised article numbler
    a6203, a6478denso, cal30237, dan1034, dra0247, f032115308, lra03068, man7495, tg12c239, 8el011712531, 8el738212801, 1935ir, 24068, 24068n, 113301, 115308, 210833, 210833a, 285680, 301935ri, 440941, 443050, 443289, 6204201, 6204273, 6204280, 9090668, 12090278, 13153237, 13256928, 063377495, 63377495, 93183381, 93190915, 135538120, 0986084160, 1022118630, 1022118631, 1022118632, 2281761202, 63377004010, 063377495010
  • Description
    Opel Astra Alternator 12V-120A 12V - 120A, 6-blade, (B+, D+, DFM) For Yourex product order 90-430-7495

    Voltage: 14
    Amp: 120
    Pulley distance: 41.00
    Width/holder arm: 64.50
    Mounting bracket distance: 54.50
    Bracket hole: 8.00
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 53.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 15
    D+ Size: M5
    Rotation: CW
    Plug no.: PL130
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115308, TG12C239, 1935ir, 102211-8630, 102211-8631, 102211-8632, 115308, 6204201, 6204273, 6204280, 13153237, 13256928, 63377495, 93183381, 93190915

    • Normalised article numbler
      a6203, a6478denso, cal30237, dan1034, dra0247, f032115308, lra03068, man7495, tg12c239, 8el011712531, 8el738212801, 1935ir, 24068, 24068n, 113301, 115308, 210833, 210833a, 285680, 301935ri, 440941, 443050, 443289, 6204201, 6204273, 6204280, 9090668, 12090278, 13153237, 13256928, 063377495, 63377495, 93183381, 93190915, 135538120, 0986084160, 1022118630, 1022118631, 1022118632, 2281761202, 63377004010, 063377495010
