HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114831

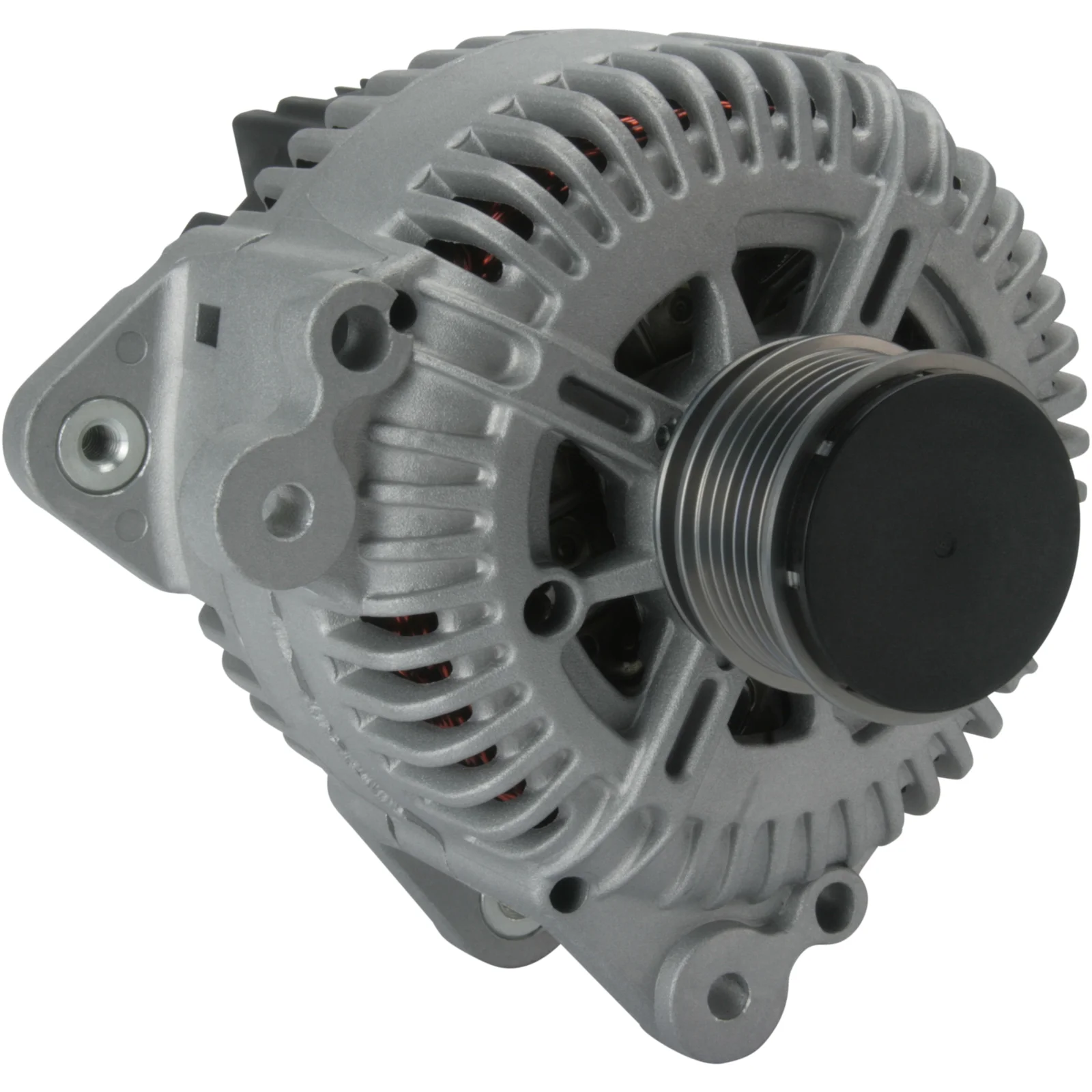

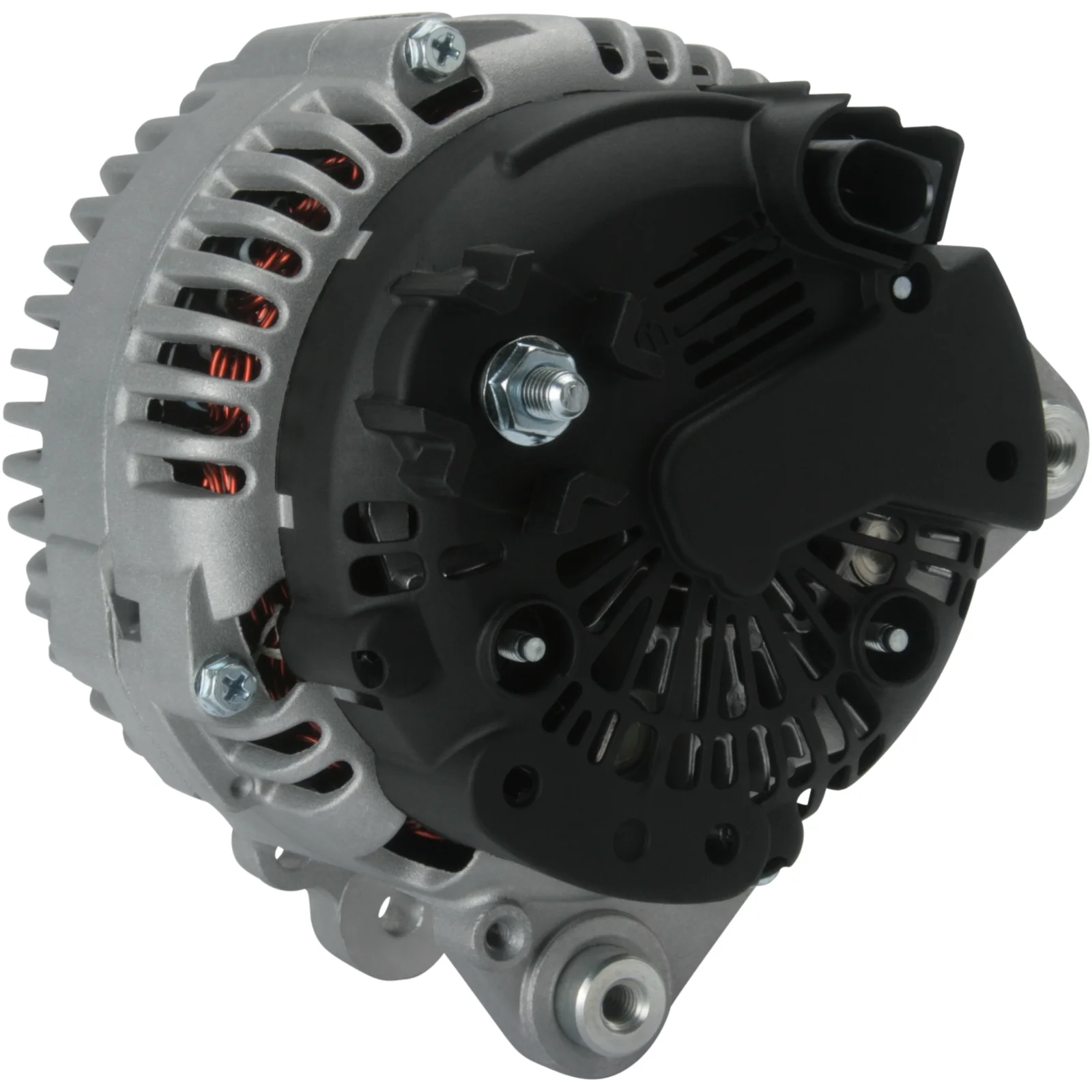

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 39.50
Width/holder arm: 14.00
Mount. bracket dist.: 61.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.30
Pulley dia.: 55.80
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL86
Total length mm: 195.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032114831, tg17c024, tg17c054, 03g903016a, 1910ir, 2542827, 2543374

  • Normalised article numbler
    a3209s, a3209valeo, cal15176, dra0202, f032114831, lra03176, tg17c024, tg17c054, 03g903016a, 8el012429811, 8el738211691, 1910ir, 4650, 20444r, 113359, 209423, 209423a, 285788, 301910ri, 437542, 747130, 2542827, 2543374, 9213138, 12090317, 32000017, 0986084250, 2113641802
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 39.50
    Width/holder arm: 14.00
    Mount. bracket dist.: 61.00
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.30
    Pulley dia.: 55.80
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL86
    Total length mm: 195.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032114831, tg17c024, tg17c054, 03g903016a, 1910ir, 2542827, 2543374

    • Normalised article numbler
      a3209s, a3209valeo, cal15176, dra0202, f032114831, lra03176, tg17c024, tg17c054, 03g903016a, 8el012429811, 8el738211691, 1910ir, 4650, 20444r, 113359, 209423, 209423a, 285788, 301910ri, 437542, 747130, 2542827, 2543374, 9213138, 12090317, 32000017, 0986084250, 2113641802
