HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114392

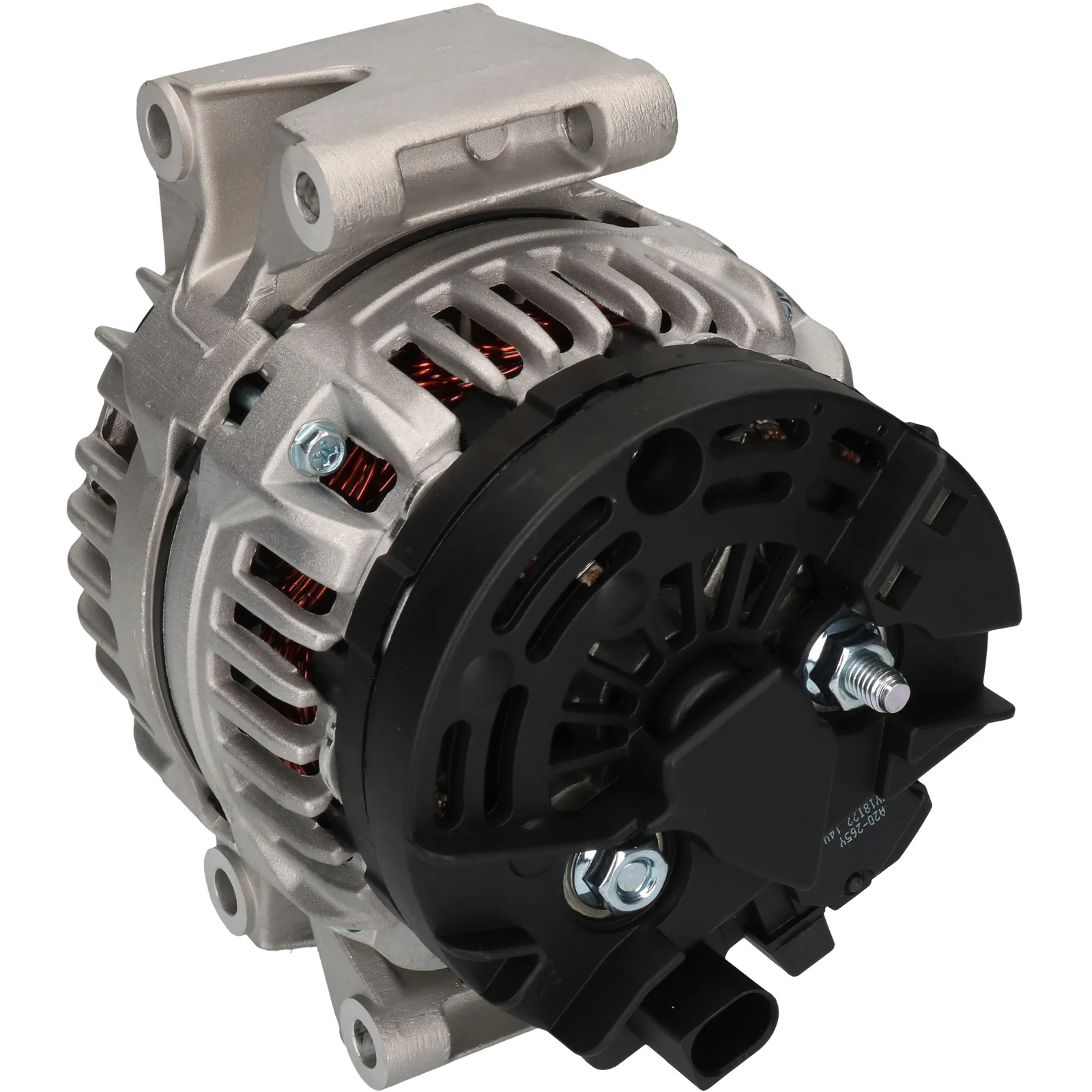

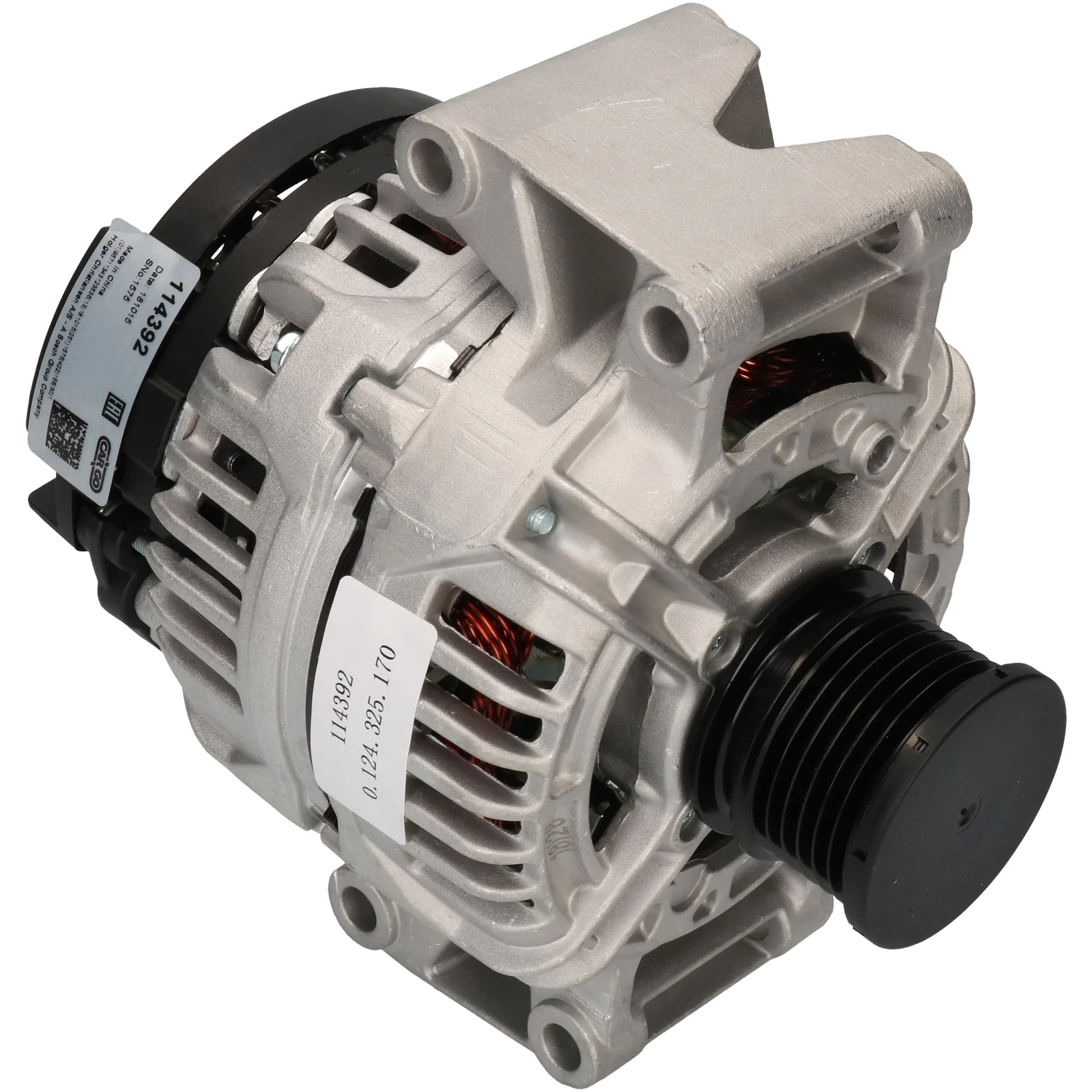

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distance: 56.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 31.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.30
Bracket hole 2: 9.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 45
Rotation: CW
Spark plug no.: PL166
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM code is used to check suitability before ordering.

Files

  • OEM
    a6461540002, A646154000280, F032114392, 1986A00808, 0124325169, 0124325170, 6461540002, 646154000280

  • Normalised article numbler
    a0242, a6461540002, a646154000280, cal10325, drb7840, f032114392, lea0781, 8el011713241, 1986a00808, 20006n, 20006r, 209082, 209082a, 285888, 440799, 440800, 443002, 443059, 443300, 12047840, 32047840, 0124325169, 0124325170, 0986047840, 0986047843, 6461540002, 646154000280
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 31.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.30
    Bracket hole 2: 9.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Spark plug no.: PL166
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM code is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a6461540002, A646154000280, F032114392, 1986A00808, 0124325169, 0124325170, 6461540002, 646154000280

    • Normalised article numbler
      a0242, a6461540002, a646154000280, cal10325, drb7840, f032114392, lea0781, 8el011713241, 1986a00808, 20006n, 20006r, 209082, 209082a, 285888, 440799, 440800, 443002, 443059, 443300, 12047840, 32047840, 0124325169, 0124325170, 0986047840, 0986047843, 6461540002, 646154000280
