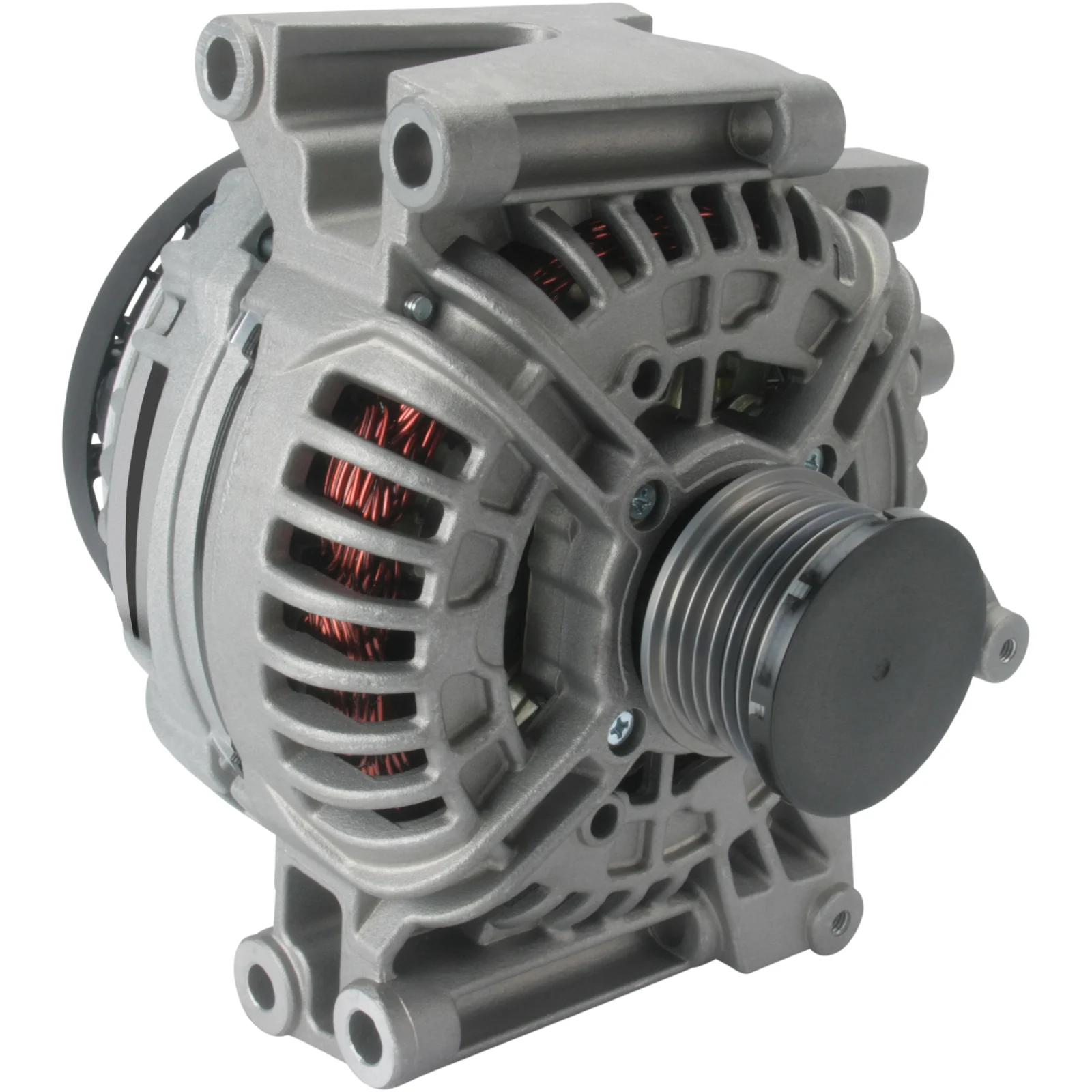

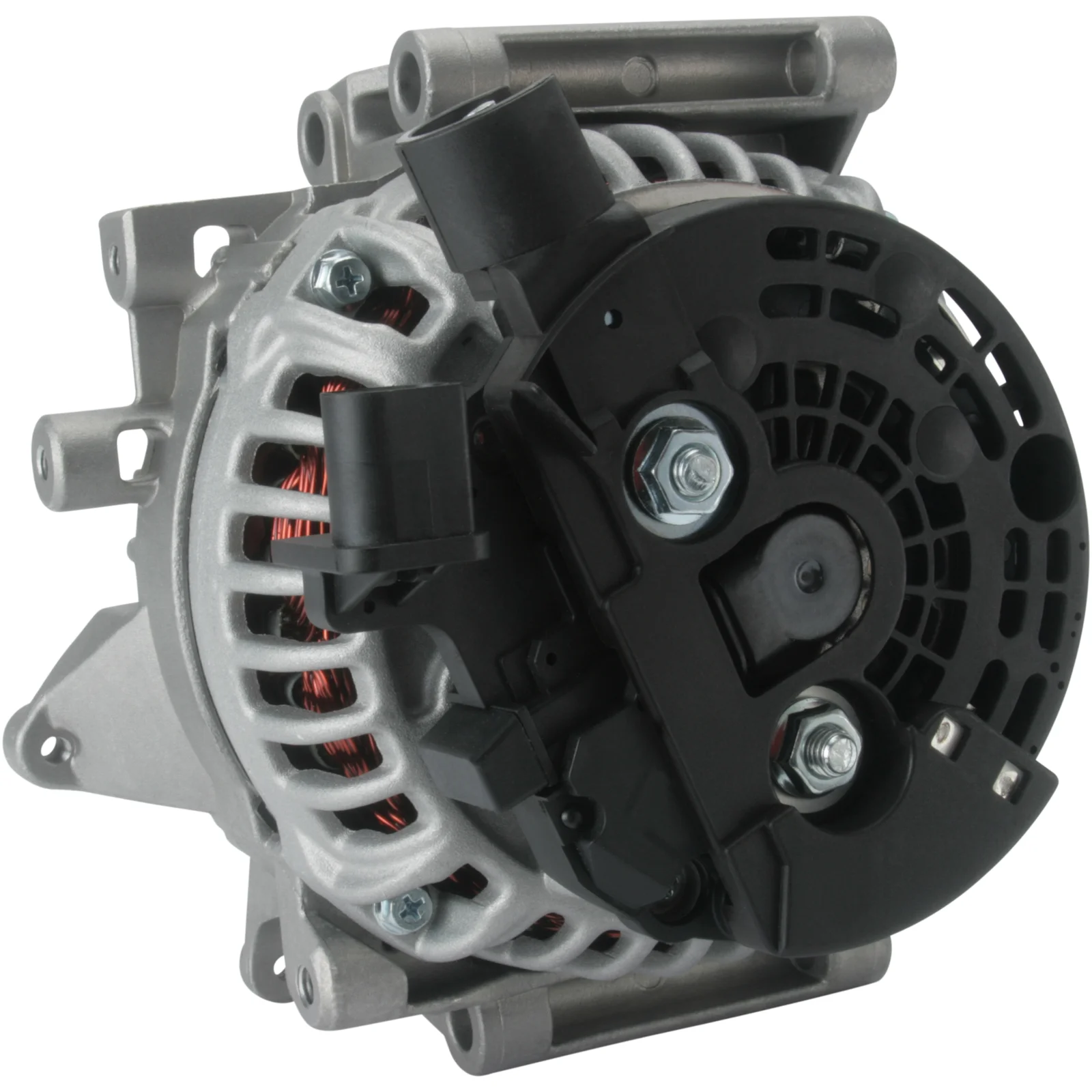

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113953

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 200, Rotation: CW, Mounting bracket distributor: 55.50

Description

Mercedes Diesel Alternator 12V-200A 12V - 200A, 6-groove fw pulley, (COM-DFM) For Yourex product order 90-365-4633 Voltage: 14 Current: 200 Pulley diameter: 30.50 Width/holder arm: 93.20 Mounting bracket distance: 55.50 Bracket hole: 9.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 9.50 Pulley diameter: 50.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 25 Rotation: CW Plug no.: PL114 Terminal type: COM Communication: BSS Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A013154 0002, A0131540002, A013154000280, A014154 0702, A014154000280, a0141540702, A014154070280, F032113953, 013 154 0002, 014 154 0702, 0124 625 014, 0124 625 045, 0986 046 330, 0986 048 550, 0986 048 557, 1859ir, 1986A00543, 1986A00960, 113953, 0121615045, 0124625014, 0124625045, 0124625212, 0131540002, 0141540702, 013154000280, 014154000280, 014154070280

  • Normalised article numbler
    a0131540002, a013154000280, a014154000280, a0141540702, a014154070280, a0222, alth181, cal10158, drb6330, f032113953, f042a0h181, lra02827, 8el012428791, 8el738211091, 1859ir, 1986a00543, 1986a00960, 4810, 11216n, 112362, 113953, 200042, 284945, 301859ri, 9046330, 12046330, 12048550, 32048550, 0121615045, 0124625014, 0124625045, 0124625212, 0131540002, 0141540702, 0986046330, 0986046333, 0986048550, 0986048553, 0986048557, 2251512002, 013154000280, 014154000280, 014154070280, 063536250450, 944390463300
  • Description
    Mercedes Diesel Alternator 12V-200A 12V - 200A, 6-groove fw pulley, (COM-DFM) For Yourex product order 90-365-4633 Voltage: 14 Current: 200 Pulley diameter: 30.50 Width/holder arm: 93.20 Mounting bracket distance: 55.50 Bracket hole: 9.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: 9.50 Pulley diameter: 50.00 Grooves/pulley: 6 B+: M8 Position/B+ in min.: 25 Rotation: CW Plug no.: PL114 Terminal type: COM Communication: BSS Pulley: SP/FW Regulator type: IR Prod. info: BN Remarks: This Alternator has a COM terminal on the voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A013154 0002, A0131540002, A013154000280, A014154 0702, A014154000280, a0141540702, A014154070280, F032113953, 013 154 0002, 014 154 0702, 0124 625 014, 0124 625 045, 0986 046 330, 0986 048 550, 0986 048 557, 1859ir, 1986A00543, 1986A00960, 113953, 0121615045, 0124625014, 0124625045, 0124625212, 0131540002, 0141540702, 013154000280, 014154000280, 014154070280

    • Normalised article numbler
      a0131540002, a013154000280, a014154000280, a0141540702, a014154070280, a0222, alth181, cal10158, drb6330, f032113953, f042a0h181, lra02827, 8el012428791, 8el738211091, 1859ir, 1986a00543, 1986a00960, 4810, 11216n, 112362, 113953, 200042, 284945, 301859ri, 9046330, 12046330, 12048550, 32048550, 0121615045, 0124625014, 0124625045, 0124625212, 0131540002, 0141540702, 0986046330, 0986046333, 0986048550, 0986048553, 0986048557, 2251512002, 013154000280, 014154000280, 014154070280, 063536250450, 944390463300
