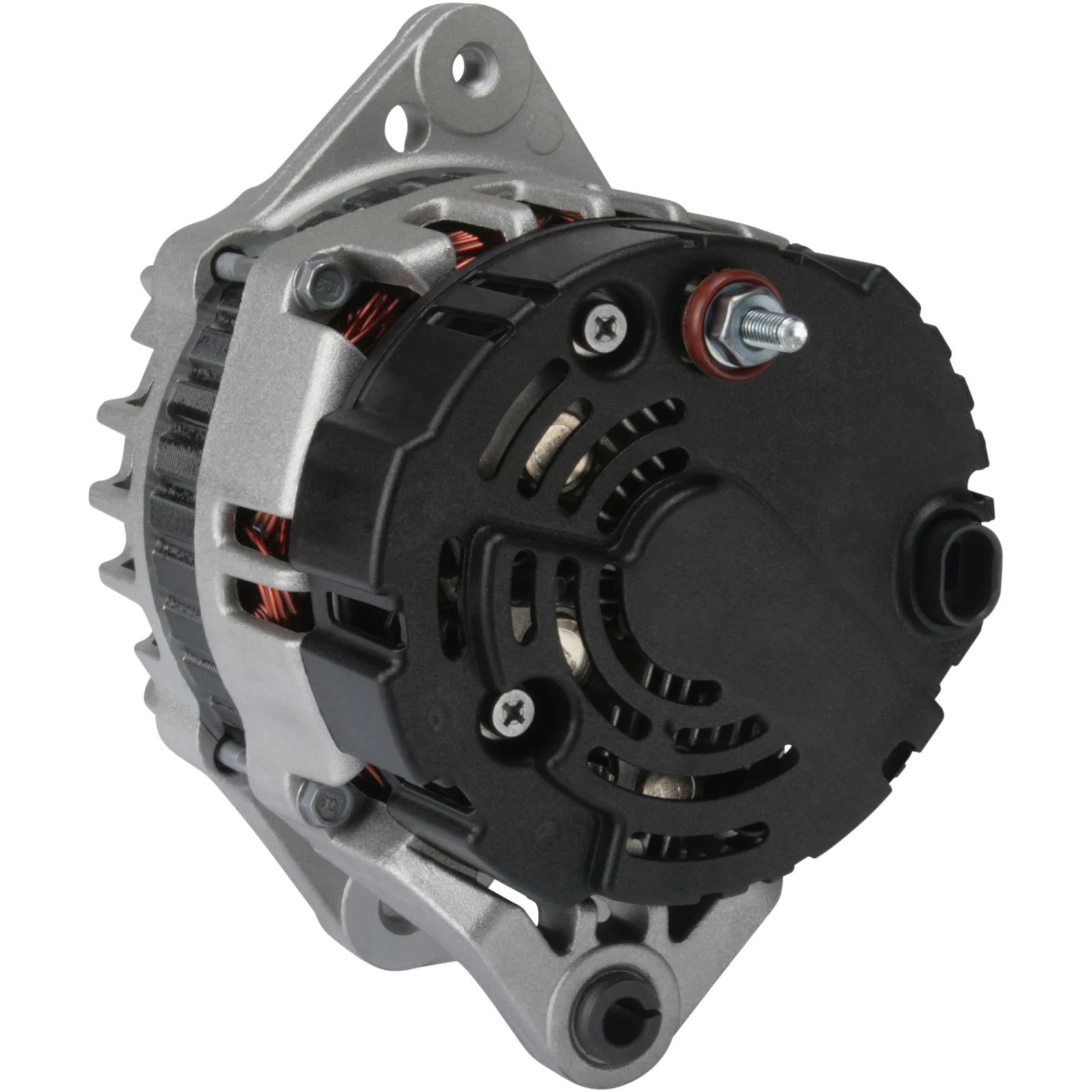

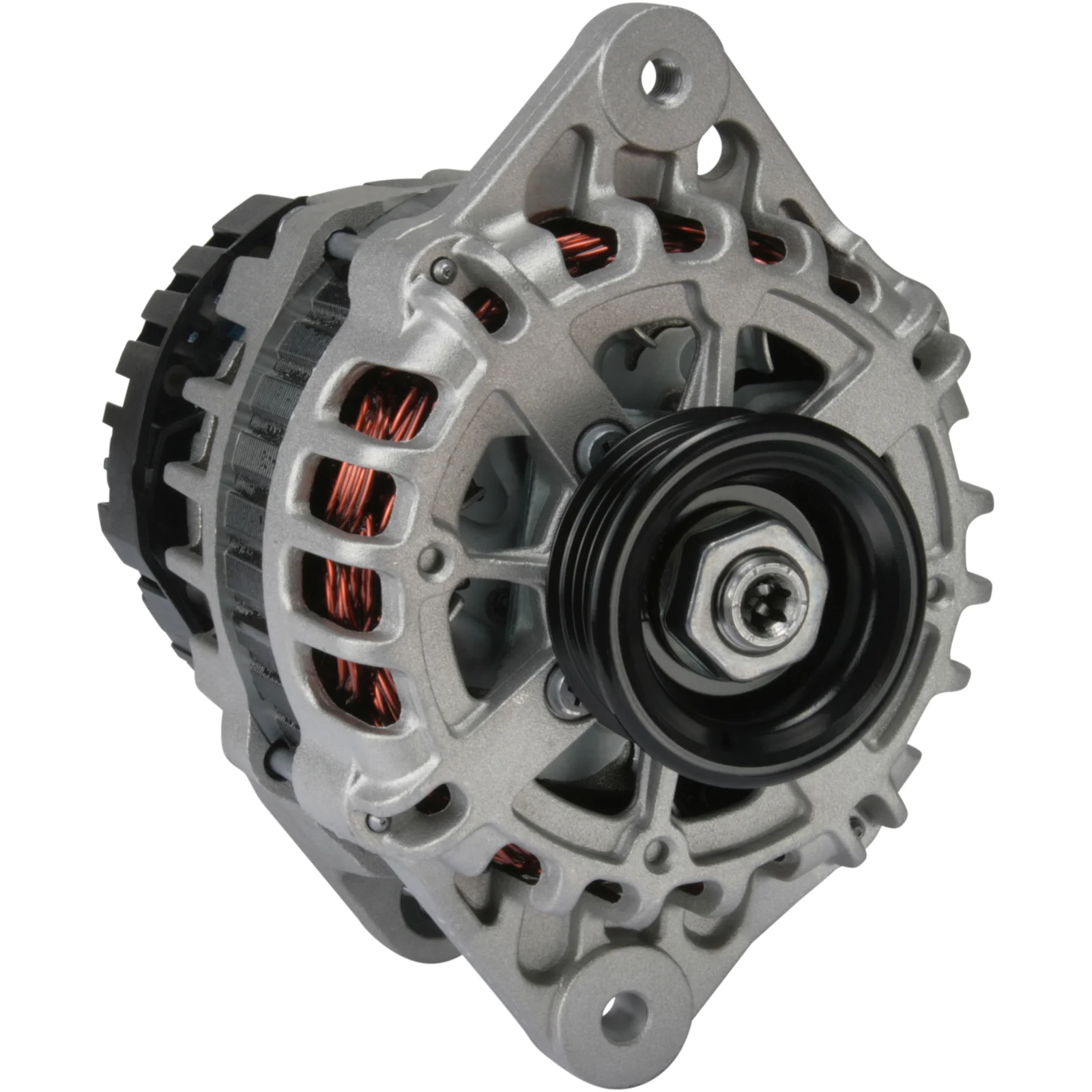

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115366

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 64.50

Description

Voltage: 14
Amp: 80
Pulley dist.: 40.00
Width/holder arm: 15.00
Mount. bracket dist.: 64.50
Bracket hole: 8.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 52.00
Grooves/pulley: 4
Radius: 77.00
Radius 2: 79.00
B+: M6
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL77
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115366, 2023ir, 2655866, 96404263, 96652100

  • Normalised article numbler
    a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 40.00
    Width/holder arm: 15.00
    Mount. bracket dist.: 64.50
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 52.00
    Grooves/pulley: 4
    Radius: 77.00
    Radius 2: 79.00
    B+: M6
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL77
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115366, 2023ir, 2655866, 96404263, 96652100

    • Normalised article numbler
      a9036, cal46114, dra0641, dra0641n, f032115366, 8el012426541, 8el738213121, 2023ir, 20340r, 210800, 210800a, 285685, 302023ri, 444359, 600100, 2655866, 12060893, 96404263, 96652100, 0986084370
