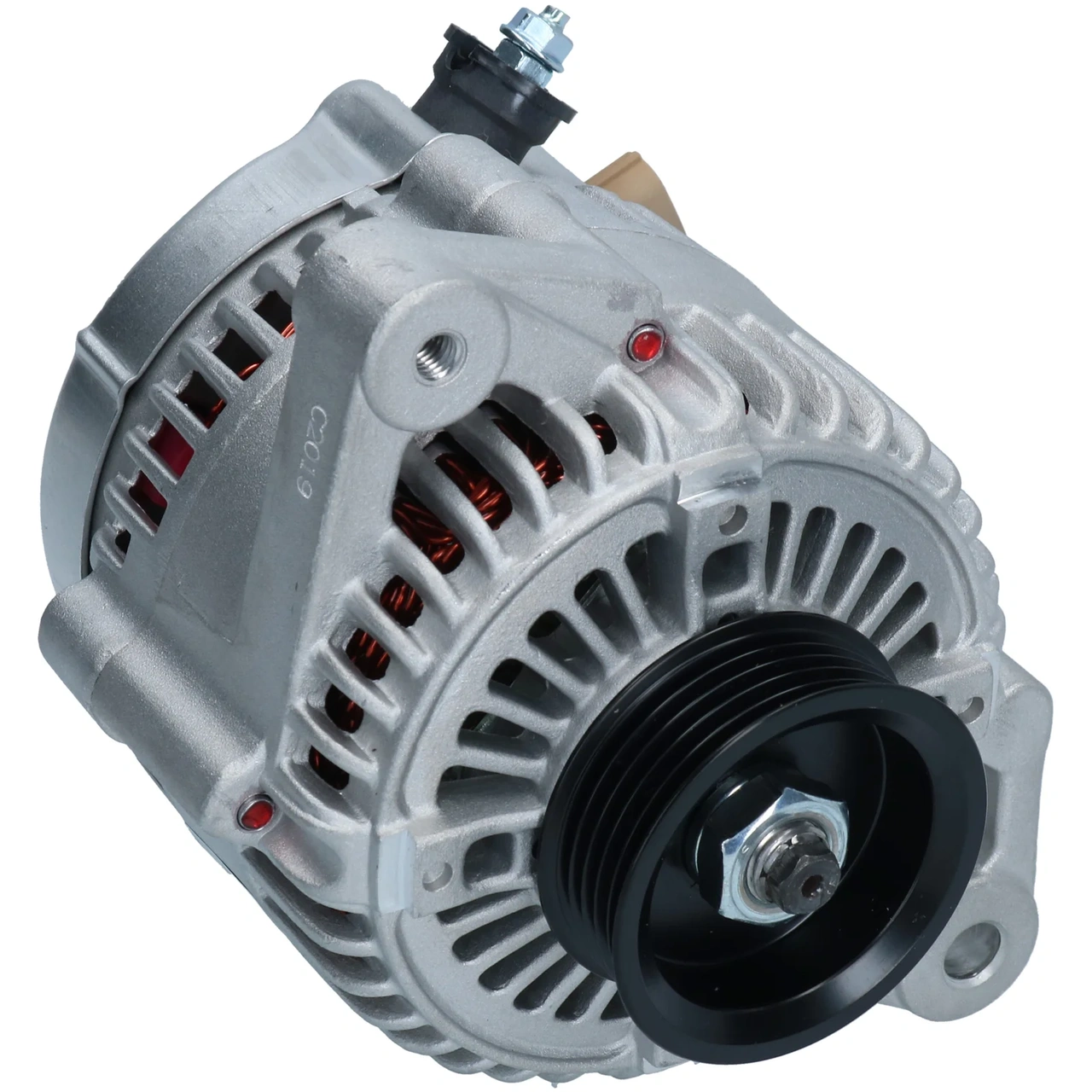

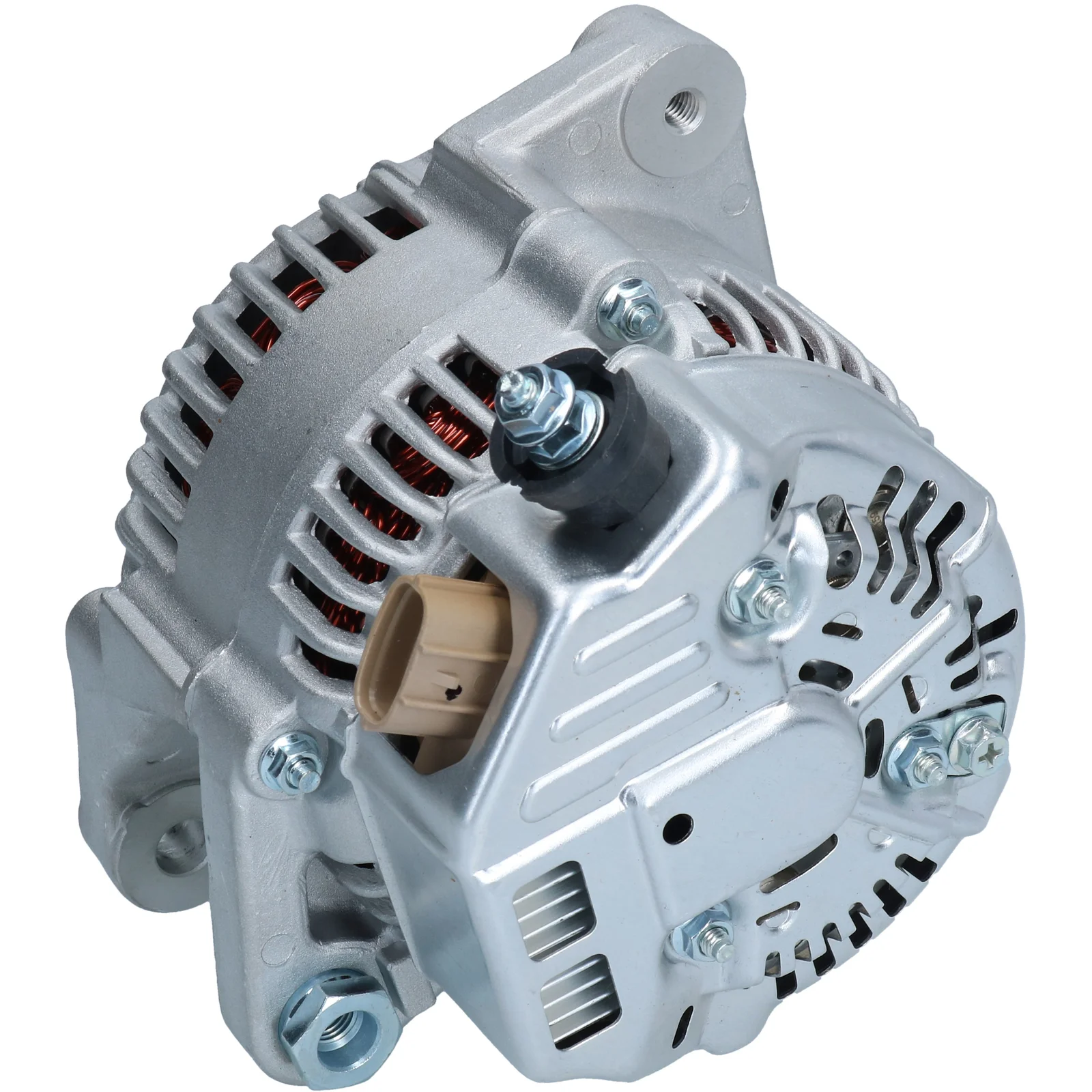

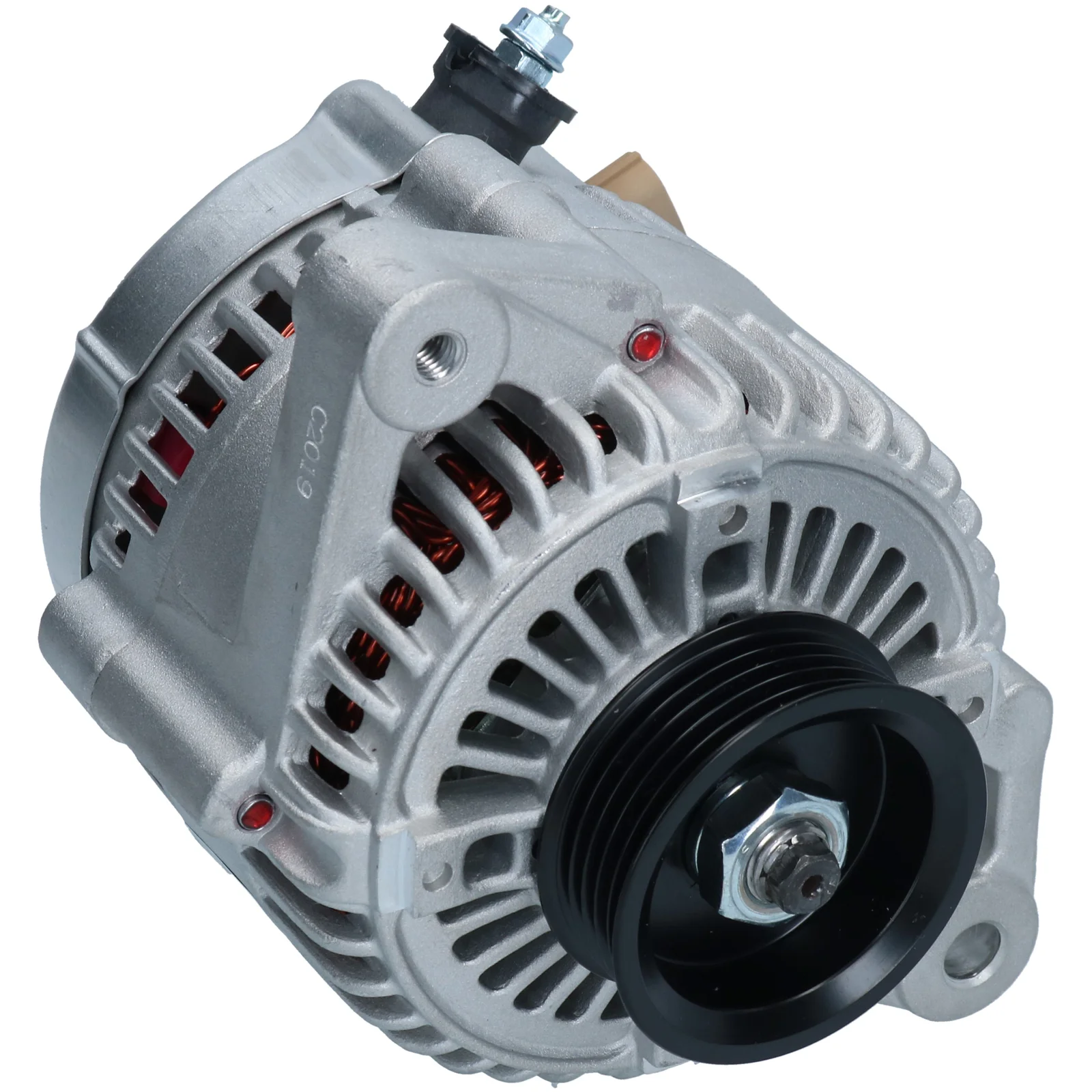

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114012

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 41.70

Description

Voltage: 14
Amp: 90
Pulley diameter: 31.00
Width/holder arm: 18.20
Mounting bracket diameter: 41.70
Bracket hole: 10.50
Belt adjustment bracket hole position: 5
Belt adjustment bracket hole 1: M8
Pulley diameter: 59.50
Grooves/pulley: 5
Radius: 80.00
Radius 2: 79.00
B+: M6
Position/B+ in min.: 50
Rotation: clockwise
Spark plug no.: PL67
Total length mm: 162.00
Pulley: shear pin
Regulator type: IR

Files

  • OEM
    F032114012, ja1892ir, 27060-33030, 102211-2770

  • Normalised article numbler
    alth184, cal40175, dan965, dra0013, f032114012, f042a0h184, ja1892ir, 8el012429441, 112609, 210677, 210677a, 284976, 401892ri, 440521, 9090567, 12060841, 235317902, 0986084300, 1022112770, 2706033030
  • Description
    Voltage: 14
    Amp: 90
    Pulley diameter: 31.00
    Width/holder arm: 18.20
    Mounting bracket diameter: 41.70
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 5
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 59.50
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 79.00
    B+: M6
    Position/B+ in min.: 50
    Rotation: clockwise
    Spark plug no.: PL67
    Total length mm: 162.00
    Pulley: shear pin
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114012, ja1892ir, 27060-33030, 102211-2770

    • Normalised article numbler
      alth184, cal40175, dan965, dra0013, f032114012, f042a0h184, ja1892ir, 8el012429441, 112609, 210677, 210677a, 284976, 401892ri, 440521, 9090567, 12060841, 235317902, 0986084300, 1022112770, 2706033030
