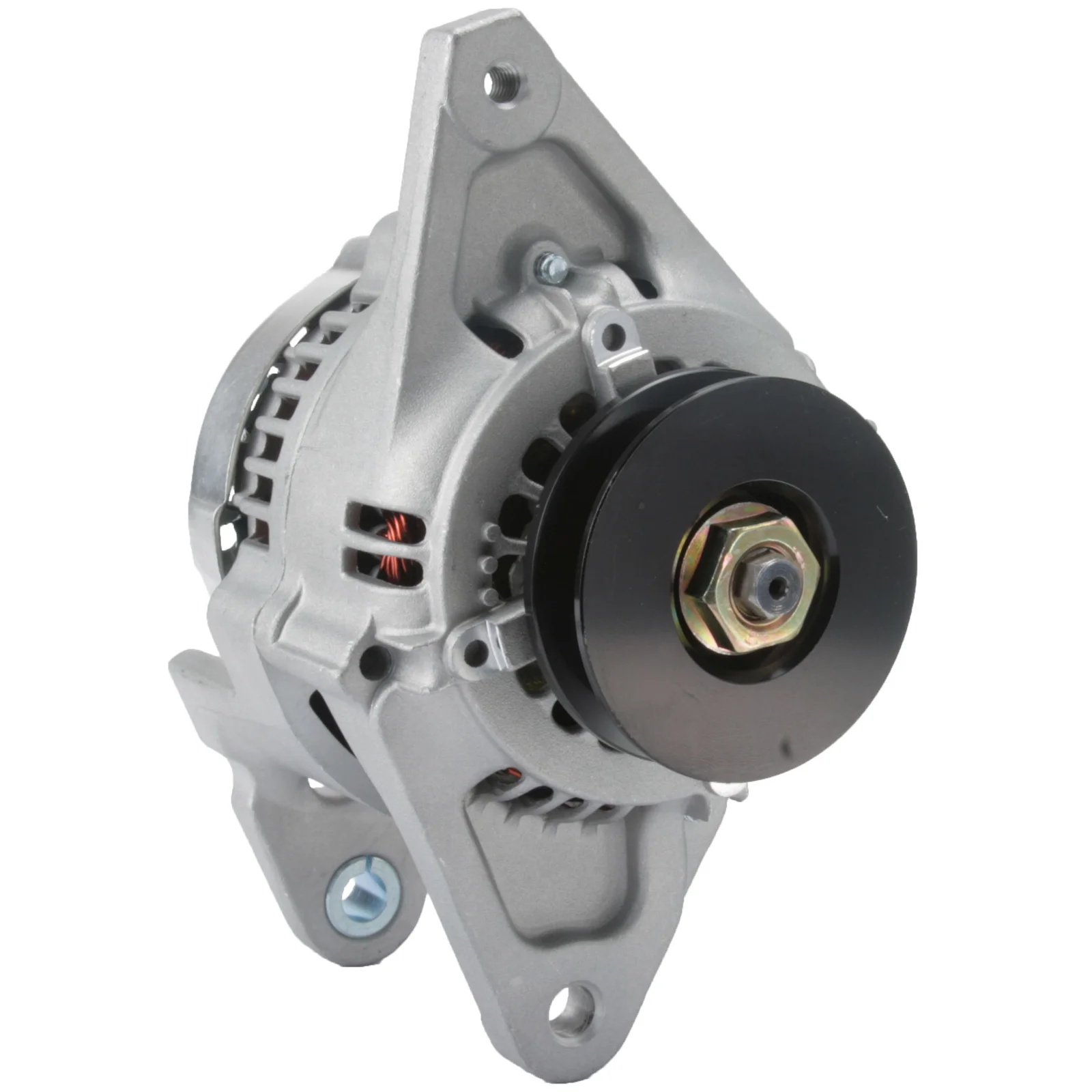

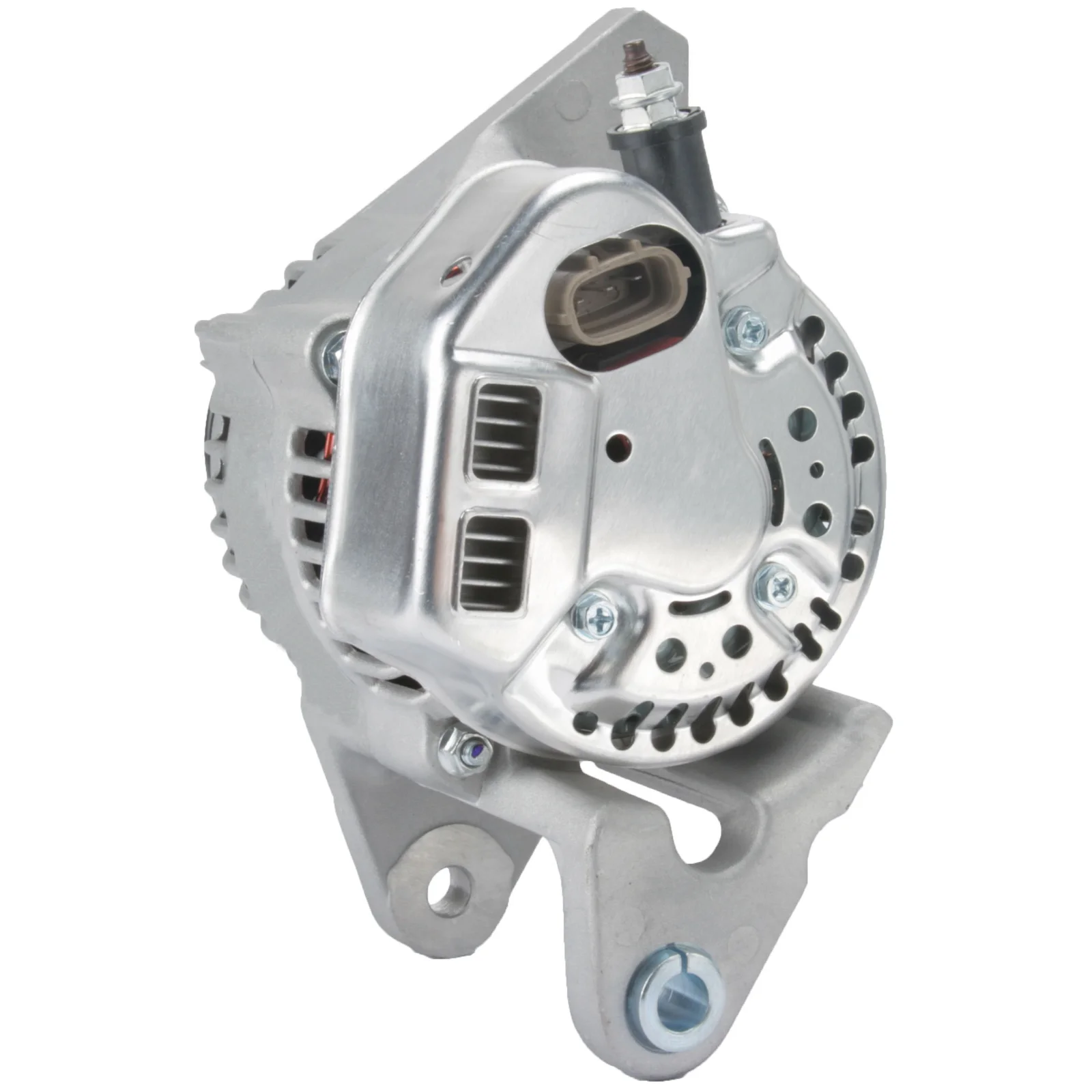

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114043

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket dist.: 72.00

Description

Voltage: 14
Amp: 55
Pulley dist.: 43.00
Width/holder arm: 12.00
Mounting bracket dist.: 72.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 53
Belt adjustment bracket hole 1: M8
Pulley dia.: 70.00
Grooves/pulley: 1
Radius: 88.00
Radius 2: 88.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL128
W plug type: Plug
Total length mm: 152.00
Pulley: P
Voltage regulator type: IR

Files

  • OEM
    0R9700, F032114043, 144-9954, 101211-2770, 101211-2771

  • Normalised article numbler
    0r9700, a6647s, cal40151, dan2031, dra0336, f032114043, 11012n, 12470, 12470n, 12470r, 287739, 553190ri, 1449954, 1012112770, 1012112771
  • Description
    Voltage: 14
    Amp: 55
    Pulley dist.: 43.00
    Width/holder arm: 12.00
    Mounting bracket dist.: 72.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 53
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 70.00
    Grooves/pulley: 1
    Radius: 88.00
    Radius 2: 88.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    W plug type: Plug
    Total length mm: 152.00
    Pulley: P
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      0R9700, F032114043, 144-9954, 101211-2770, 101211-2771

    • Normalised article numbler
      0r9700, a6647s, cal40151, dan2031, dra0336, f032114043, 11012n, 12470, 12470n, 12470r, 287739, 553190ri, 1449954, 1012112770, 1012112771
