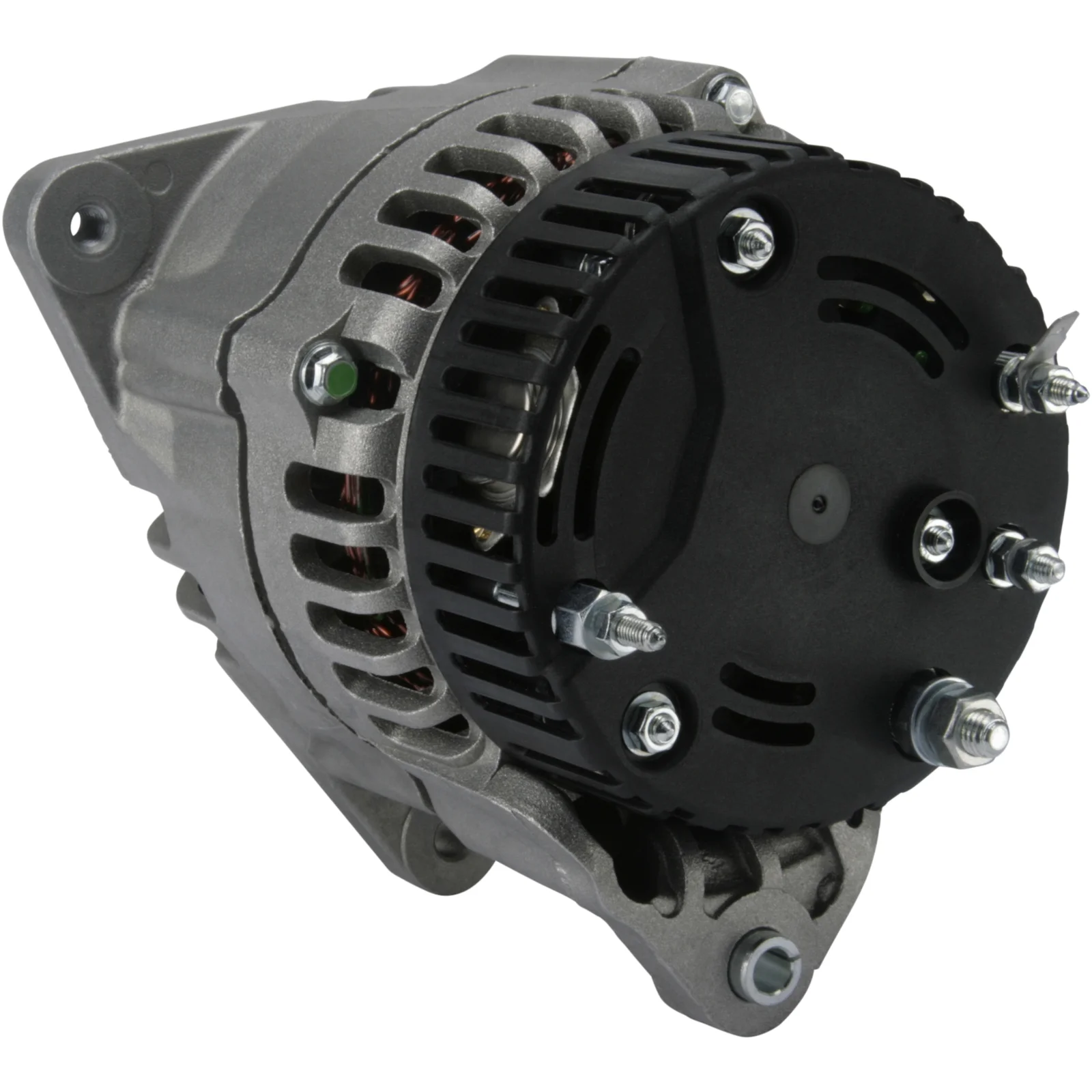

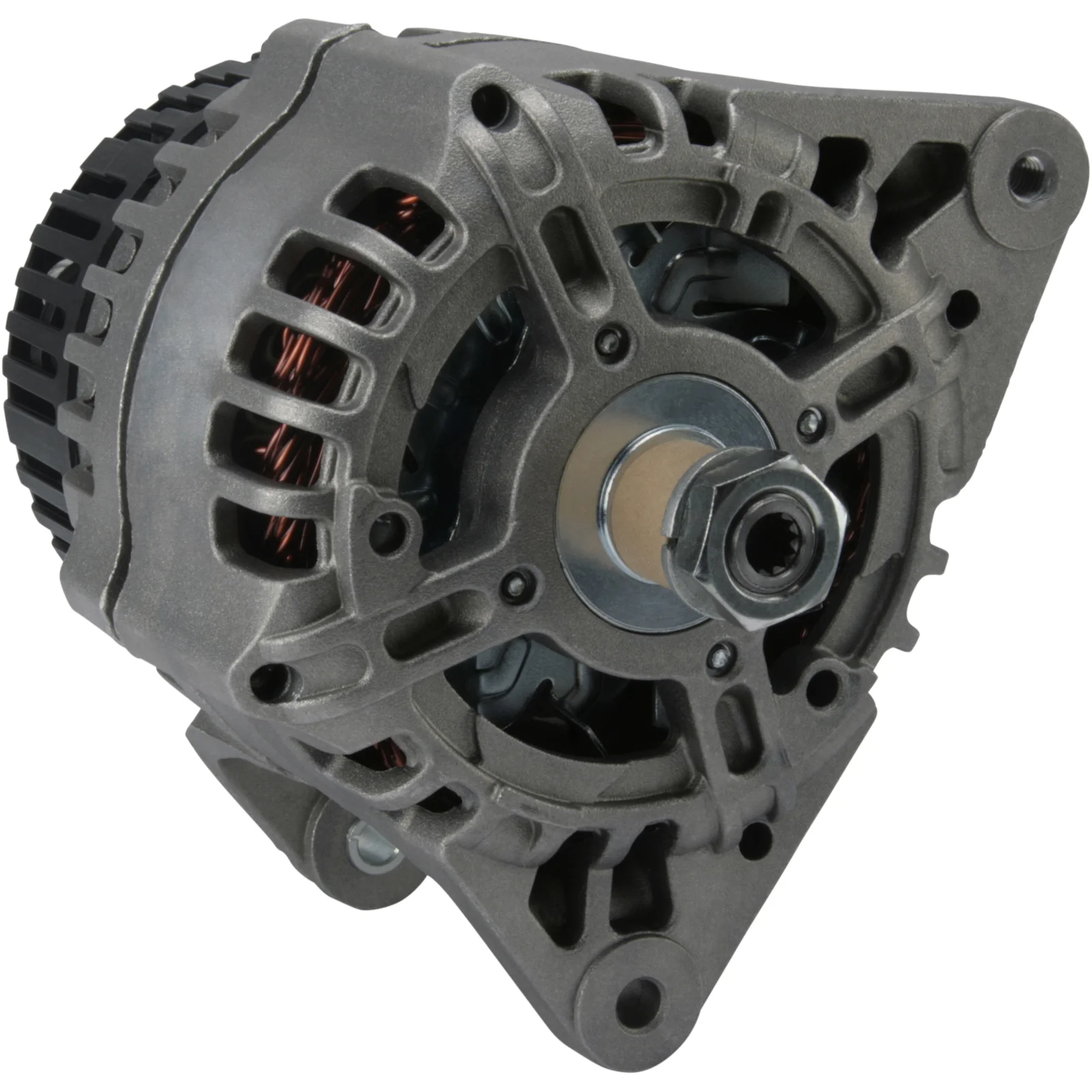

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114049

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 83.00

Description

Voltage: 14
Amp: 120
Terminal: W
Width/holder arm: 14.00
Mounting bracket distance: 83.00
Bracket hole: 8.30
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: M8
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in minutes: 26
D+ Size: M5
Rotation: CW
W plug type: M5-6.30
Total length mm: 186.00
Pulley: without
Fan: IF
Regulator type: IR

Files

  • OEM
    AAK5189, AAK5193, AAK5194, AAK5323, AAK5562, F032114049, 11.201.970, 11.201.976, 11.203.033, 11.203.365, 11.203.388, 3788017M92, 3821976M92, 3821977M91, 3821978M91, 3823654M2, 3909794M1, 4271312M91, 4271312M93, 4279541M92, 4279541M93

  • Normalised article numbler
    a9158, a9158letrika, aak5189, aak5193, aak5194, aak5323, aak5562, f032114049, ia0970, lea0773, mg308, 12690n, 3788017m92, 3821976m92, 3821977m91, 3821978m91, 3823654m2, 3909794m1, 4271312m91, 4271312m93, 4279541m92, 4279541m93, 11201970, 11201976, 11203033, 11203365, 11203388
  • Description
    Voltage: 14
    Amp: 120
    Terminal: W
    Width/holder arm: 14.00
    Mounting bracket distance: 83.00
    Bracket hole: 8.30
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: M8
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in minutes: 26
    D+ Size: M5
    Rotation: CW
    W plug type: M5-6.30
    Total length mm: 186.00
    Pulley: without
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AAK5189, AAK5193, AAK5194, AAK5323, AAK5562, F032114049, 11.201.970, 11.201.976, 11.203.033, 11.203.365, 11.203.388, 3788017M92, 3821976M92, 3821977M91, 3821978M91, 3823654M2, 3909794M1, 4271312M91, 4271312M93, 4279541M92, 4279541M93

    • Normalised article numbler
      a9158, a9158letrika, aak5189, aak5193, aak5194, aak5323, aak5562, f032114049, ia0970, lea0773, mg308, 12690n, 3788017m92, 3821976m92, 3821977m91, 3821978m91, 3823654m2, 3909794m1, 4271312m91, 4271312m93, 4279541m92, 4279541m93, 11201970, 11201976, 11203033, 11203365, 11203388
