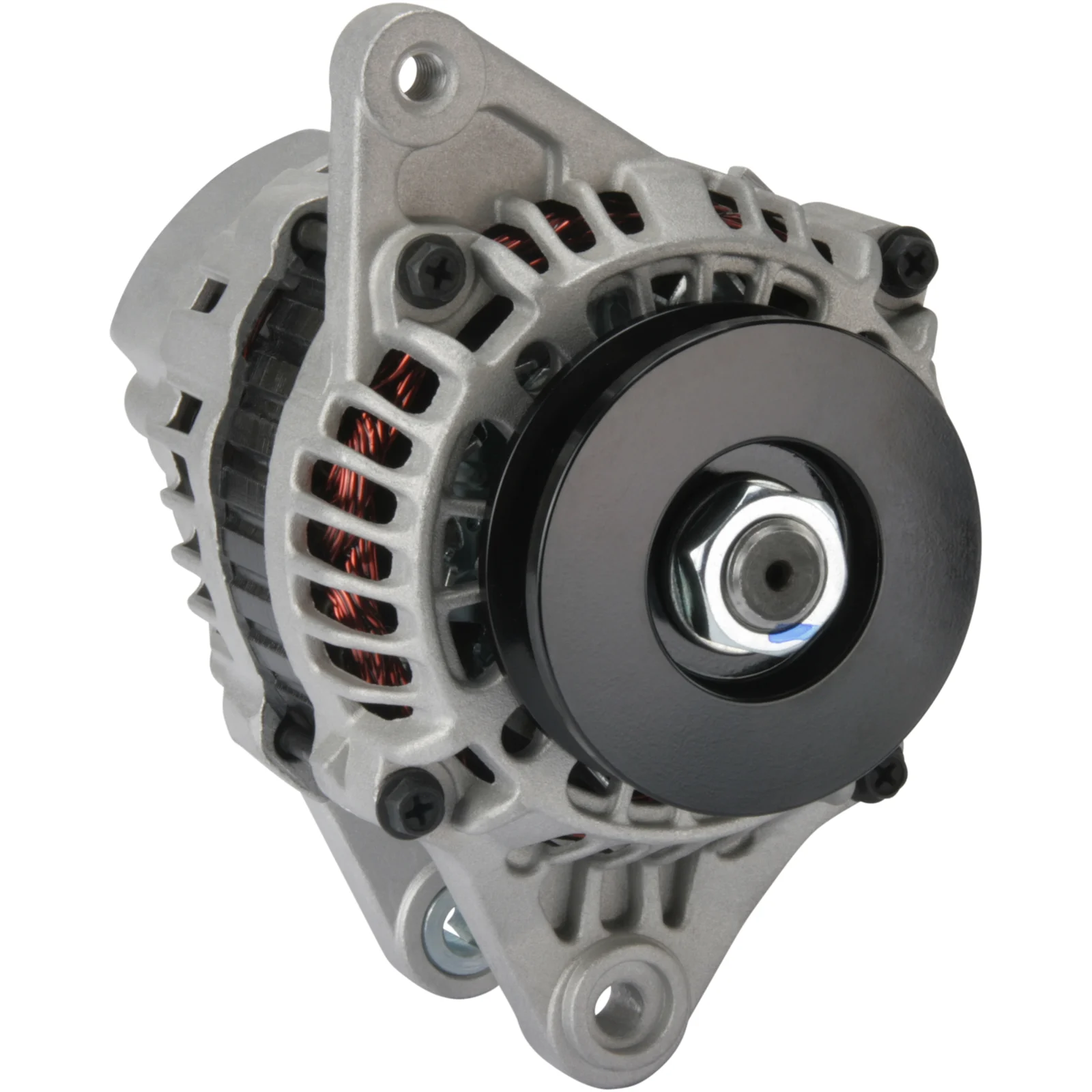

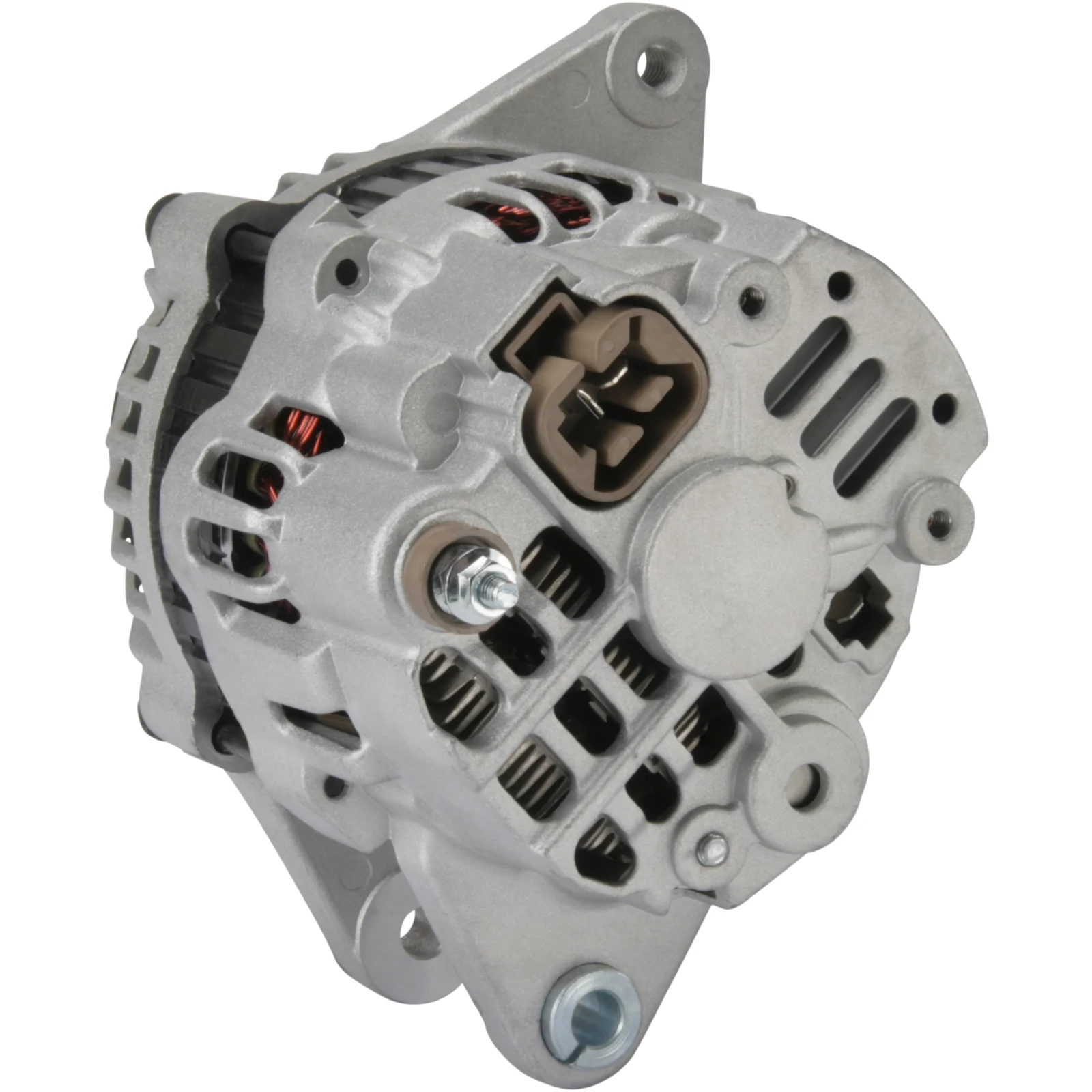

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114079

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 40, Rotation: CW, Mounting bracket distance: 41.60

Description

Voltage: 14
Amp: 40
Terminal: W
Pulley dist.: 43.00
Width/holder arm: 16.00
Mounting bracket dist.: 41.60
Bracket hole: 8.50
Belt adjustment bracket hole position.: 55
Belt adjustment bracket hole 1: M8
Pulley dia.: 69.00
Grooves/pulley: 1
Radius: 79.00
Radius 2: 79.00
B+: M5
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 160.00
Pulley: P
Product info: BN

Files

  • OEM
    A007TA0171, A007TA0171B, a7ta0171, a7ta0171b, F032114079, 30A68-00800, 30A68-00801

  • Normalised article numbler
    a007ta0171, a007ta0171b, a5405s, a7ta0171, a7ta0171b, cal35198, dra0406, f032114079, lra02080, 30a6800800, 30a6800801, 12432, 12432n, 553117ri, 526110402
  • Description
    Voltage: 14
    Amp: 40
    Terminal: W
    Pulley dist.: 43.00
    Width/holder arm: 16.00
    Mounting bracket dist.: 41.60
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 55
    Belt adjustment bracket hole 1: M8
    Pulley dia.: 69.00
    Grooves/pulley: 1
    Radius: 79.00
    Radius 2: 79.00
    B+: M5
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 160.00
    Pulley: P
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A007TA0171, A007TA0171B, a7ta0171, a7ta0171b, F032114079, 30A68-00800, 30A68-00801

    • Normalised article numbler
      a007ta0171, a007ta0171b, a5405s, a7ta0171, a7ta0171b, cal35198, dra0406, f032114079, lra02080, 30a6800800, 30a6800801, 12432, 12432n, 553117ri, 526110402
