HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114081

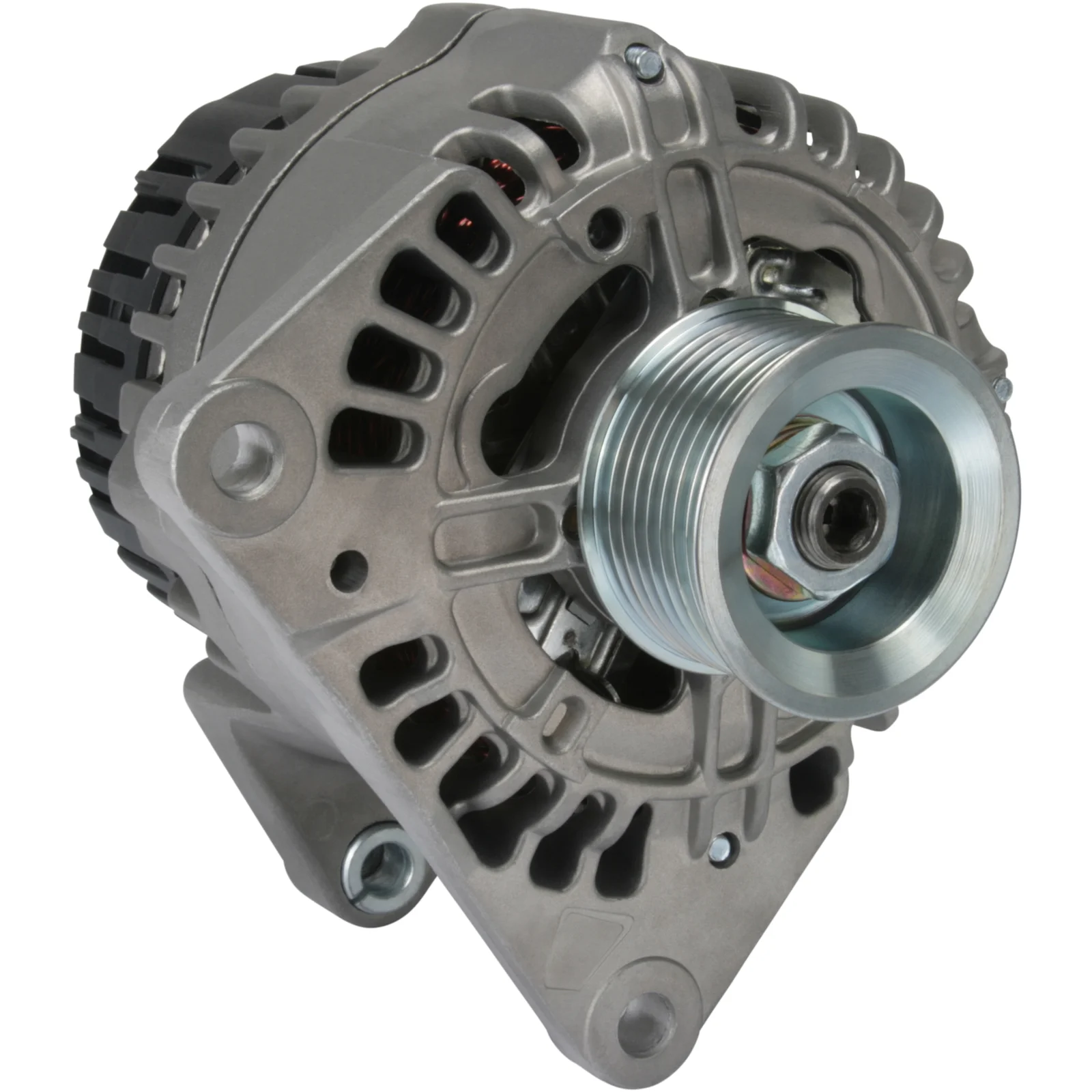

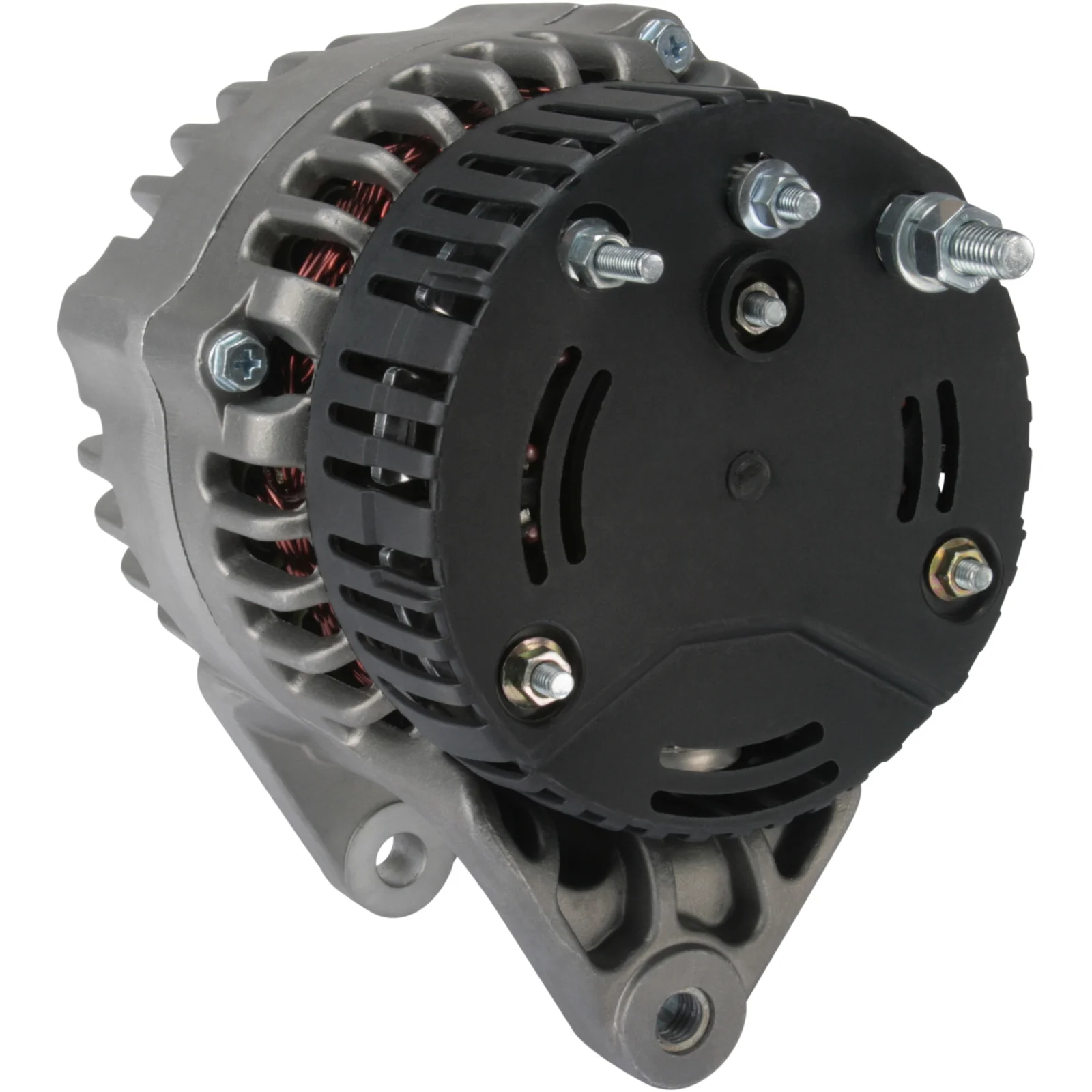

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 95, Rotation: CW, Mounting bracket distance: 78.00

Description

Voltage: 14
Amp: 95
Terminal: W
Pulley distance: 32.50
Width/holder arm: 14.00
Mounting bracket distance: 78.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 45
Belt adjustment bracket hole 1: 10.20
Pulley diameter: 56.20
Grooves/pulley: 8
Radius: 93.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 5
D+ size: M5
Rotation: CW
W plug type: M5
Total length mm: 200.00
Pulley: Alternator
Regulator type: IR
Prod. info: BN

Files

  • OEM
    AAK5175, F000BL0444, F032114081, 11.201.908, 320-08549, 320-08560, 320-08560-S, 320-08648, 320/08560-3, 32008680, 320085604

  • Normalised article numbler
    a9344s, aak5175, dra1023n, dra3377n, f000bl0444, f032114081, ia0908, mg38, 210645, 210645a, 553701ri, 11201908, 32008549, 32008560, 32008560s, 32008648, 32008680, 320085603, 320085604, 705512095
  • Description
    Voltage: 14
    Amp: 95
    Terminal: W
    Pulley distance: 32.50
    Width/holder arm: 14.00
    Mounting bracket distance: 78.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 45
    Belt adjustment bracket hole 1: 10.20
    Pulley diameter: 56.20
    Grooves/pulley: 8
    Radius: 93.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 5
    D+ size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 200.00
    Pulley: Alternator
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      AAK5175, F000BL0444, F032114081, 11.201.908, 320-08549, 320-08560, 320-08560-S, 320-08648, 320/08560-3, 32008680, 320085604

    • Normalised article numbler
      a9344s, aak5175, dra1023n, dra3377n, f000bl0444, f032114081, ia0908, mg38, 210645, 210645a, 553701ri, 11201908, 32008549, 32008560, 32008560s, 32008648, 32008680, 320085603, 320085604, 705512095
