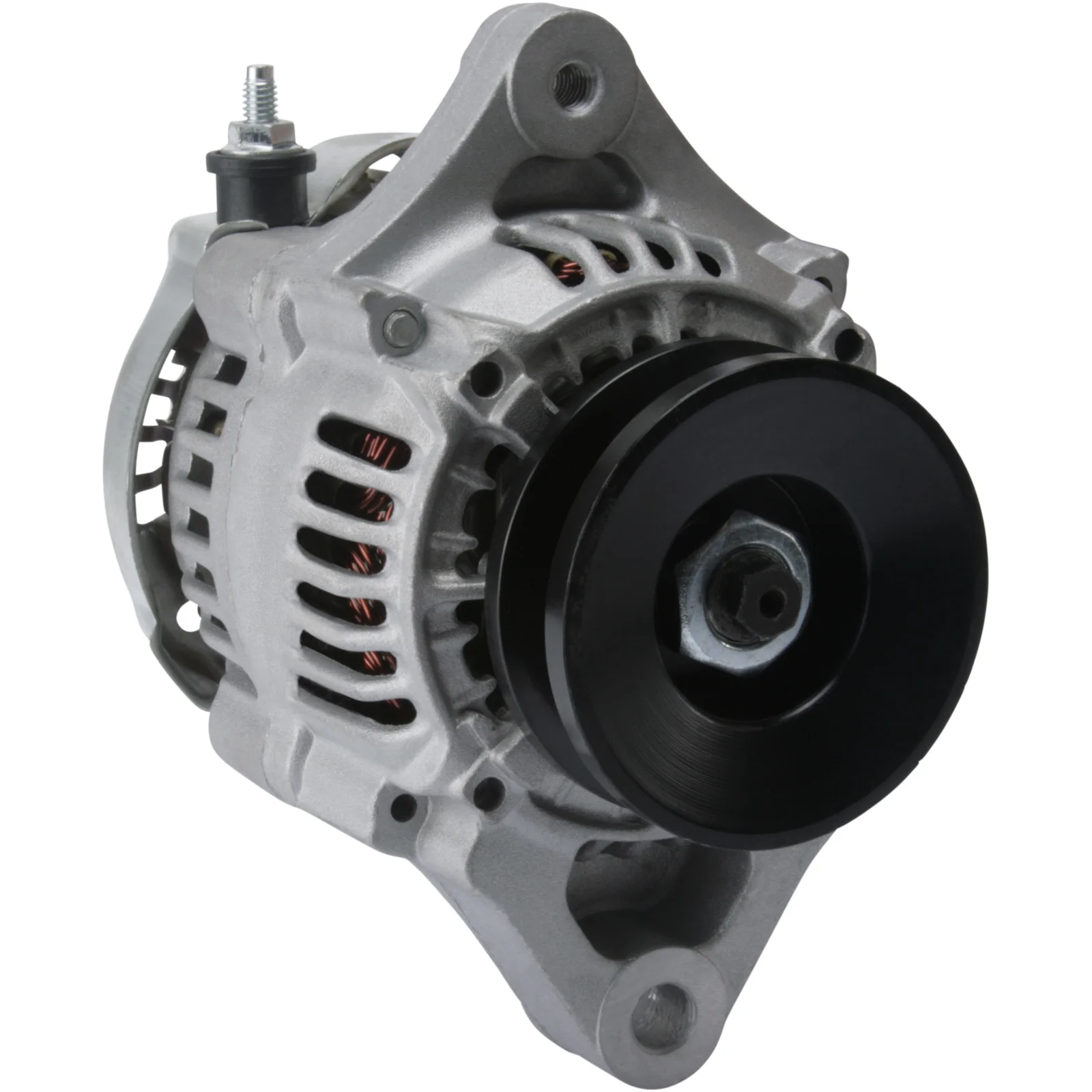

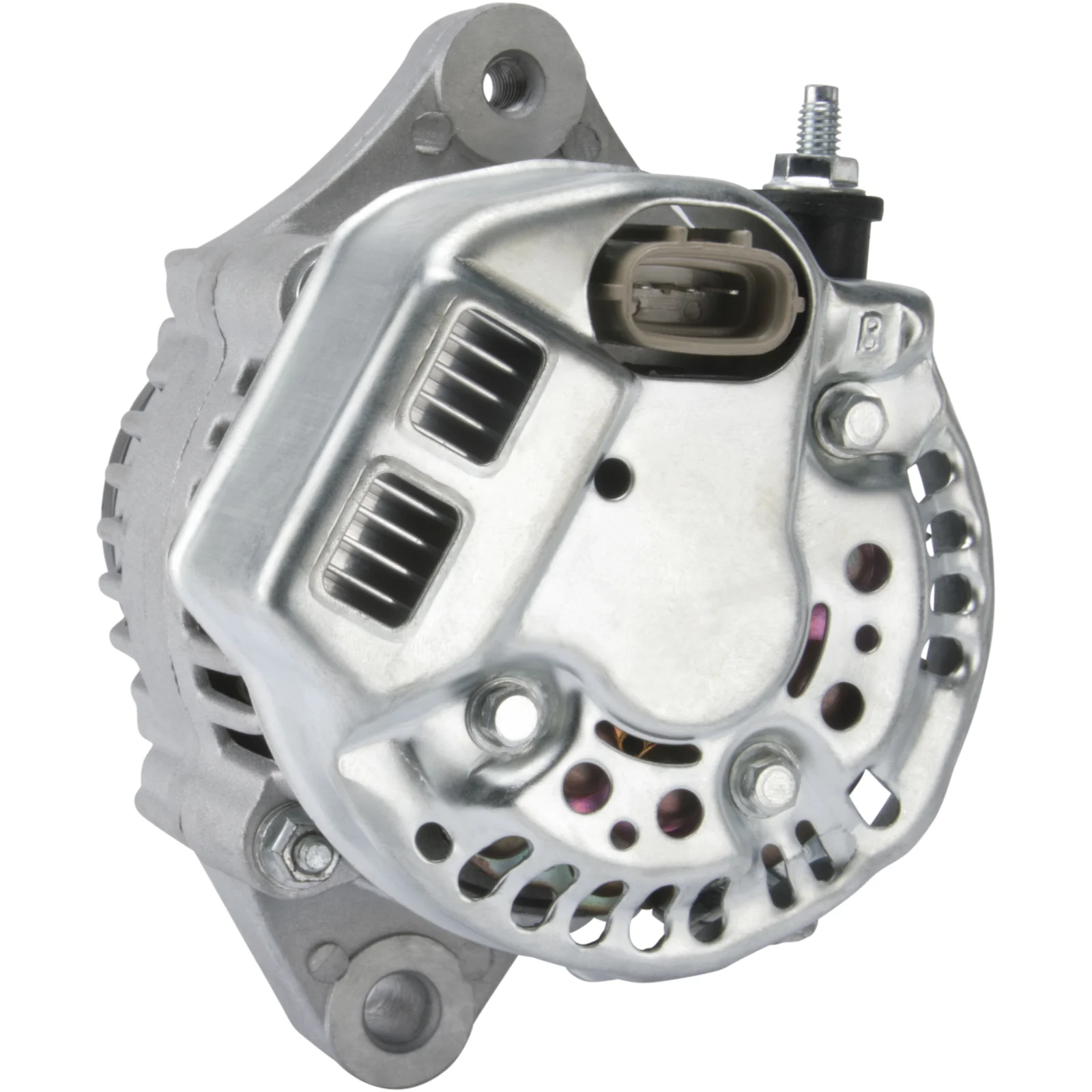

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114085

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 40, Rotation: CW, Pulley diameter: 69.00

Description

Voltage: 14
Amp: 40
Pulley diameter: 44.00
Width/holder arm: 24.00
Bracket hole: 10.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 69.00
Grooves/pulley: 1
Radius: 71.00
Radius 2: 68.00
B+: M6
Position/B+ in minutes: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL128
Total length mm: 145.00
Pulley: P
Voltage regulator type: IR

Files

  • Description
    Voltage: 14
    Amp: 40
    Pulley diameter: 44.00
    Width/holder arm: 24.00
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 69.00
    Grooves/pulley: 1
    Radius: 71.00
    Radius 2: 68.00
    B+: M6
    Position/B+ in minutes: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    Total length mm: 145.00
    Pulley: P
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles
