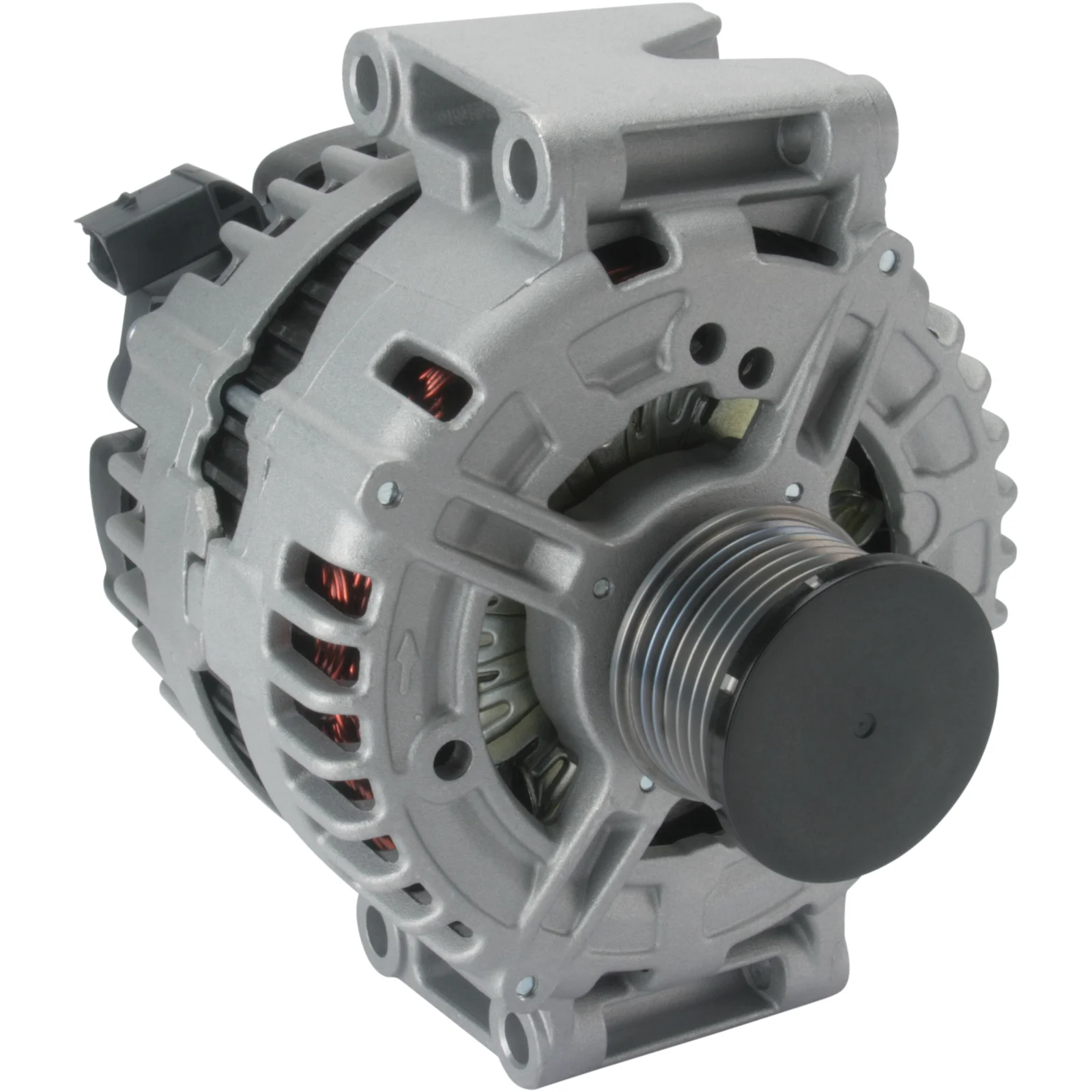

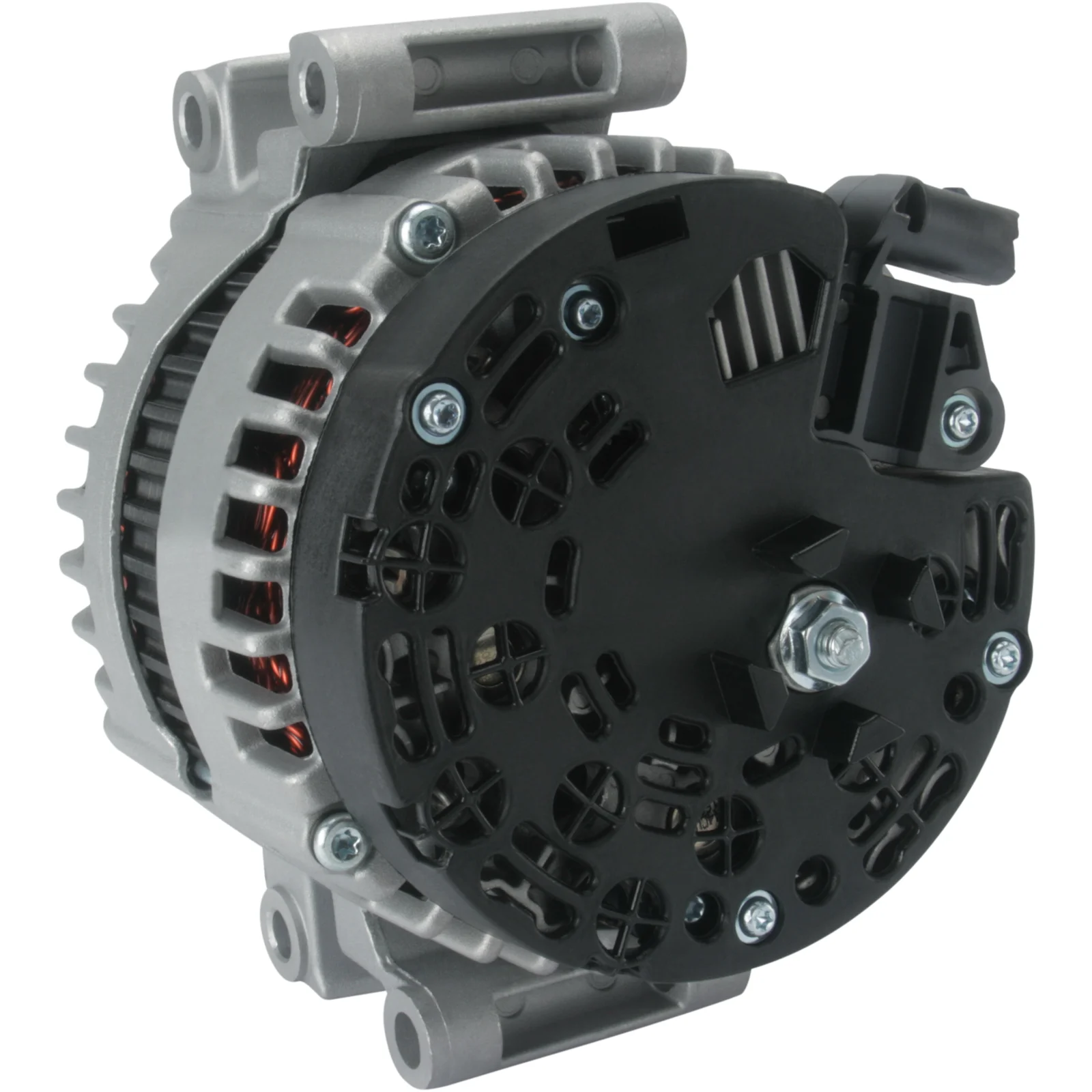

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116060

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 180
Pulley: Alternator
dist.: 31.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.20
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 9.30
Pulley dia.: 49.60
Grooves/pulley: 7
B+: M8
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL86
Total length mm: 183.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A000906270080, A000906270083, a0131546402, A013154640280, a0131547002, A013154700280, A642154020280, F00E100661, F032116060, 4801250AC, 4801250AD, 05175765AA, 05175765AB, 5175765AA, 5175765AB, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 013154640280, 013154700280, 642154020280

  • Normalised article numbler
    a000906270080, a000906270083, a0131546402, a013154640280, a0131547002, a013154700280, a0291, a0291bosch, a642154020280, cal10376, drb7690, f00e100661, f032116060, 11307n, 210960, 210960a, 285754, 440926, 443273, 4801250ac, 4801250ad, 05175765aa, 05175765ab, 5175765aa, 5175765ab, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 0986047690, 0986047693, 0986047697, 013154640280, 013154700280, 642154020280
  • Description
    Voltage: 14
    Amp: 180
    Pulley: Alternator
    dist.: 31.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.20
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 9.30
    Pulley dia.: 49.60
    Grooves/pulley: 7
    B+: M8
    Position/B+ in min.: 20
    Rotation: CW
    Plug no.: PL86
    Total length mm: 183.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A000906270080, A000906270083, a0131546402, A013154640280, a0131547002, A013154700280, A642154020280, F00E100661, F032116060, 4801250AC, 4801250AD, 05175765AA, 05175765AB, 5175765AA, 5175765AB, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 013154640280, 013154700280, 642154020280

    • Normalised article numbler
      a000906270080, a000906270083, a0131546402, a013154640280, a0131547002, a013154700280, a0291, a0291bosch, a642154020280, cal10376, drb7690, f00e100661, f032116060, 11307n, 210960, 210960a, 285754, 440926, 443273, 4801250ac, 4801250ad, 05175765aa, 05175765ab, 5175765aa, 5175765ab, 0121715011, 0121715015, 0121715115, 0131546402, 0131547002, 000906270080, 000906270083, 0986047690, 0986047693, 0986047697, 013154640280, 013154700280, 642154020280
