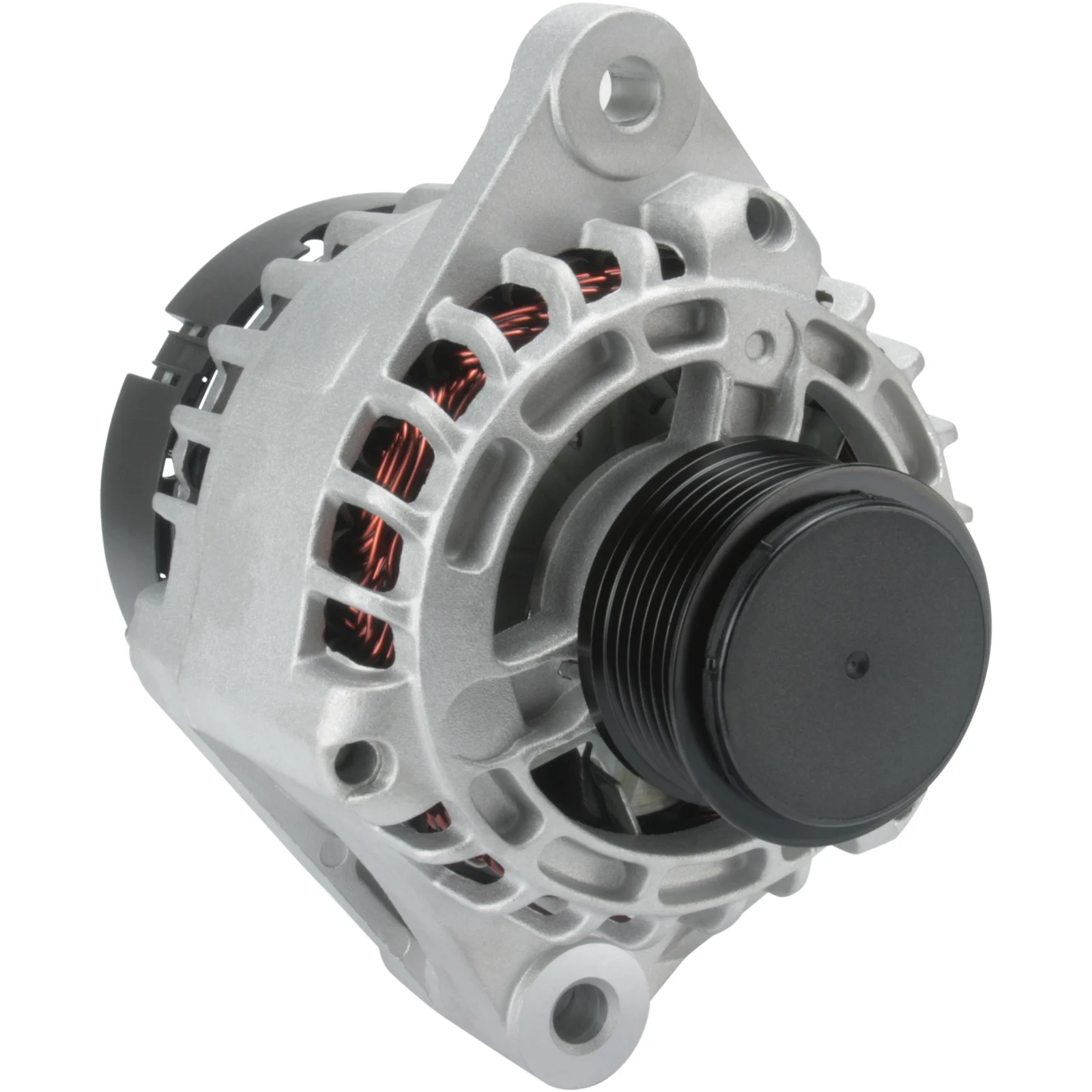

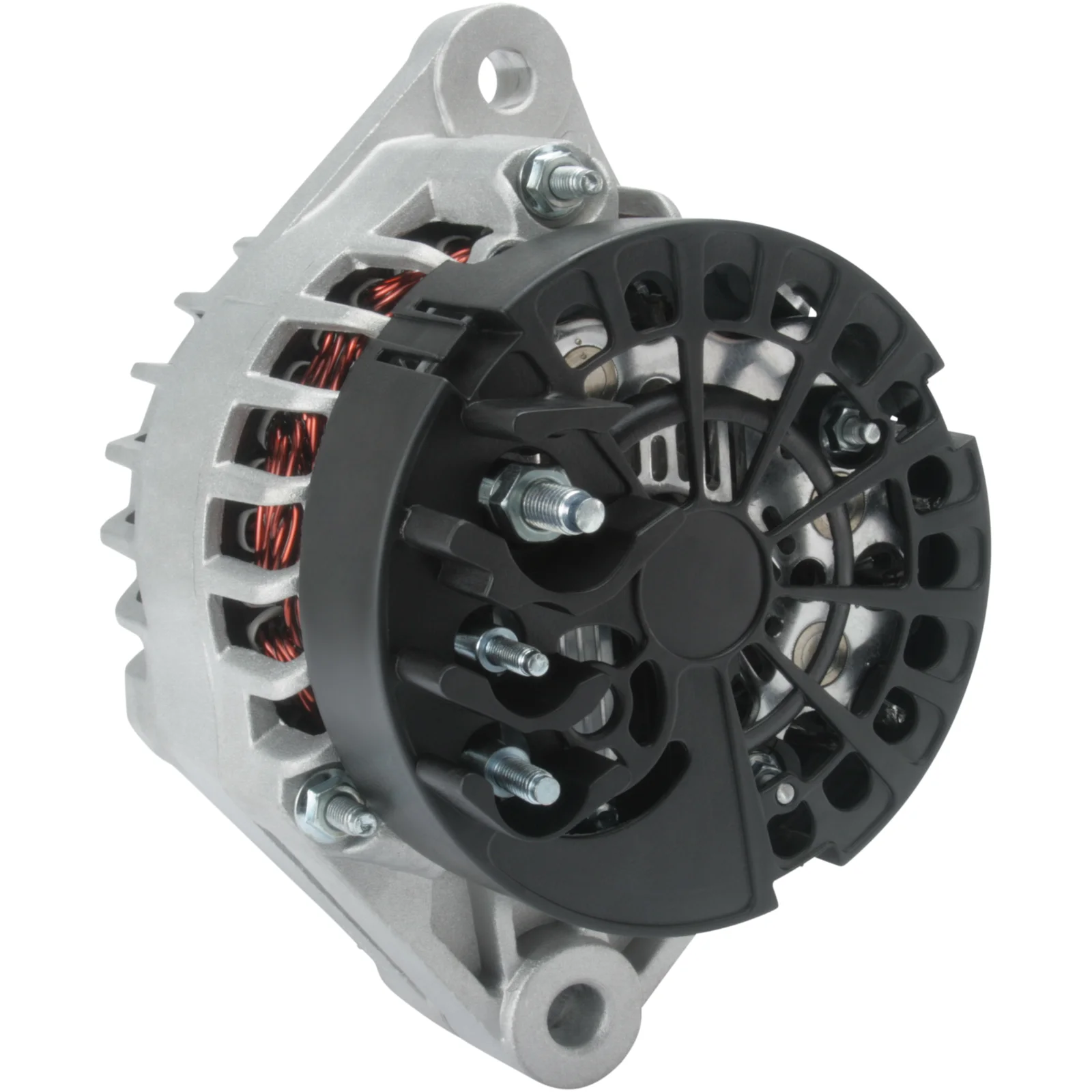

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113904

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 130, Rotation: CW, Pulley diameter: 61.50

Description

Voltage: 14
Amps: 130
Terminal: DF
Pulley distance: 113.00
Width/holder arm: 61.00
Bracket hole: 12.00
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: 12.00
Pulley diameter: 61.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 50
D+ Size: M5
Rotation: CW
Total length mm: 215.00
Pulley: SP/FW
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032113904, R1530099, 1890ir, 1986A01352, 102211-8660, 102211-8661, 102211-8662, 1204434, 6204189, 9562208, 13117236, 13153236, 63377491, 93169030, 93169031, 93169259, 93180104

  • Normalised article numbler
    a4048, a4048denso, a4048p, a4048pina, a4048sr, alt12049, alt4231u, cal30164, dan509, dendan509, dra4264, dra4264x, f032113904, f042307023, f042307026, f042a07023, f042a07026, ga16491, lea0633, lra02946, man7491, r1530099, 8el011360481, 8el011711631, 8el738211661, 1890ir, 1986a01352, 4739, 23808, 23808n, 112597, 112782, 200315, 210325, 210325a, 285560, 301890ri, 443070, 849128, 1204434, 6204189, 9212198, 9562208, 12048800, 13117236, 13153236, 063377491, 63377491, 93169030, 93169031, 93169259, 93180104, 943377491, 0986048801, 0986048803, 1022118660, 1022118661, 1022118662, 2281731402, 063377491010, 943377491010, 944390903260
  • Description
    Voltage: 14
    Amps: 130
    Terminal: DF
    Pulley distance: 113.00
    Width/holder arm: 61.00
    Bracket hole: 12.00
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: 12.00
    Pulley diameter: 61.50
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 89.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M5
    Rotation: CW
    Total length mm: 215.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113904, R1530099, 1890ir, 1986A01352, 102211-8660, 102211-8661, 102211-8662, 1204434, 6204189, 9562208, 13117236, 13153236, 63377491, 93169030, 93169031, 93169259, 93180104

    • Normalised article numbler
      a4048, a4048denso, a4048p, a4048pina, a4048sr, alt12049, alt4231u, cal30164, dan509, dendan509, dra4264, dra4264x, f032113904, f042307023, f042307026, f042a07023, f042a07026, ga16491, lea0633, lra02946, man7491, r1530099, 8el011360481, 8el011711631, 8el738211661, 1890ir, 1986a01352, 4739, 23808, 23808n, 112597, 112782, 200315, 210325, 210325a, 285560, 301890ri, 443070, 849128, 1204434, 6204189, 9212198, 9562208, 12048800, 13117236, 13153236, 063377491, 63377491, 93169030, 93169031, 93169259, 93180104, 943377491, 0986048801, 0986048803, 1022118660, 1022118661, 1022118662, 2281731402, 063377491010, 943377491010, 944390903260
