HC-Cargo Alternator

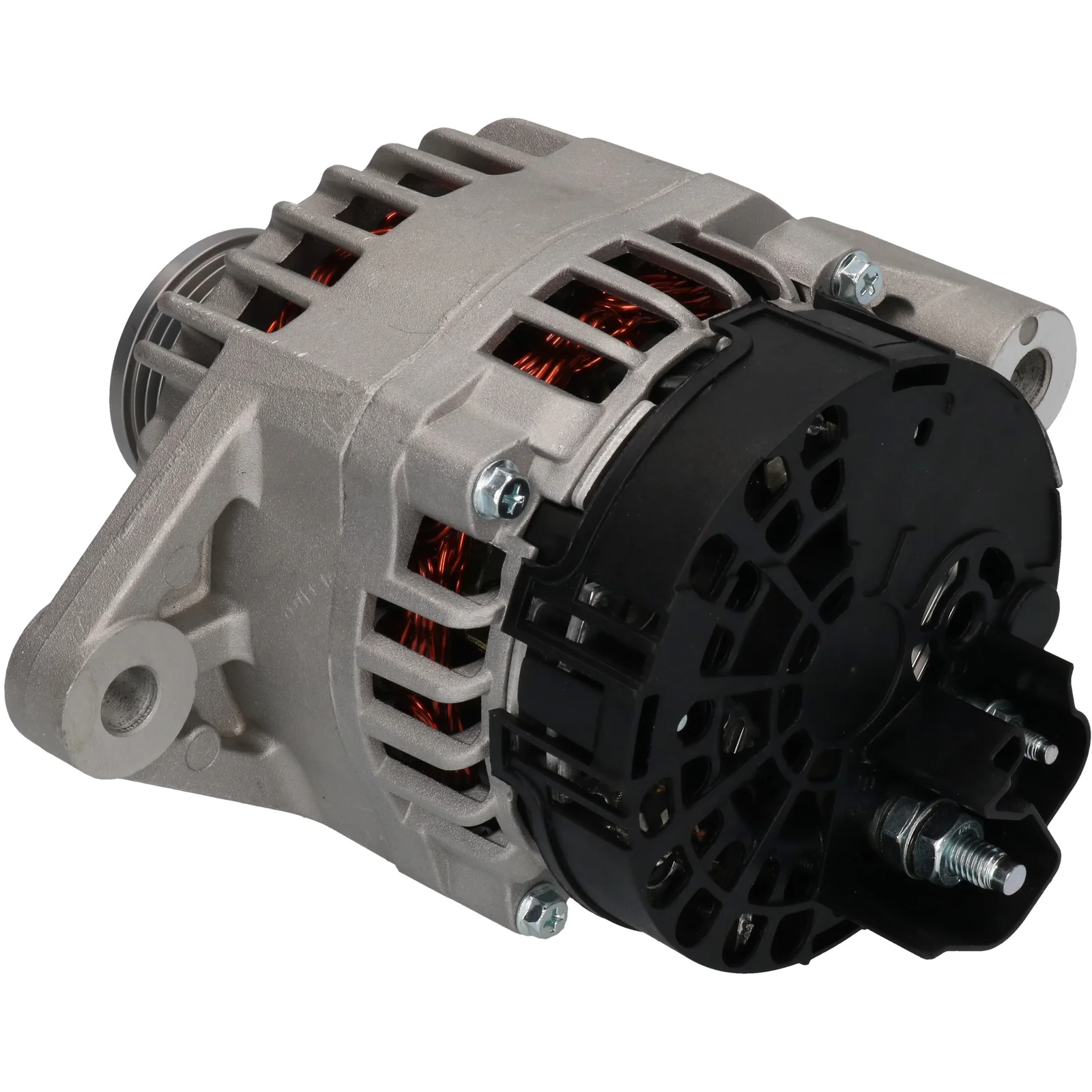

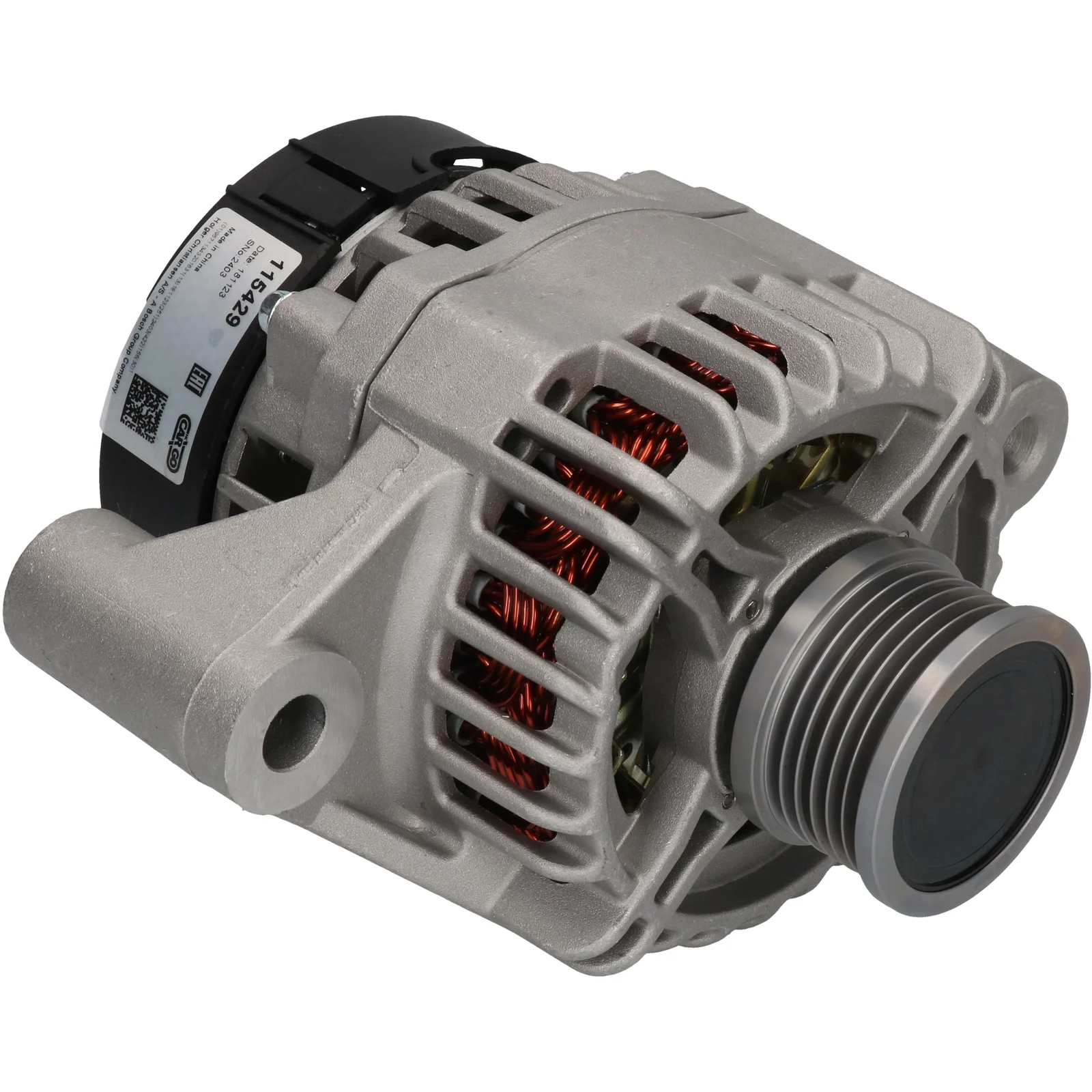

HC-Cargo Alternator
Article no.: F032115429

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 54.00

Description

Alternator 12V-120A 12V - 120A, 6 grooves, ( B+, D+) For Yourex product order 90-165-4902

Voltage: 14
Amp: 120
Pulley distance: 113.00
Width/holder arm: 61.00
Bracket hole: 12.30
Belt. adjustment bracket hole position: 60
Belt. adjustment bracket hole 1: 12.30
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
D+ size: M5
Rotation: CW
Total length mm: 202.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    A6059, A6059(DENSO), A6075, A6075(DENSO), A6107, CAL30219, CAL30230, CAL30233, DAN 1000, DAN 1084, DAN 995, DAN1000, DAN1084, DAN995, DENDAN1000, DENDAN995, DRA0723, DRA0929, F032115429, GM 95511968, GM 95520024, GM 95524556, GM 95524557, LRA03312, MAN7018, R1530100, 8EL011712-851, 28-5924, 28-6946, 218.314.1202, 218.330.1202, 495.504.120, 505.583.120, 0986 083 300, 2050ir, 20357N, 20675N, 101210-1100, 101210-1101, 101210-1102, 101210-1320, 101210-1321, 101210-1440, 115429, 209323, 209323A, 210720, 210720A, 210758, 210758A, 440860, 440899, 443165, 553433RI, 849191, 1202272, 1204436, 1204456, 6204188, 6204294, 9562209, 12090380, 12090381, 13117341, 13117341AA, 51764265, 51793678, 51817369, 51820624, 51854898, 51854899, 51854901, 51854902, 51884886, 52003506, 52003507, 52003508, 52003509, 52003616, 63377018, 63377026, 71769230, 71784513, 71784514, 71797184, 71797185, 71797189, 73503235, 93169032, 93169033, 93169258, 93180102, 95511968, 95520024, 95520875, 95524556, 95524557, 0986083300, 063377018010

  • Normalised article numbler
    a6059, a6059denso, a6075, a6075denso, a6107, cal30219, cal30230, cal30233, dan1000, dan1084, dan995, dendan1000, dendan995, dra0723, dra0929, f032115429, gm95511968, gm95520024, gm95524556, gm95524557, lra03312, man7018, r1530100, 8el011712851, 2050ir, 20357n, 20675n, 115429, 209323, 209323a, 210720, 210720a, 210758, 210758a, 285924, 286946, 440860, 440899, 443165, 553433ri, 849191, 1202272, 1204436, 1204456, 6204188, 6204294, 9562209, 12090380, 12090381, 13117341, 13117341aa, 51764265, 51793678, 51817369, 51820624, 51854898, 51854899, 51854901, 51854902, 51884886, 52003506, 52003507, 52003508, 52003509, 52003616, 63377018, 63377026, 71769230, 71784513, 71784514, 71797184, 71797185, 71797189, 73503235, 93169032, 93169033, 93169258, 93180102, 95511968, 95520024, 95520875, 95524556, 95524557, 495504120, 505583120, 0986083300, 1012101100, 1012101101, 1012101102, 1012101320, 1012101321, 1012101440, 2183141202, 2183301202, 063377018010
  • Description
    Alternator 12V-120A 12V - 120A, 6 grooves, ( B+, D+) For Yourex product order 90-165-4902

    Voltage: 14
    Amp: 120
    Pulley distance: 113.00
    Width/holder arm: 61.00
    Bracket hole: 12.30
    Belt. adjustment bracket hole position: 60
    Belt. adjustment bracket hole 1: 12.30
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    D+ size: M5
    Rotation: CW
    Total length mm: 202.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A6059, A6059(DENSO), A6075, A6075(DENSO), A6107, CAL30219, CAL30230, CAL30233, DAN 1000, DAN 1084, DAN 995, DAN1000, DAN1084, DAN995, DENDAN1000, DENDAN995, DRA0723, DRA0929, F032115429, GM 95511968, GM 95520024, GM 95524556, GM 95524557, LRA03312, MAN7018, R1530100, 8EL011712-851, 28-5924, 28-6946, 218.314.1202, 218.330.1202, 495.504.120, 505.583.120, 0986 083 300, 2050ir, 20357N, 20675N, 101210-1100, 101210-1101, 101210-1102, 101210-1320, 101210-1321, 101210-1440, 115429, 209323, 209323A, 210720, 210720A, 210758, 210758A, 440860, 440899, 443165, 553433RI, 849191, 1202272, 1204436, 1204456, 6204188, 6204294, 9562209, 12090380, 12090381, 13117341, 13117341AA, 51764265, 51793678, 51817369, 51820624, 51854898, 51854899, 51854901, 51854902, 51884886, 52003506, 52003507, 52003508, 52003509, 52003616, 63377018, 63377026, 71769230, 71784513, 71784514, 71797184, 71797185, 71797189, 73503235, 93169032, 93169033, 93169258, 93180102, 95511968, 95520024, 95520875, 95524556, 95524557, 0986083300, 063377018010

    • Normalised article numbler
      a6059, a6059denso, a6075, a6075denso, a6107, cal30219, cal30230, cal30233, dan1000, dan1084, dan995, dendan1000, dendan995, dra0723, dra0929, f032115429, gm95511968, gm95520024, gm95524556, gm95524557, lra03312, man7018, r1530100, 8el011712851, 2050ir, 20357n, 20675n, 115429, 209323, 209323a, 210720, 210720a, 210758, 210758a, 285924, 286946, 440860, 440899, 443165, 553433ri, 849191, 1202272, 1204436, 1204456, 6204188, 6204294, 9562209, 12090380, 12090381, 13117341, 13117341aa, 51764265, 51793678, 51817369, 51820624, 51854898, 51854899, 51854901, 51854902, 51884886, 52003506, 52003507, 52003508, 52003509, 52003616, 63377018, 63377026, 71769230, 71784513, 71784514, 71797184, 71797185, 71797189, 73503235, 93169032, 93169033, 93169258, 93180102, 95511968, 95520024, 95520875, 95524556, 95524557, 495504120, 505583120, 0986083300, 1012101100, 1012101101, 1012101102, 1012101320, 1012101321, 1012101440, 2183141202, 2183301202, 063377018010
