HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114490

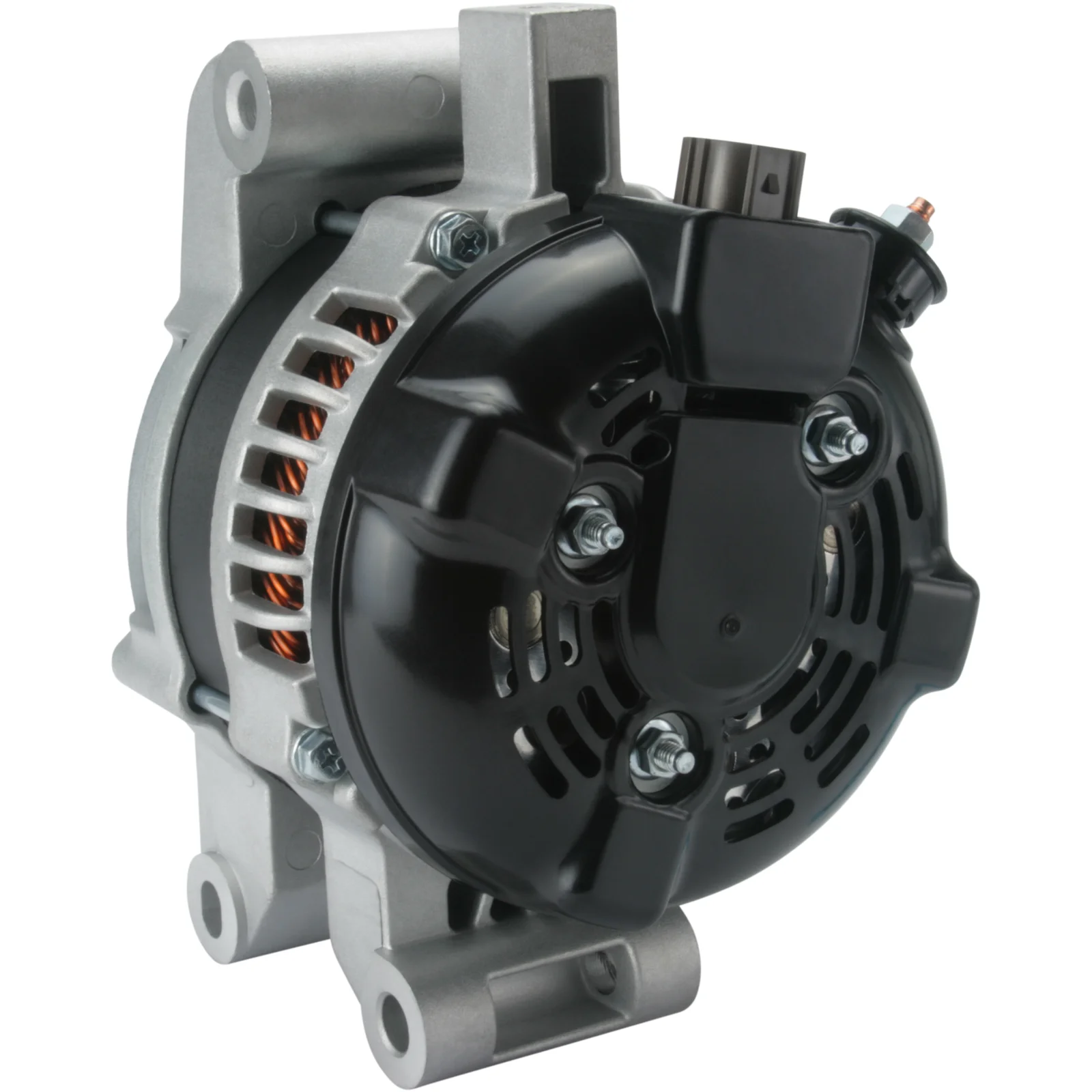

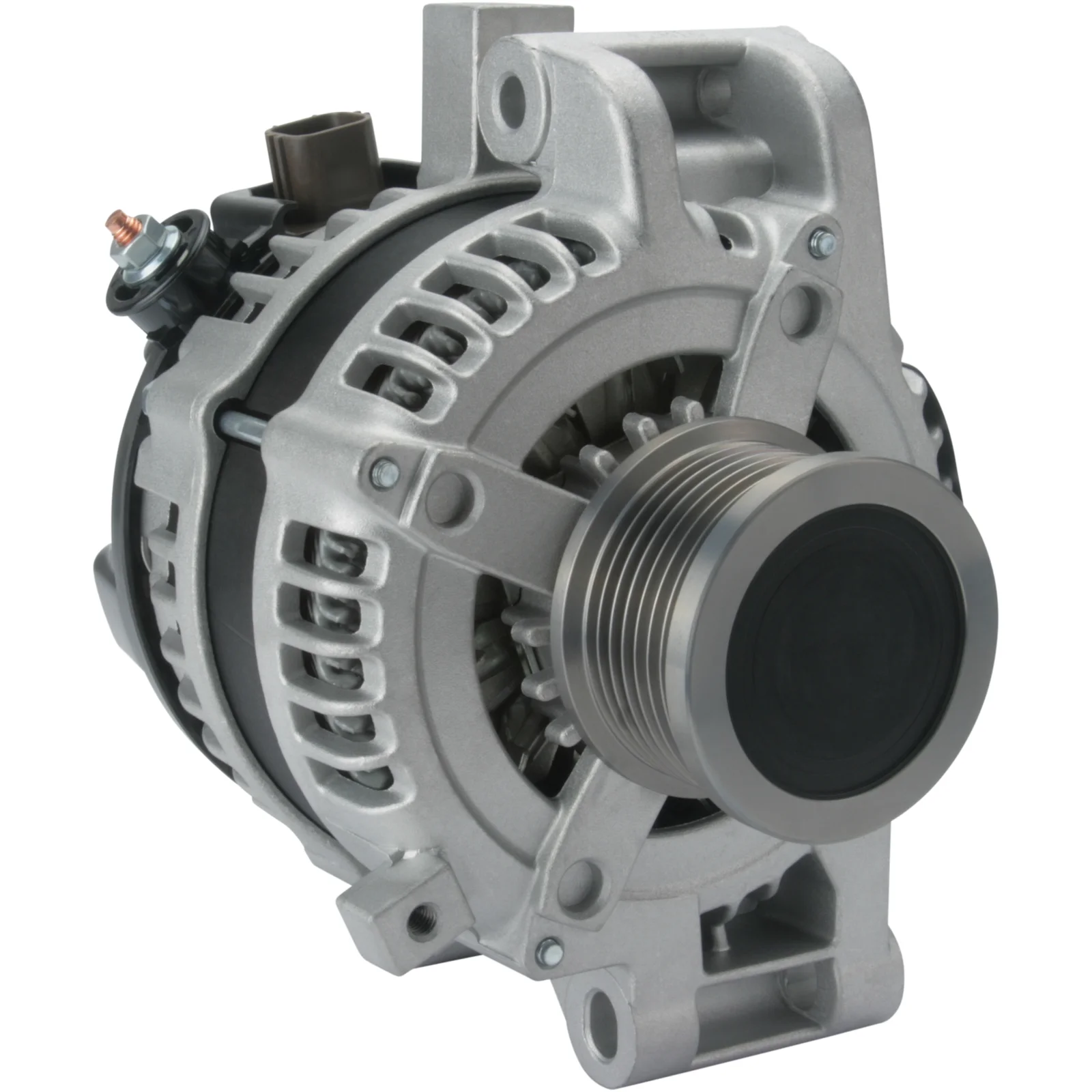

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Rotation: CW, Mounting bracket distributor: 71.50

Description

Alternator 12V-100A fits Toyota 12V - 100A, 7 poles, (L, IG, S, DFM) For Yourex product order 90-555-5140

Voltage: 14
Amps: 100
Pulley distance: 24.00
Width/holder arm: 60.00
Mounting bracket distance: 71.50
Bracket hole: 8.80
Bracket hole 2: 10.20
Belt adjustment bracket hole position: 58
Belt adjustment bracket hole 1: 8.50
Pulley diameter: 58.00
Grooves/pulley: 7
B+: M6
Position/B+ in min.: 8
Rotation: CW
Plug number: PL78
Total length mm: 152.00
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032114490, 1986A00940, 1986A01203, 2036ir, 021080-2010, 27060-0R011, 27060-0R040, 27060-0r040, 27060-0R050, 27060-26051, 104210-2220, 104210-4850, 104210-5140, 104210-5600, 104211-3600, 114490

  • Normalised article numbler
    a6089, a6089denso, a6096, cal40291, cal40303, dan1022, dan1045, dan1351, dra0598, dra1287, f032114490, 8el015630691, 1986a00940, 1986a01203, 2036ir, 9473, 24110r, 114490, 209361, 209361a, 209370, 209370a, 270600r011, 270600r040, 270600r050, 285784, 302036ri, 440985, 553488ri, 12060926, 195927100, 195970100, 0210802010, 0986082080, 1042102220, 1042104850, 1042105140, 1042105600, 1042113600, 2353251002, 2706026051
  • Description
    Alternator 12V-100A fits Toyota 12V - 100A, 7 poles, (L, IG, S, DFM) For Yourex product order 90-555-5140

    Voltage: 14
    Amps: 100
    Pulley distance: 24.00
    Width/holder arm: 60.00
    Mounting bracket distance: 71.50
    Bracket hole: 8.80
    Bracket hole 2: 10.20
    Belt adjustment bracket hole position: 58
    Belt adjustment bracket hole 1: 8.50
    Pulley diameter: 58.00
    Grooves/pulley: 7
    B+: M6
    Position/B+ in min.: 8
    Rotation: CW
    Plug number: PL78
    Total length mm: 152.00
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114490, 1986A00940, 1986A01203, 2036ir, 021080-2010, 27060-0R011, 27060-0R040, 27060-0r040, 27060-0R050, 27060-26051, 104210-2220, 104210-4850, 104210-5140, 104210-5600, 104211-3600, 114490

    • Normalised article numbler
      a6089, a6089denso, a6096, cal40291, cal40303, dan1022, dan1045, dan1351, dra0598, dra1287, f032114490, 8el015630691, 1986a00940, 1986a01203, 2036ir, 9473, 24110r, 114490, 209361, 209361a, 209370, 209370a, 270600r011, 270600r040, 270600r050, 285784, 302036ri, 440985, 553488ri, 12060926, 195927100, 195970100, 0210802010, 0986082080, 1042102220, 1042104850, 1042105140, 1042105600, 1042113600, 2353251002, 2706026051
