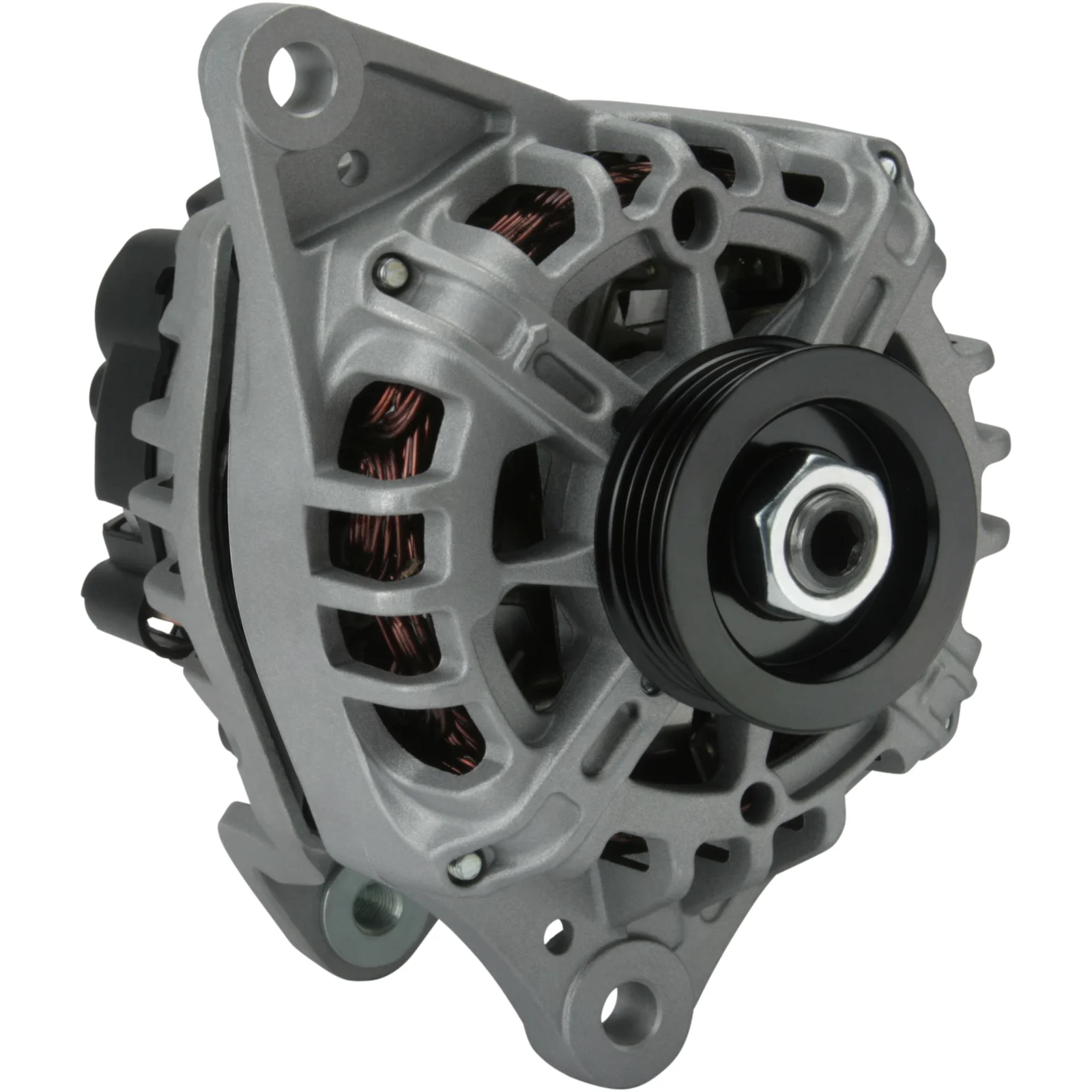

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115531

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 80, Rotation: CW, Mounting bracket distance: 67.50

Description

Voltage: 14
Amp: 80
Pulley distributor: 44.50
Width/holder arm: 13.00
Mounting bracket distributor: 67.50
Bracket hole: 10.00
Belt adjustment bracket hole position: 53
Belt adjustment bracket hole 1: 10.00
Pulley diameter: 55.00
Grooves/pulley: 4
Radius: 83.00
Radius 2: 93.00
B+: M8
Position/B+ in minutes: 40
Rotation: CW
Plug number: PL55
Total length millimeters: 170.00
Pulley: Sprocket
Regulator type: IR
Product information: BN

Files

  • OEM
    F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

  • Normalised article numbler
    a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680
  • Description
    Voltage: 14
    Amp: 80
    Pulley distributor: 44.50
    Width/holder arm: 13.00
    Mounting bracket distributor: 67.50
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 53
    Belt adjustment bracket hole 1: 10.00
    Pulley diameter: 55.00
    Grooves/pulley: 4
    Radius: 83.00
    Radius 2: 93.00
    B+: M8
    Position/B+ in minutes: 40
    Rotation: CW
    Plug number: PL55
    Total length millimeters: 170.00
    Pulley: Sprocket
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115531, TG8C018, TG8S019, 1963ir, 23100-AX610, 23100-ax62a, 2542926, 2542926A, 2542927, 2542927A

    • Normalised article numbler
      a3220, a3220pr, a3331, cal15318, dra0206, f032115531, tg8c018, tg8s019, 8el012430031, 8el738211941, 1963ir, 23100ax610, 23100ax62a, 23559n, 23560n, 209143, 209143a, 284903, 301963ri, 437543, 439550, 747136, 2542926, 2542926a, 2542927, 2542927a, 12060836, 165502080, 0986080680
