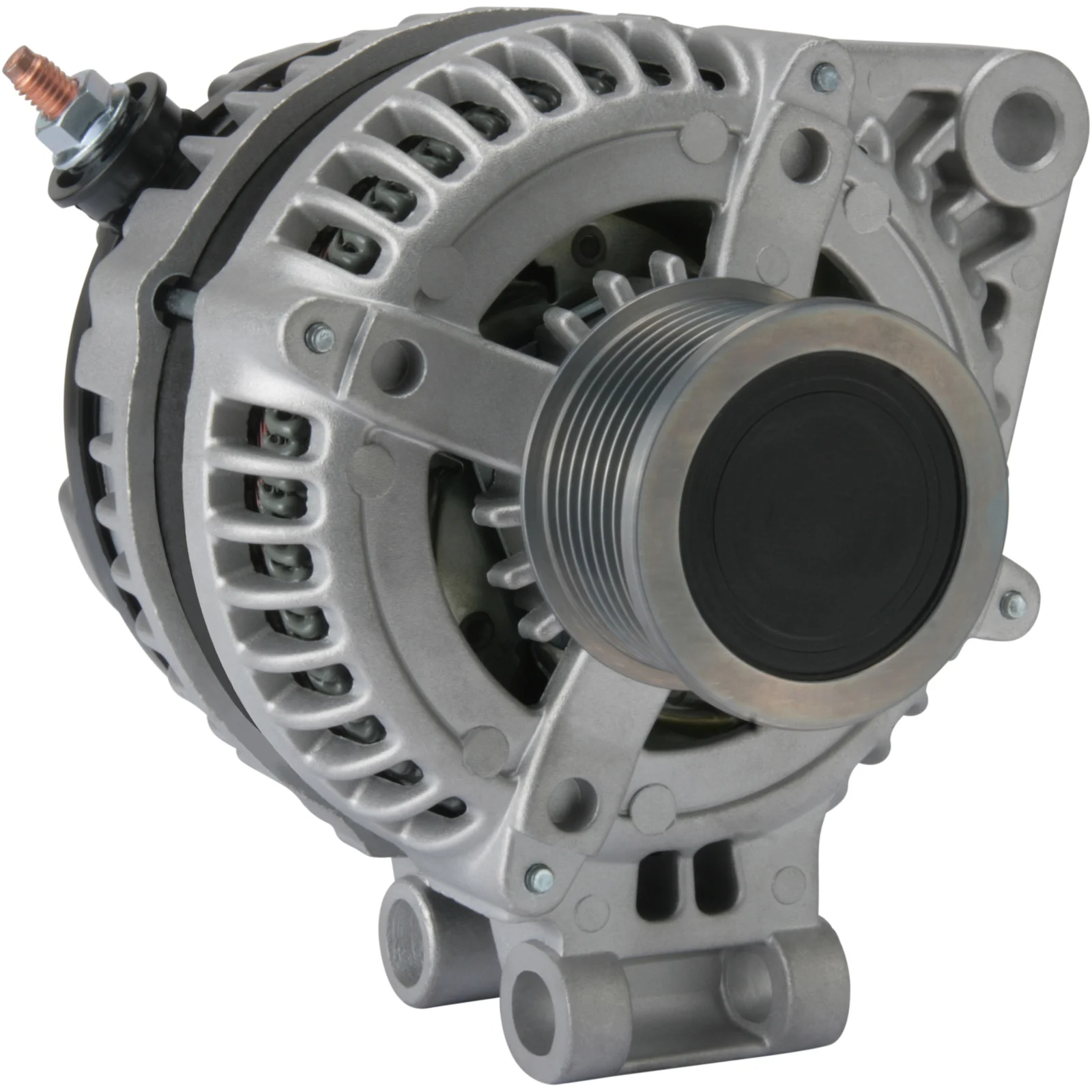

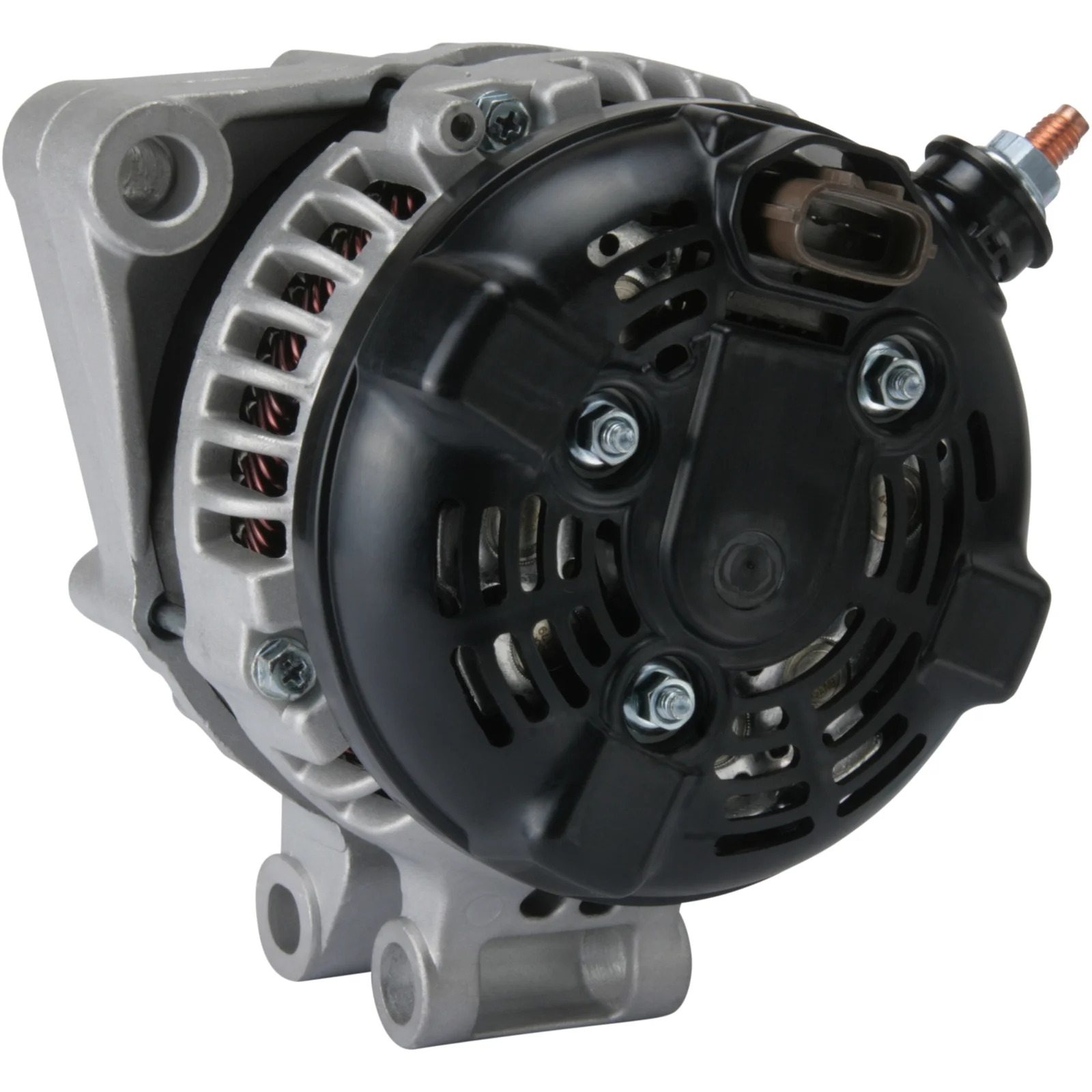

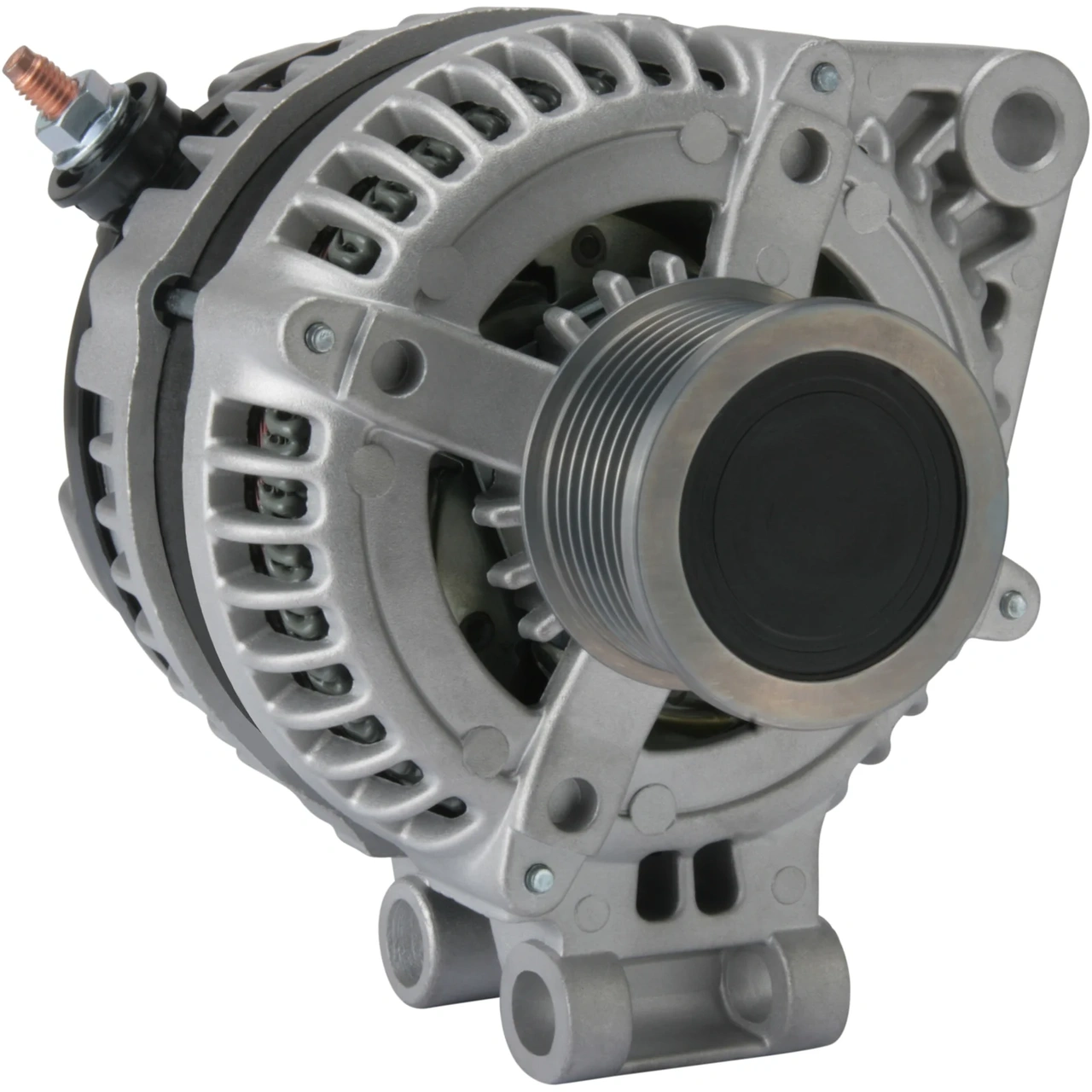

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114704

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 150, Rotation: CW, Mounting bracket distributor: 47.00

Description

Voltage: 14
Amp: 150
Pulley dist.: 22.00
Width/holder arm: 50.00
Mount. bracket dist.: 47.00
Bracket hole: 12.00x14.00
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: 11.00
Belt. adj. bracket hole 2: 11.40
Pulley dia.: 57.30
Grooves/pulley: 8
Radius: 84.50
Radius 2: 86.00
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL136
Total length mm: 173.00
Terminal type: LI-RC-BVS
Lamp type: Inactive
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032114704, yle500200, YLE500400, 1958ir, 1986A01346, 104210-3710, 104210-3711

  • Normalised article numbler
    a6080, a6080denso, cal40254, cal40308, dan987, dendan987, dra0342, f032114704, f042205268, lea0700, lra03028, yle500200, yle500400, 8el012426021, 8el738212901, 1958ir, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 0986082400, 1042103710, 1042103711, 2141621502, 063377525010
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 22.00
    Width/holder arm: 50.00
    Mount. bracket dist.: 47.00
    Bracket hole: 12.00x14.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: 11.00
    Belt. adj. bracket hole 2: 11.40
    Pulley dia.: 57.30
    Grooves/pulley: 8
    Radius: 84.50
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL136
    Total length mm: 173.00
    Terminal type: LI-RC-BVS
    Lamp type: Inactive
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114704, yle500200, YLE500400, 1958ir, 1986A01346, 104210-3710, 104210-3711

    • Normalised article numbler
      a6080, a6080denso, cal40254, cal40308, dan987, dendan987, dra0342, f032114704, f042205268, lea0700, lra03028, yle500200, yle500400, 8el012426021, 8el738212901, 1958ir, 1986a01346, 9454, 24028ctwb, 24028r, 112684, 210902, 210902a, 285640, 301958ri, 439984, 440765, 12090357, 32082400, 0986082400, 1042103710, 1042103711, 2141621502, 063377525010
