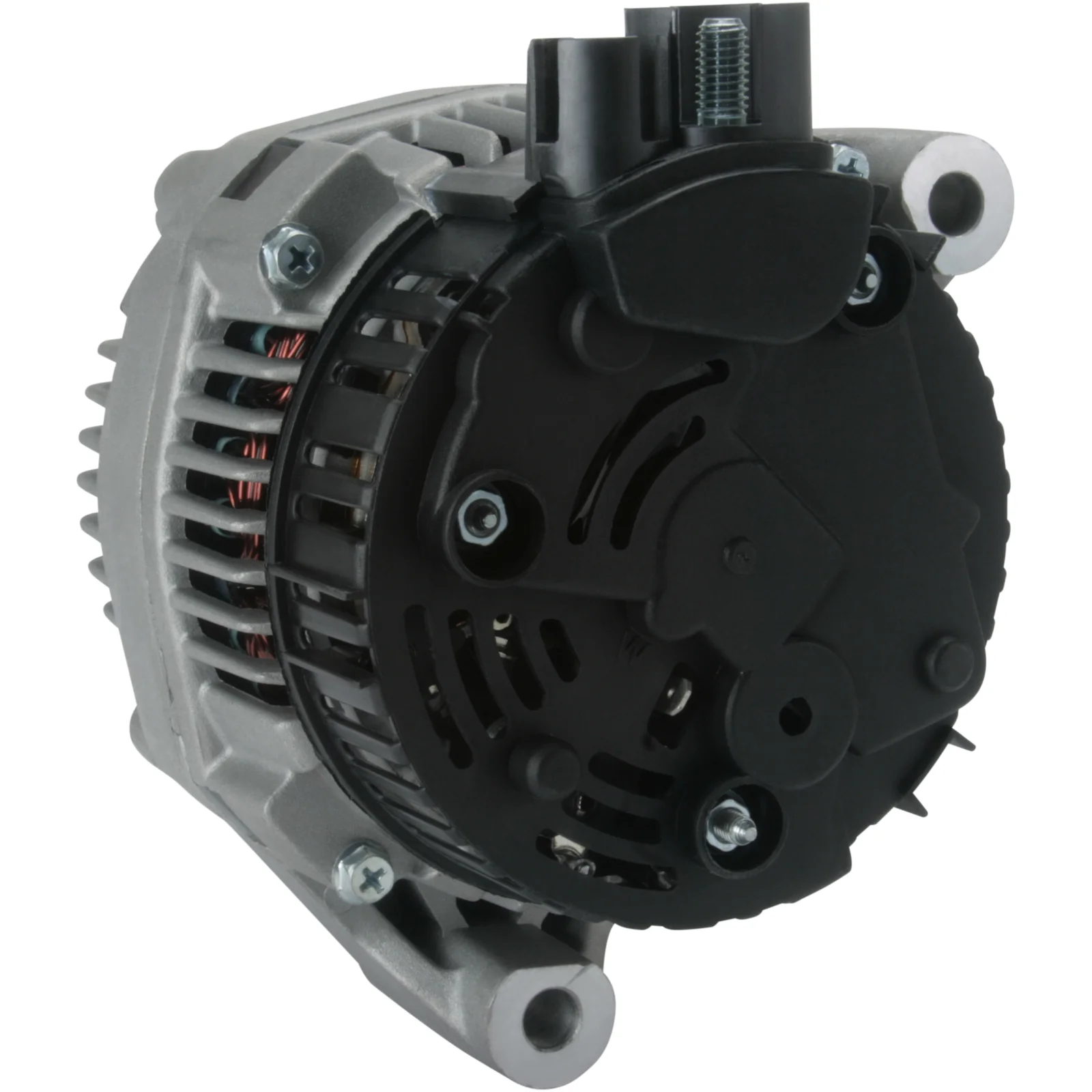

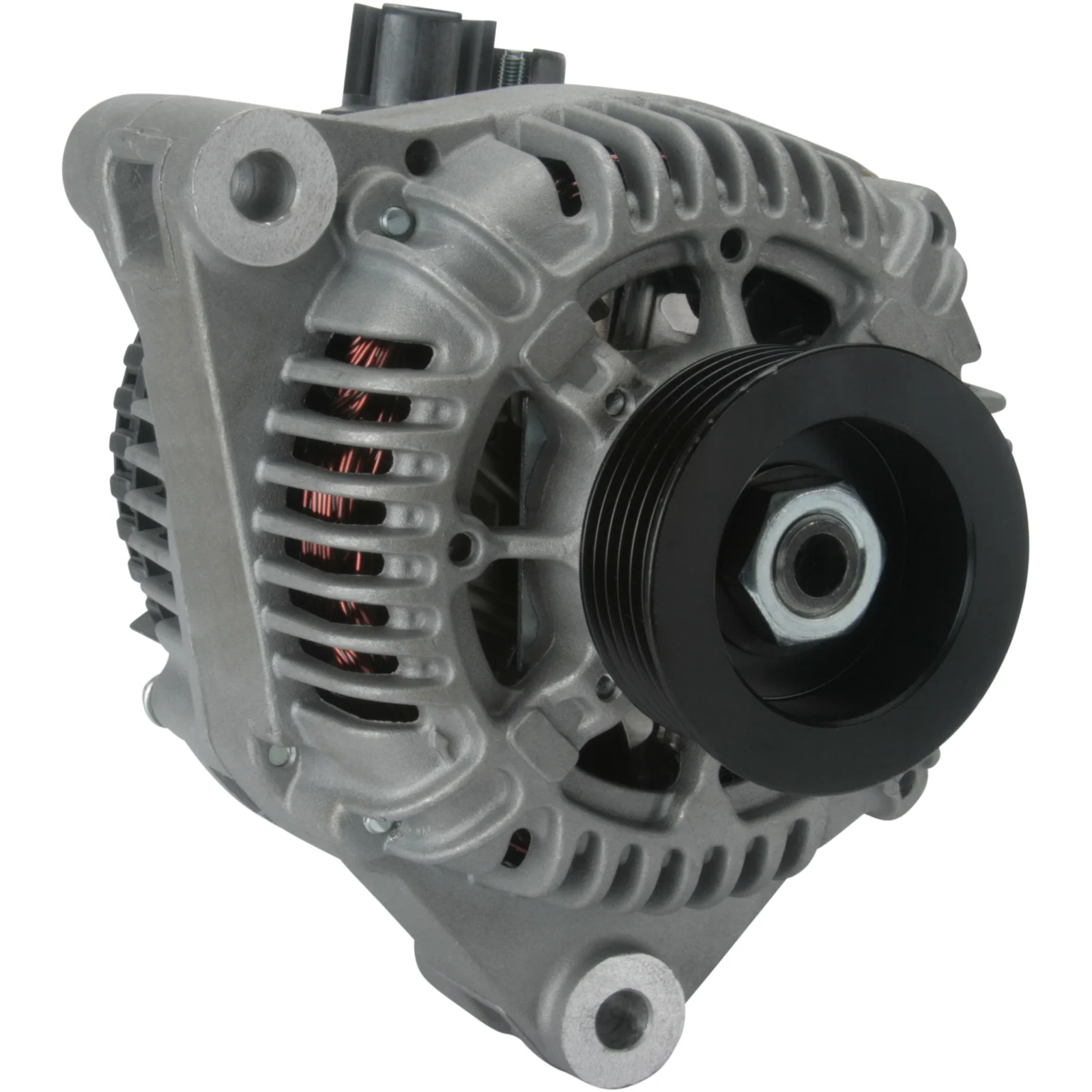

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032111893

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Pulley diameter: 63.00

Description

Voltage: 14
Amp: 70
Pulley dist.: 91.50
Width/holder arm: 56.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 63.00
Grooves/pulley: 6
Radius: 85.50
Radius 2: 87.50
B+: M8
Position/B+ in min.: 60
D+ Size: M5
Rotation: CW
Total length mm: 177.00
Alternator: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Citroen

Files

  • OEM
    F032111893, K9617842880, 1155ir, 1516424R, 96178428, 0123310012, 9617842880

  • Normalised article numbler
    a0381, alt10026, bao3176, dra9760, f032111893, k9617842880, lrb00311, qa4220, 8el011360391, 8el012427271, 8el737202001, 1155ir, 4430, 5604, 5705je, 5705x7, 5705x8, 21924r, 21925n, 200071, 210216, 210216a, 282925, 301155ri, 746806, 839007, 1516424r, 9039760, 12039760, 96178428, 0123310012, 200132702, 0986039760, 0986039763, 9617842880, 943356577010
  • Description
    Voltage: 14
    Amp: 70
    Pulley dist.: 91.50
    Width/holder arm: 56.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 63.00
    Grooves/pulley: 6
    Radius: 85.50
    Radius 2: 87.50
    B+: M8
    Position/B+ in min.: 60
    D+ Size: M5
    Rotation: CW
    Total length mm: 177.00
    Alternator: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Citroen

    Files

  • Suitable for these vehicles

    • OEM
      F032111893, K9617842880, 1155ir, 1516424R, 96178428, 0123310012, 9617842880

    • Normalised article numbler
      a0381, alt10026, bao3176, dra9760, f032111893, k9617842880, lrb00311, qa4220, 8el011360391, 8el012427271, 8el737202001, 1155ir, 4430, 5604, 5705je, 5705x7, 5705x8, 21924r, 21925n, 200071, 210216, 210216a, 282925, 301155ri, 746806, 839007, 1516424r, 9039760, 12039760, 96178428, 0123310012, 200132702, 0986039760, 0986039763, 9617842880, 943356577010
