Article no.: F032111950

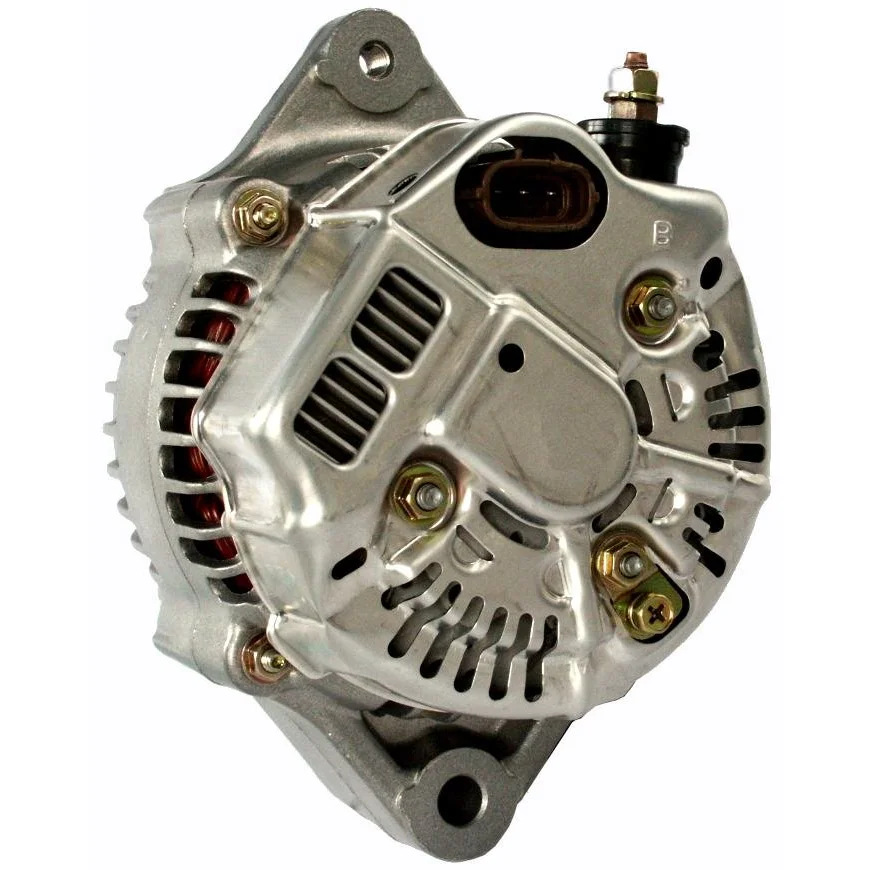

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 85, Rotation: CW, Pulley diameter: 60.00

Description

Suzuki Alternator 12V-80A 12V - 80A, 4-pole, ( -, IG, L) For Yourex product order 90-528-4578 Voltage: 14 Amp: 85 Pulley diameter: 90.00 Width/holder arm: 58.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: M8 Pulley diameter: 60.00 Grooves/pulley: 4 Radius: 77.50 Radius 2: 83.00 B+: M6 Position/B+ in min.: 5 D+ size: Plug Rotation: CW Plug no.: PL58 Total length mm: 160.00 Pulley: SP Regulator type: IR Prod. info: Reman Servicing: Suzuki

Files

  • OEM
    F032111950, ja1356ir, 0986 045 781, 31400-52D10, 31400-77E10, 31400-77e10, 31400-77E10-000, 31400-77E11, 31400-77E12, 31400-77e12, 101211-9180, 102211-1430, 102211-2430, 104210-8140, 111950

  • Normalised article numbler
    a6185, alth071, cal47101, dan1006, dendan1006, dra1014, dra3927, f032111950, f042a0h071, j5118020, ja1356ir, lra02058, 8el737524001, 5994, 11164r, 13795n, 13982n, 23037n, 111599, 111600, 111950, 209488, 209488a, 283956, 283986, 401356ri, 437726, 3140052d10, 3140077e10, 3140077e10000, 3140077e11, 3140077e12, 9212143, 12060745, 245112852, 245117852, 0986045771, 0986045781, 1012119180, 1022111430, 1022112430, 1042108140, 063377529010, 944390518120
  • Description
    Suzuki Alternator 12V-80A 12V - 80A, 4-pole, ( -, IG, L) For Yourex product order 90-528-4578 Voltage: 14 Amp: 85 Pulley diameter: 90.00 Width/holder arm: 58.00 Bracket hole: 10.50 Belt adjustment bracket hole position: 60 Belt adjustment bracket hole 1: M8 Pulley diameter: 60.00 Grooves/pulley: 4 Radius: 77.50 Radius 2: 83.00 B+: M6 Position/B+ in min.: 5 D+ size: Plug Rotation: CW Plug no.: PL58 Total length mm: 160.00 Pulley: SP Regulator type: IR Prod. info: Reman Servicing: Suzuki

    Files

  • Suitable for these vehicles

    • OEM
      F032111950, ja1356ir, 0986 045 781, 31400-52D10, 31400-77E10, 31400-77e10, 31400-77E10-000, 31400-77E11, 31400-77E12, 31400-77e12, 101211-9180, 102211-1430, 102211-2430, 104210-8140, 111950

    • Normalised article numbler
      a6185, alth071, cal47101, dan1006, dendan1006, dra1014, dra3927, f032111950, f042a0h071, j5118020, ja1356ir, lra02058, 8el737524001, 5994, 11164r, 13795n, 13982n, 23037n, 111599, 111600, 111950, 209488, 209488a, 283956, 283986, 401356ri, 437726, 3140052d10, 3140077e10, 3140077e10000, 3140077e11, 3140077e12, 9212143, 12060745, 245112852, 245117852, 0986045771, 0986045781, 1012119180, 1022111430, 1022112430, 1042108140, 063377529010, 944390518120
