HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114291

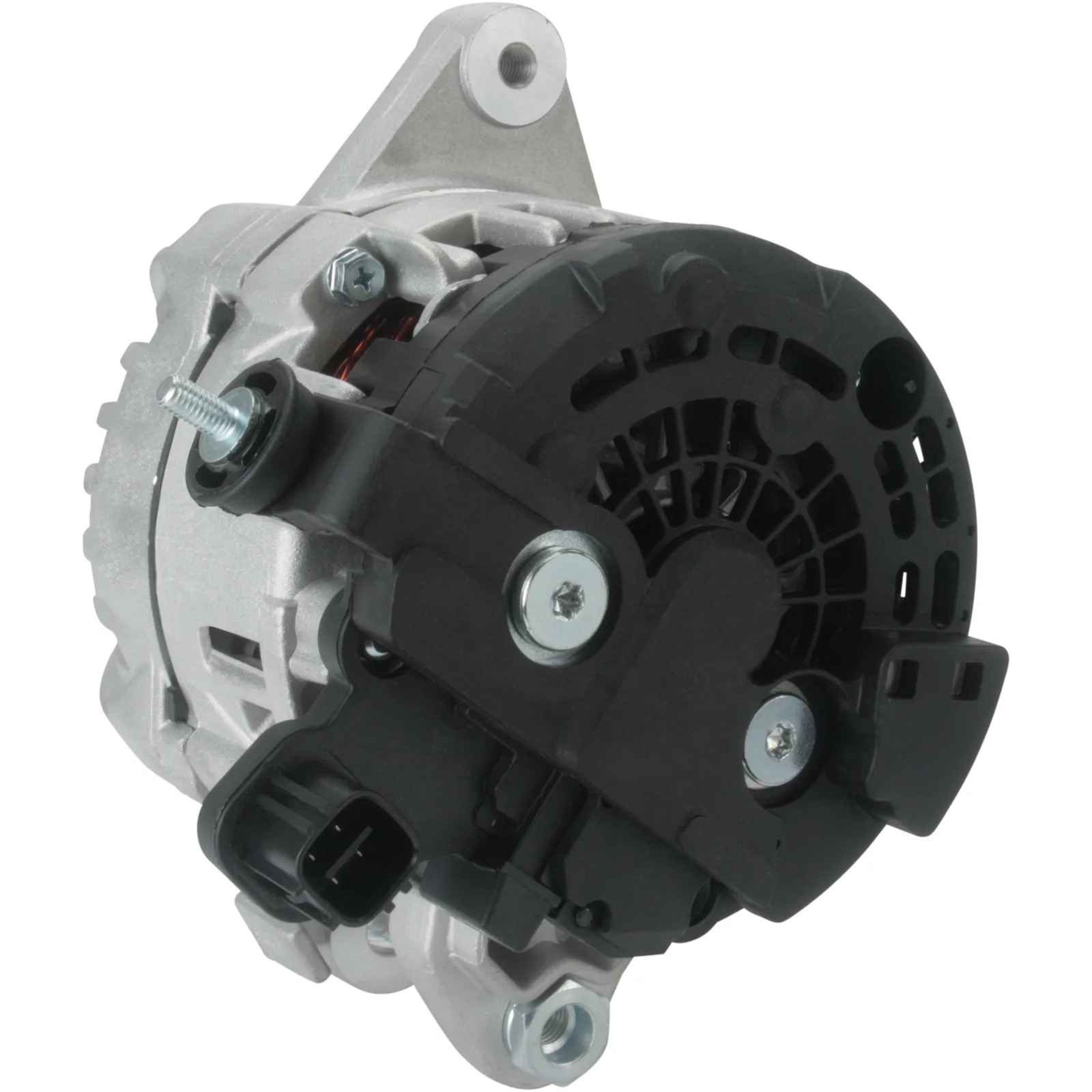

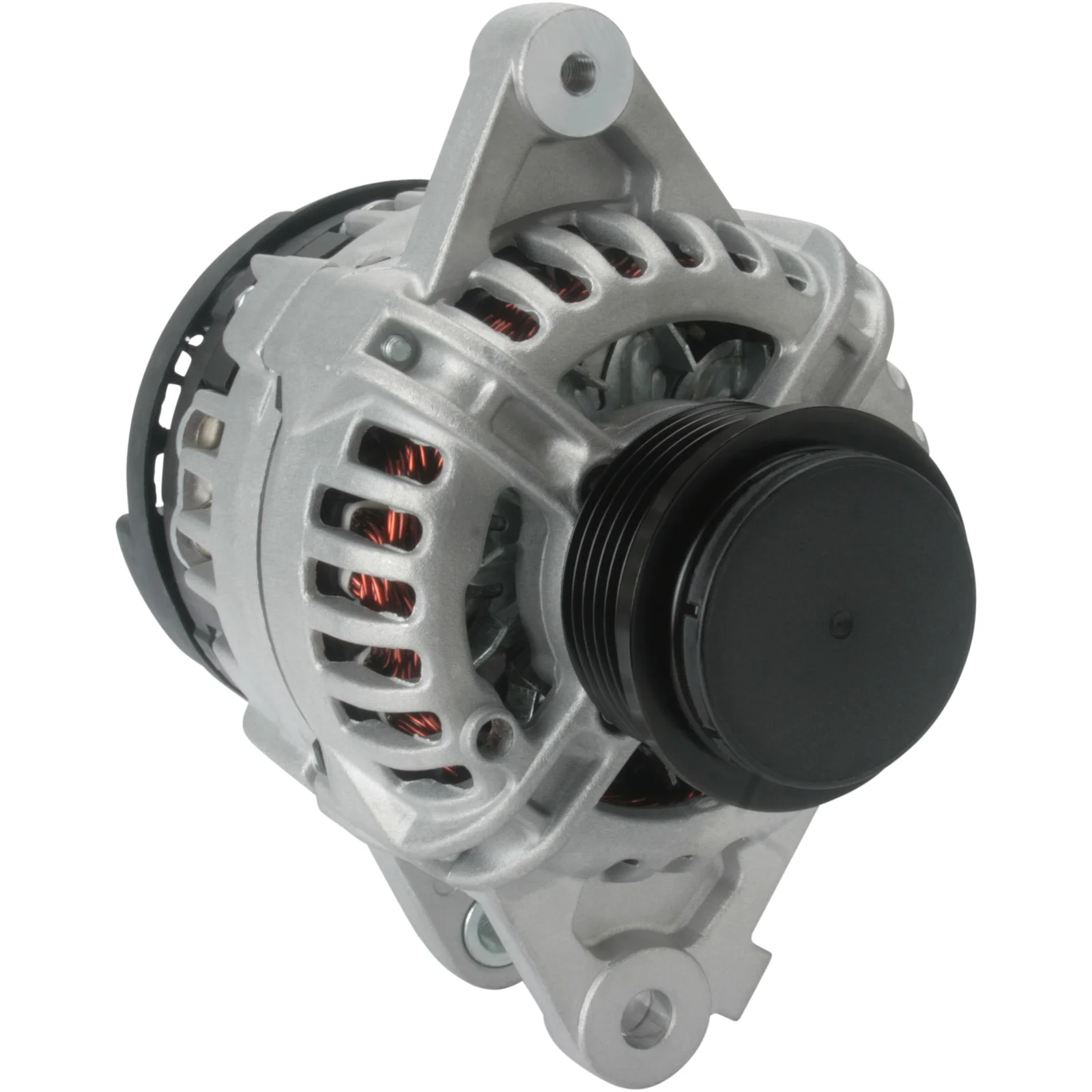

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 41.20

Description

Toyota Gen. Yaris 1.4D 12V-90A 12V - 90A, 6rg.frg, (S, IG, L, DFM) För Yourex produkt order 90-555-5055

Voltage: 14
Amp: 90
Pulley dist.: 30.50
Width/holder arm: 16.40
Mount. bracket dist.: 41.20
Bracket hole: 11.50
Belt. adj. brackethole pos.: 58
Belt. adj. bracket hole 1: M8
Pulley dia.: 62.00
Grooves/pulley: 6
Radius: 87.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 48
Rotation: CW
Plug no.: PL78
Total length mm: 160.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Files

  • OEM
    F032114291, 0124 225 055, 0986 080 470, 1930ir, 27060-0N011, 27060-0n011, 114291, 0124225055

  • Normalised article numbler
    a0241, alth211, cal10405, dra0615, f032114291, f042a0h211, 8el015630571, 1930ir, 9321, 24121n, 114291, 210896, 210896a, 270600n011, 285733, 301930ri, 440837, 12060887, 0124225055, 195582090, 235323902, 0986080470
  • Description
    Toyota Gen. Yaris 1.4D 12V-90A 12V - 90A, 6rg.frg, (S, IG, L, DFM) För Yourex produkt order 90-555-5055

    Voltage: 14
    Amp: 90
    Pulley dist.: 30.50
    Width/holder arm: 16.40
    Mount. bracket dist.: 41.20
    Bracket hole: 11.50
    Belt. adj. brackethole pos.: 58
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 62.00
    Grooves/pulley: 6
    Radius: 87.00
    Radius 2: 87.00
    B+: M6
    Position/B+ in min.: 48
    Rotation: CW
    Plug no.: PL78
    Total length mm: 160.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Files

  • Suitable for these vehicles

    • OEM
      F032114291, 0124 225 055, 0986 080 470, 1930ir, 27060-0N011, 27060-0n011, 114291, 0124225055

    • Normalised article numbler
      a0241, alth211, cal10405, dra0615, f032114291, f042a0h211, 8el015630571, 1930ir, 9321, 24121n, 114291, 210896, 210896a, 270600n011, 285733, 301930ri, 440837, 12060887, 0124225055, 195582090, 235323902, 0986080470
