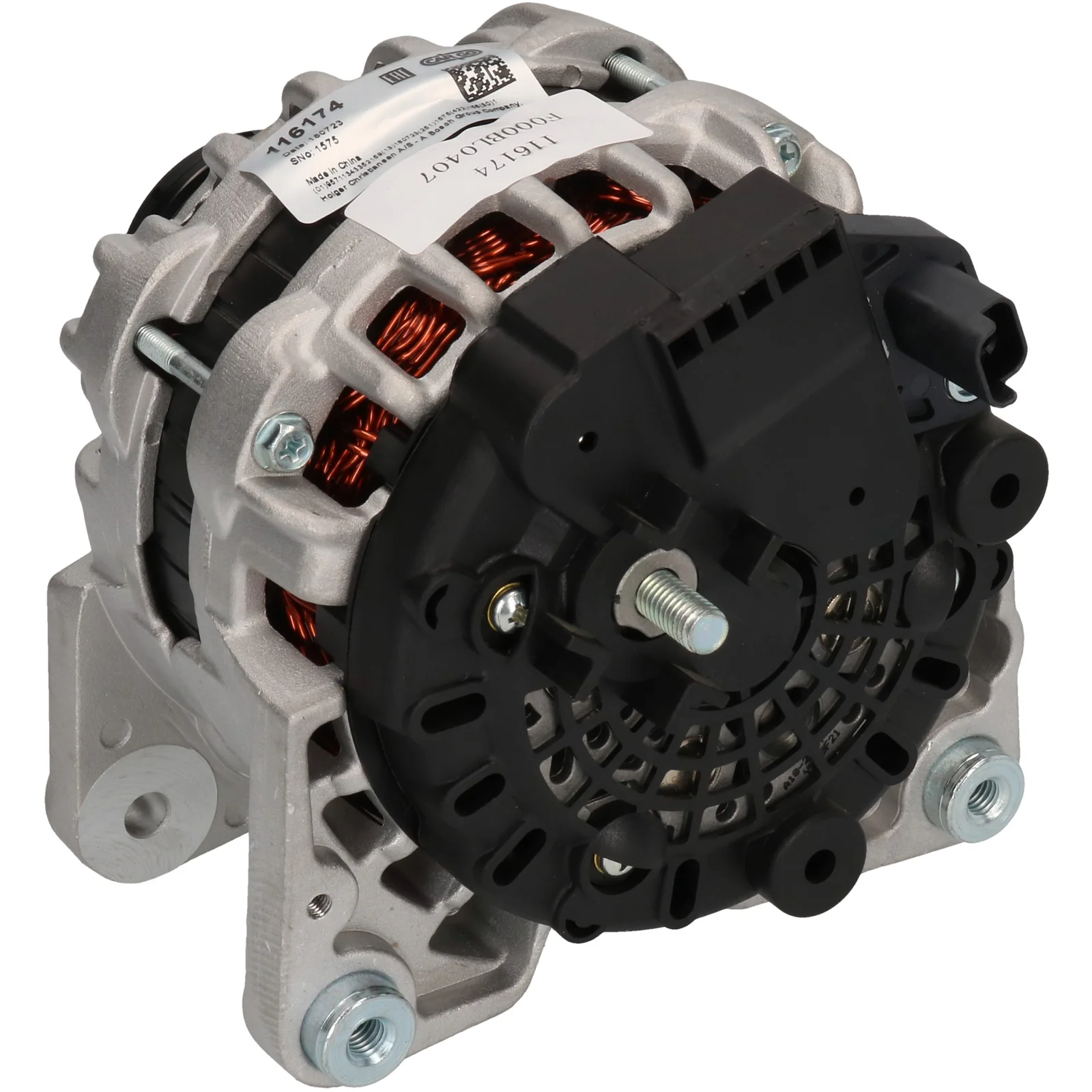

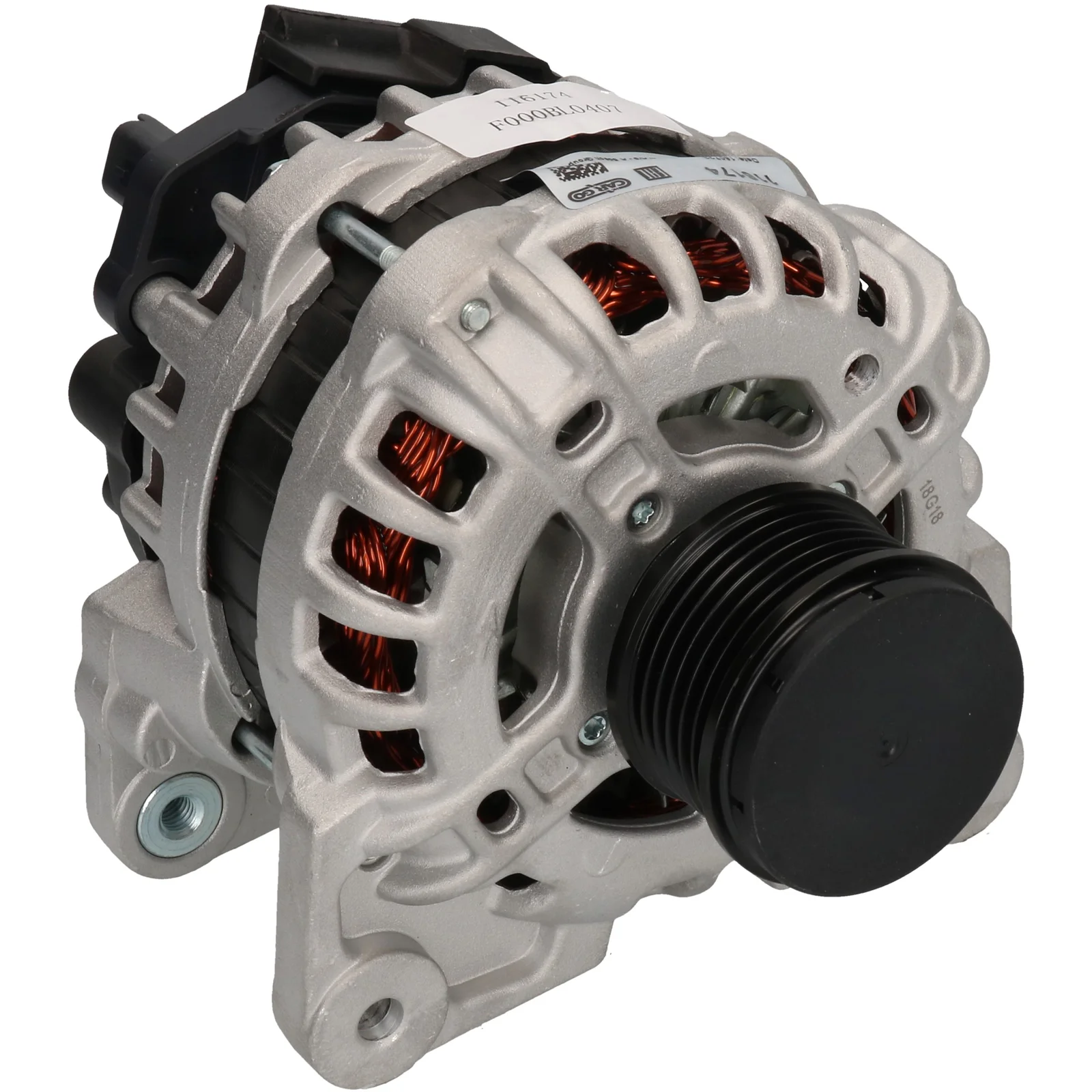

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116174

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Mounting bracket distributor: 61.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 39.00
Width/holder arm: 14.50
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 173.50
Terminal type: L-DF/DFM
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR

Files

  • OEM
    A0485, A0598S, A4539064000, CAL10464, DRA1217, F000BL0407, F000BL0456, F000BL04T8, F032116174, 575.949.090, 20400N, 23100-4527R, 23100-5079R, 24172N, 209035, 209035A, 444351, 446540, 12090682, 32118901, 231003071, 231003071R, 231003493R, 231004527, 231004527R, 231005079, 231005079R, 231005424R, 231005850R, 231007813R, 231009064R, 0986086430, 4539064000, 8200379736, 8200674760, 8200810614

  • Normalised article numbler
    a0485, a0598s, a4539064000, cal10464, dra1217, f000bl0407, f000bl0456, f000bl04t8, f032116174, 20400n, 24172n, 209035, 209035a, 444351, 446540, 12090682, 32118901, 231003071, 231003071r, 231003493r, 231004527, 231004527r, 231005079, 231005079r, 231005424r, 231005850r, 231007813r, 231009064r, 575949090, 0986086430, 4539064000, 8200379736, 8200674760, 8200810614
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 39.00
    Width/holder arm: 14.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.50
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 173.50
    Terminal type: L-DF/DFM
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A0485, A0598S, A4539064000, CAL10464, DRA1217, F000BL0407, F000BL0456, F000BL04T8, F032116174, 575.949.090, 20400N, 23100-4527R, 23100-5079R, 24172N, 209035, 209035A, 444351, 446540, 12090682, 32118901, 231003071, 231003071R, 231003493R, 231004527, 231004527R, 231005079, 231005079R, 231005424R, 231005850R, 231007813R, 231009064R, 0986086430, 4539064000, 8200379736, 8200674760, 8200810614

    • Normalised article numbler
      a0485, a0598s, a4539064000, cal10464, dra1217, f000bl0407, f000bl0456, f000bl04t8, f032116174, 20400n, 24172n, 209035, 209035a, 444351, 446540, 12090682, 32118901, 231003071, 231003071r, 231003493r, 231004527, 231004527r, 231005079, 231005079r, 231005424r, 231005850r, 231007813r, 231009064r, 575949090, 0986086430, 4539064000, 8200379736, 8200674760, 8200810614
