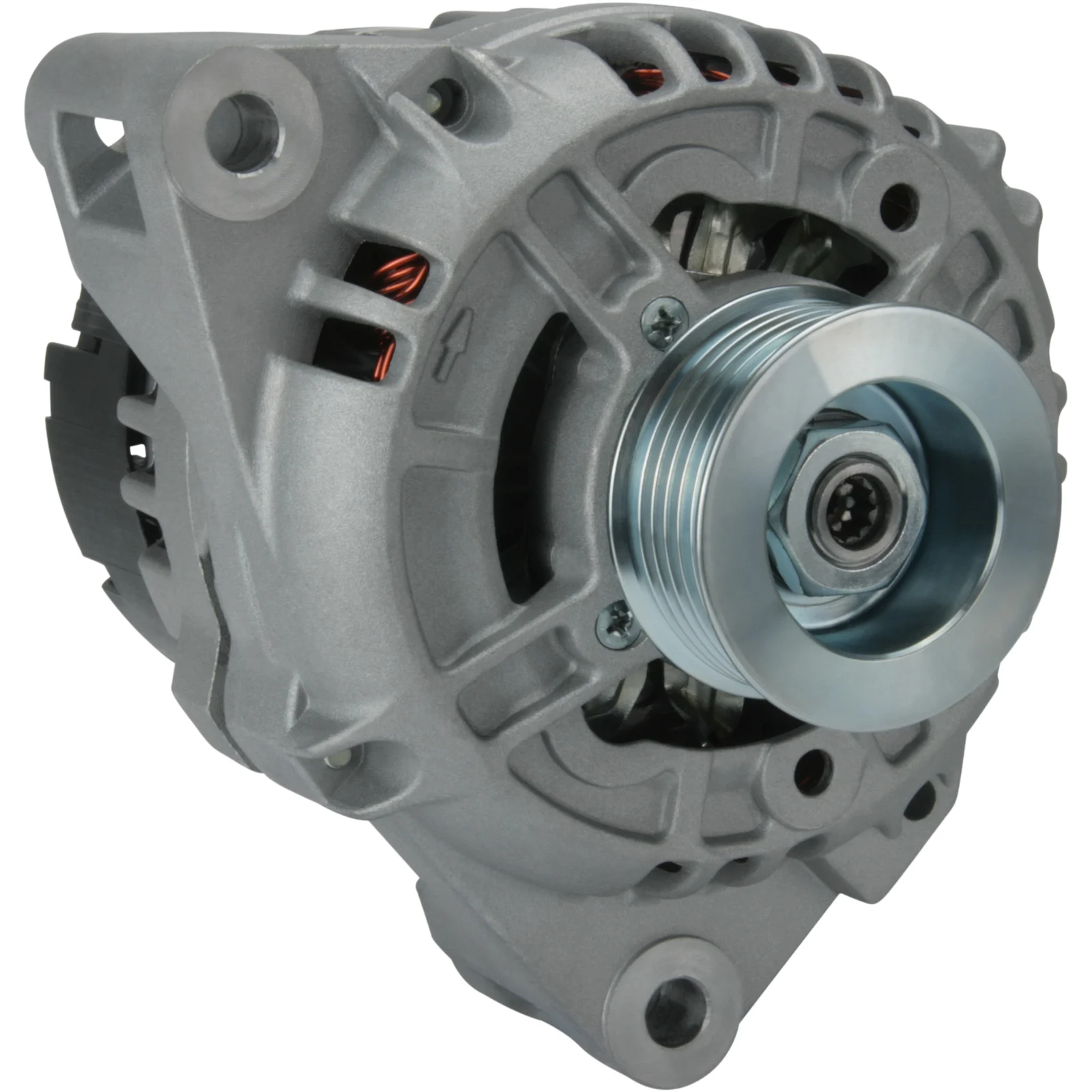

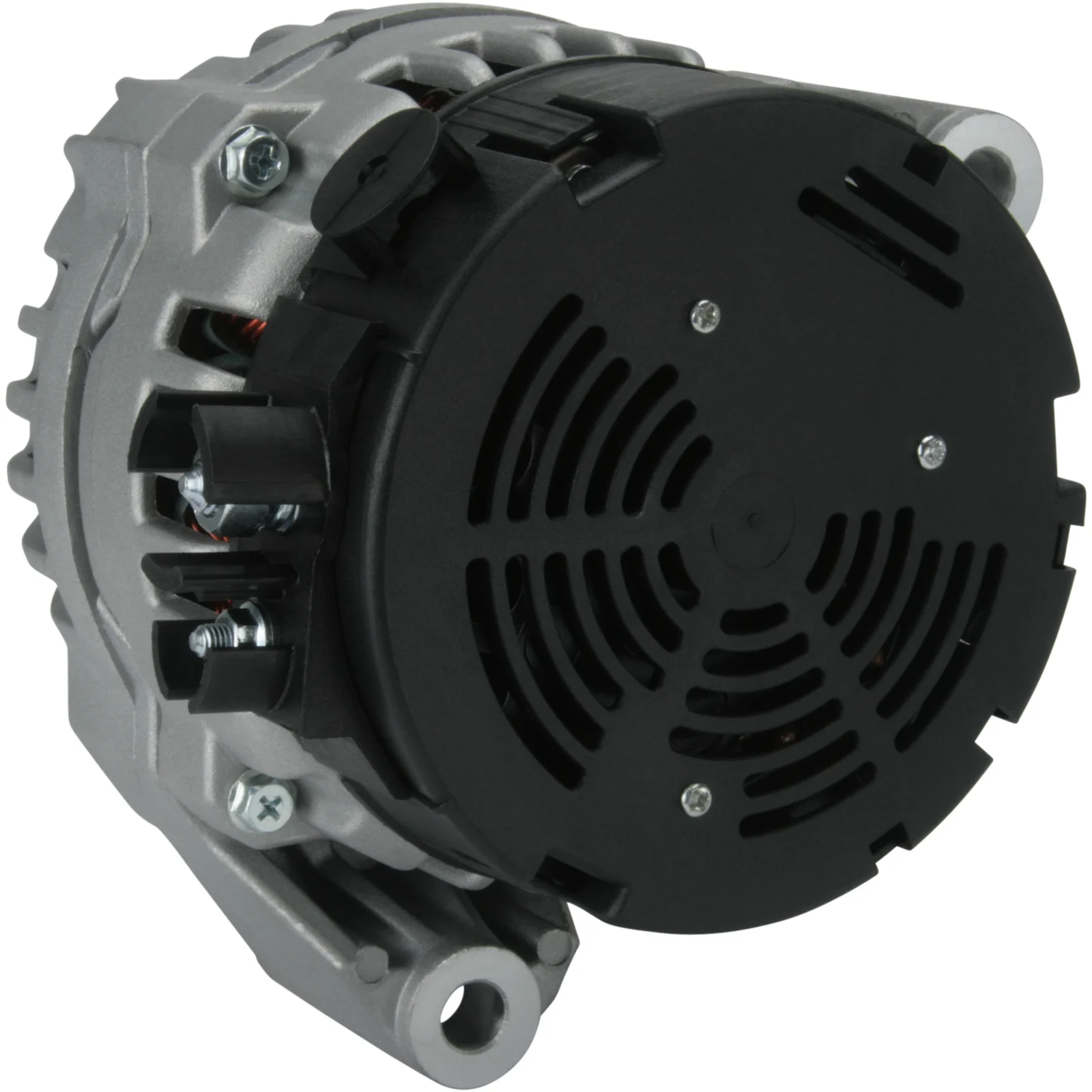

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113486

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 56.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 91.80
Width/holder arm: 56.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 11.00
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 45
D+ Size: M5
Rotation: CW
Total length mm: 168.50
Lamp type: Active
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN
Servicing: Mercedes-Benz

Files

  • OEM
    A0091547602, A009154760280, A0101549802, A010154980280, aak5309, F032113486, 11.203.008, 1500ir, 0091547602, 0101549802, 0123320035, 0123320058, 009154760280, 010154980280

  • Normalised article numbler
    a0091547602, a009154760280, a0101549802, a010154980280, a0187, aak5309, al0761x, alt10351, cal10211, dra4119, dra9660, dra9860, f032113486, ia1036, lrb00349, mg47, 8el012430111, 8el737750001, 1500ir, 4452, 5824, 13798, 13798n, 13798r, 111404, 119783, 209063, 209063a, 283668, 284507, 301500ri, 437636, 1225101bo, 9039860, 11203008, 12039860, 12044370, 32039860, 0091547602, 0101549802, 0123320035, 0123320058, 225134902, 225172902, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 009154760280, 010154980280, 944390443700
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 91.80
    Width/holder arm: 56.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 11.00
    Pulley dia.: 56.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 45
    D+ Size: M5
    Rotation: CW
    Total length mm: 168.50
    Lamp type: Active
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes-Benz

    Files

  • Suitable for these vehicles

    • OEM
      A0091547602, A009154760280, A0101549802, A010154980280, aak5309, F032113486, 11.203.008, 1500ir, 0091547602, 0101549802, 0123320035, 0123320058, 009154760280, 010154980280

    • Normalised article numbler
      a0091547602, a009154760280, a0101549802, a010154980280, a0187, aak5309, al0761x, alt10351, cal10211, dra4119, dra9660, dra9860, f032113486, ia1036, lrb00349, mg47, 8el012430111, 8el737750001, 1500ir, 4452, 5824, 13798, 13798n, 13798r, 111404, 119783, 209063, 209063a, 283668, 284507, 301500ri, 437636, 1225101bo, 9039860, 11203008, 12039860, 12044370, 32039860, 0091547602, 0101549802, 0123320035, 0123320058, 225134902, 225172902, 0986039860, 0986039863, 0986039864, 0986039867, 0986044370, 009154760280, 010154980280, 944390443700
