HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113993

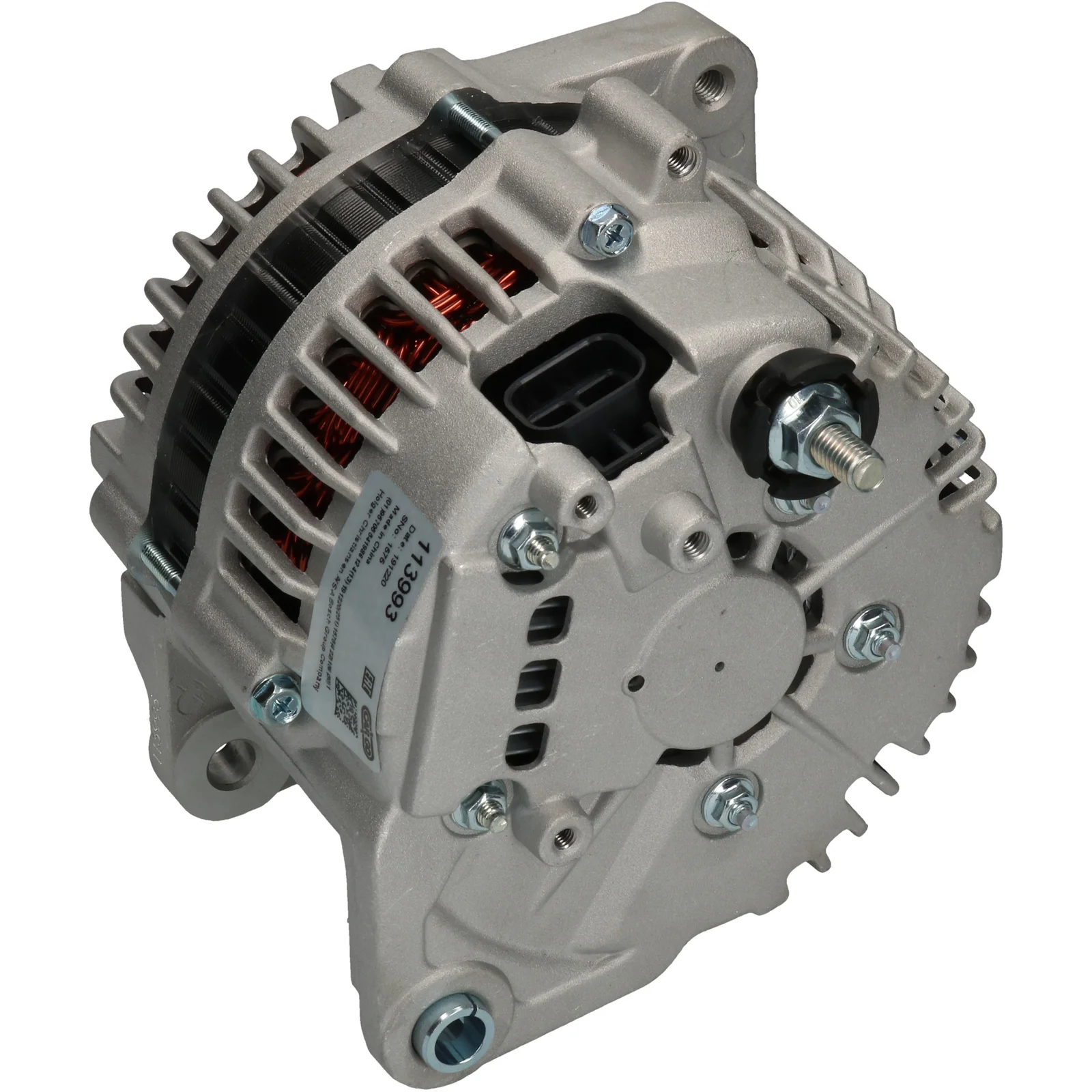

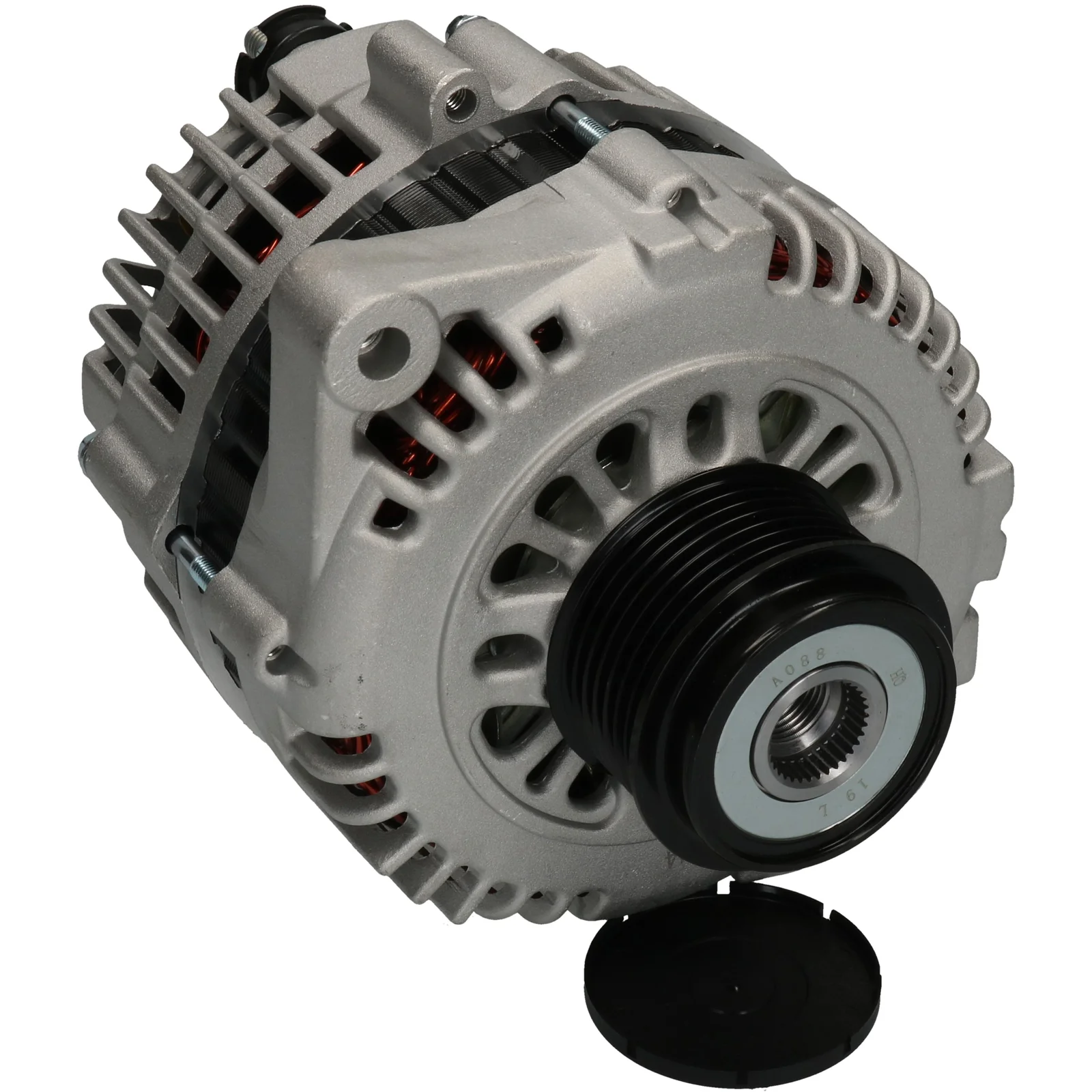

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 135, Mounting bracket distance: 81.00, Pulley diameter: 59.50

Description

Voltage: 14
Amp: 135
Pulley dist.: 38.50
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.50
Grooves/pulley: 7
Radius: 85.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Plug no.: PL07
Total length mm: 195.00
Pulley: Alternator/Fan belt
Prod. info: BN

Files

  • OEM
    F032113993, LR1130-702, LR1130-702B, LR1130-702C, LR1130-702E, LR1130-702F, 1986A01857, 2082ir, 23100-DB000, 23100-db00a, 23100-DB00B, 4419036, 4419088, 93196984, 5010437730, 7485129965, 7711135920

  • Normalised article numbler
    a2039, cal20162, dra0231, f032113993, lr1130702, lr1130702b, lr1130702c, lr1130702e, lr1130702f, lra02873, 8el015630741, 1986a01857, 2082ir, 23100db000, 23100db00a, 23100db00b, 23873r, 112340, 210871, 210871a, 284989, 444237, 553109ri, 4419036, 4419088, 12060860, 93196984, 575517135, 0986082190, 2281621352, 5010437730, 7485129965, 7711135920
  • Description
    Voltage: 14
    Amp: 135
    Pulley dist.: 38.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.50
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 55
    D+ Size: Plug
    Plug no.: PL07
    Total length mm: 195.00
    Pulley: Alternator/Fan belt
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113993, LR1130-702, LR1130-702B, LR1130-702C, LR1130-702E, LR1130-702F, 1986A01857, 2082ir, 23100-DB000, 23100-db00a, 23100-DB00B, 4419036, 4419088, 93196984, 5010437730, 7485129965, 7711135920

    • Normalised article numbler
      a2039, cal20162, dra0231, f032113993, lr1130702, lr1130702b, lr1130702c, lr1130702e, lr1130702f, lra02873, 8el015630741, 1986a01857, 2082ir, 23100db000, 23100db00a, 23100db00b, 23873r, 112340, 210871, 210871a, 284989, 444237, 553109ri, 4419036, 4419088, 12060860, 93196984, 575517135, 0986082190, 2281621352, 5010437730, 7485129965, 7711135920
