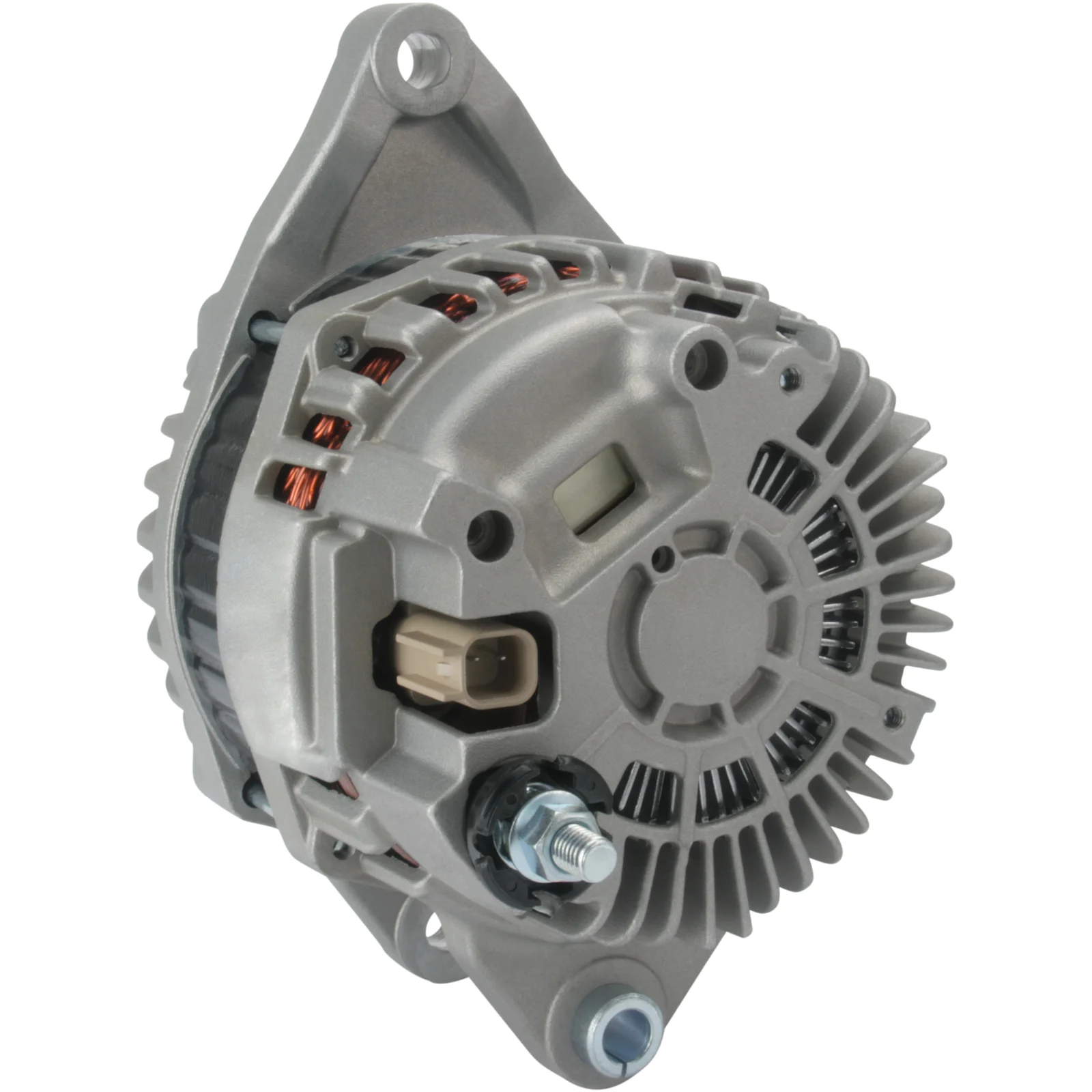

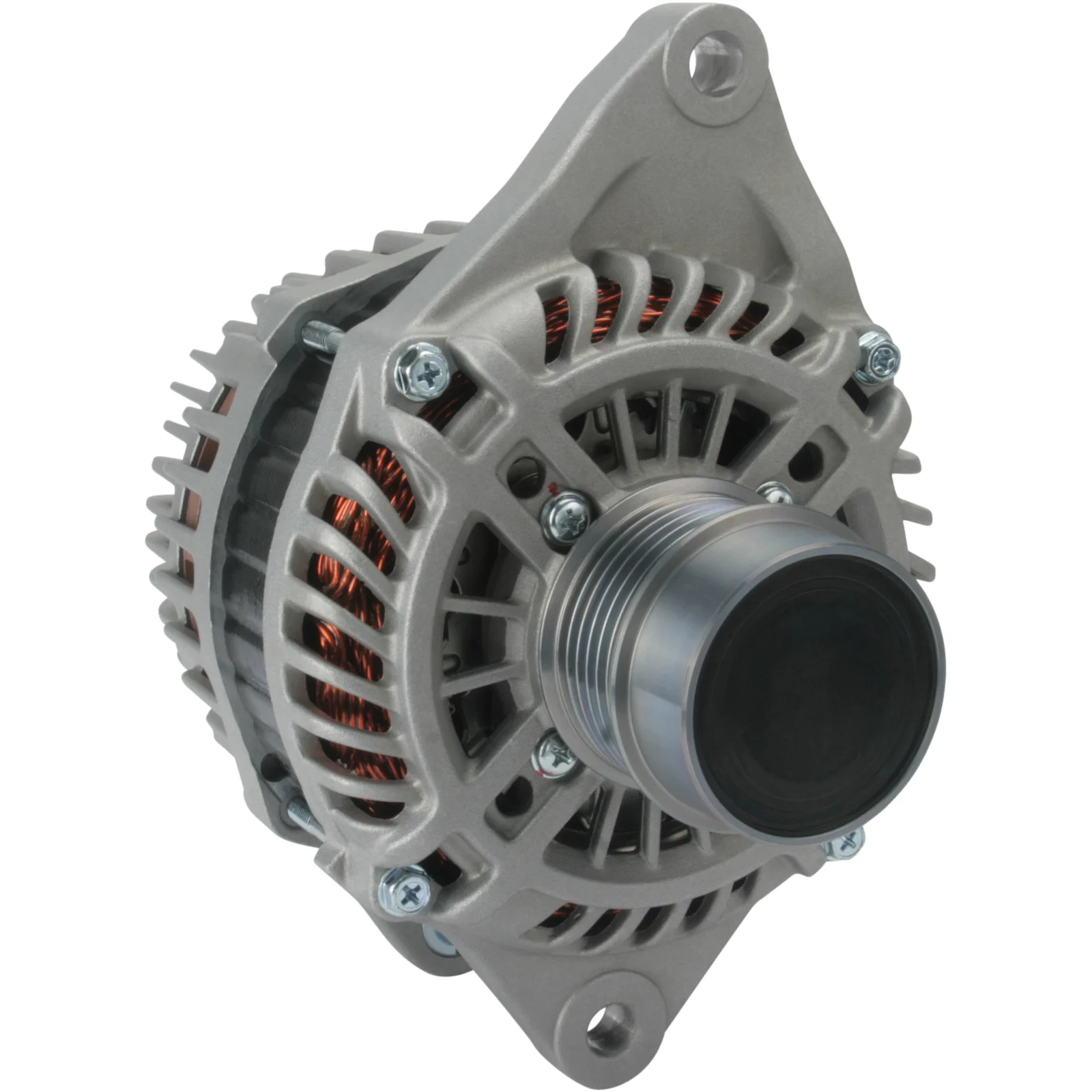

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115925

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 115, Rotation: CW, Mounting bracket distributor: 53.80

Description

Voltage: 14
Amp: 115
Pulley diameter: 34.00
Width/holder arm: 12.70
Mounting bracket diameter: 53.80
Bracket hole: 10.50
Belt adjustment bracket hole position: 3
Belt adjustment bracket hole 1: 11.50
Pulley diameter: 53.00
Grooves/pulley: 6
Radius: 83.00
Radius 2: 102.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug number: PL177
Total length mm: 198.00
Pulley: SP/FW
Production info: BN

Files

  • OEM
    A002TJ0481, A002TJ0481ZC, A200TJ0481, A2TJ0481, A2TJ0481ZC, A2TJ0481ZD, F032115925, 1986A01872, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323AK

  • Normalised article numbler
    a002tj0481, a002tj0481zc, a200tj0481, a2tj0481, a2tj0481zc, a2tj0481zd, a5065, cal35265, dra0392, f032115925, lra02932, 0986ur0255, 1986a01872, 11231, 11231n, 11231r, 113407, 275546, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323ak, 12060996, 835573115, 5340241152, 5341271152
  • Description
    Voltage: 14
    Amp: 115
    Pulley diameter: 34.00
    Width/holder arm: 12.70
    Mounting bracket diameter: 53.80
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 3
    Belt adjustment bracket hole 1: 11.50
    Pulley diameter: 53.00
    Grooves/pulley: 6
    Radius: 83.00
    Radius 2: 102.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug number: PL177
    Total length mm: 198.00
    Pulley: SP/FW
    Production info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A002TJ0481, A002TJ0481ZC, A200TJ0481, A2TJ0481, A2TJ0481ZC, A2TJ0481ZD, F032115925, 1986A01872, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323AK

    • Normalised article numbler
      a002tj0481, a002tj0481zc, a200tj0481, a2tj0481, a2tj0481zc, a2tj0481zd, a5065, cal35265, dra0392, f032115925, lra02932, 0986ur0255, 1986a01872, 11231, 11231n, 11231r, 113407, 275546, 04801323ab, 04801323ac, 04801323ad, 4801323ab, 4801323ac, 4801323ad, 4801323ak, 12060996, 835573115, 5340241152, 5341271152
