HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115346

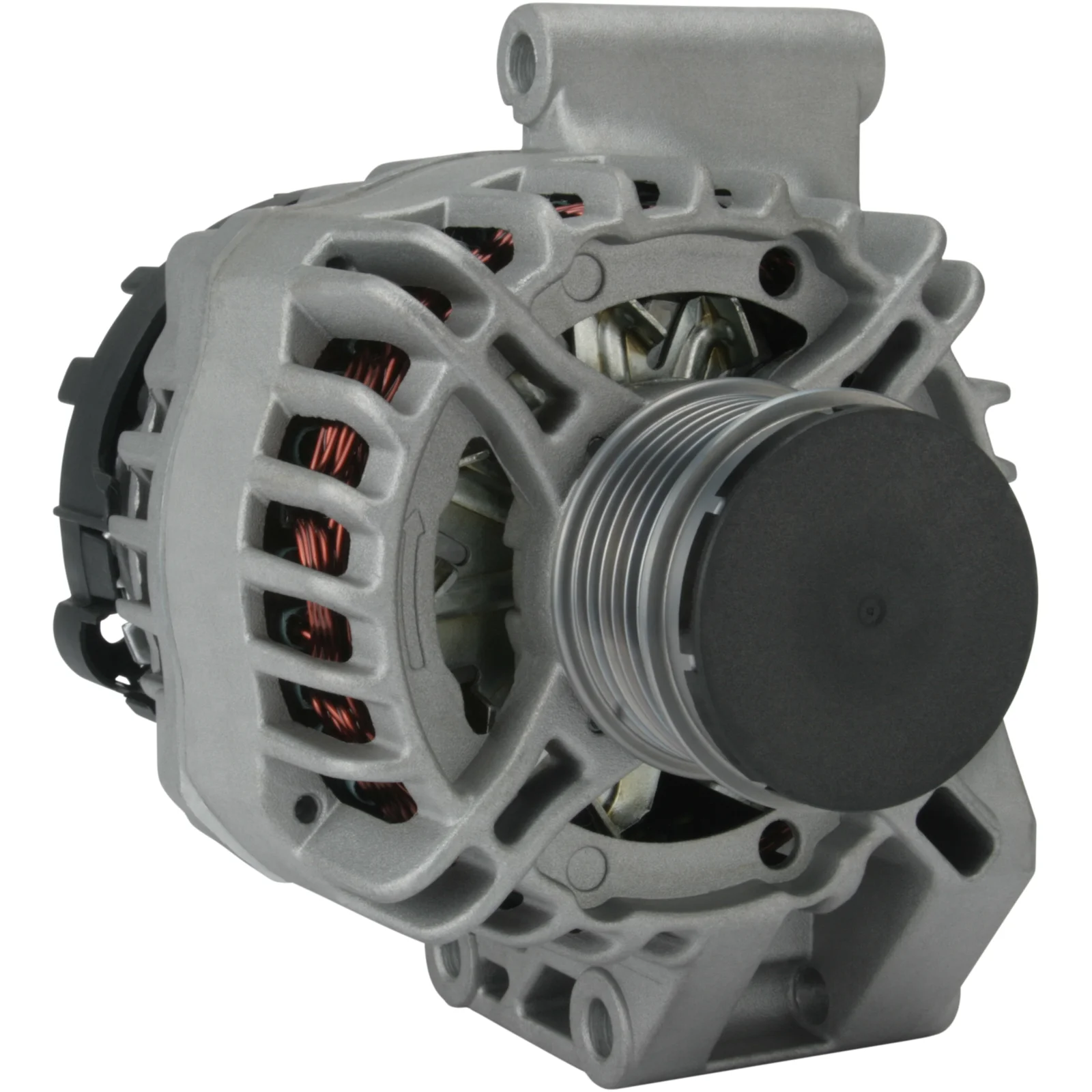

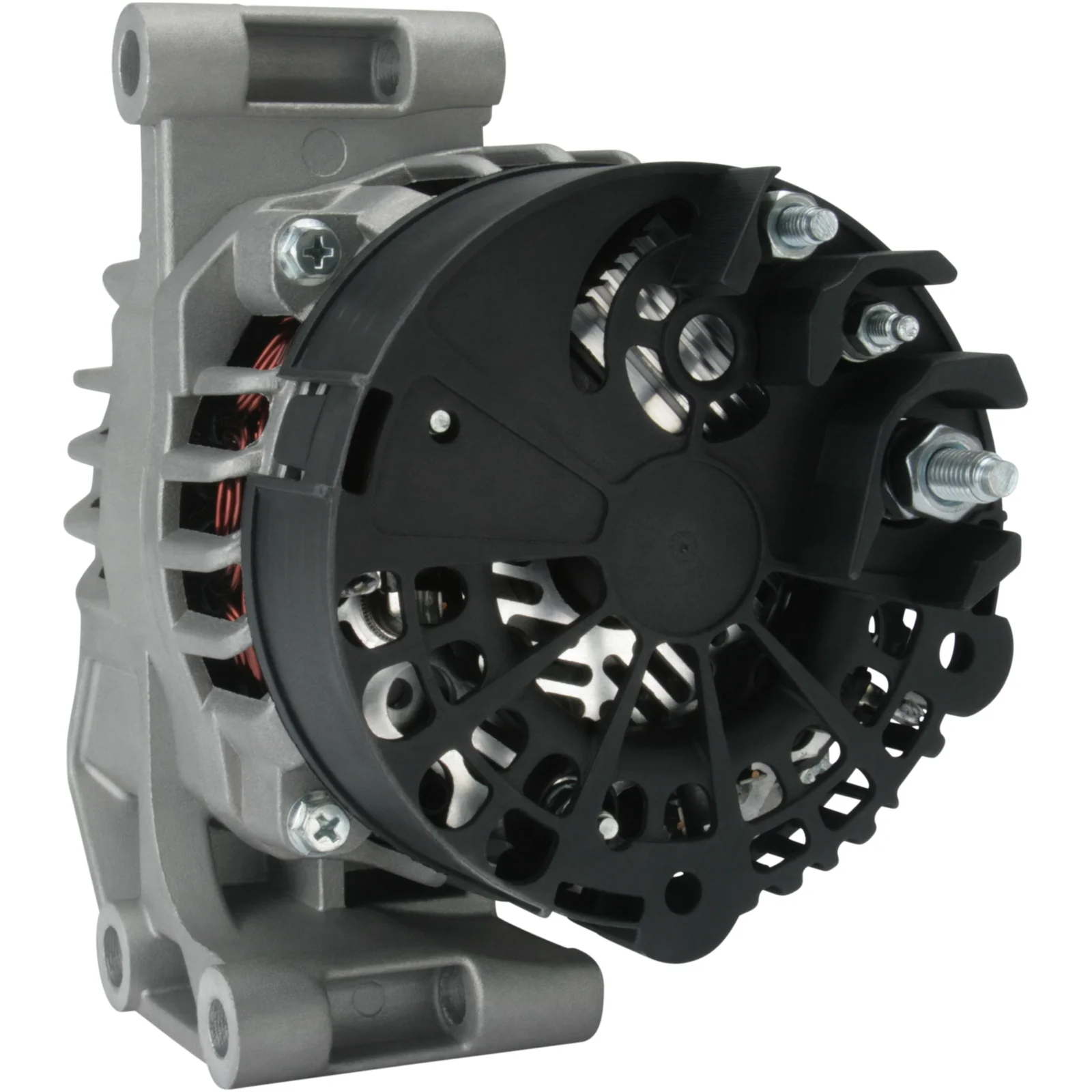

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 55.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 41.50
Width/holder arm: 64.00
Mount. bracket dist.: 55.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 53.20
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 14
D+ Size: M5
Rotation: CW
Total length mm: 198.00
Pulley: SP/FW
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032115346, 2180ir, 101210-1390, 101210-1391, 101210-1392, 1202271, 51829383, 51854912, 52003513, 52003519, 63377028, 95511912, 95527671, 1608858080, 1617116680

  • Normalised article numbler
    a6076, a6076denso, a6203, cal30220, dan997, dendan997, dra1182, f032115346, lra03838, man7028, 2180ir, 24068n, 210752, 210752a, 285680, 286948, 553434ri, 1202271, 32633770, 51829383, 51854912, 52003513, 52003519, 63377028, 95511912, 95527671, 0986083320, 1012101390, 1012101391, 1012101392, 1608858080, 1617116680, 2183311202, 2281761202, 063377028010
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 41.50
    Width/holder arm: 64.00
    Mount. bracket dist.: 55.00
    Bracket hole: 8.50
    Bracket hole 2: 8.50
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 53.20
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 14
    D+ Size: M5
    Rotation: CW
    Total length mm: 198.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115346, 2180ir, 101210-1390, 101210-1391, 101210-1392, 1202271, 51829383, 51854912, 52003513, 52003519, 63377028, 95511912, 95527671, 1608858080, 1617116680

    • Normalised article numbler
      a6076, a6076denso, a6203, cal30220, dan997, dendan997, dra1182, f032115346, lra03838, man7028, 2180ir, 24068n, 210752, 210752a, 285680, 286948, 553434ri, 1202271, 32633770, 51829383, 51854912, 52003513, 52003519, 63377028, 95511912, 95527671, 0986083320, 1012101390, 1012101391, 1012101392, 1608858080, 1617116680, 2183311202, 2281761202, 063377028010
