HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115305

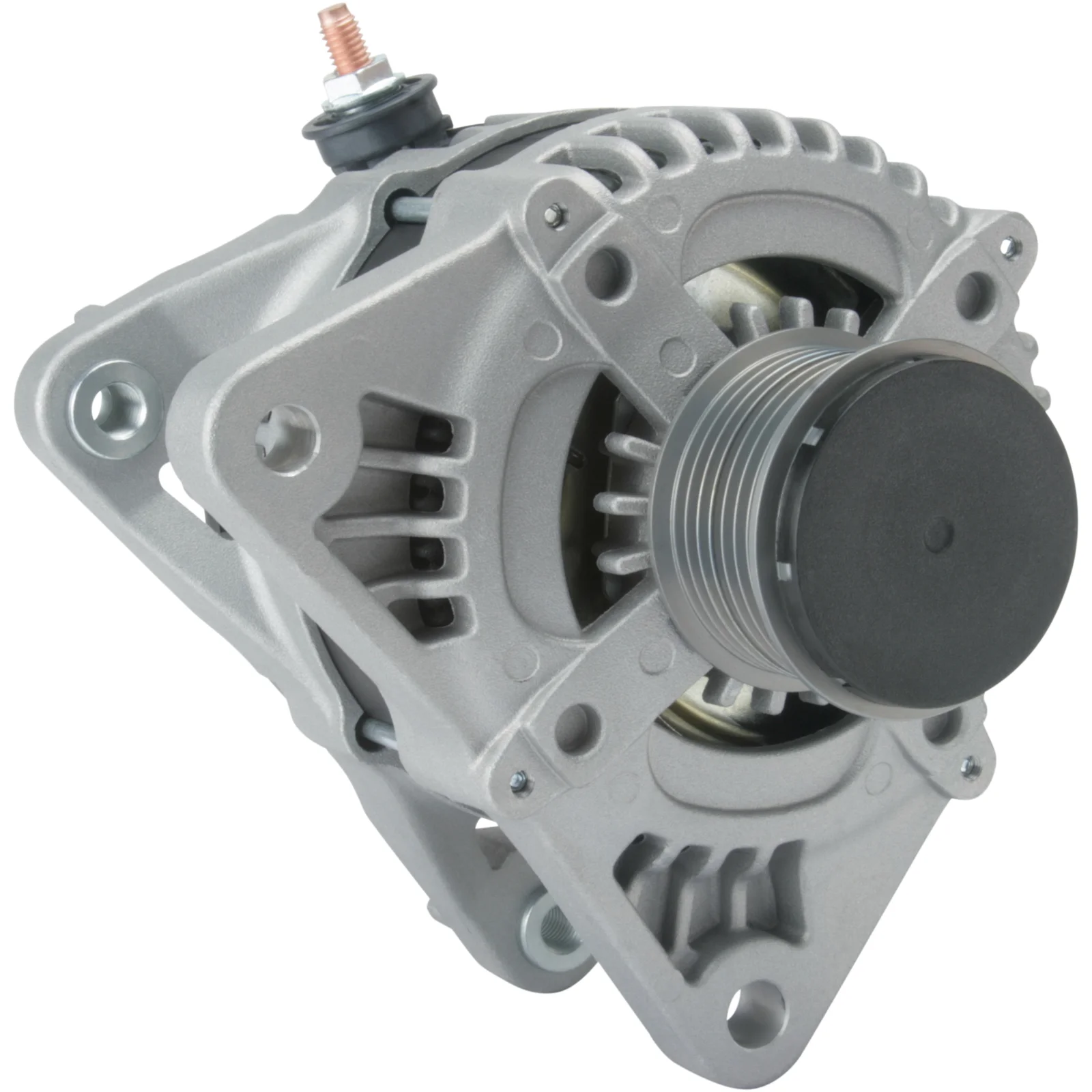

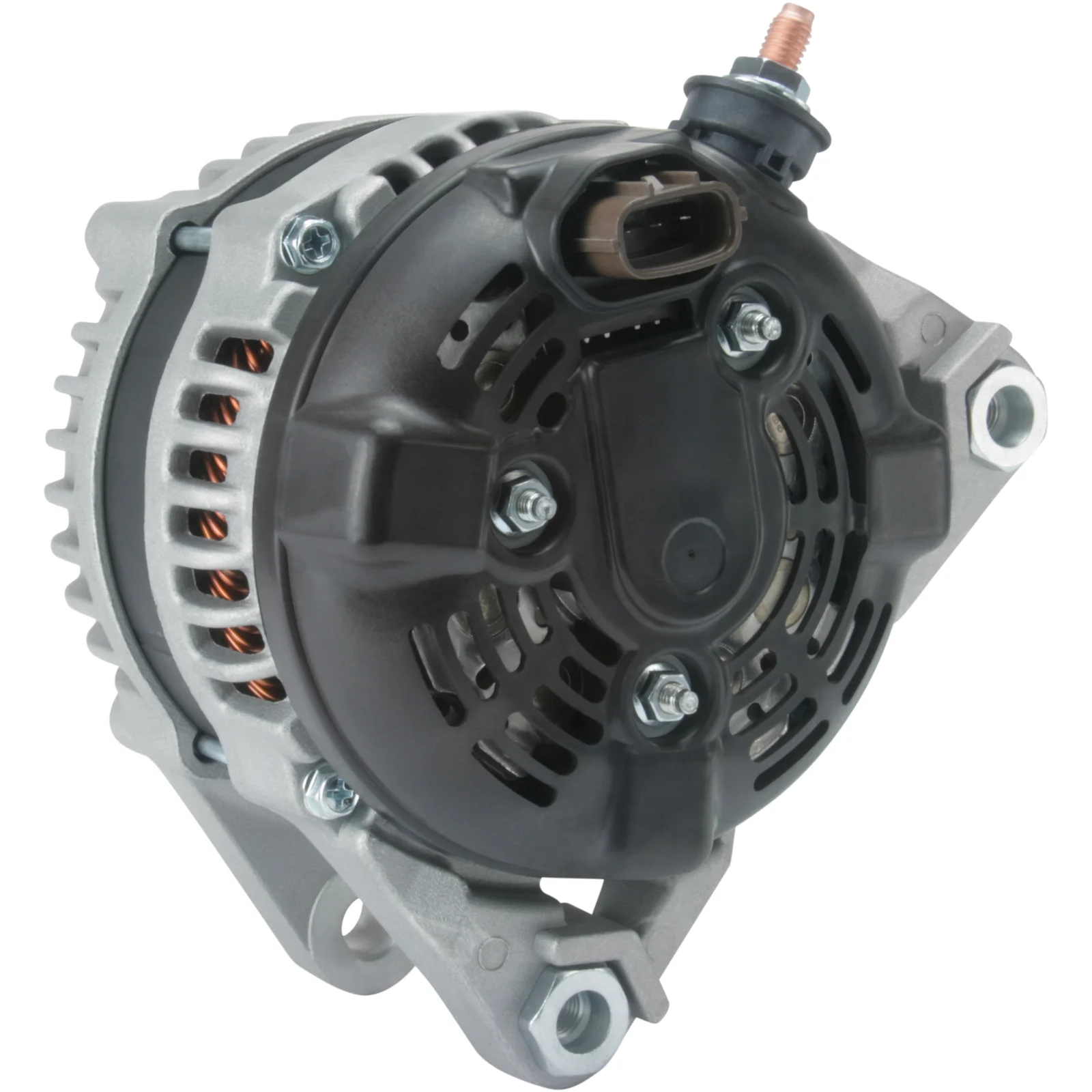

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 140, Rotation: CW, Mounting bracket distance: 55.00

Description

Voltage: 14
Amp: 140
Pulley: Alternator pulley
Width/holder arm: 16.00
Mounting bracket distance: 55.00
Bracket hole: 12.00
Belt adjustment bracket hole position: 47
Belt adjustment bracket hole 1: 10.50
Belt adjustment bracket hole 2: M10
Pulley diameter: 55.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 4
D+ Size: Plug
Rotation: CW
Plug number: PL58
Total length mm: 175.00
Terminal type: L-IG
Pulley: SP/FW
Fan: IF
Regulator type: IR
Product info: BN

Files

  • OEM
    F032115305, 1991ir, 31400-67j00, 104210-4660

  • Normalised article numbler
    a6125, cal40258, dra0617, f032115305, lra03031, 8el738213011, 1991ir, 24020, 24020r, 113346, 209369, 209369a, 285643, 440974, 3140067j00, 9090867, 12060966, 0986082290, 1042104660, 2451271402
  • Description
    Voltage: 14
    Amp: 140
    Pulley: Alternator pulley
    Width/holder arm: 16.00
    Mounting bracket distance: 55.00
    Bracket hole: 12.00
    Belt adjustment bracket hole position: 47
    Belt adjustment bracket hole 1: 10.50
    Belt adjustment bracket hole 2: M10
    Pulley diameter: 55.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 4
    D+ Size: Plug
    Rotation: CW
    Plug number: PL58
    Total length mm: 175.00
    Terminal type: L-IG
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032115305, 1991ir, 31400-67j00, 104210-4660

    • Normalised article numbler
      a6125, cal40258, dra0617, f032115305, lra03031, 8el738213011, 1991ir, 24020, 24020r, 113346, 209369, 209369a, 285643, 440974, 3140067j00, 9090867, 12060966, 0986082290, 1042104660, 2451271402
