HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116198

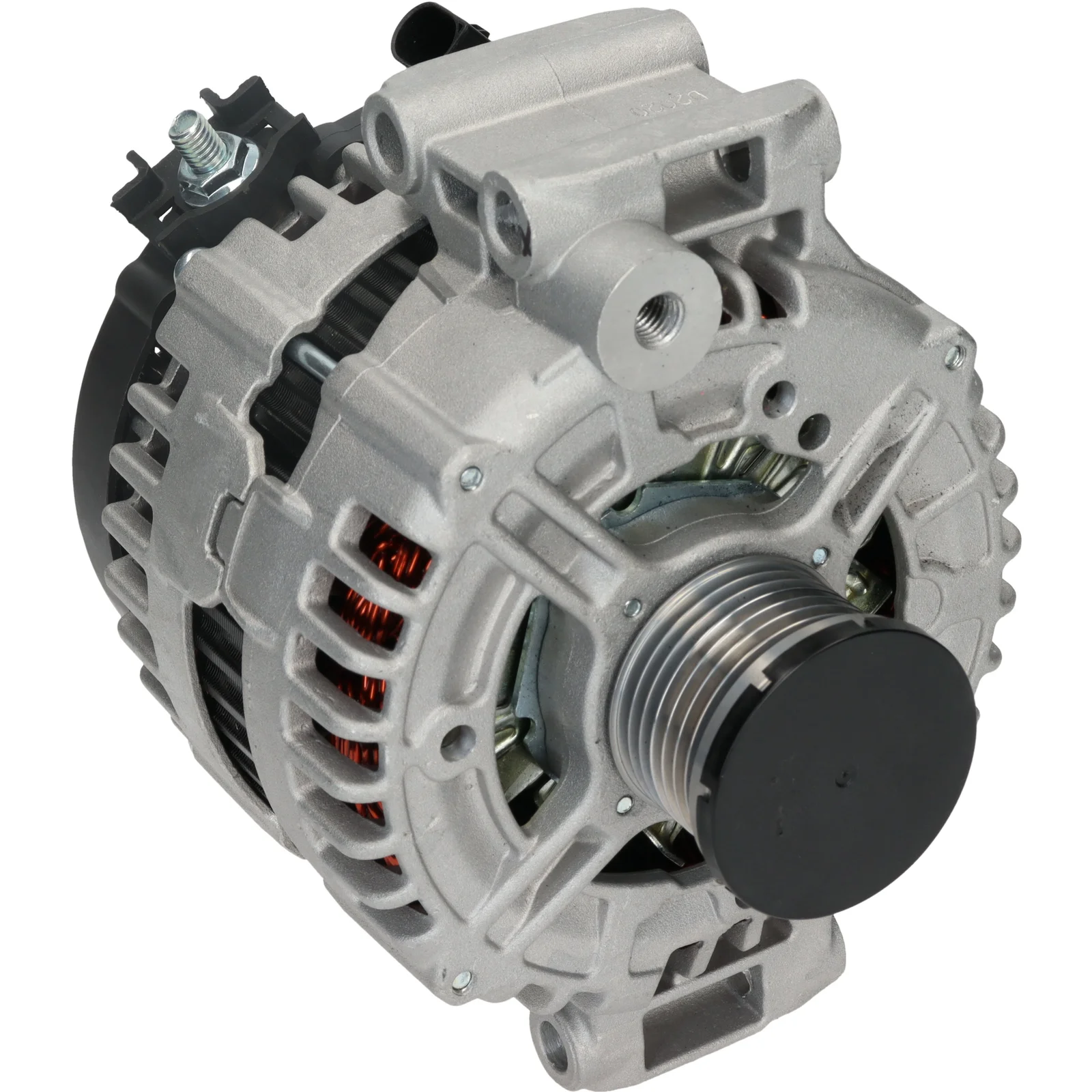

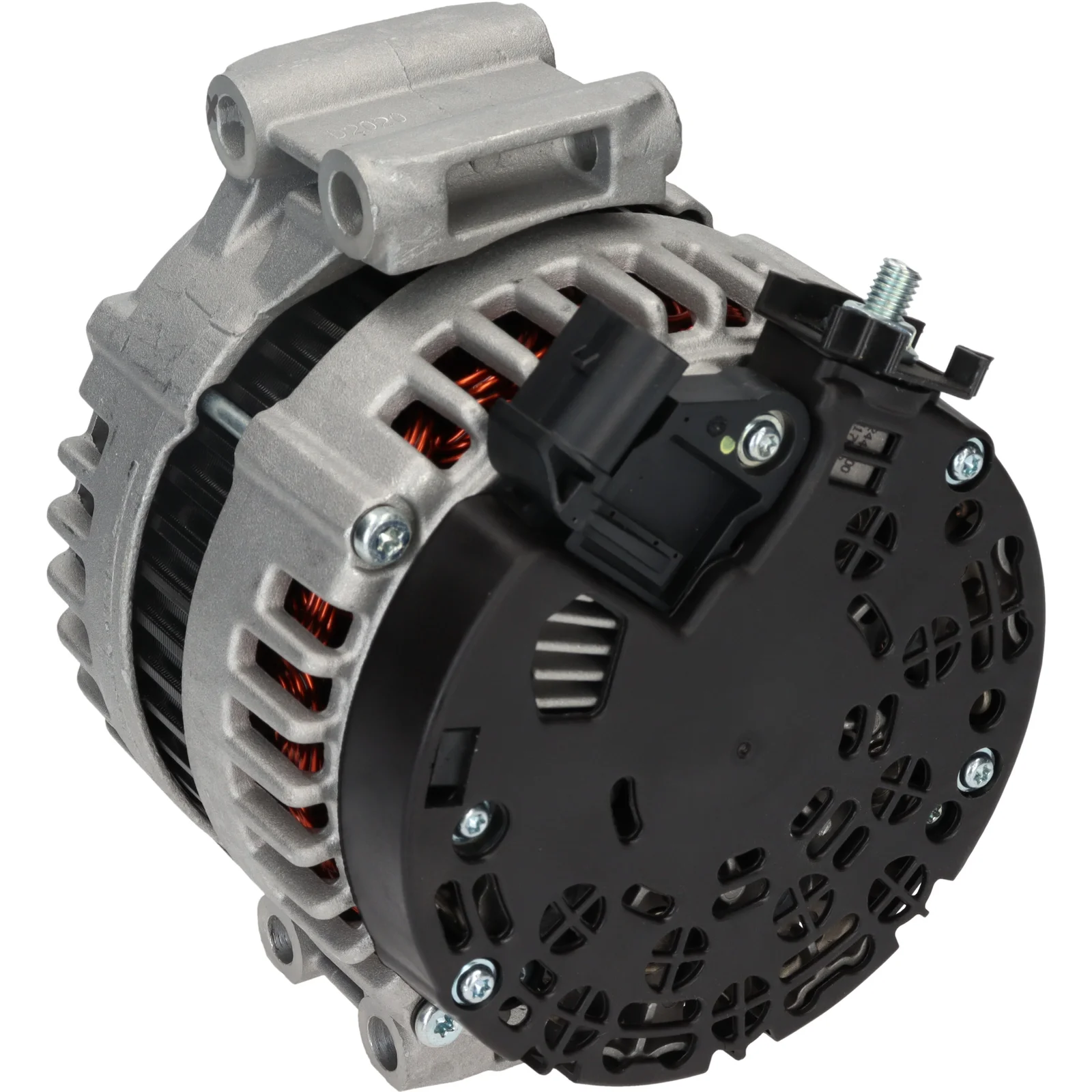

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 40.80

Description

Voltage: 14
Amp: 180
Pulley distance: 30.00
Width/holder arm: 63.00
Mounting bracket distance: 40.80
Bracket hole: 10.80
Belt adjustment bracket hole 1: 10.00
Belt adjustment bracket hole 2: 10.50
Pulley diameter: 49.00
Grooves/pulley: 7
Radius: 87.00
Radius 2: 87.00
B+: M8
Position/B+ in min.: 35
Rotation: CW
Plug no.: PL86
Total length mm: 175.00
Terminal type: COM
Pulley: SP/FW
Voltage regulator type: IR
Remarks: This Alternator has a COM terminal on the Regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F032116198, 7542351, 7550469, 7582699, 0121715017, 0121715117, 12317542351, 12317550469, 12317582699

  • Normalised article numbler
    a0758s, dra0306, f032116198, 8el011712581, 8el738213201, 20446n, 286518, 440835, 7542351, 7550469, 7582699, 12048840, 32048840, 0121715017, 0121715117, 0986048840, 0986048843, 12317542351, 12317550469, 12317582699
  • Description
    Voltage: 14
    Amp: 180
    Pulley distance: 30.00
    Width/holder arm: 63.00
    Mounting bracket distance: 40.80
    Bracket hole: 10.80
    Belt adjustment bracket hole 1: 10.00
    Belt adjustment bracket hole 2: 10.50
    Pulley diameter: 49.00
    Grooves/pulley: 7
    Radius: 87.00
    Radius 2: 87.00
    B+: M8
    Position/B+ in min.: 35
    Rotation: CW
    Plug no.: PL86
    Total length mm: 175.00
    Terminal type: COM
    Pulley: SP/FW
    Voltage regulator type: IR
    Remarks: This Alternator has a COM terminal on the Regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F032116198, 7542351, 7550469, 7582699, 0121715017, 0121715117, 12317542351, 12317550469, 12317582699

    • Normalised article numbler
      a0758s, dra0306, f032116198, 8el011712581, 8el738213201, 20446n, 286518, 440835, 7542351, 7550469, 7582699, 12048840, 32048840, 0121715017, 0121715117, 0986048840, 0986048843, 12317542351, 12317550469, 12317582699
