HC-Cargo Alternator

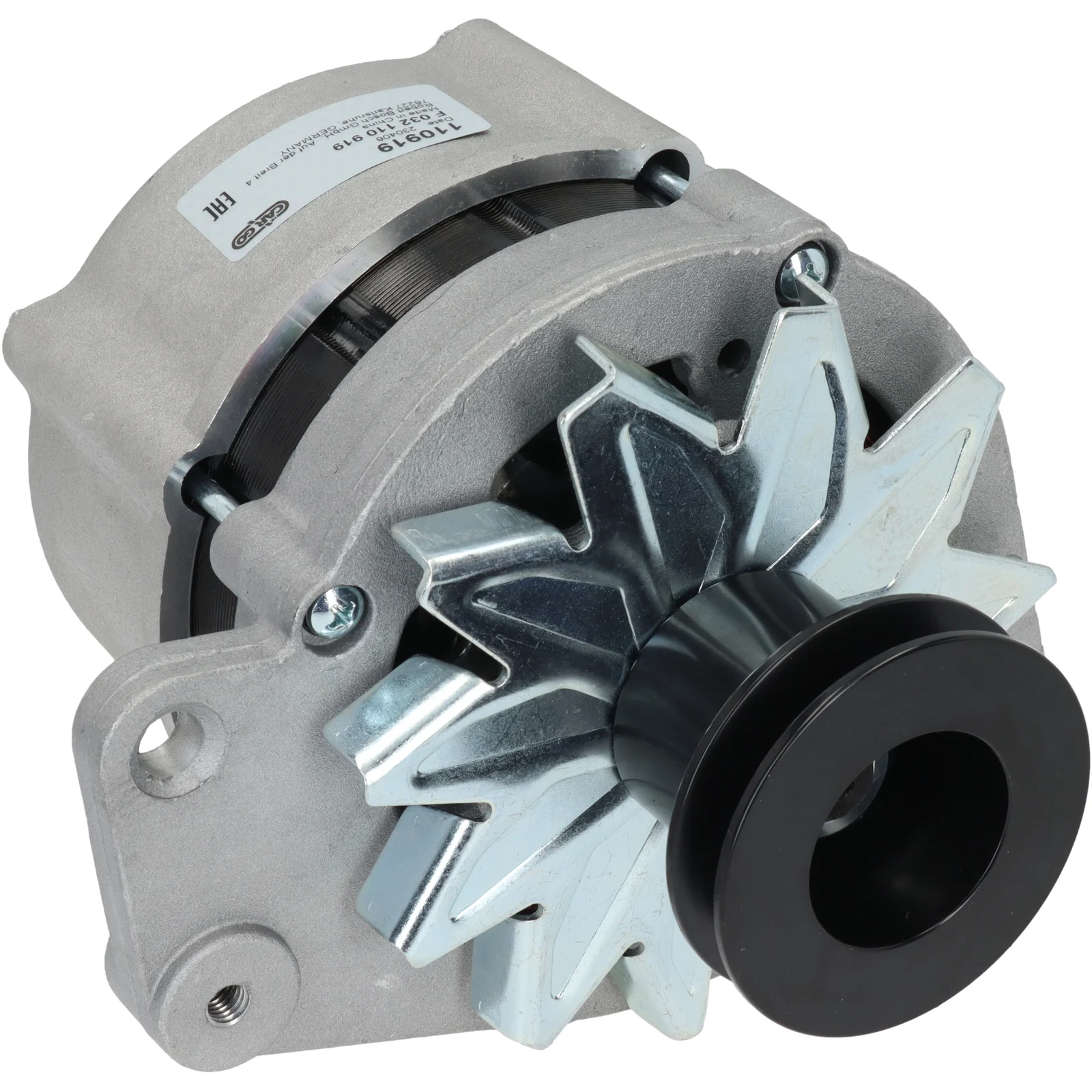

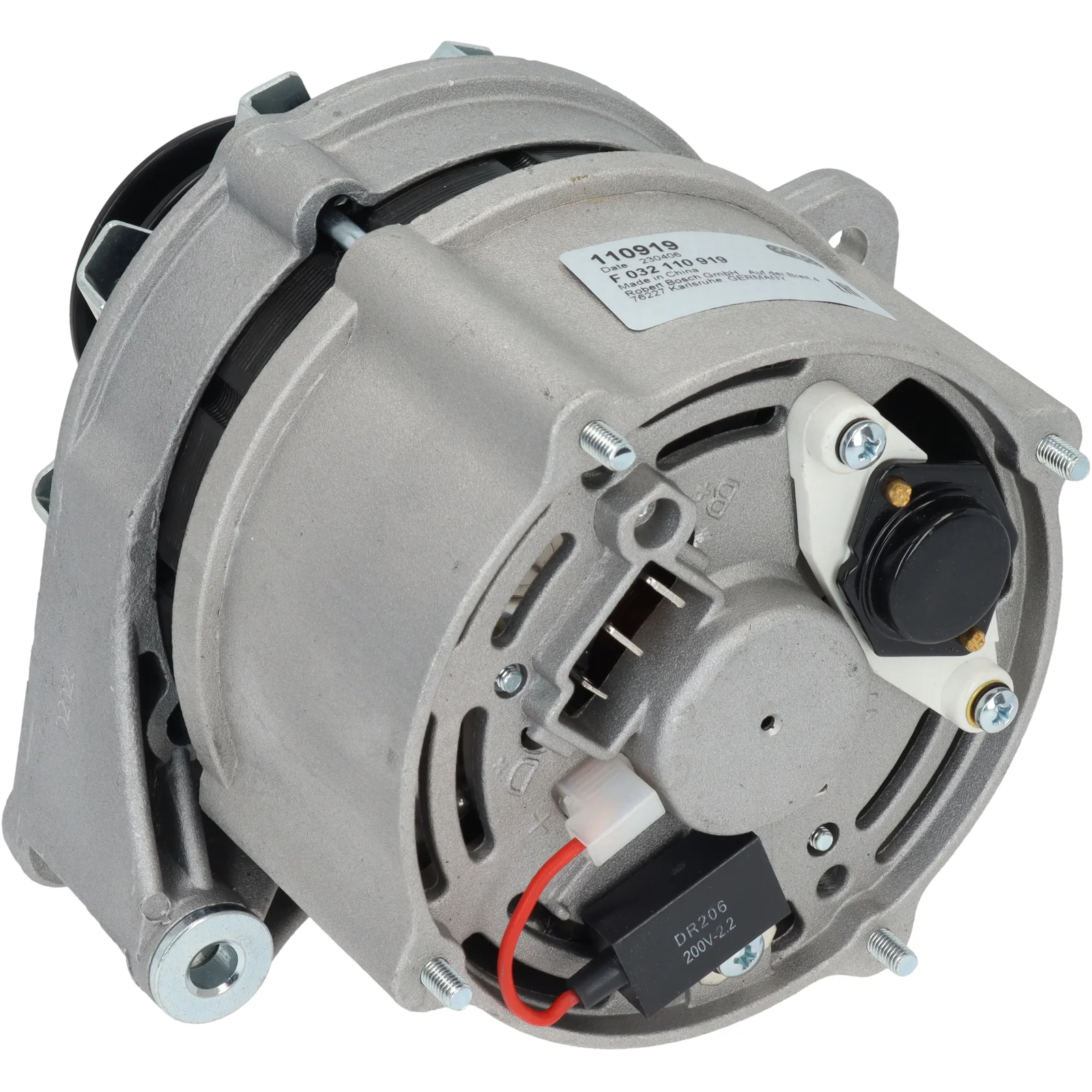

HC-Cargo Alternator
Article no.: F032110919

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Pulley diameter: 69.70

Description

Voltage: 14
Amp: 65
Pulley dist.: 110.00
Width/holder arm: 56.00
Bracket hole: 8.00
Belt. adj. brackethole pos.: 50
Belt. adj. brackethole pos. 2: 55
Belt. adj. bracket hole 1: M8
Belt. adj. bracket hole 2: 10.30
Pulley dia.: 69.70
Grooves/pulley: 1
Radius: 89.00
Radius 2: 89.50
Radius 3: 87.00
B+: Plug
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL22
Total length mm: 185.00
Pulley: P
Voltage regulator type: IR
Prod. info: BN
Servicing: Audi

Files

  • OEM
    aak3543, aak3544, F032110919, 9ar2977, 9ar2977l, 9ar5030l, 9ar5088l, 9ar5099l, 11.201.438, 11.201.439, 242ir, 034903015C, 035903015T, 035903017T, 049903017a, 049903017c, 049903017CX, 049903023r, 049903023t, 049903023TX, 049903027f, 068903027F, 068903027h, 068903029B, 0120489195, 0120489196, 0120489248, 0120489249

  • Normalised article numbler
    a0091, a0622s, aak3543, aak3544, al28x, alt10146, alt10176, cal10019, dra1500, dra3180, dra3870, f032110919, ia0438, ia0439, ia0613, lra00730, lra00731, lra00894, mg185, qa1112, va127, va155, 8el012427581, 8el725665001, 8el732693001, 9ar2977, 9ar2977l, 9ar5030l, 9ar5088l, 9ar5099l, 242ir, 3308, 3309, 13174r, 14797, 14797n, 14797r, 30242ri, 55561, 55571, 55583, 118158, 118187, 200153, 280943, 436189, 436191, 436220, 746904, 1139801bo, 1139801va, 4131500, 4133180, 4134221, 9031500, 9033180, 9034220, 9034500, 11201438, 11201439, 12033180, 32031501, 034903015c, 035903015t, 035903017t, 049903017a, 049903017c, 049903017cx, 049903023r, 049903023t, 049903023tx, 049903027f, 068903027f, 068903027h, 068903029b, 0120489195, 0120489196, 0120489248, 0120489249, 211108652, 211129652, 211136652, 211137652, 305017065, 943356098, 943356812, 0986033180, 0986033181, 0986033185, 0986033187, 0986033188, 0986033870, 0986033878, 0986034048, 0986034221, 943356812010, 944390345000
  • Description
    Voltage: 14
    Amp: 65
    Pulley dist.: 110.00
    Width/holder arm: 56.00
    Bracket hole: 8.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. brackethole pos. 2: 55
    Belt. adj. bracket hole 1: M8
    Belt. adj. bracket hole 2: 10.30
    Pulley dia.: 69.70
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 89.50
    Radius 3: 87.00
    B+: Plug
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    Total length mm: 185.00
    Pulley: P
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Audi

    Files

  • Suitable for these vehicles

    • OEM
      aak3543, aak3544, F032110919, 9ar2977, 9ar2977l, 9ar5030l, 9ar5088l, 9ar5099l, 11.201.438, 11.201.439, 242ir, 034903015C, 035903015T, 035903017T, 049903017a, 049903017c, 049903017CX, 049903023r, 049903023t, 049903023TX, 049903027f, 068903027F, 068903027h, 068903029B, 0120489195, 0120489196, 0120489248, 0120489249

    • Normalised article numbler
      a0091, a0622s, aak3543, aak3544, al28x, alt10146, alt10176, cal10019, dra1500, dra3180, dra3870, f032110919, ia0438, ia0439, ia0613, lra00730, lra00731, lra00894, mg185, qa1112, va127, va155, 8el012427581, 8el725665001, 8el732693001, 9ar2977, 9ar2977l, 9ar5030l, 9ar5088l, 9ar5099l, 242ir, 3308, 3309, 13174r, 14797, 14797n, 14797r, 30242ri, 55561, 55571, 55583, 118158, 118187, 200153, 280943, 436189, 436191, 436220, 746904, 1139801bo, 1139801va, 4131500, 4133180, 4134221, 9031500, 9033180, 9034220, 9034500, 11201438, 11201439, 12033180, 32031501, 034903015c, 035903015t, 035903017t, 049903017a, 049903017c, 049903017cx, 049903023r, 049903023t, 049903023tx, 049903027f, 068903027f, 068903027h, 068903029b, 0120489195, 0120489196, 0120489248, 0120489249, 211108652, 211129652, 211136652, 211137652, 305017065, 943356098, 943356812, 0986033180, 0986033181, 0986033185, 0986033187, 0986033188, 0986033870, 0986033878, 0986034048, 0986034221, 943356812010, 944390345000
