HC-Cargo Alternator

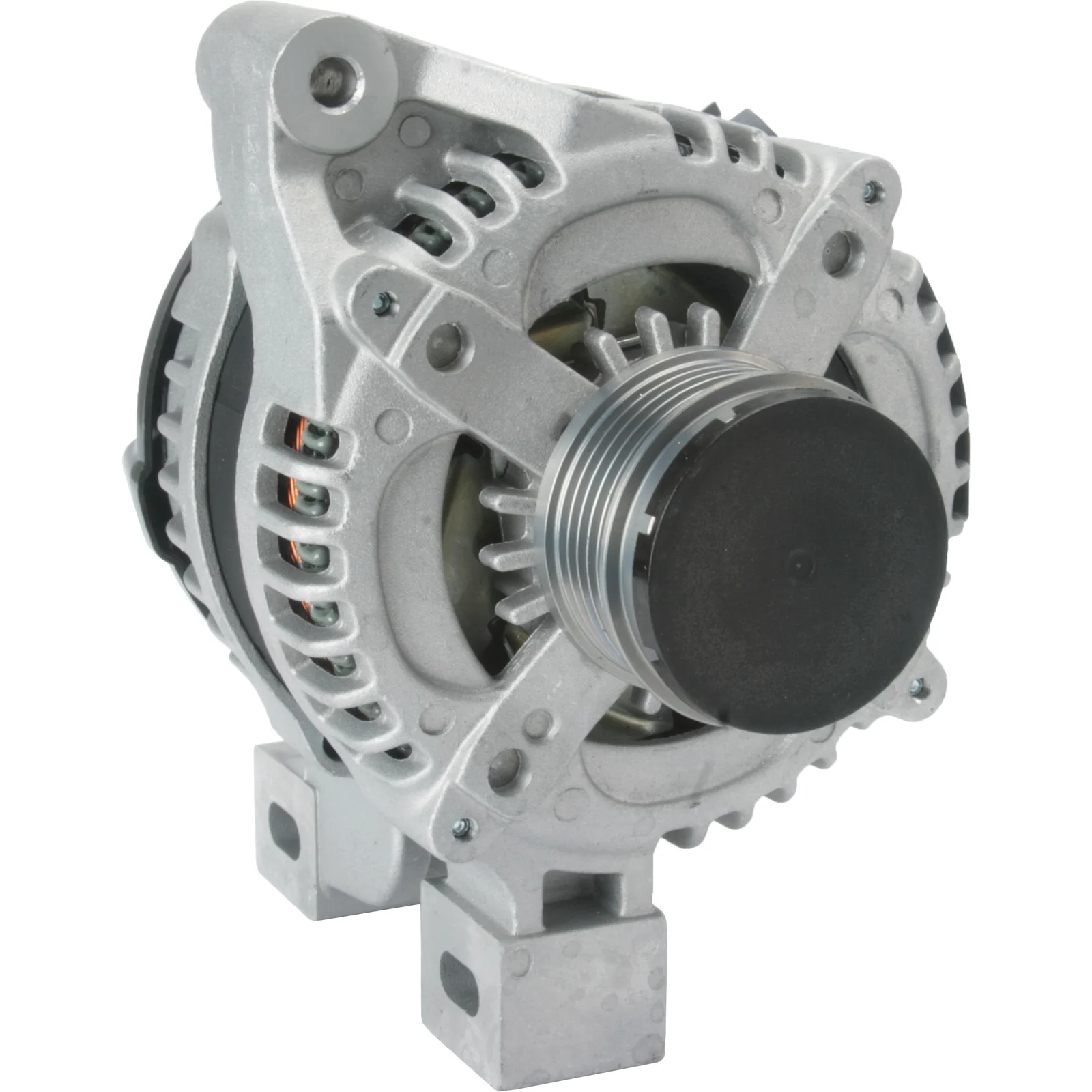

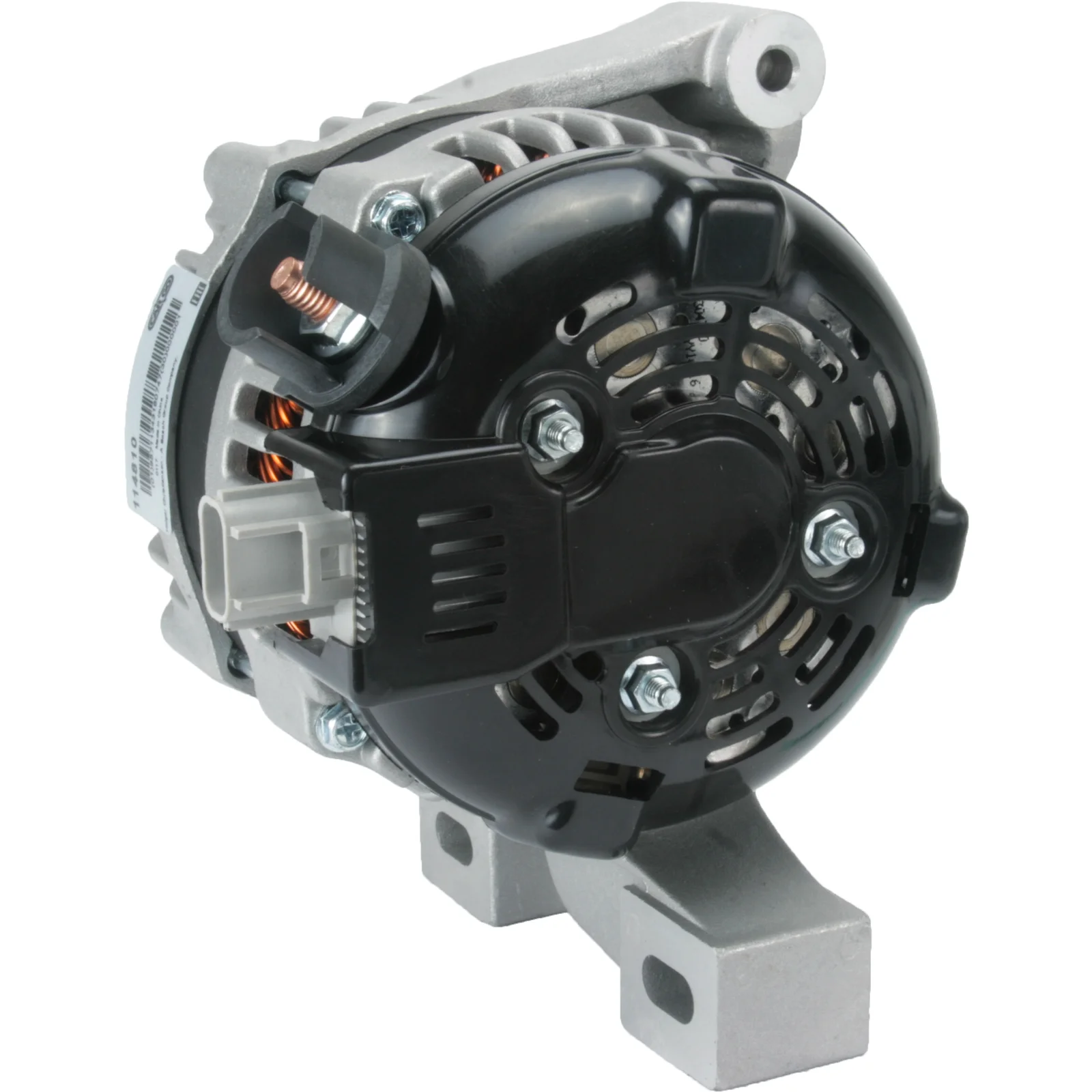

HC-Cargo Alternator
Article no.: F032114810

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Mounting bracket distance: 91.50, Pulley diameter: 55.50

Description

Generator 12V-150A fits Volvo 12V - 150A, 5-cell, ( -, LIN, -) ID-60. Note! chassis number! S40, V50 Chassis no. 45204-250052. Contact piece/Repair Lead: 54-101-0111 for Yourex product order 90-600-5150

Voltage: 14
Amp: 150
Pulley distance: 33.50
Width/holder arm: 33.00
Mounting bracket distance: 91.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 54
Belt adjustment bracket hole 1: 8.00
Pulley diameter: 55.50
Grooves/pulley: 5
B+: M8
Position/B+ in min.: 50
Plug no.: PL154
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Product info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300JC, 3M5T10300JD, 3M5T10300SC, 3m5t10300sd, 8EL011713-251, 8EL738212-951, 28-5548, 1966ir, 11054N, 11054R, 104210-3560, 104210-4640, 113030, 114810, 209396, 209396A, 301966RI, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070

  • Normalised article numbler
    a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300jc, 3m5t10300jd, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640
  • Description
    Generator 12V-150A fits Volvo 12V - 150A, 5-cell, ( -, LIN, -) ID-60. Note! chassis number! S40, V50 Chassis no. 45204-250052. Contact piece/Repair Lead: 54-101-0111 for Yourex product order 90-600-5150

    Voltage: 14
    Amp: 150
    Pulley distance: 33.50
    Width/holder arm: 33.00
    Mounting bracket distance: 91.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 54
    Belt adjustment bracket hole 1: 8.00
    Pulley diameter: 55.50
    Grooves/pulley: 5
    B+: M8
    Position/B+ in min.: 50
    Plug no.: PL154
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A6133, A6133(DENSO), CAL40274, DAN1059, DRA0391, F032114810, 3M5T-10300SC, 3M5T-10300SD, 3M5T10300JC, 3M5T10300JD, 3M5T10300SC, 3m5t10300sd, 8EL011713-251, 8EL738212-951, 28-5548, 1966ir, 11054N, 11054R, 104210-3560, 104210-4640, 113030, 114810, 209396, 209396A, 301966RI, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070

    • Normalised article numbler
      a6133, a6133denso, cal40274, dan1059, dra0391, f032114810, 3m5t10300jc, 3m5t10300jd, 3m5t10300sc, 3m5t10300sd, 8el011713251, 8el738212951, 1966ir, 11054n, 11054r, 113030, 114810, 209396, 209396a, 285548, 301966ri, 1684865, 8603496, 12090376, 30659346, 30659369, 30667103, 30737529, 36001463, 0986083070, 1042103560, 1042104640
