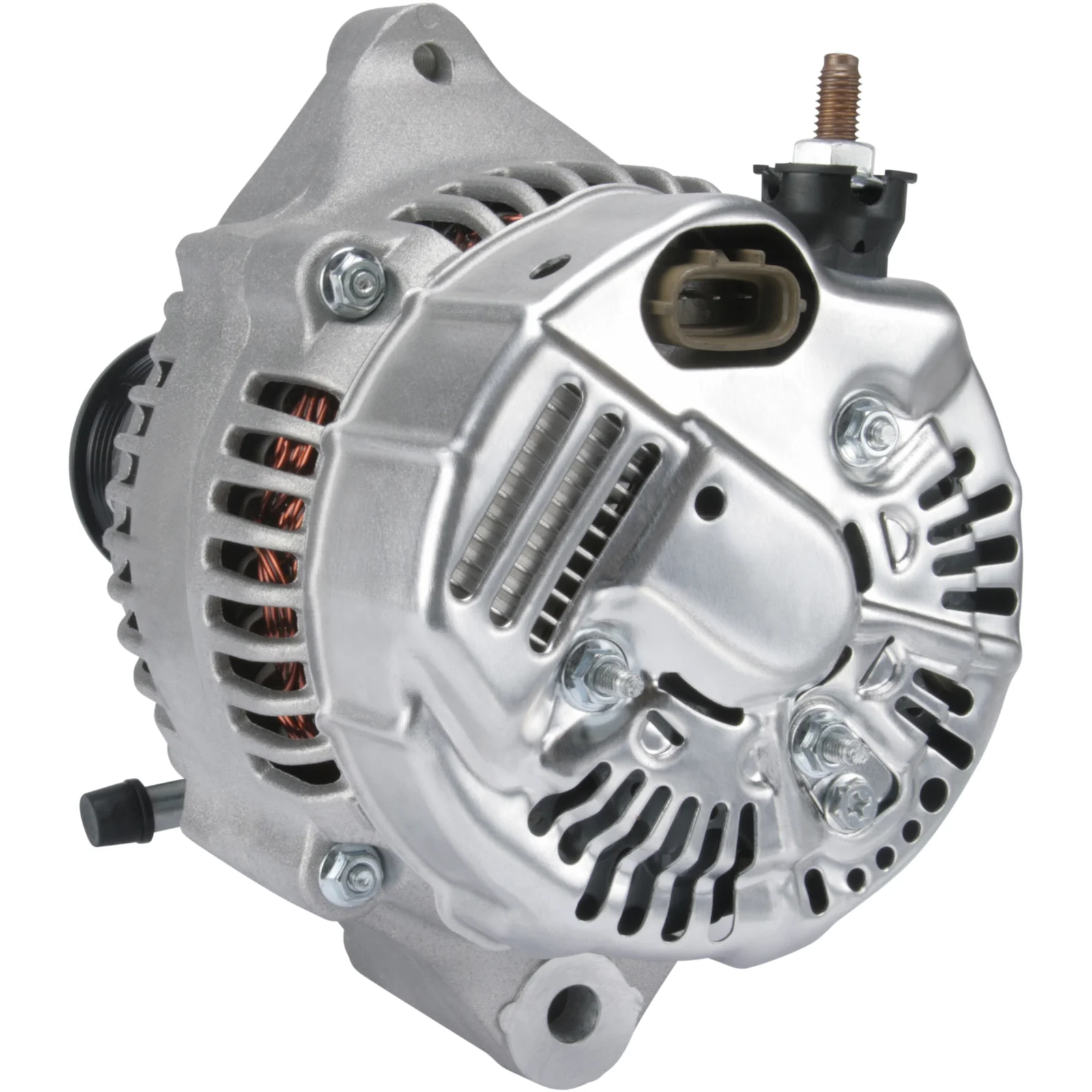

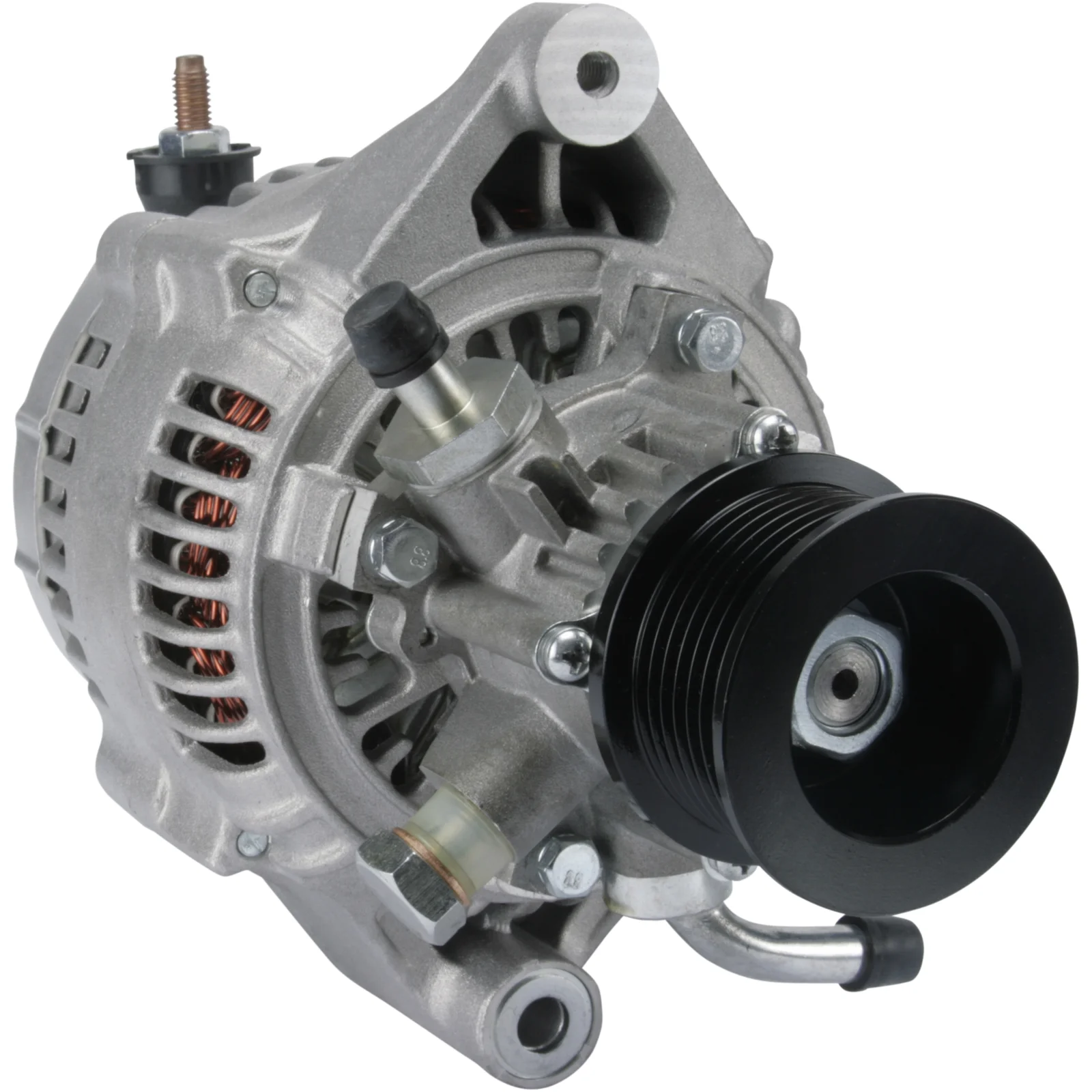

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114300

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley diameter: 55.30

Description

Voltage: 14
Amp: 120
Pulley distance: 143.00
Width/holder arm: 69.70
Bracket hole: 10.60
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 55.30
Grooves/pulley: 7
Radius: 85.00
Radius 2: 82.00
B+: M8
Position/B+ in minutes: 5
Rotation: CW
Plug no.: PL58
W plug type: Plug
Total length mm: 236.00
Pulley: SP
Regulator type: IR
Vacuum pump: Yes
Product info: BN

Files

  • OEM
    err6999, F032114300, ja1710ir, LR006190, 100213-2391, 100213-2530, 38522267F

  • Normalised article numbler
    a6230, a6230denso, alth212, cal40121, dan670, dendan670, dra3856, err6999, f032114300, f042a0h212, ja1710ir, lr006190, 8el015630771, 8el738079001, 9190, 21369n, 21369r, 119994, 119995, 210961, 210961a, 283882, 401710ri, 440980, 12090146, 20110369wp, 32201202, 38522267f, 0986046541, 1002132391, 1002132530, 2141231202, 063377497010
  • Description
    Voltage: 14
    Amp: 120
    Pulley distance: 143.00
    Width/holder arm: 69.70
    Bracket hole: 10.60
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 55.30
    Grooves/pulley: 7
    Radius: 85.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in minutes: 5
    Rotation: CW
    Plug no.: PL58
    W plug type: Plug
    Total length mm: 236.00
    Pulley: SP
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      err6999, F032114300, ja1710ir, LR006190, 100213-2391, 100213-2530, 38522267F

    • Normalised article numbler
      a6230, a6230denso, alth212, cal40121, dan670, dendan670, dra3856, err6999, f032114300, f042a0h212, ja1710ir, lr006190, 8el015630771, 8el738079001, 9190, 21369n, 21369r, 119994, 119995, 210961, 210961a, 283882, 401710ri, 440980, 12090146, 20110369wp, 32201202, 38522267f, 0986046541, 1002132391, 1002132530, 2141231202, 063377497010
