Article no.: F032111362

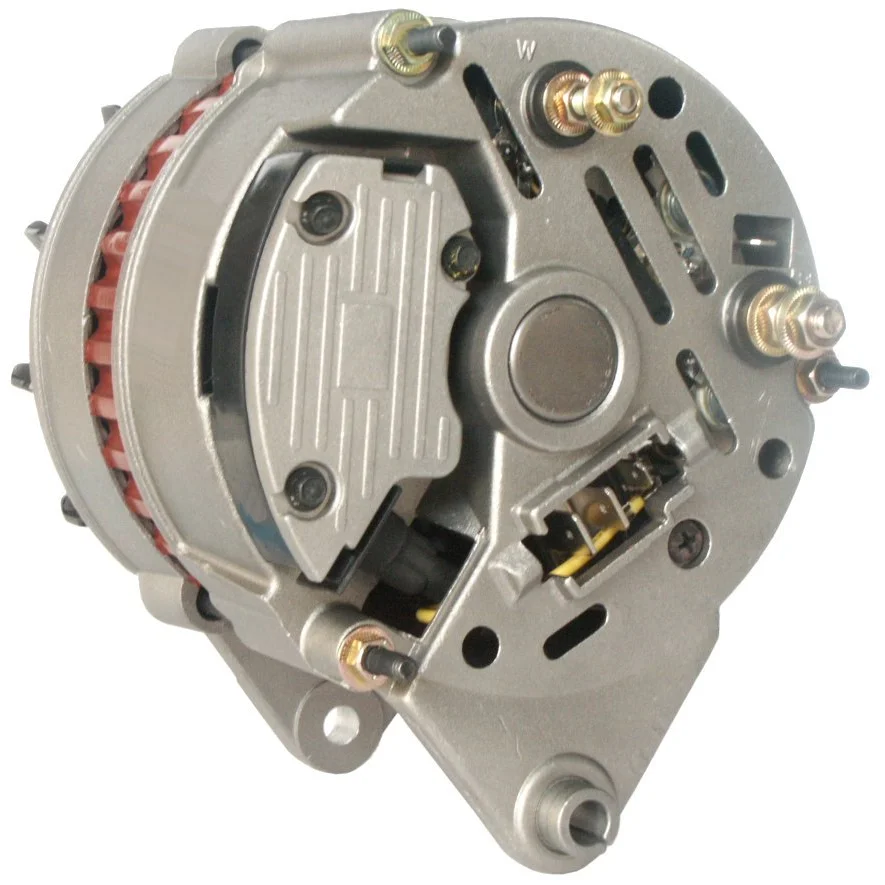

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Mounting bracket distance: 81.00

Description

Voltage: 14
Amp: 55
Terminal: W
Pulley dist.: 34.50
Width/holder arm: 11.00
Mount. bracket dist.: 81.00
Bracket hole: 8.40
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M8
Pulley dia.: 64.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 85.00
B+: Plug
Position/B+ in min.: 24
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.50
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Ford

Files

  • OEM
    AAK1325, AAK1329, F032111362, G4X2A, R86AX10300AB, 9ar2630k, 9ar2651, 9AR2706, 11.201.399, 11.201.400, 11.201.415, 82FB10300BA, 82FB10300BB, 82fb10300ea, 83bb10300ha, 85bb10300da, 86ab10300ea, 86ab10300eb, 86AX10300AAA, 86ax10300ab, 86ax10300db, 87bb10300ba, 305ir, 24156a, 24157E, 24200a, 24215, 24215a, 24249, 24261, 24261a, 24262a, 24277, 24277a, 24289, 24289a, 24298a, 1005308, 1610118, 2926300, 2940080, 3538542M91, 3551780M91, 3551780M92, 5008989, 5026096, 6136282, 6136946, 54022053, 54022142, 54022160, 54022160D, 54022182, 54022211, 54022241, 54022335, 54022598, 54022668, 54022695, 54022740, 54022803, 0120489172, 0120489290, 0120489345, 443113516700, 443113516701

  • Normalised article numbler
    a1028s, a4011, aak1325, aak1329, alt10136, alth040, bao3002, bao3122, cal25108, dra1350, dra6010, f032111362, f042a0h040, fra47, g4x2a, ia0301, ia0400, ia0415, ia0566, lea0055, lea0074, lra00359, lra00375, lra00376, lra00460, lra00462, lra00607, lra00780, mg192, mg590, mg654, na028, qa0475, qa0476, r86ax10300ab, va102, va104, va106, va182, va248, 8el725707001, 8el737307001, 9ar2630k, 9ar2651, 9ar2706, 82fb10300ba, 82fb10300bb, 82fb10300ea, 83bb10300ha, 85bb10300da, 86ab10300ea, 86ab10300eb, 86ax10300aaa, 86ax10300ab, 86ax10300db, 87bb10300ba, 305ir, 3424, 5659, 24156a, 24157e, 24200a, 24215, 24215a, 24249, 24261, 24261a, 24262a, 24277, 24277a, 24289, 24289a, 24298a, 30305ri, 55713, 200293, 210043, 210043a, 210055, 210055a, 210082, 210082a, 210204, 210204a, 280794, 280809, 281792, 283519, 301227ri, 436179, 436181, 436687, 437379, 443177, 746979, 747904, 1005308, 1610118, 2030560, 2030760, 2036010, 2036020, 2926300, 2940080, 3538542m91, 3551780m91, 3551780m92, 5008989, 5026096, 6136282, 6136946, 9036025, 11201399, 11201400, 11201415, 54022053, 54022142, 54022160, 54022160d, 54022182, 54022211, 54022241, 54022335, 054022384, 54022598, 054022625, 054022628, 54022668, 54022695, 54022740, 54022803, 063324199, 063324249, 063324277, 0120489172, 0120489290, 0120489345, 219104552, 943324277, 0986030760, 0986030768, 0986036010, 0986036082, 0986036083, 443113516700, 443113516701
  • Description
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley dist.: 34.50
    Width/holder arm: 11.00
    Mount. bracket dist.: 81.00
    Bracket hole: 8.40
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 64.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 85.00
    B+: Plug
    Position/B+ in min.: 24
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 165.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford

    Files

  • Suitable for these vehicles

    • OEM
      AAK1325, AAK1329, F032111362, G4X2A, R86AX10300AB, 9ar2630k, 9ar2651, 9AR2706, 11.201.399, 11.201.400, 11.201.415, 82FB10300BA, 82FB10300BB, 82fb10300ea, 83bb10300ha, 85bb10300da, 86ab10300ea, 86ab10300eb, 86AX10300AAA, 86ax10300ab, 86ax10300db, 87bb10300ba, 305ir, 24156a, 24157E, 24200a, 24215, 24215a, 24249, 24261, 24261a, 24262a, 24277, 24277a, 24289, 24289a, 24298a, 1005308, 1610118, 2926300, 2940080, 3538542M91, 3551780M91, 3551780M92, 5008989, 5026096, 6136282, 6136946, 54022053, 54022142, 54022160, 54022160D, 54022182, 54022211, 54022241, 54022335, 54022598, 54022668, 54022695, 54022740, 54022803, 0120489172, 0120489290, 0120489345, 443113516700, 443113516701

    • Normalised article numbler
      a1028s, a4011, aak1325, aak1329, alt10136, alth040, bao3002, bao3122, cal25108, dra1350, dra6010, f032111362, f042a0h040, fra47, g4x2a, ia0301, ia0400, ia0415, ia0566, lea0055, lea0074, lra00359, lra00375, lra00376, lra00460, lra00462, lra00607, lra00780, mg192, mg590, mg654, na028, qa0475, qa0476, r86ax10300ab, va102, va104, va106, va182, va248, 8el725707001, 8el737307001, 9ar2630k, 9ar2651, 9ar2706, 82fb10300ba, 82fb10300bb, 82fb10300ea, 83bb10300ha, 85bb10300da, 86ab10300ea, 86ab10300eb, 86ax10300aaa, 86ax10300ab, 86ax10300db, 87bb10300ba, 305ir, 3424, 5659, 24156a, 24157e, 24200a, 24215, 24215a, 24249, 24261, 24261a, 24262a, 24277, 24277a, 24289, 24289a, 24298a, 30305ri, 55713, 200293, 210043, 210043a, 210055, 210055a, 210082, 210082a, 210204, 210204a, 280794, 280809, 281792, 283519, 301227ri, 436179, 436181, 436687, 437379, 443177, 746979, 747904, 1005308, 1610118, 2030560, 2030760, 2036010, 2036020, 2926300, 2940080, 3538542m91, 3551780m91, 3551780m92, 5008989, 5026096, 6136282, 6136946, 9036025, 11201399, 11201400, 11201415, 54022053, 54022142, 54022160, 54022160d, 54022182, 54022211, 54022241, 54022335, 054022384, 54022598, 054022625, 054022628, 54022668, 54022695, 54022740, 54022803, 063324199, 063324249, 063324277, 0120489172, 0120489290, 0120489345, 219104552, 943324277, 0986030760, 0986030768, 0986036010, 0986036082, 0986036083, 443113516700, 443113516701
