HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114296

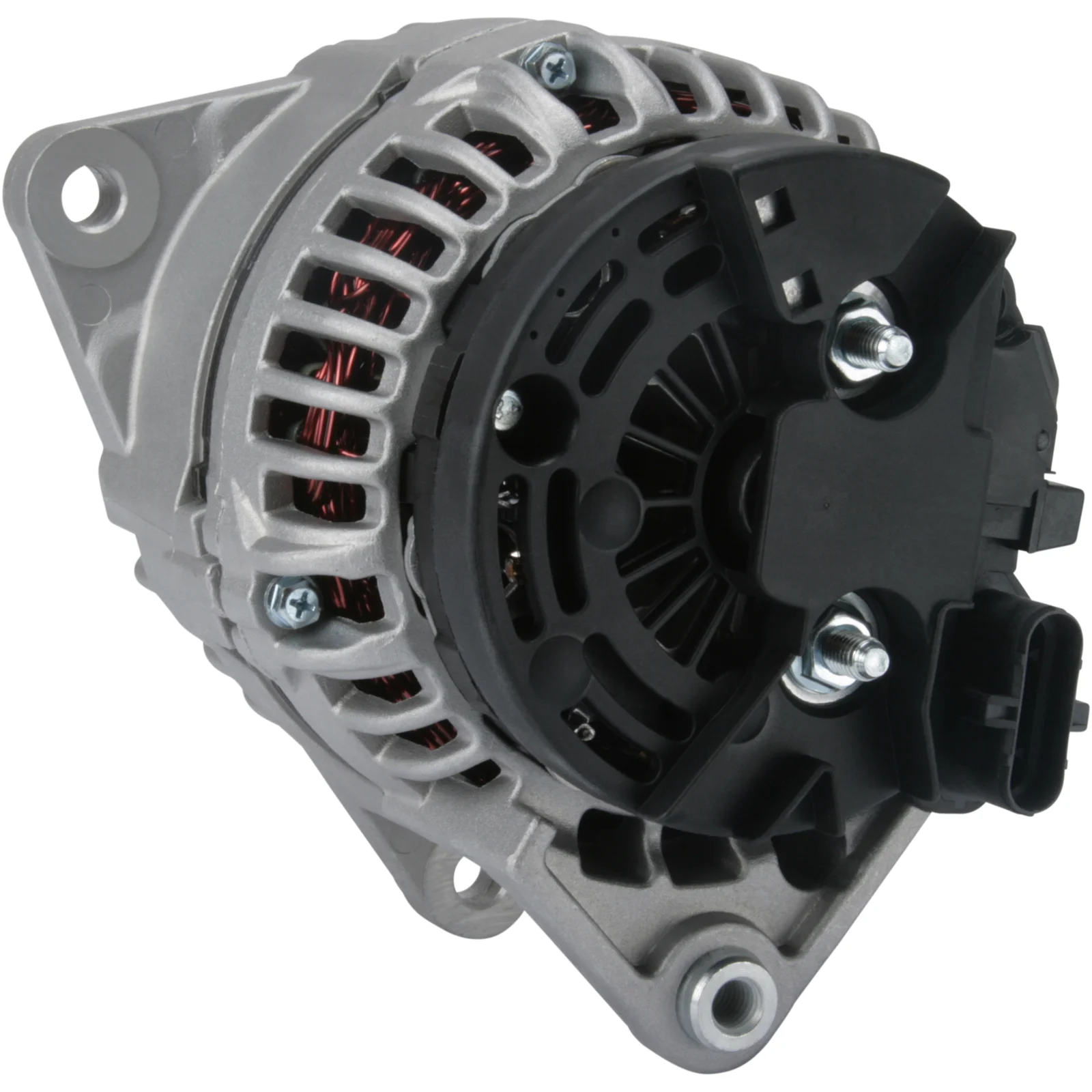

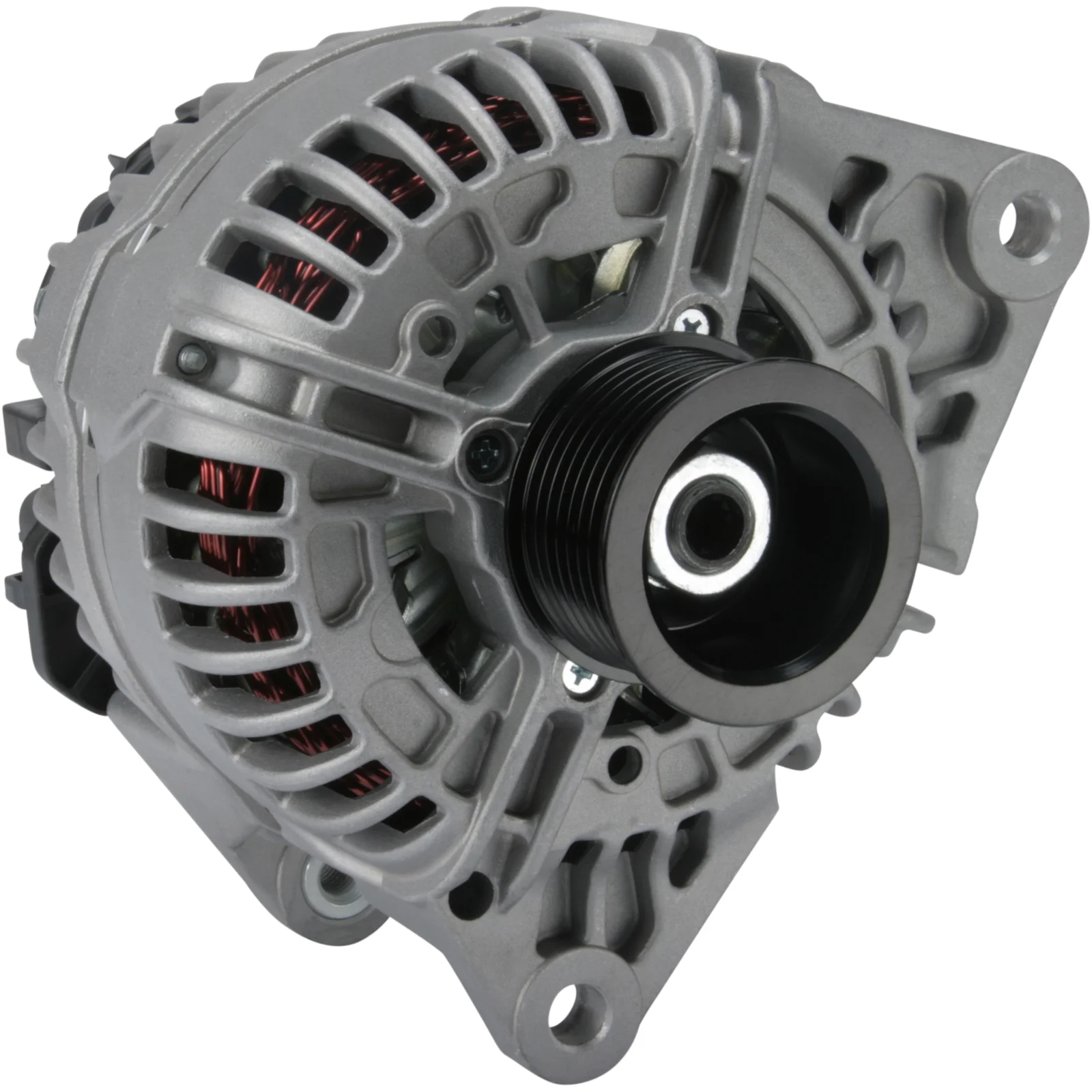

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 90, Rotation: CW, Mounting bracket distance: 81.00

Description

Iveco Alternator 24V-90A 24V - 90A, (W-L-15-S-DFM) Alternative unit: 90-255-4516 (70A) 90-255-9454 (120) Connector piece = KON-120 For Yourex product order F032114296

Voltage: 28
Amp: 90
Pulley distance: 37.00
Width/holder arm: 14.00
Mounting bracket distance: 81.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 55.00
Grooves/pulley: 8
Radius: 94.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 28
Rotation: CW
Plug no.: PL82
Pulley: SP
Servicing: Alternator

Files

  • OEM
    AAN5392, F032114296, 11.209.603, 0124 655 005, 0124 655 082, 0986 045 430, 1812ir, 1986A00515, 1986A00966, 1986A00973, 23100-LA5MA, 114296, 860810, 2995978, 0000004892320, 4892320, 5259578, 72445477, 081045430, 0124655005, 0124655020, 0124655082, 0124655488

  • Normalised article numbler
    a0072, a0072pr, a0072sr, a0645s, aan5392, alt2115, cal10628, cal10662, drb5430, drb5430x, f032114296, f042301127, f042301217, f042a01127, ia9451, mg813, 8el012584471, 8el012584761, 1812ir, 1986a00515, 1986a00966, 1986a00973, 2487, 12594n, 23100la5ma, 111295, 114296, 202030, 202111, 210594, 210594a, 301812ri, 443227, 443487, 443519, 444420, 444445, 484860, 860810, 2995978, 0000004892320, 4892320, 5259578, 9945430, 11209603, 12045430, 72445477, 081045430, 0124655005, 0124655020, 0124655082, 0124655488, 646503090, 0986045430, 0986045433, 063536550050
  • Description
    Iveco Alternator 24V-90A 24V - 90A, (W-L-15-S-DFM) Alternative unit: 90-255-4516 (70A) 90-255-9454 (120) Connector piece = KON-120 For Yourex product order F032114296

    Voltage: 28
    Amp: 90
    Pulley distance: 37.00
    Width/holder arm: 14.00
    Mounting bracket distance: 81.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 55.00
    Grooves/pulley: 8
    Radius: 94.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 28
    Rotation: CW
    Plug no.: PL82
    Pulley: SP
    Servicing: Alternator

    Files

  • Suitable for these vehicles

    • OEM
      AAN5392, F032114296, 11.209.603, 0124 655 005, 0124 655 082, 0986 045 430, 1812ir, 1986A00515, 1986A00966, 1986A00973, 23100-LA5MA, 114296, 860810, 2995978, 0000004892320, 4892320, 5259578, 72445477, 081045430, 0124655005, 0124655020, 0124655082, 0124655488

    • Normalised article numbler
      a0072, a0072pr, a0072sr, a0645s, aan5392, alt2115, cal10628, cal10662, drb5430, drb5430x, f032114296, f042301127, f042301217, f042a01127, ia9451, mg813, 8el012584471, 8el012584761, 1812ir, 1986a00515, 1986a00966, 1986a00973, 2487, 12594n, 23100la5ma, 111295, 114296, 202030, 202111, 210594, 210594a, 301812ri, 443227, 443487, 443519, 444420, 444445, 484860, 860810, 2995978, 0000004892320, 4892320, 5259578, 9945430, 11209603, 12045430, 72445477, 081045430, 0124655005, 0124655020, 0124655082, 0124655488, 646503090, 0986045430, 0986045433, 063536550050
