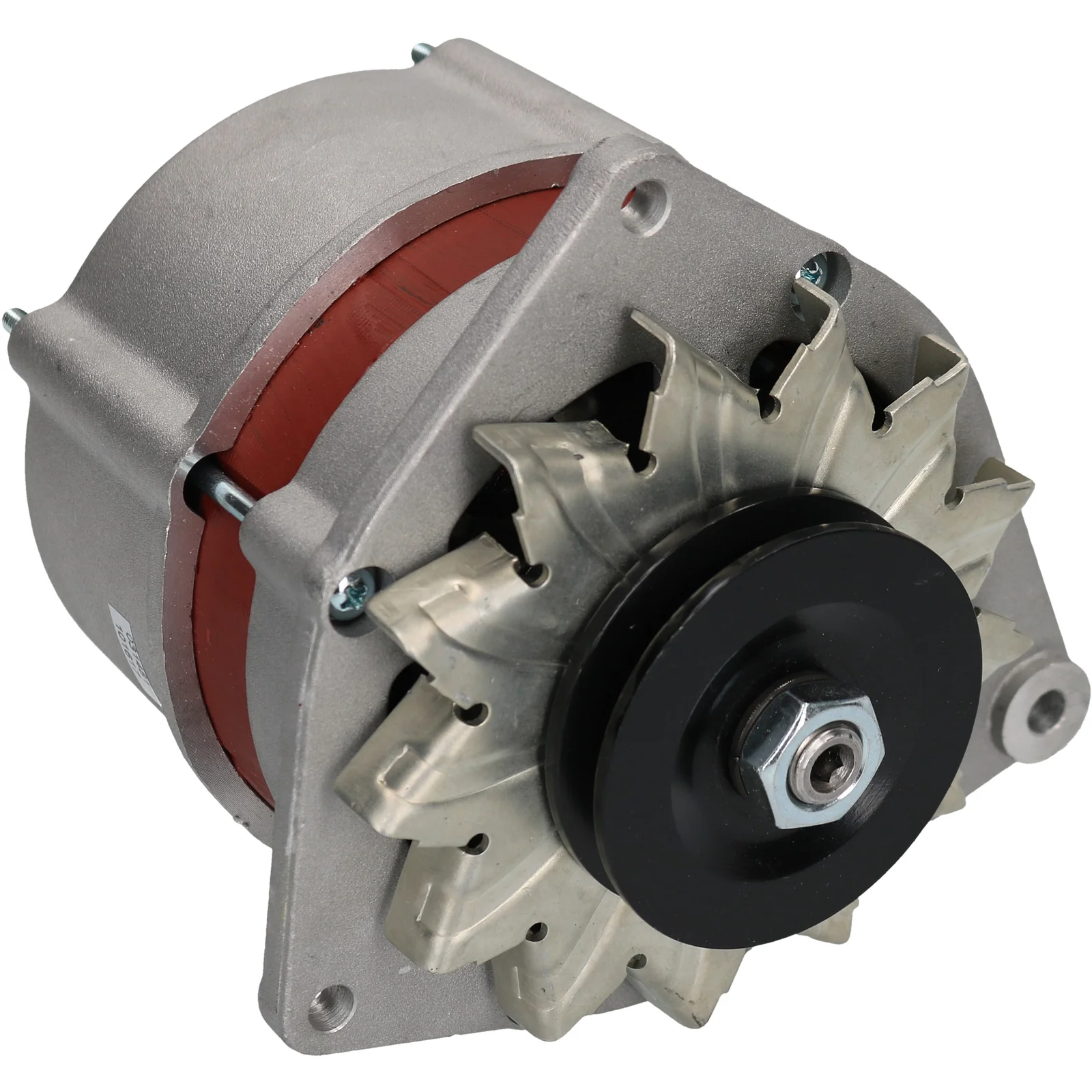

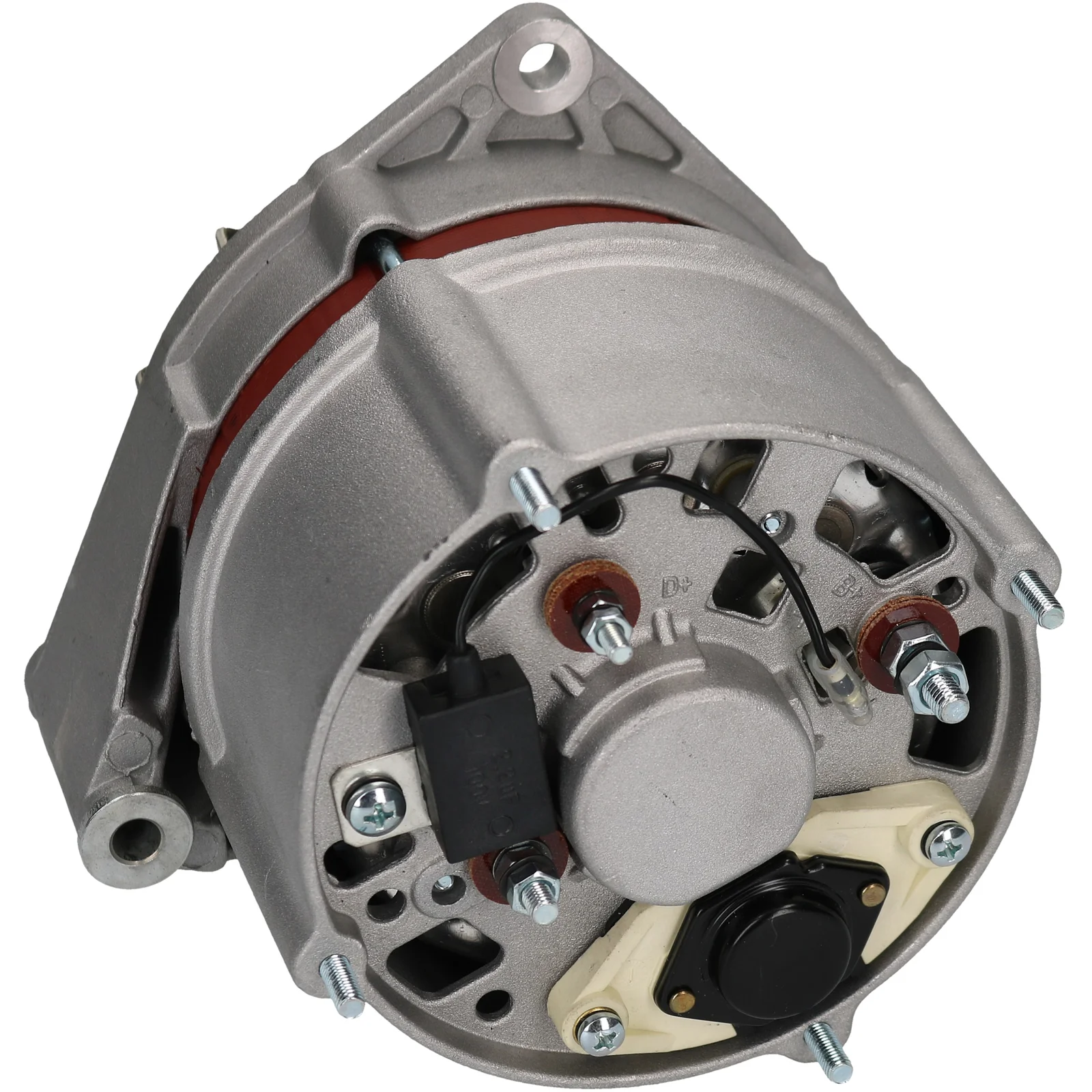

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112736

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 65, Rotation: CW, Pulleydiameter: 80.00

Description

Iveco/KHD Alternator 12V-65A 12V - 65A A - 56mm Same fixed in 95A = 90-255-4184 For Yourex product order 90-255-3133

Voltage: 14
Amp: 65
Terminal: W
Pulley distance: 76.50
Width/holder arm: 56.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole position 2: 10
Belt adjustment bracket hole 1: 8.20
Belt adjustment bracket hole 2: 8.20
Pulley diameter: 80.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 80.00
Radius 3: 80.00
B+: M6
Position/B+ in min.: 60
D+ size: M4
Rotation: CW
W plug type: M5
Total length mm: 166.00
Pulley: P
Fan: EF
Regulator type: IR
Product info: BN
Servicing: Alternator

Files

  • OEM
    AAK1378, C000900010130, F032112736, 11.201.570, 0120 489 756, 340ir, 0570, 0986 031 330, 1986A00751, 112736, 01172857, 1172857, 1516565R, 9515230, 0120489756, 311090025, 0986031330, 31100090025

  • Normalised article numbler
    a0084, aak1378, alt20021, c000900010130, dra1330, f032112736, ia0570, lra01346, mg659, mg718, 8el725743001, 340ir, 0570, 1986a00751, 3573, 13203, 13203n, 30340ri, 75649, 112736, 202056, 281724, 436272, 01172857, 1172857, 1516565r, 9515230, 9931330, 11201570, 12031330, 32031330, 0120489756, 200114652, 311090025, 943356766, 0986031330, 31100090025, 943356766010
  • Description
    Iveco/KHD Alternator 12V-65A 12V - 65A A - 56mm Same fixed in 95A = 90-255-4184 For Yourex product order 90-255-3133

    Voltage: 14
    Amp: 65
    Terminal: W
    Pulley distance: 76.50
    Width/holder arm: 56.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole position 2: 10
    Belt adjustment bracket hole 1: 8.20
    Belt adjustment bracket hole 2: 8.20
    Pulley diameter: 80.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 80.00
    Radius 3: 80.00
    B+: M6
    Position/B+ in min.: 60
    D+ size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 166.00
    Pulley: P
    Fan: EF
    Regulator type: IR
    Product info: BN
    Servicing: Alternator

    Files

  • Suitable for these vehicles

    • OEM
      AAK1378, C000900010130, F032112736, 11.201.570, 0120 489 756, 340ir, 0570, 0986 031 330, 1986A00751, 112736, 01172857, 1172857, 1516565R, 9515230, 0120489756, 311090025, 0986031330, 31100090025

    • Normalised article numbler
      a0084, aak1378, alt20021, c000900010130, dra1330, f032112736, ia0570, lra01346, mg659, mg718, 8el725743001, 340ir, 0570, 1986a00751, 3573, 13203, 13203n, 30340ri, 75649, 112736, 202056, 281724, 436272, 01172857, 1172857, 1516565r, 9515230, 9931330, 11201570, 12031330, 32031330, 0120489756, 200114652, 311090025, 943356766, 0986031330, 31100090025, 943356766010
