Article no.: F032113188

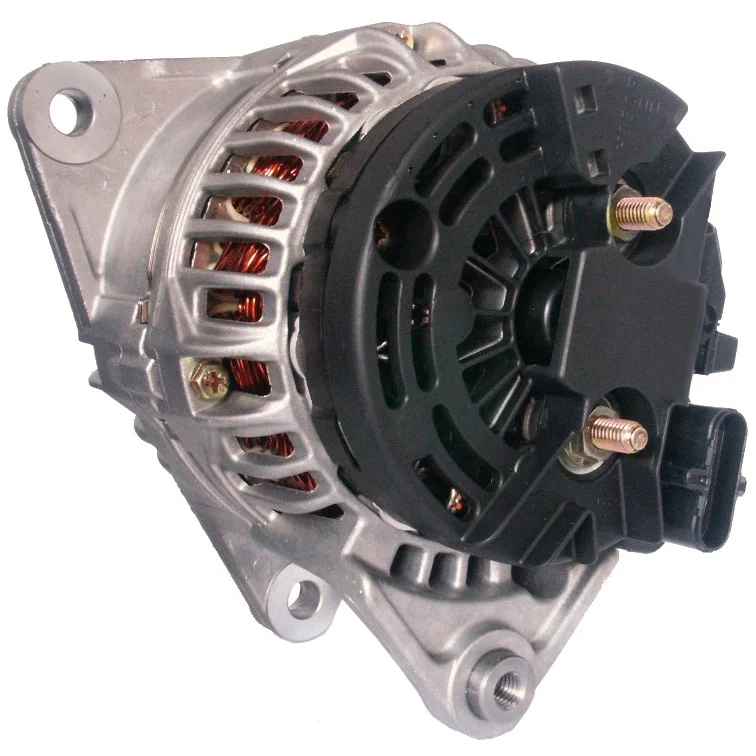

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 70, Rotation: CW, Mount. bracket dist.: 81.00

Description

Voltage: 28
Amp: 70
Terminal: W
Pulley dist.: 36.50
Width/holder arm: 14.00
Mounting bracket dist.: 81.00
Bracket hole: 10.50
Belt adjustment bracket hole position.: 10
Belt adjustment bracket hole 1: 11.00
Pulley dia.: 55.00
Grooves/pulley: 8
Radius: 94.00
Radius 2: 94.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL82
W plug type: Plug
Total length mm: 194.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Iveco

Files

  • OEM
    AAN5391, F032113188, 11.209.602, 1699ir, 1986A00512, 1986A00914, 0000002995976, 2995976, 0000004892318, 4892318, 42498713, 72445481, 0124555005

  • Normalised article numbler
    a0074, a0074pr, a0074sr, aan5391, alt20038, bax1141021, cal10602, cal10676, drb5160, f032113188, ia9450, lea0712, lra02535, mg812, 8el012584021, 8el738063001, 1699ir, 1986a00512, 1986a00914, 2442, 12591n, 111503, 202030, 210589, 210589a, 301699ri, 443487, 444420, 484859, 0000002995976, 2995976, 0000004892318, 4892318, 9945160, 11209602, 12045160, 42498713, 063535550, 72445481, 0124555005, 218185704, 0986045160, 0986045163, 063535550050
  • Description
    Voltage: 28
    Amp: 70
    Terminal: W
    Pulley dist.: 36.50
    Width/holder arm: 14.00
    Mounting bracket dist.: 81.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 10
    Belt adjustment bracket hole 1: 11.00
    Pulley dia.: 55.00
    Grooves/pulley: 8
    Radius: 94.00
    Radius 2: 94.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL82
    W plug type: Plug
    Total length mm: 194.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Iveco

    Files

  • Suitable for these vehicles

    • OEM
      AAN5391, F032113188, 11.209.602, 1699ir, 1986A00512, 1986A00914, 0000002995976, 2995976, 0000004892318, 4892318, 42498713, 72445481, 0124555005

    • Normalised article numbler
      a0074, a0074pr, a0074sr, aan5391, alt20038, bax1141021, cal10602, cal10676, drb5160, f032113188, ia9450, lea0712, lra02535, mg812, 8el012584021, 8el738063001, 1699ir, 1986a00512, 1986a00914, 2442, 12591n, 111503, 202030, 210589, 210589a, 301699ri, 443487, 444420, 484859, 0000002995976, 2995976, 0000004892318, 4892318, 9945160, 11209602, 12045160, 42498713, 063535550, 72445481, 0124555005, 218185704, 0986045160, 0986045163, 063535550050
