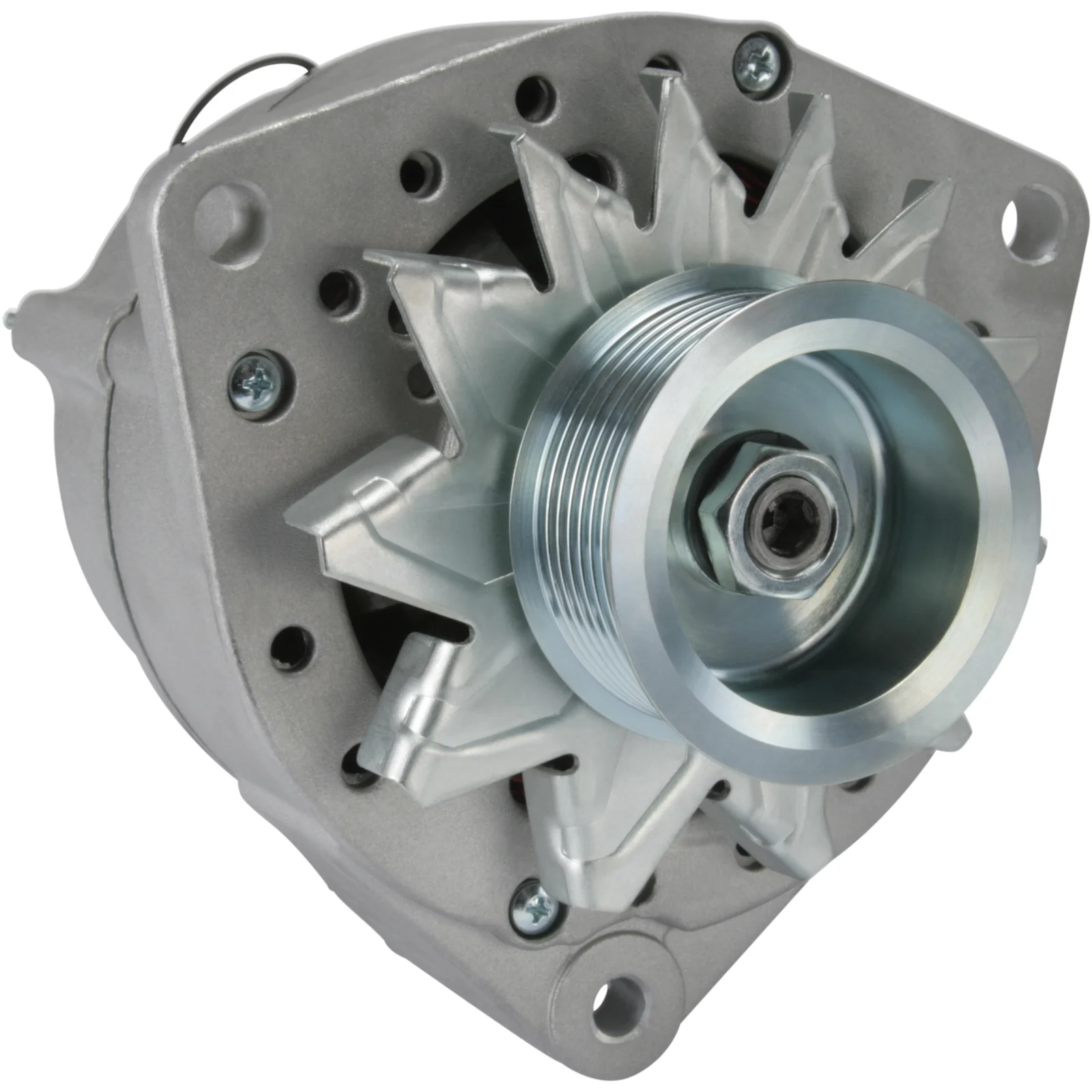

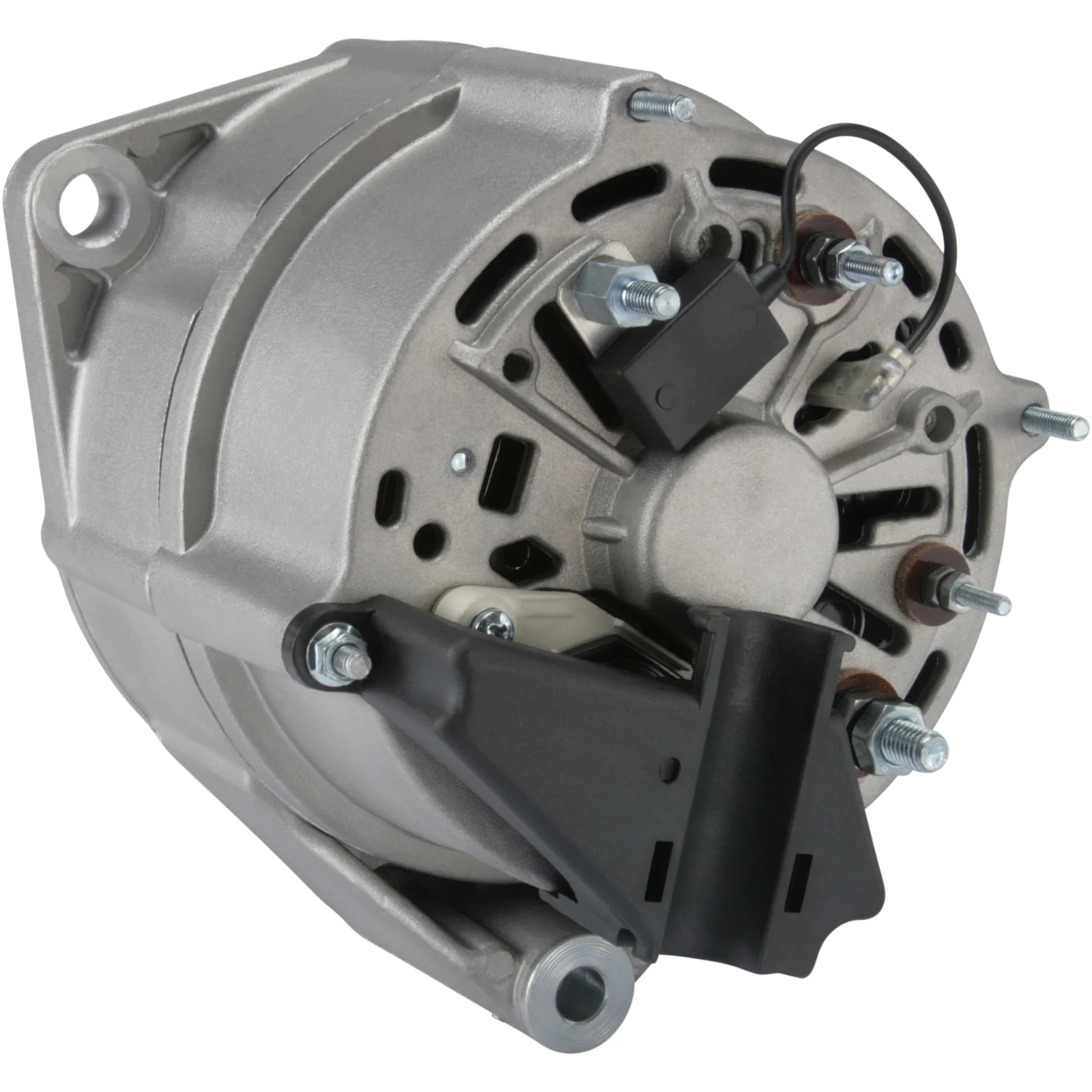

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112561

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Radius: 93.00

Description

Voltage: 28
Amp: 80
Terminal: W
Width/holder arm: 80.00
Bracket hole: 10.80
Belt. adjustment. bracket hole position: 10
Belt. adjustment. bracket hole position 2: 50
Belt. adjustment. bracket hole 1: 12.00
Belt. adjustment. bracket hole 2: 12.00
Radius: 93.00
Radius 2: 90.00
Radius 3: 90.00
B+: M8
Position/B+ in min.: 22
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 188.00
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Mercedes-Benz

Files

  • OEM
    A0091549702, A009154970280, A0091549802, A009154980280, A0101549002, A010154900280, A0101549102, A010154910280, AAN3111, aan3119, F032112561, 11.209.421, 11.209.442, 1593ir, 1986A00156, 1986A00748, 1986A01362, 6033gb3019, 6033gb3022, 6033gb3027, 6033GB3090, 860559, 01180903, 1180903, 01182113, 1182113, 1516501R, 05716065, 16068211, 19025113, 19070006, 19070058, 0091547102, 0091549702, 0091549802, 0101549002, 0101549102, 0120469115, 0120469116, 0120469117, 009154970280, 009154980280, 010154900280, 010154910280

  • Normalised article numbler
    a0007, a0091549702, a009154970280, a0091549802, a009154980280, a0101549002, a010154900280, a0101549102, a010154910280, aan3111, aan3119, alt0103, alt0103a, cal10608, dra9790, drb0260, drb1570, f032112561, f042301007, f042a01007, ia9412, ia9429, ia9443, ia9445, lra02779, lrb00302, mg503, mg586, mg773, 8el012584121, 8el737887001, 1593ir, 1986a00156, 1986a00748, 1986a01362, 6033gb3019, 6033gb3022, 6033gb3027, 6033gb3090, 12386n, 111127, 118990, 202057, 202089, 202092, 203015, 210303, 210303a, 210306, 210306a, 210307, 210307a, 301593ri, 437440, 437442, 443223, 481905, 482937, 483687, 860559, 01180903, 1180903, 01182113, 1182113, 1516501r, 05716065, 9939790, 9940260, 9941570, 11209421, 11209442, 12039790, 12040260, 12041570, 16068211, 19025113, 19070006, 19070058, 32039790, 32040260, 0091547102, 0091549702, 0091549802, 0101549002, 0101549102, 0120469115, 0120469116, 0120469117, 525110804, 525111804, 0986039790, 0986039793, 0986040260, 0986040263, 0986041570, 0986041573, 009154970280, 009154980280, 010154900280, 010154910280
  • Description
    Voltage: 28
    Amp: 80
    Terminal: W
    Width/holder arm: 80.00
    Bracket hole: 10.80
    Belt. adjustment. bracket hole position: 10
    Belt. adjustment. bracket hole position 2: 50
    Belt. adjustment. bracket hole 1: 12.00
    Belt. adjustment. bracket hole 2: 12.00
    Radius: 93.00
    Radius 2: 90.00
    Radius 3: 90.00
    B+: M8
    Position/B+ in min.: 22
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 188.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes-Benz

    Files

  • Suitable for these vehicles

    • OEM
      A0091549702, A009154970280, A0091549802, A009154980280, A0101549002, A010154900280, A0101549102, A010154910280, AAN3111, aan3119, F032112561, 11.209.421, 11.209.442, 1593ir, 1986A00156, 1986A00748, 1986A01362, 6033gb3019, 6033gb3022, 6033gb3027, 6033GB3090, 860559, 01180903, 1180903, 01182113, 1182113, 1516501R, 05716065, 16068211, 19025113, 19070006, 19070058, 0091547102, 0091549702, 0091549802, 0101549002, 0101549102, 0120469115, 0120469116, 0120469117, 009154970280, 009154980280, 010154900280, 010154910280

    • Normalised article numbler
      a0007, a0091549702, a009154970280, a0091549802, a009154980280, a0101549002, a010154900280, a0101549102, a010154910280, aan3111, aan3119, alt0103, alt0103a, cal10608, dra9790, drb0260, drb1570, f032112561, f042301007, f042a01007, ia9412, ia9429, ia9443, ia9445, lra02779, lrb00302, mg503, mg586, mg773, 8el012584121, 8el737887001, 1593ir, 1986a00156, 1986a00748, 1986a01362, 6033gb3019, 6033gb3022, 6033gb3027, 6033gb3090, 12386n, 111127, 118990, 202057, 202089, 202092, 203015, 210303, 210303a, 210306, 210306a, 210307, 210307a, 301593ri, 437440, 437442, 443223, 481905, 482937, 483687, 860559, 01180903, 1180903, 01182113, 1182113, 1516501r, 05716065, 9939790, 9940260, 9941570, 11209421, 11209442, 12039790, 12040260, 12041570, 16068211, 19025113, 19070006, 19070058, 32039790, 32040260, 0091547102, 0091549702, 0091549802, 0101549002, 0101549102, 0120469115, 0120469116, 0120469117, 525110804, 525111804, 0986039790, 0986039793, 0986040260, 0986040263, 0986041570, 0986041573, 009154970280, 009154980280, 010154900280, 010154910280
