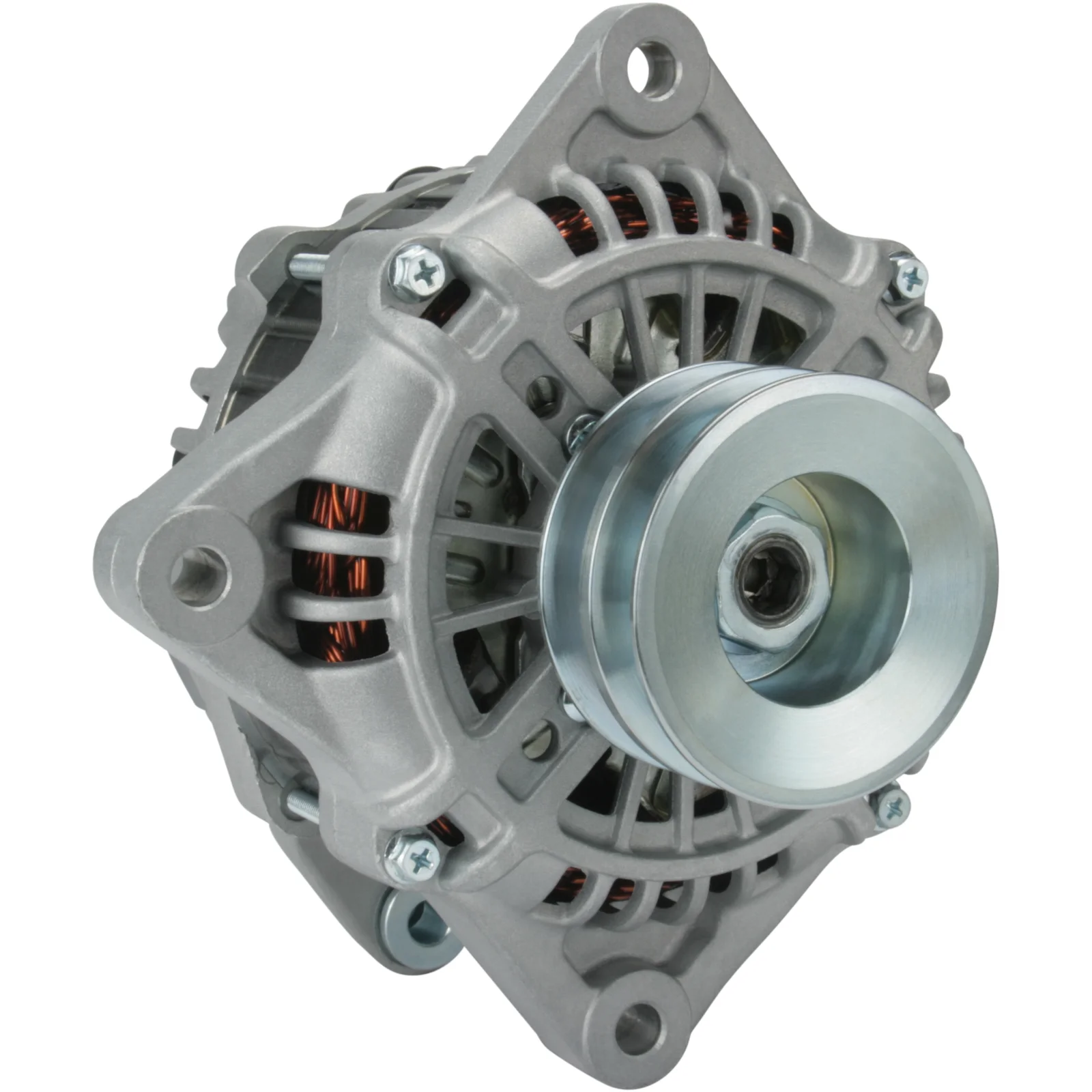

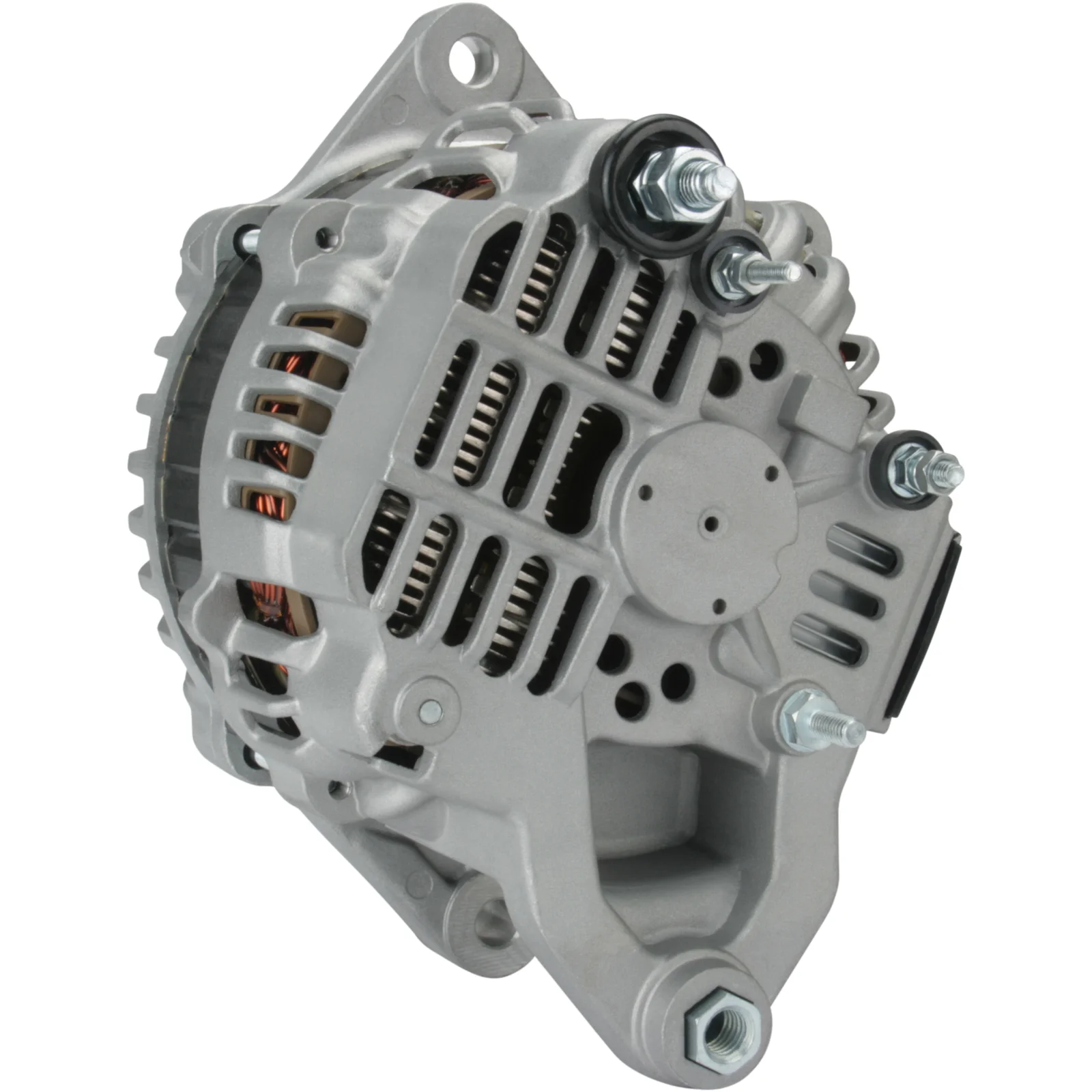

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032115800

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 100, Rotation: CW, Mounting bracket distance: 67.00

Description

Scania Alternator 24V-100A 24V - 100A, For Yourrex product order 90-500-6176

Voltage: 28
Amp: 100
Terminal: W
Pulley distance: 55.00
Width/holder arm: 22.80
Mounting bracket distance: 67.00
Bracket hole: 10.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 10.20
Pulley diameter: 75.00
Grooves/pulley: 2
Radius: 92.50
Radius 2: 90.00
Radius 3: 90.00
B+: M8
Position/B+ in min.: 59
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 195.00
Pulley: DP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    A004TR5188ZT, A4T-R5188ZT, A4T-R5191ZT, A4TR5188, A4TR5188ZT, A4TR5191, A4TR5191ZT, F032115800, SCA 1516176, SCA 1525447, 1842ir, 115800, 571475, 571688, 1516176, 1525447, 1774592, 2398343

  • Normalised article numbler
    a004tr5188zt, a4tr5188, a4tr5188zt, a4tr5191, a4tr5191zt, a5039, a5039sr, alt31242, cal35613, cal35640, dra0402, dra0402n, dra1454, f032115800, lea0850, lra04323, sca1516176, sca1525447, 1842ir, 20365n, 115800, 202113, 210911, 210911a, 210925, 210925a, 444405, 484979, 487932, 571475, 571688, 1516176, 1525447, 1774592, 2398343, 12090409, 32001208, 0986084180, 5321081004
  • Description
    Scania Alternator 24V-100A 24V - 100A, For Yourrex product order 90-500-6176

    Voltage: 28
    Amp: 100
    Terminal: W
    Pulley distance: 55.00
    Width/holder arm: 22.80
    Mounting bracket distance: 67.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 10.20
    Pulley diameter: 75.00
    Grooves/pulley: 2
    Radius: 92.50
    Radius 2: 90.00
    Radius 3: 90.00
    B+: M8
    Position/B+ in min.: 59
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 195.00
    Pulley: DP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A004TR5188ZT, A4T-R5188ZT, A4T-R5191ZT, A4TR5188, A4TR5188ZT, A4TR5191, A4TR5191ZT, F032115800, SCA 1516176, SCA 1525447, 1842ir, 115800, 571475, 571688, 1516176, 1525447, 1774592, 2398343

    • Normalised article numbler
      a004tr5188zt, a4tr5188, a4tr5188zt, a4tr5191, a4tr5191zt, a5039, a5039sr, alt31242, cal35613, cal35640, dra0402, dra0402n, dra1454, f032115800, lea0850, lra04323, sca1516176, sca1525447, 1842ir, 20365n, 115800, 202113, 210911, 210911a, 210925, 210925a, 444405, 484979, 487932, 571475, 571688, 1516176, 1525447, 1774592, 2398343, 12090409, 32001208, 0986084180, 5321081004
