Article no.: F032113497

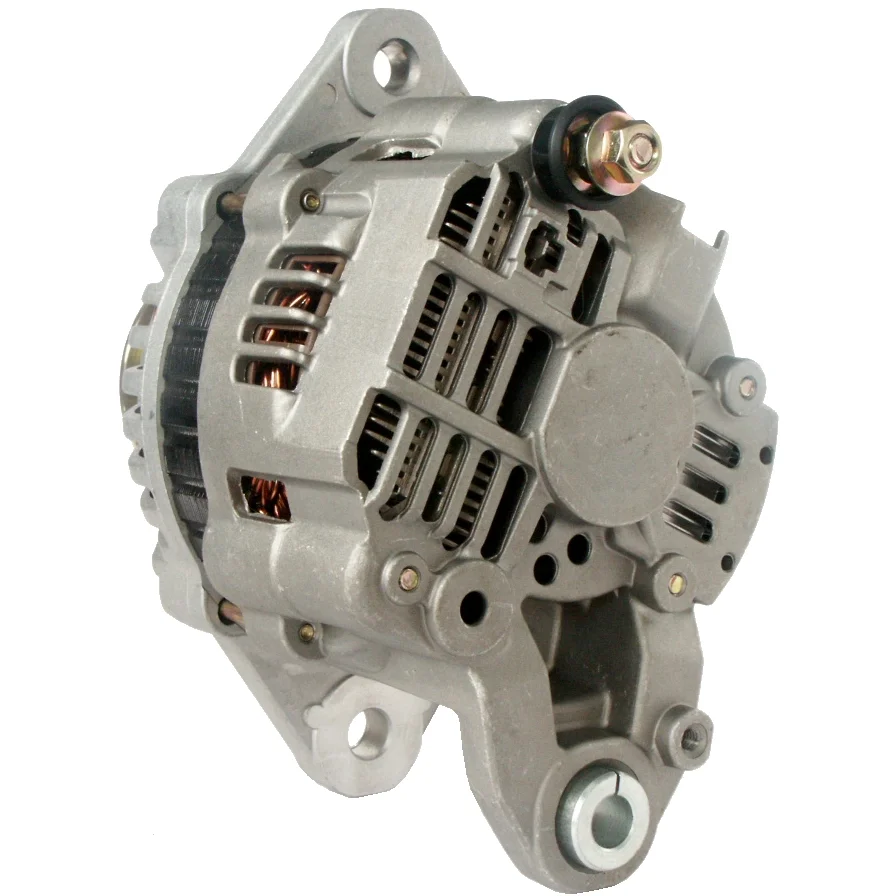

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 35, Rotation: CW, Mounting bracket distance: 81.80

Description

Mitsubishi Alternator 24V-45A 24V - 45A, (R, L) C/C End cover = 175mm For Yourex product order 90-382-5188

Voltage: 28
Amperes: 35
Pulley diameter: 42.50
Width/holder arm: 13.30
Mounting bracket diameter: 81.80
Bracket hole: 12.30
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 10.50
Pulley diameter: 80.50
Grooves/pulley: 2
Radius: 90.00
Radius 2: 86.00
B+: M8
Position/B+ in minutes: 58
D+ size: Plug
Rotation: CW
Plug number: PL41
Total length mm: 185.00
Pulley: DP
Regulator type: IR
Product info: BN

Files

  • OEM
    A003TN5188, A3T-75883, A3T-N5188, A3T-N5283, A3T-N5288, A3T-N5387, A3T-R5288, a3tn5188, A433766, F032113497, ME 017614, ME 017615, ME 049281, ME 192607, me017614, 37300-41700, 37300-45001, 37300-45500, 113497

  • Normalised article numbler
    a003tn5188, a3t75883, a3tn5188, a3tn5283, a3tn5288, a3tn5387, a3tr5288, a433766, a5063, a9101mando, alt3105, cal35605, dra1501, f032113497, f042206028, f042303061, f042a03061, me017614, me017615, me049281, me192607, 12602n, 113497, 210610, 210610a, 12060900, 3730041700, 3730045001, 3730045500
  • Description
    Mitsubishi Alternator 24V-45A 24V - 45A, (R, L) C/C End cover = 175mm For Yourex product order 90-382-5188

    Voltage: 28
    Amperes: 35
    Pulley diameter: 42.50
    Width/holder arm: 13.30
    Mounting bracket diameter: 81.80
    Bracket hole: 12.30
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 10.50
    Pulley diameter: 80.50
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in minutes: 58
    D+ size: Plug
    Rotation: CW
    Plug number: PL41
    Total length mm: 185.00
    Pulley: DP
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TN5188, A3T-75883, A3T-N5188, A3T-N5283, A3T-N5288, A3T-N5387, A3T-R5288, a3tn5188, A433766, F032113497, ME 017614, ME 017615, ME 049281, ME 192607, me017614, 37300-41700, 37300-45001, 37300-45500, 113497

    • Normalised article numbler
      a003tn5188, a3t75883, a3tn5188, a3tn5283, a3tn5288, a3tn5387, a3tr5288, a433766, a5063, a9101mando, alt3105, cal35605, dra1501, f032113497, f042206028, f042303061, f042a03061, me017614, me017615, me049281, me192607, 12602n, 113497, 210610, 210610a, 12060900, 3730041700, 3730045001, 3730045500
