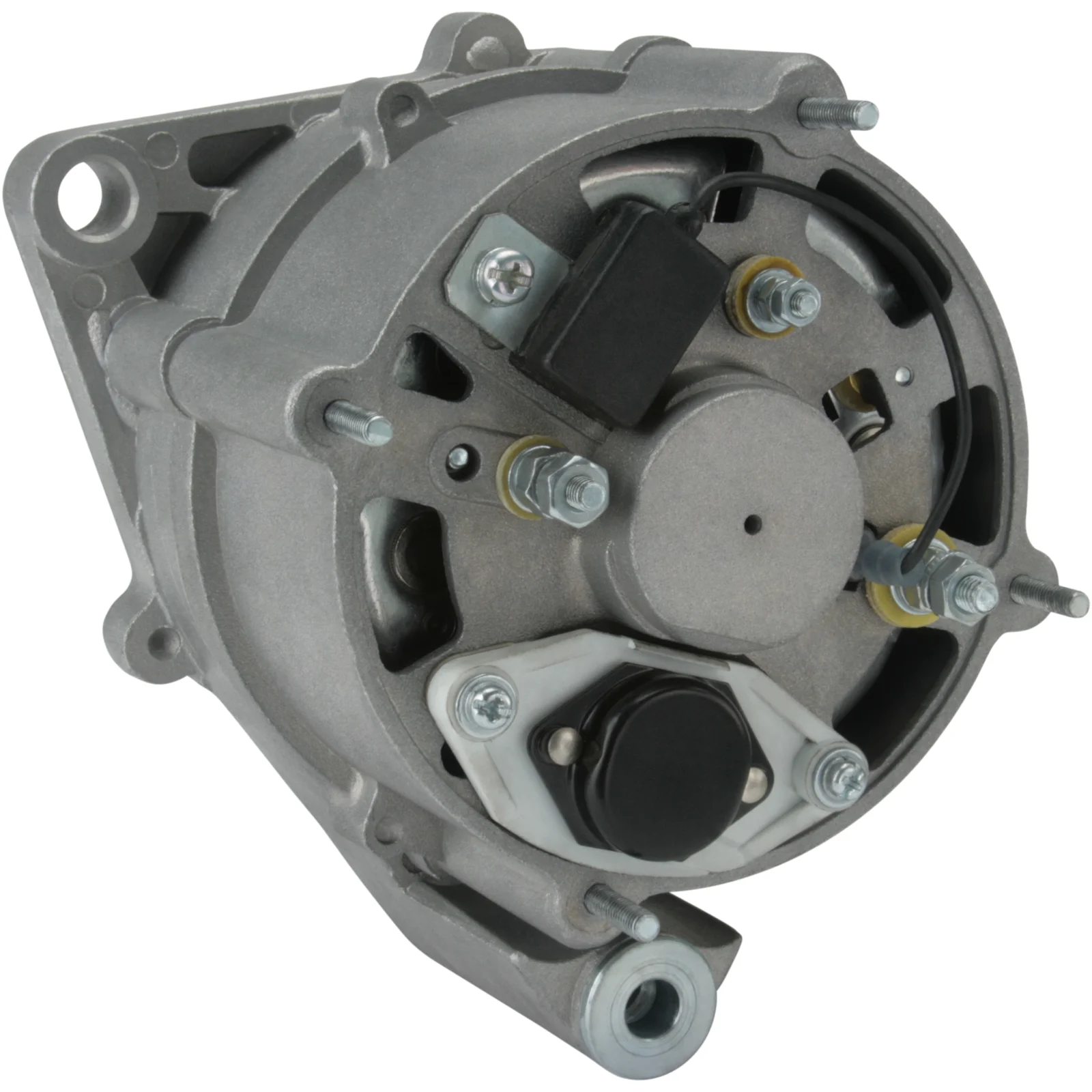

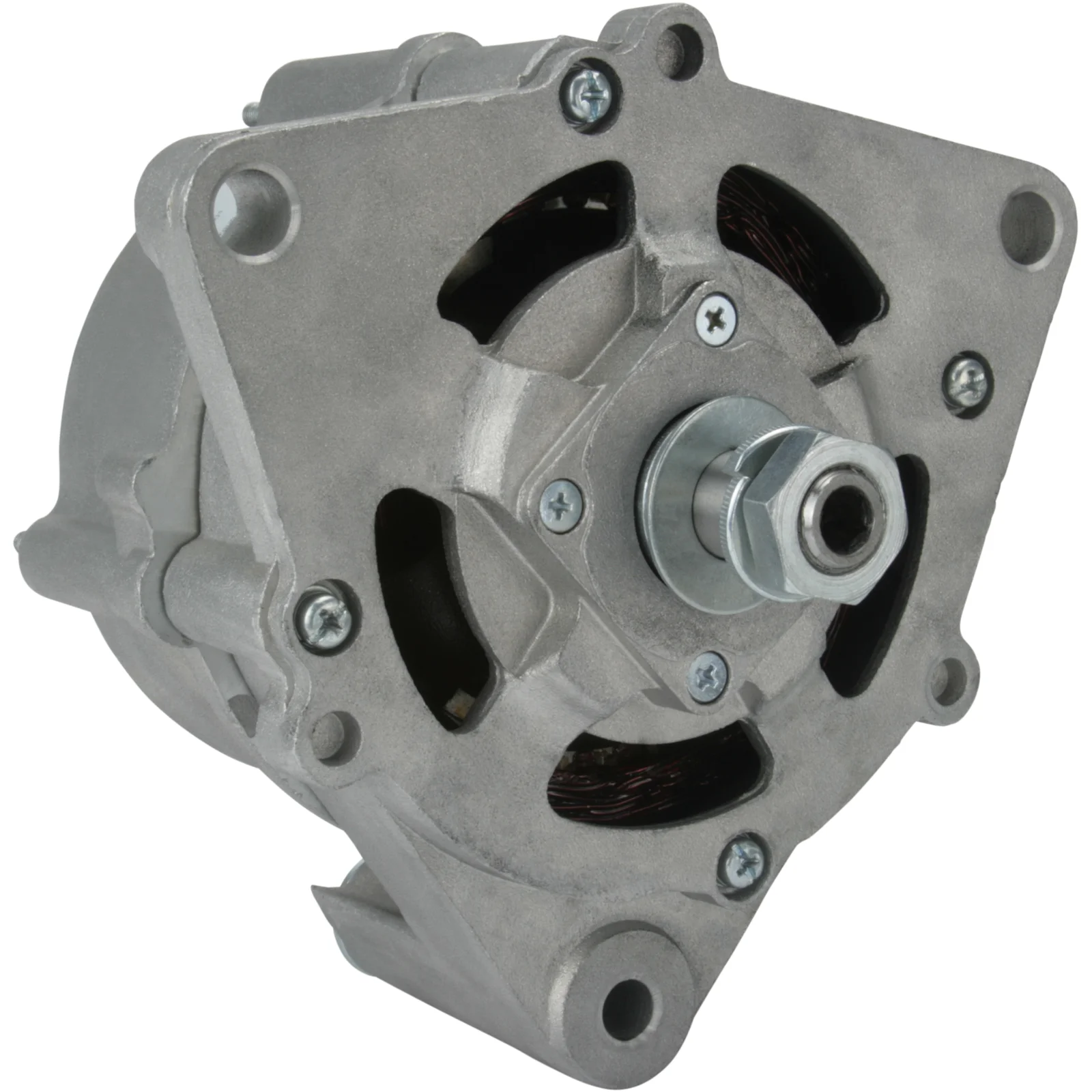

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032110113

HC-Cargo Alternator

Technical info:

Voltage: 28, Amps: 27, Rotation: CCW, Radius: 86.00

Description

Mercedes Alternator 24V-27A 24V - 27A For Yourex product order 90-365-3131

Voltage: 28
Amp: 27
Width/holder arm: 80.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 10
Belt. adj. brackethole pos. 2: 50
Belt. adj. bracket hole 1: 12.00
Belt. adj. bracket hole 2: 12.00
Radius: 86.00
Radius 2: 86.00
Radius 3: 86.00
B+: M6
Position/B+ in min.: 18
D+ Size: M4
Rotation: CCW
W plug type: M5
Total length mm: 165.00
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Mercedes-Benz

Files

  • OEM
    A0031544802, A0031548702, A0051543102, A005154310280, A0051545102, A005154510280, A0051548502, A0061546702, A006154670280, A0071542102, AAK 4179, aak1125, aak1153, aak1205, aak1213, AAK1229, AAK1309, aak4179, EGL1272R, F032110113, LRA 925, LRB 106, LRB 139, R95VB10300BC, 9AR 3927G, 9AR3927, 9ar3927g, 11.201.047, 11.201.087, 11.201.151, 11.201.201, 11.201.360, 11.201.525, 51.26101-7097, 51.26101-7139, 51.26101-7148, 0120 489 221, 0120 489 225, 0120 489 231, 0120 489 284, 0120 489 727, 0120 489 728, 187ir, 0201, 510-372, 0635, 0986 031 310, 0986 033 510, 0986 033 570, 11201 087, 11201 151, 0102118, 110113, 310426, 436424, 857475, 857479, 1516525R, 1702118, 6002026, 6500825, 0031544802, 0031548702, 0051543102, 0051545102, 0051548502, 0061546702, 0071542102, 82001259, 82002329, 0120400699, 0120400774, 0120489221, 0120489225, 0120489231, 0120489284, 0120489727, 0120489728, 5000242585, 005154310280, 005154510280, 006154670280

  • Normalised article numbler
    a0017, a0031544802, a0031548702, a0051543102, a005154310280, a0051545102, a005154510280, a0051548502, a0061546702, a006154670280, a0071542102, aak1125, aak1153, aak1205, aak1213, aak1229, aak1309, aak4179, alt10235, alt20035, bao3073, cal10600, dra0270, dra1310, egl1272r, f032110113, f042301197, f042a01197, ia0201, ia0360, ia0525, ia0635, lra00921, lra00925, lra925, lrb00106, lrb00139, lrb106, lrb139, mg206, mg246, mg463, mg658, na518, r95vb10300bc, 8el725626001, 9ar3927, 9ar3927g, 187ir, 0201, 0635, 3553, 21823r, 30187ri, 48741, 75582, 75606, 75678, 75696, 0102118, 110113, 118552, 118589, 210983, 210983a, 310426, 436422, 436424, 436427, 436431, 436568, 436571, 470666, 480666, 480741, 481745, 510372, 857475, 857479, 1516525r, 1702118, 6002026, 6500825, 9930270, 9930520, 9931310, 9933510, 9933570, 9934270, 11201047, 11201087, 11201151, 11201201, 11201360, 11201525, 12030270, 12031310, 12033510, 12033570, 0031544802, 0031548702, 32400774, 32489728, 0051543102, 0051545102, 0051548502, 0061546702, 0071542102, 82001259, 82002329, 0120400699, 0120400774, 0120489221, 0120489225, 0120489231, 0120489284, 0120489727, 0120489728, 218111652, 500003274, 500103274, 500103354, 943356259, 943357706, 943357716, 0986030270, 0986031310, 0986033510, 0986033570, 5000242585, 005154310280, 005154510280, 006154670280, 51261017097, 51261017139, 51261017148, 943356259010
  • Description
    Mercedes Alternator 24V-27A 24V - 27A For Yourex product order 90-365-3131

    Voltage: 28
    Amp: 27
    Width/holder arm: 80.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 10
    Belt. adj. brackethole pos. 2: 50
    Belt. adj. bracket hole 1: 12.00
    Belt. adj. bracket hole 2: 12.00
    Radius: 86.00
    Radius 2: 86.00
    Radius 3: 86.00
    B+: M6
    Position/B+ in min.: 18
    D+ Size: M4
    Rotation: CCW
    W plug type: M5
    Total length mm: 165.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes-Benz

    Files

  • Suitable for these vehicles

    • OEM
      A0031544802, A0031548702, A0051543102, A005154310280, A0051545102, A005154510280, A0051548502, A0061546702, A006154670280, A0071542102, AAK 4179, aak1125, aak1153, aak1205, aak1213, AAK1229, AAK1309, aak4179, EGL1272R, F032110113, LRA 925, LRB 106, LRB 139, R95VB10300BC, 9AR 3927G, 9AR3927, 9ar3927g, 11.201.047, 11.201.087, 11.201.151, 11.201.201, 11.201.360, 11.201.525, 51.26101-7097, 51.26101-7139, 51.26101-7148, 0120 489 221, 0120 489 225, 0120 489 231, 0120 489 284, 0120 489 727, 0120 489 728, 187ir, 0201, 510-372, 0635, 0986 031 310, 0986 033 510, 0986 033 570, 11201 087, 11201 151, 0102118, 110113, 310426, 436424, 857475, 857479, 1516525R, 1702118, 6002026, 6500825, 0031544802, 0031548702, 0051543102, 0051545102, 0051548502, 0061546702, 0071542102, 82001259, 82002329, 0120400699, 0120400774, 0120489221, 0120489225, 0120489231, 0120489284, 0120489727, 0120489728, 5000242585, 005154310280, 005154510280, 006154670280

    • Normalised article numbler
      a0017, a0031544802, a0031548702, a0051543102, a005154310280, a0051545102, a005154510280, a0051548502, a0061546702, a006154670280, a0071542102, aak1125, aak1153, aak1205, aak1213, aak1229, aak1309, aak4179, alt10235, alt20035, bao3073, cal10600, dra0270, dra1310, egl1272r, f032110113, f042301197, f042a01197, ia0201, ia0360, ia0525, ia0635, lra00921, lra00925, lra925, lrb00106, lrb00139, lrb106, lrb139, mg206, mg246, mg463, mg658, na518, r95vb10300bc, 8el725626001, 9ar3927, 9ar3927g, 187ir, 0201, 0635, 3553, 21823r, 30187ri, 48741, 75582, 75606, 75678, 75696, 0102118, 110113, 118552, 118589, 210983, 210983a, 310426, 436422, 436424, 436427, 436431, 436568, 436571, 470666, 480666, 480741, 481745, 510372, 857475, 857479, 1516525r, 1702118, 6002026, 6500825, 9930270, 9930520, 9931310, 9933510, 9933570, 9934270, 11201047, 11201087, 11201151, 11201201, 11201360, 11201525, 12030270, 12031310, 12033510, 12033570, 0031544802, 0031548702, 32400774, 32489728, 0051543102, 0051545102, 0051548502, 0061546702, 0071542102, 82001259, 82002329, 0120400699, 0120400774, 0120489221, 0120489225, 0120489231, 0120489284, 0120489727, 0120489728, 218111652, 500003274, 500103274, 500103354, 943356259, 943357706, 943357716, 0986030270, 0986031310, 0986033510, 0986033570, 5000242585, 005154310280, 005154510280, 006154670280, 51261017097, 51261017139, 51261017148, 943356259010
