HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114008

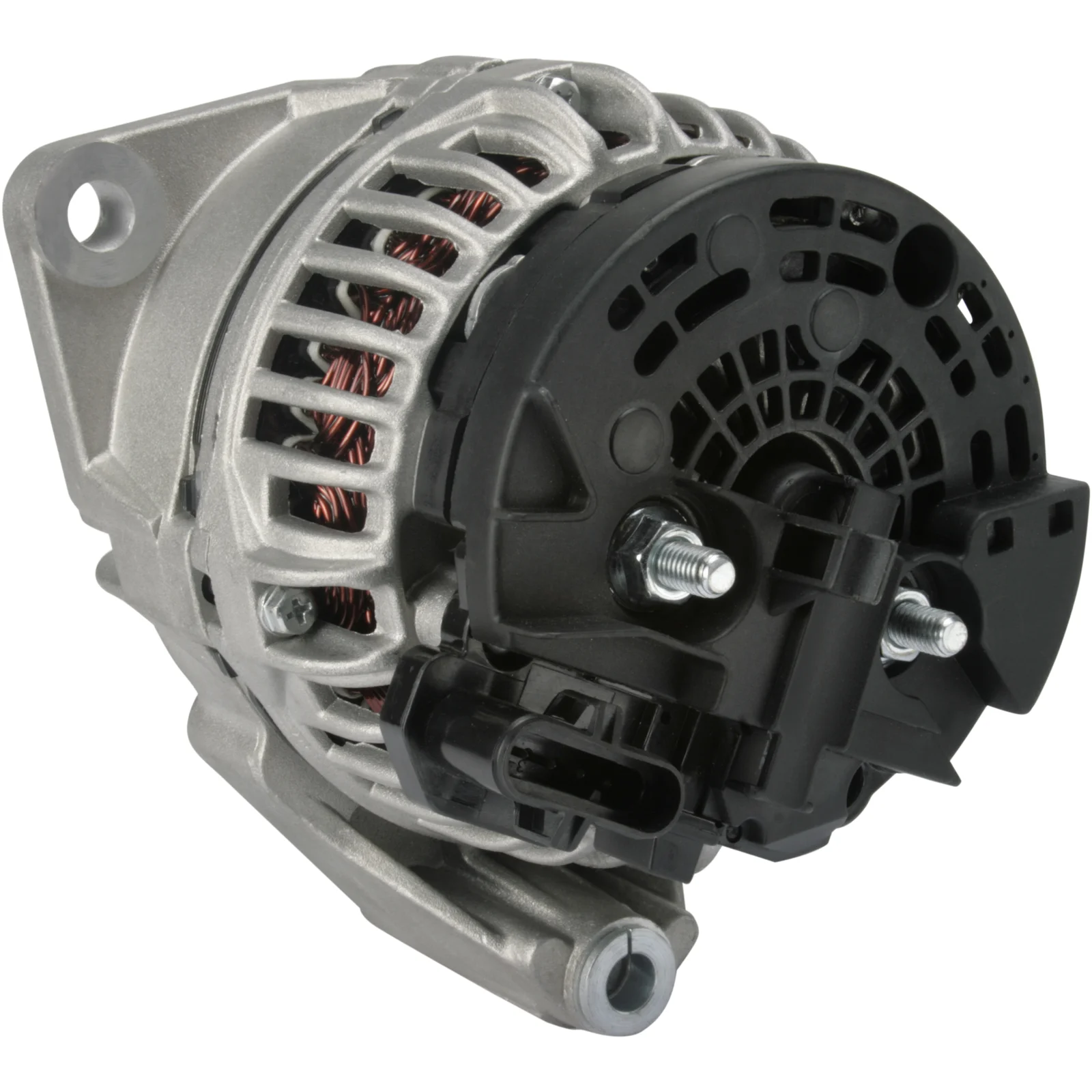

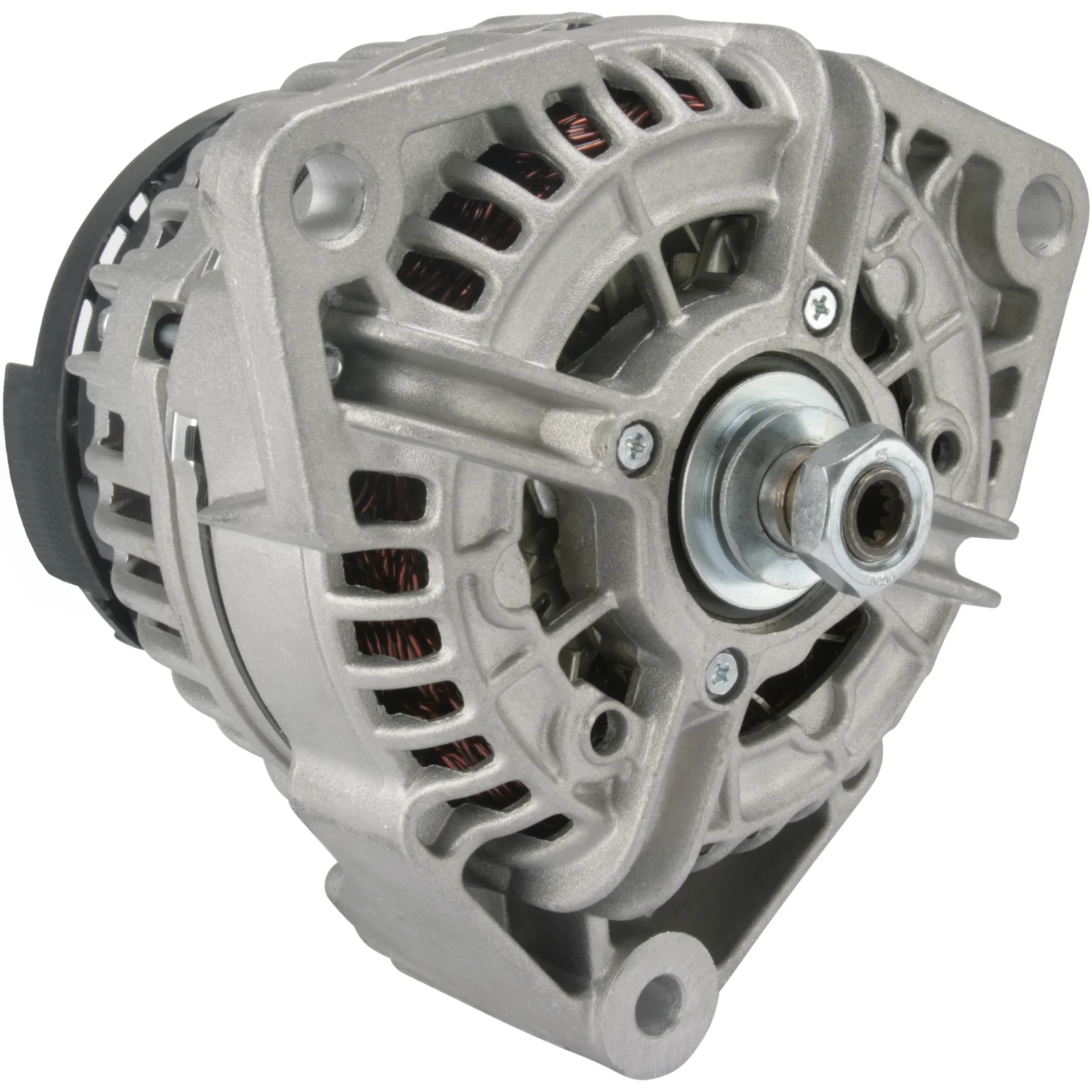

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 80, Rotation: CW, Radius: 93.00

Description

Voltage: 28
Amps: 80
Width/holder arm: 80.00
Bracket hole: 10.50
Belt. adj. bracket hole position: 50
Belt. adj. bracket hole 1: 12.50
Belt. adj. bracket hole 2: 12.50
Radius: 93.00
Radius 2: 90.00
Radius 3: 90.00
B+: M8
Position/B+ in minutes: 20
Rotation: CW
Plug no.: PL82
Total length mm: 191.00
Pulley: without
Regulator type: IR

Files

  • OEM
    A4571540602, AAN5398, F032114008, 11.209.610, 51.26101-7254, 51.26101-7269, 51.26101-9254, 51.26101-9269, 1847ir, 1986A00537, 1986A00919, 1524009R, 081047430, 0124555014, 0124555015, 0124555025, 0124555137, 4571540602

  • Normalised article numbler
    a0192, a0192sr, a0827s, a4571540602, aan5398, alt2320, cal10648, drb2360, f032114008, ia9458, mg807, 8el012584131, 8el738211021, 1847ir, 1986a00537, 1986a00919, 23887n, 209308, 209308a, 301847ri, 443220, 486531, 1524009r, 9947430, 11209610, 12047430, 32047430, 081047430, 0124555014, 0124555015, 0124555025, 0124555137, 556508080, 0986047430, 4571540602, 51261017254, 51261017269, 51261019254, 51261019269
  • Description
    Voltage: 28
    Amps: 80
    Width/holder arm: 80.00
    Bracket hole: 10.50
    Belt. adj. bracket hole position: 50
    Belt. adj. bracket hole 1: 12.50
    Belt. adj. bracket hole 2: 12.50
    Radius: 93.00
    Radius 2: 90.00
    Radius 3: 90.00
    B+: M8
    Position/B+ in minutes: 20
    Rotation: CW
    Plug no.: PL82
    Total length mm: 191.00
    Pulley: without
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      A4571540602, AAN5398, F032114008, 11.209.610, 51.26101-7254, 51.26101-7269, 51.26101-9254, 51.26101-9269, 1847ir, 1986A00537, 1986A00919, 1524009R, 081047430, 0124555014, 0124555015, 0124555025, 0124555137, 4571540602

    • Normalised article numbler
      a0192, a0192sr, a0827s, a4571540602, aan5398, alt2320, cal10648, drb2360, f032114008, ia9458, mg807, 8el012584131, 8el738211021, 1847ir, 1986a00537, 1986a00919, 23887n, 209308, 209308a, 301847ri, 443220, 486531, 1524009r, 9947430, 11209610, 12047430, 32047430, 081047430, 0124555014, 0124555015, 0124555025, 0124555137, 556508080, 0986047430, 4571540602, 51261017254, 51261017269, 51261019254, 51261019269
