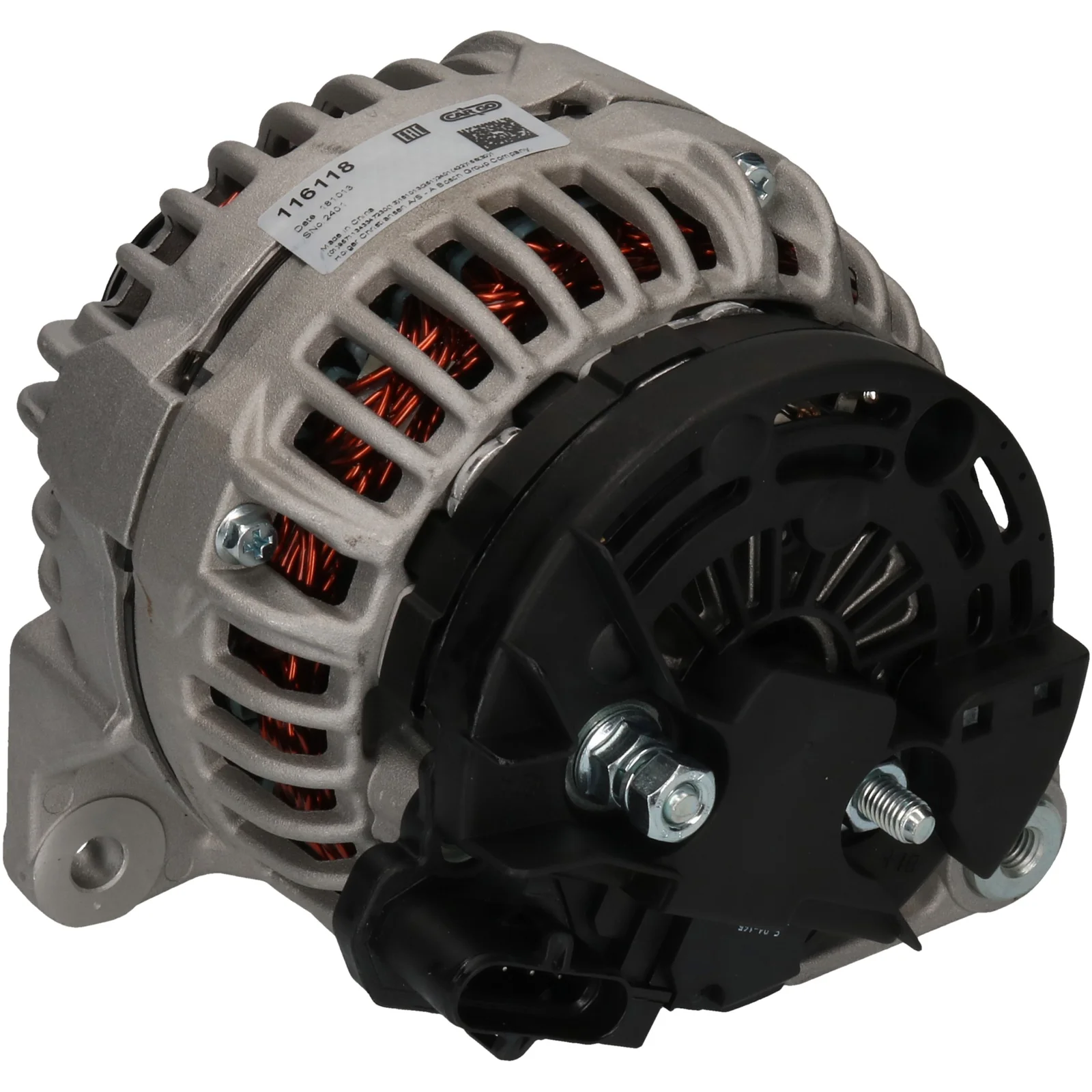

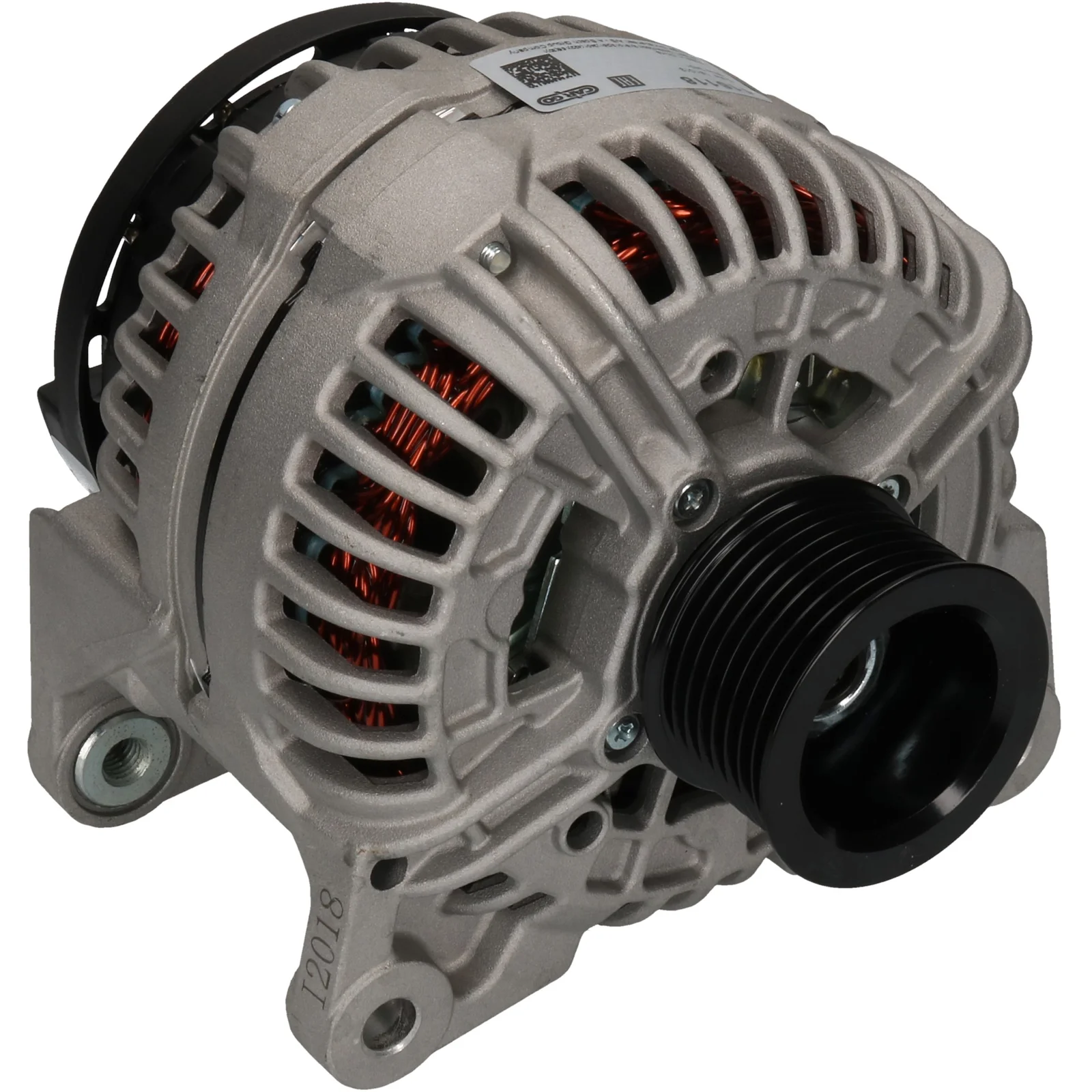

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116118

HC-Cargo Alternator

Technical info:

Voltage: 28, Amp: 100, Rotation: CW, Mount. bracket dist.: 81.00

Description

Generator 24V-100A for DAF 24V - 100A, 8 grooves, (W, L, 15, S, DFM) For Yourex product order 90-120-8188

Voltage: 28
Amp: 100
Pulley diameter: 37.00
Width/holder arm: 14.00
Mounting bracket diameter: 81.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 14
Belt adjustment bracket hole 1: 10.80
Pulley diameter: 55.00
Grooves/pulley: 8
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 30
D+ Size: Plug
Rotation: CW
Plug no.: PL82
W plug type: Plug
Total length mm: 193.00
Terminal type: W-L-15-S-DFM
Pulley: SP
Regulator type: IR

Files

  • OEM
    AELD 075, AELD075, F032114036, F032116118, 0124 655 006, 0986 081 880, 1986 A00 516, 1986 A00 967, 1986A00516, 1986A00967, 114036, 116118, 1401948, 0124655006

  • Normalised article numbler
    a0251, aeld075, alt10301, alt2119, cal10622, drb0004, drb0004n, f032114036, f032116118, f042301134, f042a01134, 8el012584731, 1986a00516, 1986a00967, 114036, 116118, 202027, 443483, 443514, 444316, 486529, 553004ri, 860806, 1401948, 12090379, 0124655006, 0986081880
  • Description
    Generator 24V-100A for DAF 24V - 100A, 8 grooves, (W, L, 15, S, DFM) For Yourex product order 90-120-8188

    Voltage: 28
    Amp: 100
    Pulley diameter: 37.00
    Width/holder arm: 14.00
    Mounting bracket diameter: 81.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 14
    Belt adjustment bracket hole 1: 10.80
    Pulley diameter: 55.00
    Grooves/pulley: 8
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 30
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL82
    W plug type: Plug
    Total length mm: 193.00
    Terminal type: W-L-15-S-DFM
    Pulley: SP
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      AELD 075, AELD075, F032114036, F032116118, 0124 655 006, 0986 081 880, 1986 A00 516, 1986 A00 967, 1986A00516, 1986A00967, 114036, 116118, 1401948, 0124655006

    • Normalised article numbler
      a0251, aeld075, alt10301, alt2119, cal10622, drb0004, drb0004n, f032114036, f032116118, f042301134, f042a01134, 8el012584731, 1986a00516, 1986a00967, 114036, 116118, 202027, 443483, 443514, 444316, 486529, 553004ri, 860806, 1401948, 12090379, 0124655006, 0986081880
