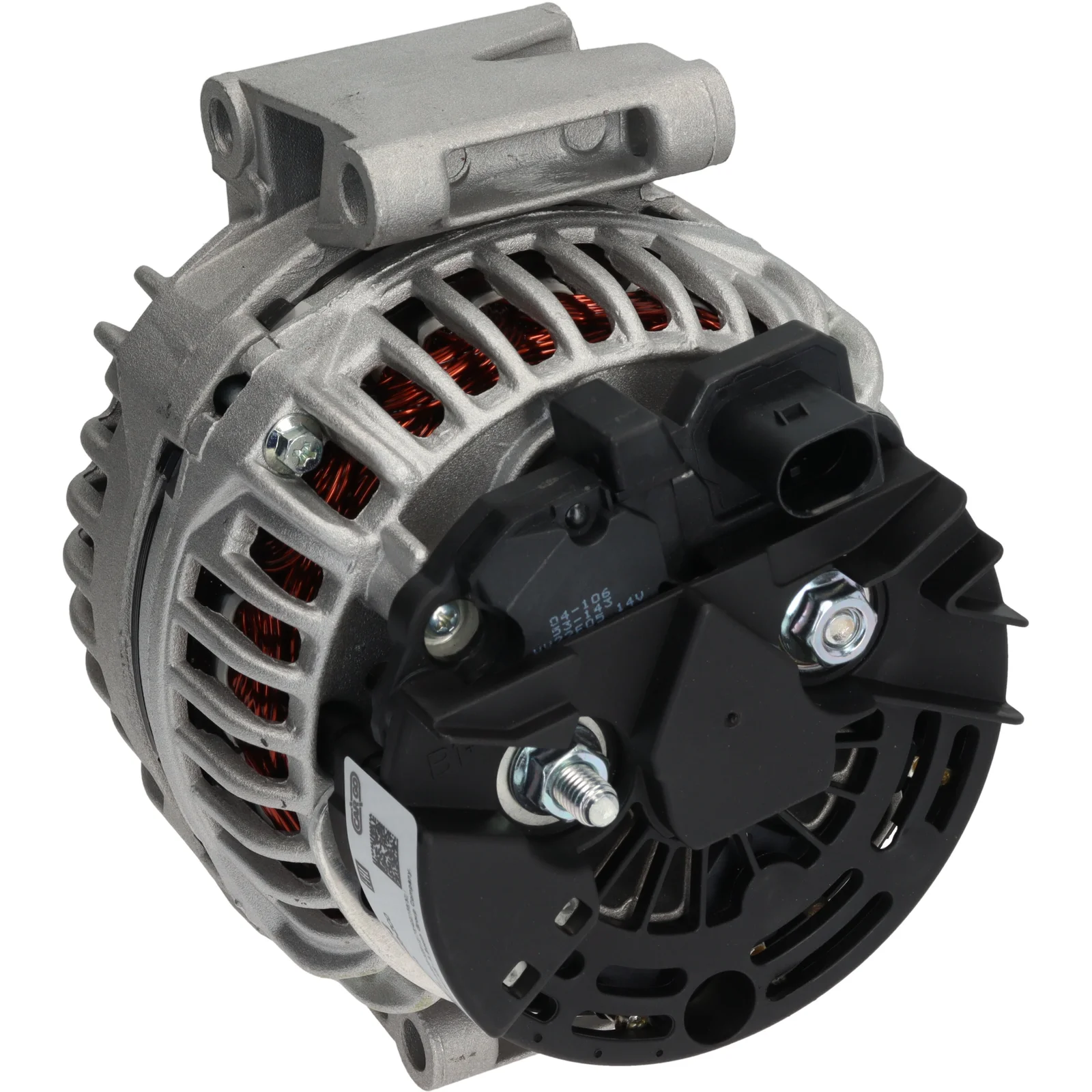

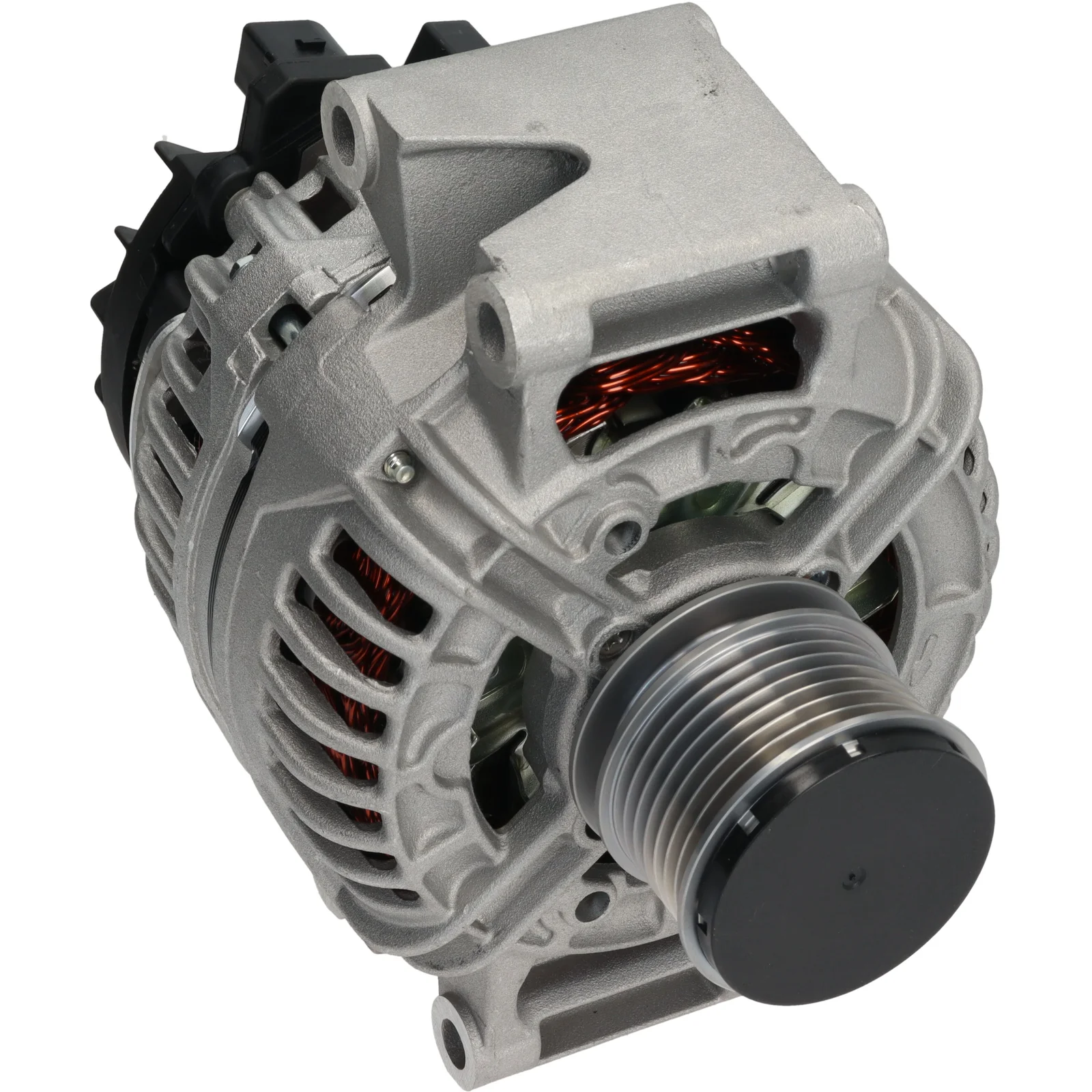

HC-Cargo Alternator
Article no.: F032116463

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 150, Rotation: CW, Mounting bracket distributor: 56.00

Description

Mercedes Alternator 12V-150A 12V-150A, 7-row front (BSS, DFM) ID code: 12 For Yourex product order 90-365-4630

Voltage: 14
Amperage: 150
Pulley distance: 31.40
Width/holder arm: 70.00
Mounting bracket distance: 56.00
Bracket hole: 8.80
Belt tensioning bracket hole 1: 8.80
Belt tensioning bracket hole 2: 8.00
Pulley diameter: 55.40
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
Radius 3: 86.00
Radius 4: 86.00
B+: M8
Position/B+ in min.: 16
Rotation: CW
Plug number: PL114
Total length mm: 196.00
Terminal type: COM-DFM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    A2711541002, A271154100280, F032116463, 0124 615 028, 271 154 1002, 0986 046 300, 1775IR, 1986A00938, 116463, 0121540602, 0124615022, 0124615028, 0124615068, 2711541002, 271154100280

  • Normalised article numbler
    a0208, a0208s, a2711541002, a271154100280, a3437s, cal10397, drb6300, f032116463, lra02249, 8el011712281, 8el738185001, 1775ir, 1986a00938, 111572, 116463, 209086, 209086a, 284727, 301775ri, 440833, 9046300, 12046300, 32046300, 0121540602, 0124615022, 0124615028, 0124615068, 555561150, 944390463, 0986046300, 0986046303, 2251451502, 2251601502, 2711541002, 271154100280, 944390463000
  • Description
    Mercedes Alternator 12V-150A 12V-150A, 7-row front (BSS, DFM) ID code: 12 For Yourex product order 90-365-4630

    Voltage: 14
    Amperage: 150
    Pulley distance: 31.40
    Width/holder arm: 70.00
    Mounting bracket distance: 56.00
    Bracket hole: 8.80
    Belt tensioning bracket hole 1: 8.80
    Belt tensioning bracket hole 2: 8.00
    Pulley diameter: 55.40
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    Radius 3: 86.00
    Radius 4: 86.00
    B+: M8
    Position/B+ in min.: 16
    Rotation: CW
    Plug number: PL114
    Total length mm: 196.00
    Terminal type: COM-DFM
    Communication: BSS
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      A2711541002, A271154100280, F032116463, 0124 615 028, 271 154 1002, 0986 046 300, 1775IR, 1986A00938, 116463, 0121540602, 0124615022, 0124615028, 0124615068, 2711541002, 271154100280

    • Normalised article numbler
      a0208, a0208s, a2711541002, a271154100280, a3437s, cal10397, drb6300, f032116463, lra02249, 8el011712281, 8el738185001, 1775ir, 1986a00938, 111572, 116463, 209086, 209086a, 284727, 301775ri, 440833, 9046300, 12046300, 32046300, 0121540602, 0124615022, 0124615028, 0124615068, 555561150, 944390463, 0986046300, 0986046303, 2251451502, 2251601502, 2711541002, 271154100280, 944390463000
