HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113941

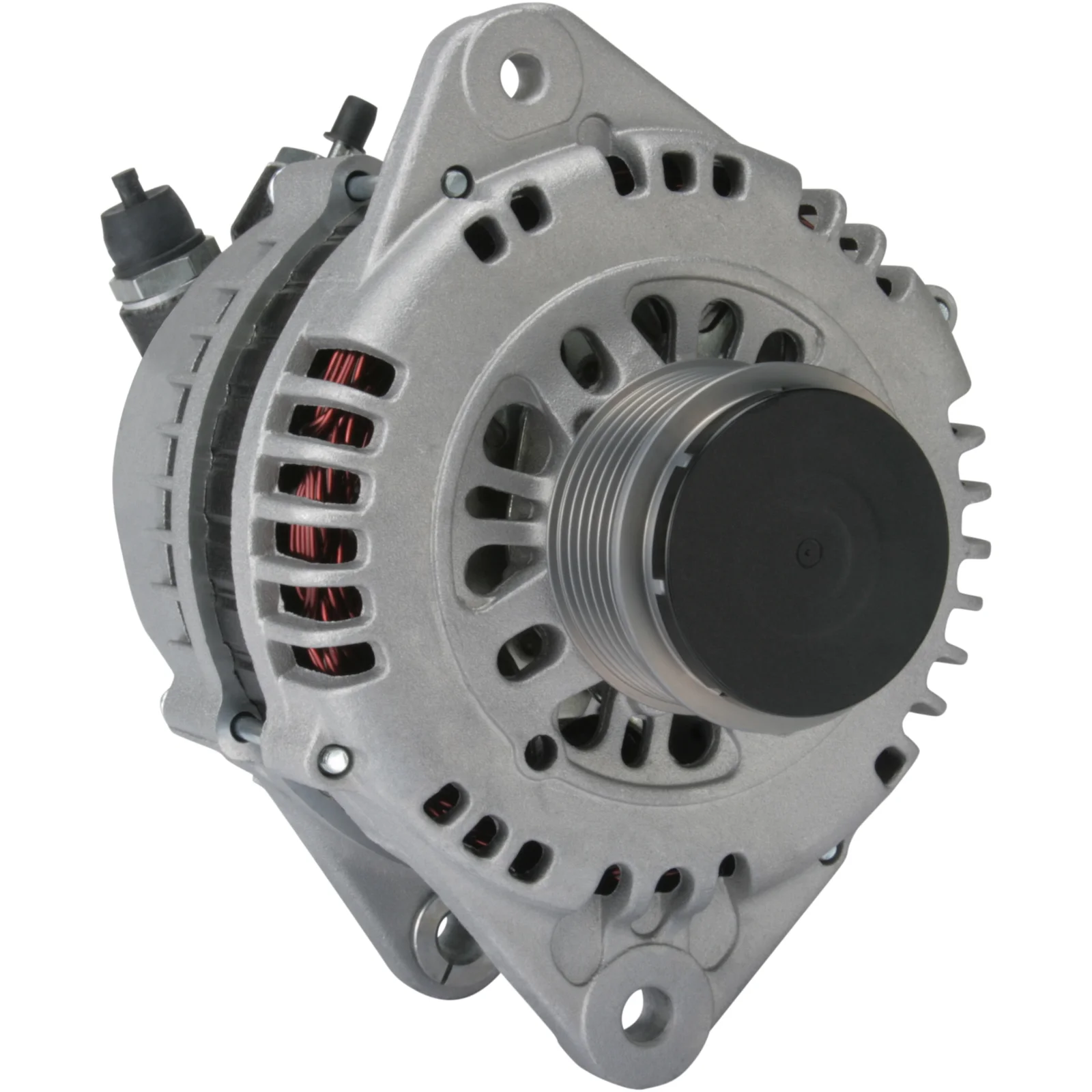

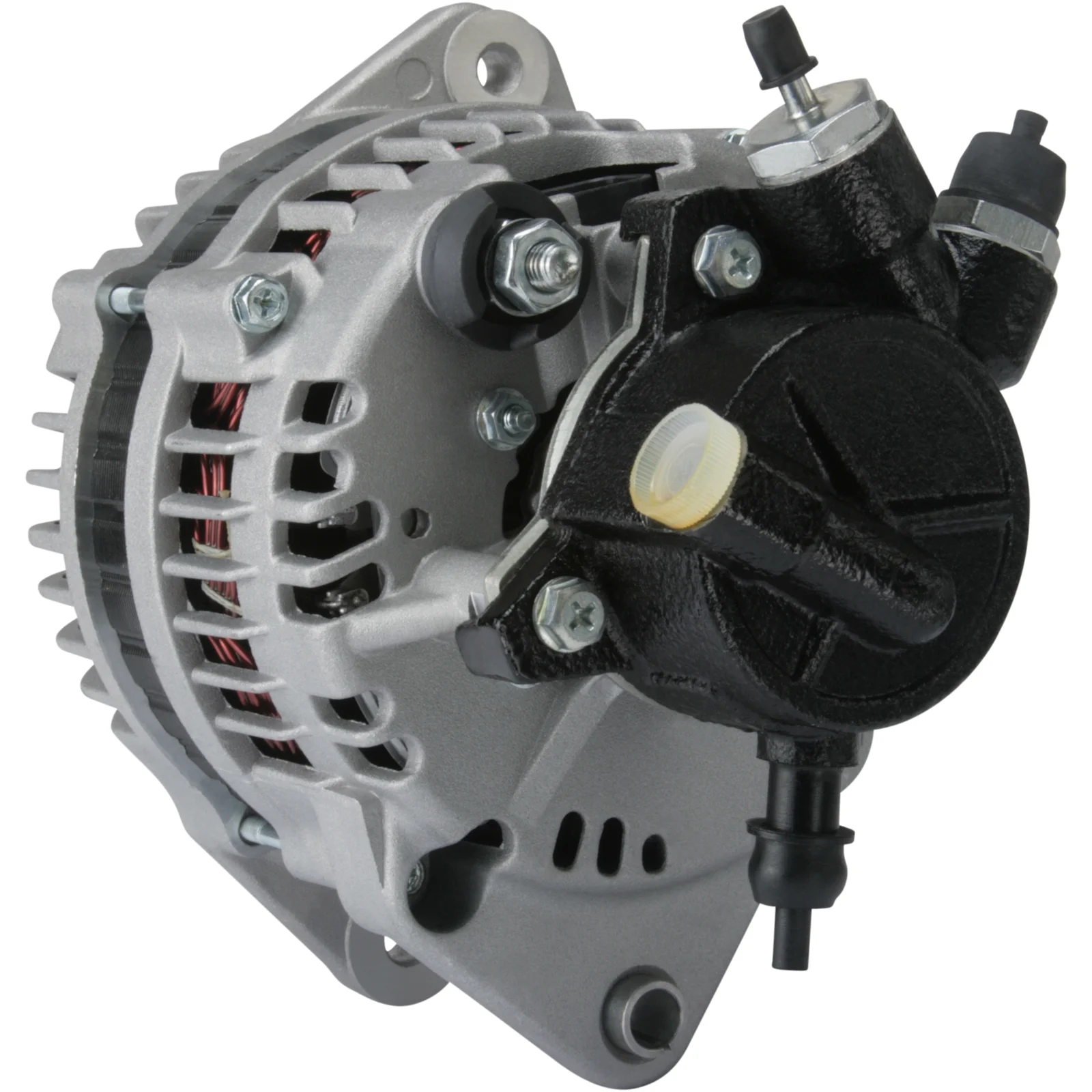

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Mounting bracket distributor: 66.50

Description

Opel Diesel Alternator 12V-100A 12V - 100A, 6 pins, (W, L) for Yourex product order 90-430-1503

Voltage: 14
Ampere: 100
Terminal: W
Pulley diameter: 35.50
Width/holder arm: 13.00
Mounting bracket diameter: 66.50
Bracket hole: 10.30
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: 8.20
Pulley diameter: 59.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 53
D+ Size: Plug
Rotation: CW
Plug no.: PL50
W plug type: Plug
Total length mm: 224.00
Pulley: SP/FW
Fan: IF
Regulator type: IR
Vacuum pump: Yes
Product info: BN

Files

  • OEM
    F032113941, ja1901ir, LR 1100-503B, lr1100-503, LR1100-503A, LR1100-503B, LR1100-503C, LR1100-503D, LR1100-503E, LR1100-503F, LR1100-803B, R1530089, 113941, 6204183, 6204251, 9562188, 93189495, 93189501, 95520887, 97355198, 98056443, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

  • Normalised article numbler
    a2038, a2038pina, altv023u, cal20156, dra0182, dra0182x, f032113941, f042305044, f042a05044, ja1901ir, lr1100503, lr1100503a, lr1100503b, lr1100503c, lr1100503d, lr1100503e, lr1100503f, lr1100803b, lra03038, lra03038wp, r1530089, 8el011360331, 8el012427511, 8el738211601, 9188, 21832n, 112341, 113941, 210890, 210890a, 285650, 285650wp, 401901ri, 440650, 747132, 6204183, 6204251, 9212779, 9562188, 32048340, 93189495, 93189501, 95520887, 97355198, 98056443, 135602100, 0986048340, 0986048343, 5281641002, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430
  • Description
    Opel Diesel Alternator 12V-100A 12V - 100A, 6 pins, (W, L) for Yourex product order 90-430-1503

    Voltage: 14
    Ampere: 100
    Terminal: W
    Pulley diameter: 35.50
    Width/holder arm: 13.00
    Mounting bracket diameter: 66.50
    Bracket hole: 10.30
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: 8.20
    Pulley diameter: 59.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 53
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL50
    W plug type: Plug
    Total length mm: 224.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Vacuum pump: Yes
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113941, ja1901ir, LR 1100-503B, lr1100-503, LR1100-503A, LR1100-503B, LR1100-503C, LR1100-503D, LR1100-503E, LR1100-503F, LR1100-803B, R1530089, 113941, 6204183, 6204251, 9562188, 93189495, 93189501, 95520887, 97355198, 98056443, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430

    • Normalised article numbler
      a2038, a2038pina, altv023u, cal20156, dra0182, dra0182x, f032113941, f042305044, f042a05044, ja1901ir, lr1100503, lr1100503a, lr1100503b, lr1100503c, lr1100503d, lr1100503e, lr1100503f, lr1100803b, lra03038, lra03038wp, r1530089, 8el011360331, 8el012427511, 8el738211601, 9188, 21832n, 112341, 113941, 210890, 210890a, 285650, 285650wp, 401901ri, 440650, 747132, 6204183, 6204251, 9212779, 9562188, 32048340, 93189495, 93189501, 95520887, 97355198, 98056443, 135602100, 0986048340, 0986048343, 5281641002, 8973551980, 8973551981, 8973551982, 8973554981, 8980564430
