HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114835

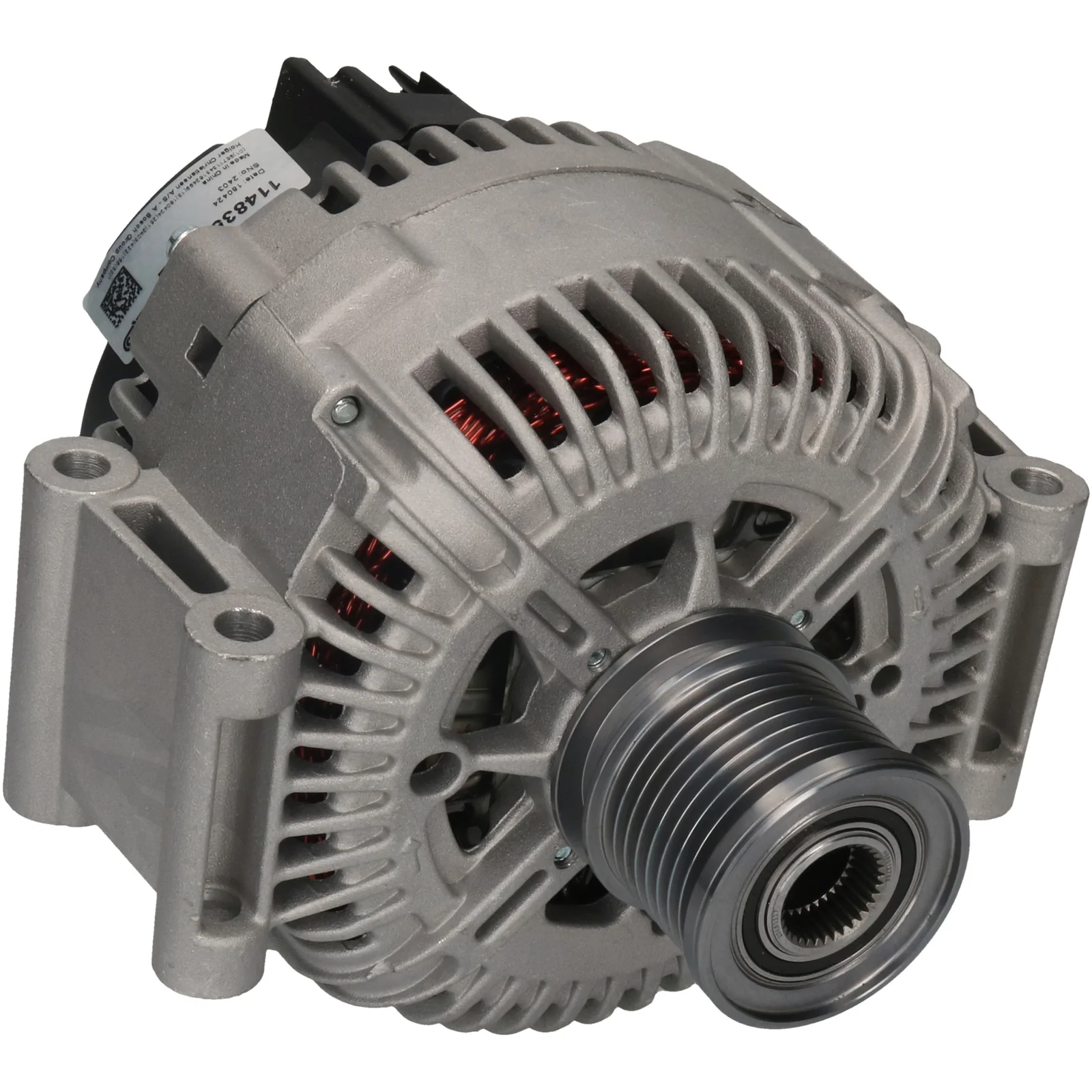

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 180, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 30.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: 8.00x9.50
Pulley diameter: 50.00
Grooves/pulley: 8
Radius: 80.50
Radius 2: 82.50
B+: M8
Position/B+ in min.: 31
Rotation: CW
Plug no.: PL86
Total length mm: 199.00
Terminal type: COM
ID Code: 33
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    a6421540502, F00E100549, F032114835, tg17c032, 2055ir, 2543290, 2543290B, 6421540502

  • Normalised article numbler
    a3266, a6421540502, cal15322, dra0204, f00e100549, f032114835, tg17c032, 8el012430261, 8el738213261, 2055ir, 4819, 11309n, 200236, 210899, 210899a, 285683, 553249ri, 726202, 747116, 2543290, 2543290b, 9090588, 12090286, 32002318, 0986085220, 2251811802, 6421540502
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 30.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: 8.00x9.50
    Pulley diameter: 50.00
    Grooves/pulley: 8
    Radius: 80.50
    Radius 2: 82.50
    B+: M8
    Position/B+ in min.: 31
    Rotation: CW
    Plug no.: PL86
    Total length mm: 199.00
    Terminal type: COM
    ID Code: 33
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the Voltage regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      a6421540502, F00E100549, F032114835, tg17c032, 2055ir, 2543290, 2543290B, 6421540502

    • Normalised article numbler
      a3266, a6421540502, cal15322, dra0204, f00e100549, f032114835, tg17c032, 8el012430261, 8el738213261, 2055ir, 4819, 11309n, 200236, 210899, 210899a, 285683, 553249ri, 726202, 747116, 2543290, 2543290b, 9090588, 12090286, 32002318, 0986085220, 2251811802, 6421540502
