HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032116035

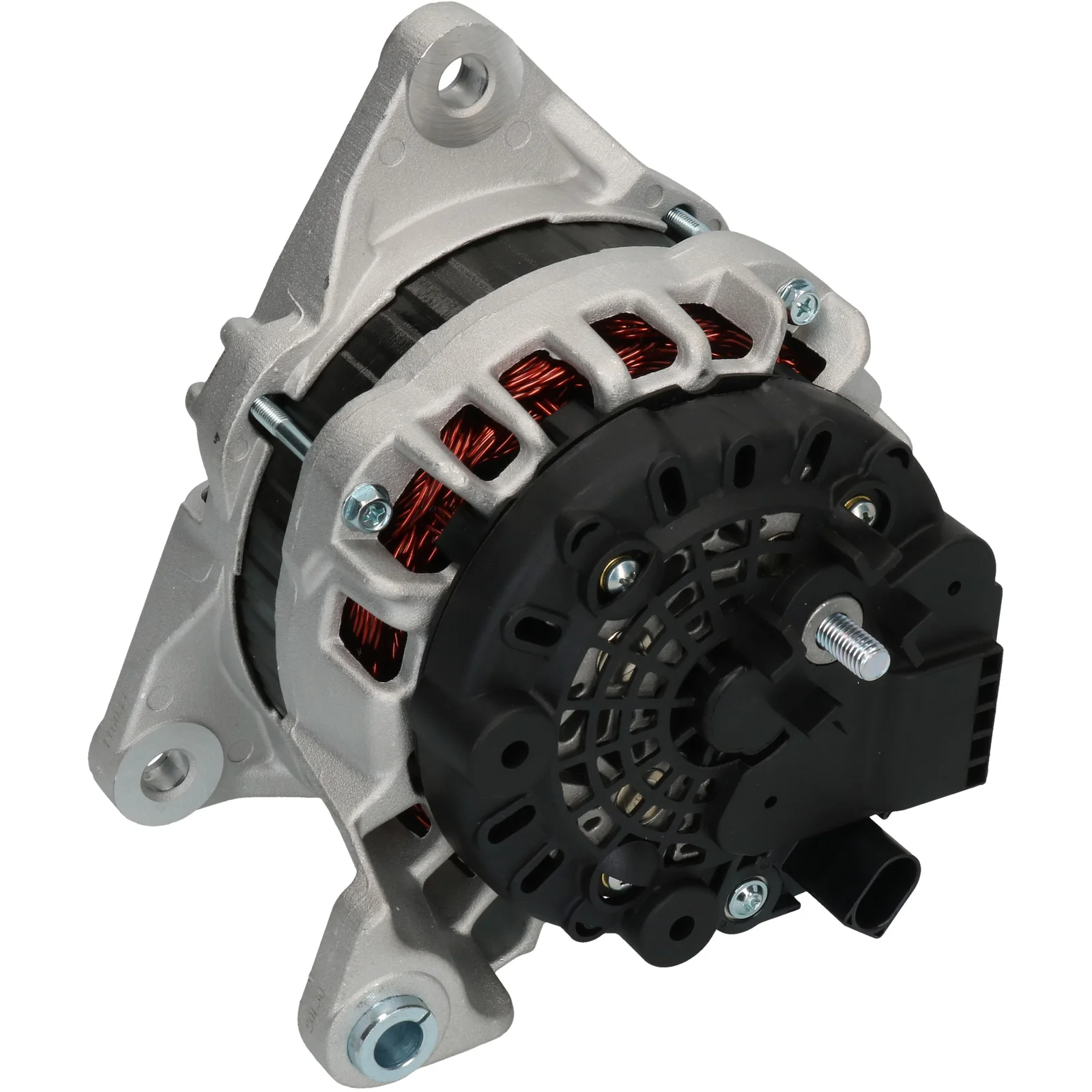

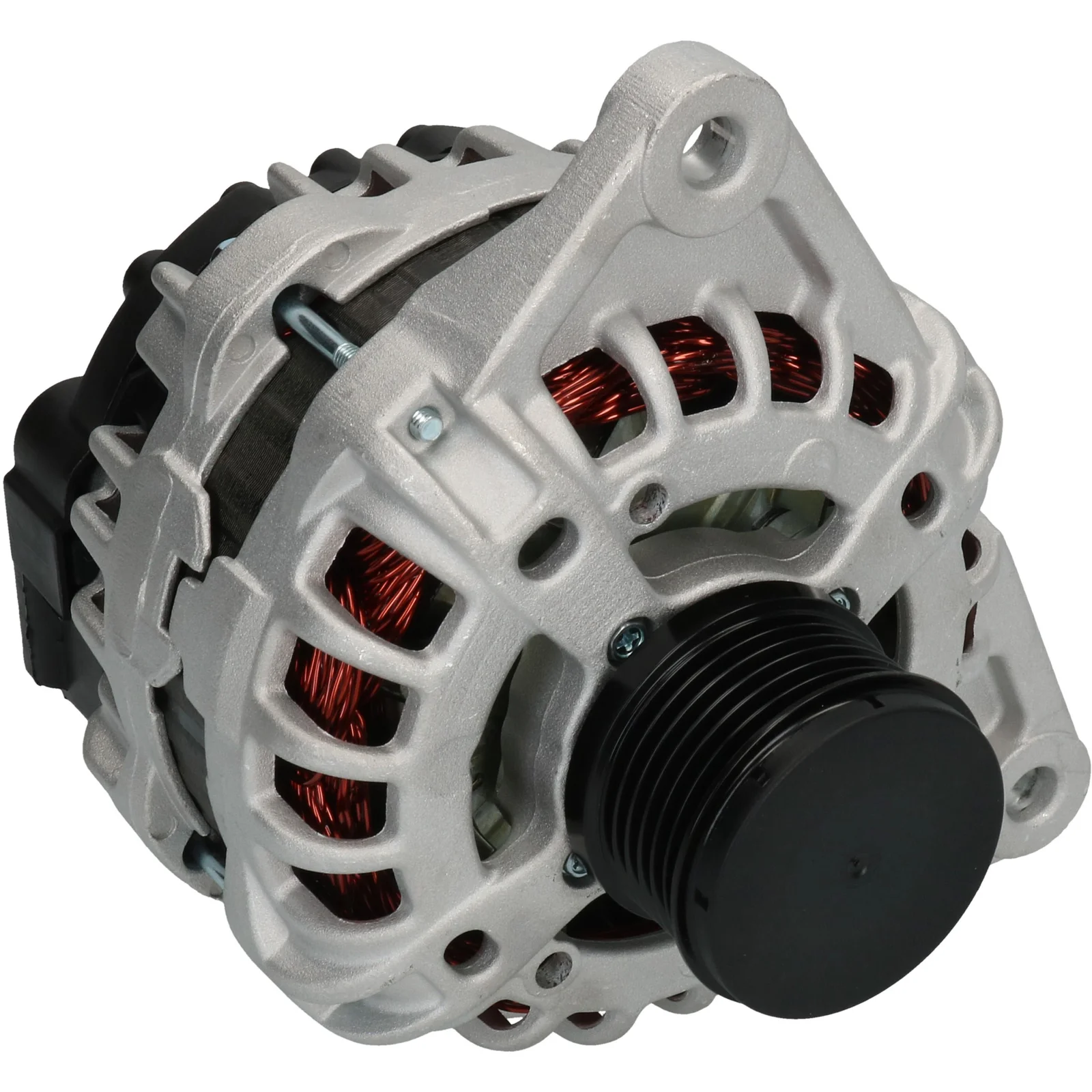

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 150, Rotation: CW, Mounting bracket Distributor: 83.50

Description

Alternator 12V-150A, (LIN) 12V - 150A, 6-groove, (LIN) For Yourex product order 90-255-0939

Voltage: 14
Amp: 150
Pulley distance: 38.00
Width/holder arm: 14.00
Mounting bracket distance: 83.50
Bracket hole: 10.50
Belt adjustment bracket hole position: 10
Belt adjustment bracket hole 1: 11.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL174
Total length mm: 180.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Files

  • OEM
    F000 BL0 777, F000 BL0 778, F000BL0777, F000BL0778, F032116035, 1986A01984, 116035, 5801580939

  • Normalised article numbler
    a0668pr, a0668s, a0668seg, cal10541, dra1656, f000bl0777, f000bl0778, f032116035, 8el015637371, 1986a01984, 20895n, 116035, 287617, 443395, 444278, 12090892, 505506150, 5801580939
  • Description
    Alternator 12V-150A, (LIN) 12V - 150A, 6-groove, (LIN) For Yourex product order 90-255-0939

    Voltage: 14
    Amp: 150
    Pulley distance: 38.00
    Width/holder arm: 14.00
    Mounting bracket distance: 83.50
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 10
    Belt adjustment bracket hole 1: 11.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL174
    Total length mm: 180.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Files

  • Suitable for these vehicles

    • OEM
      F000 BL0 777, F000 BL0 778, F000BL0777, F000BL0778, F032116035, 1986A01984, 116035, 5801580939

    • Normalised article numbler
      a0668pr, a0668s, a0668seg, cal10541, dra1656, f000bl0777, f000bl0778, f032116035, 8el015637371, 1986a01984, 20895n, 116035, 287617, 443395, 444278, 12090892, 505506150, 5801580939
